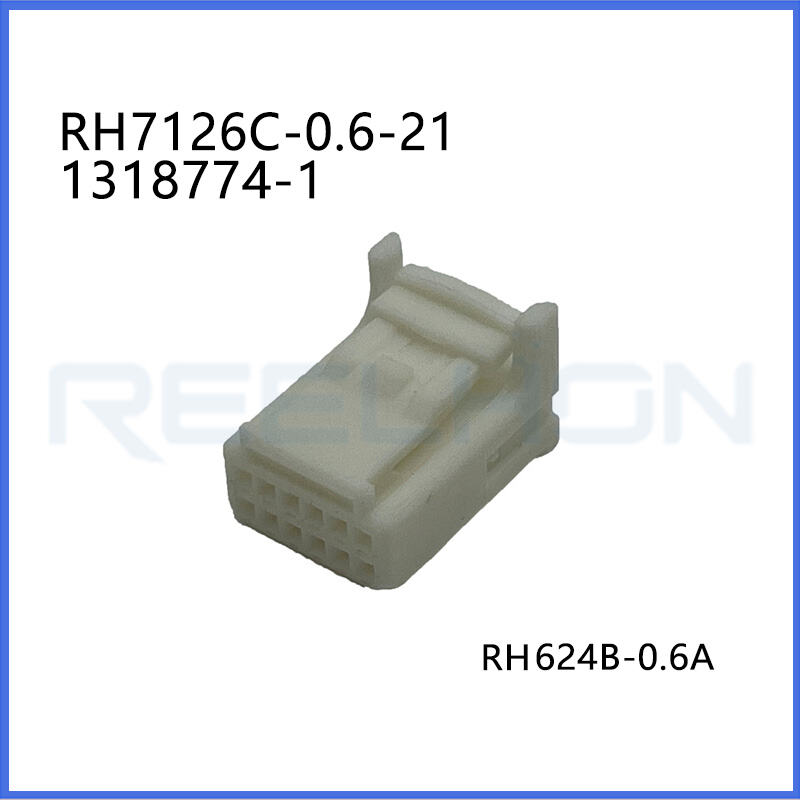

RH7126C-0.6-21/1318774-1 12 V, 12 Position, Automotive Housing for Female Terminals

1. Overview and Primary Application

The RH7126C-0.6-21/1318774-1 is a 12-position automotive-grade connector housing designed for female terminals. Despite the "16 Hole" mention in the product category field, all technical specifications confirm 12 positions arranged in two rows. This housing serves as a non-sealed protective casing for receptacle-type contacts, enabling secure electrical connections in wire-to-board, wire-to-device, and wire-to-wire systems. Rated for a nominal voltage architecture of 12 V (operating voltage 12 VDC), it is intended for standard automotive electrical systems. The non-sealable design makes it suitable for interior or protected underhood locations where direct water spray or immersion is not expected.

2. Mechanical and Housing Construction

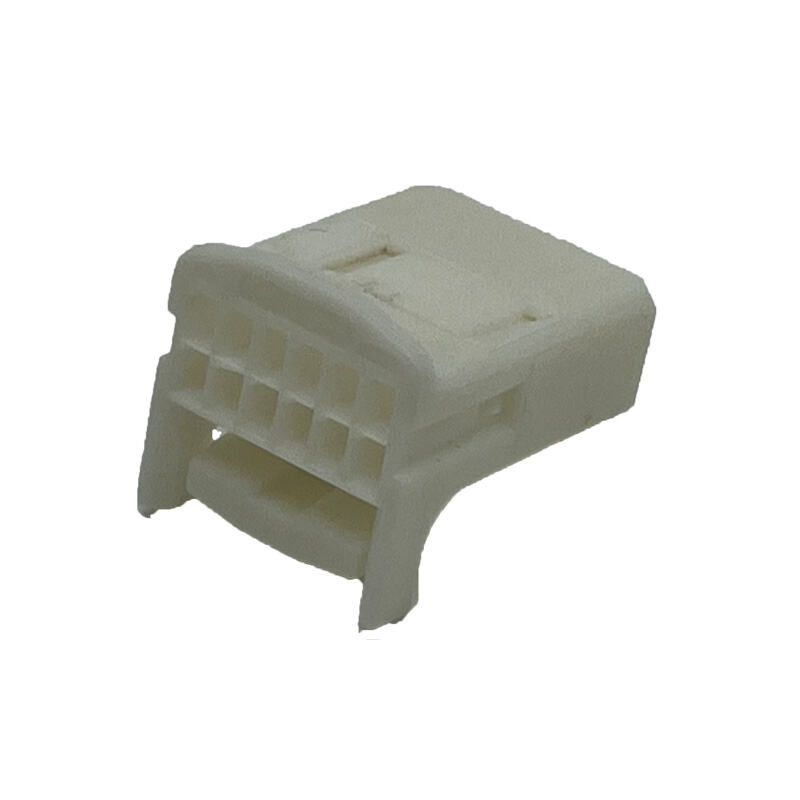

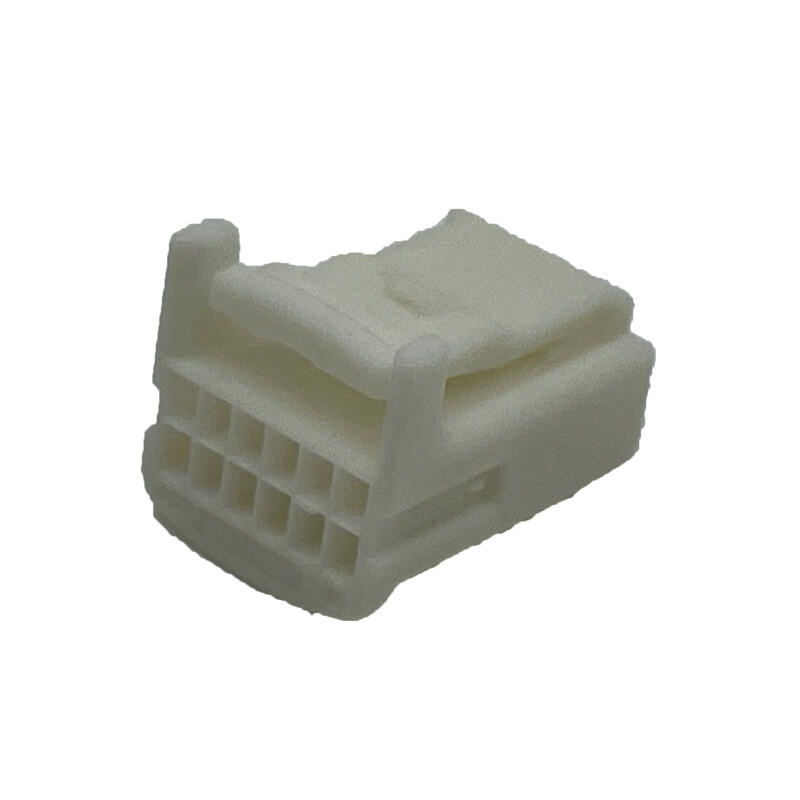

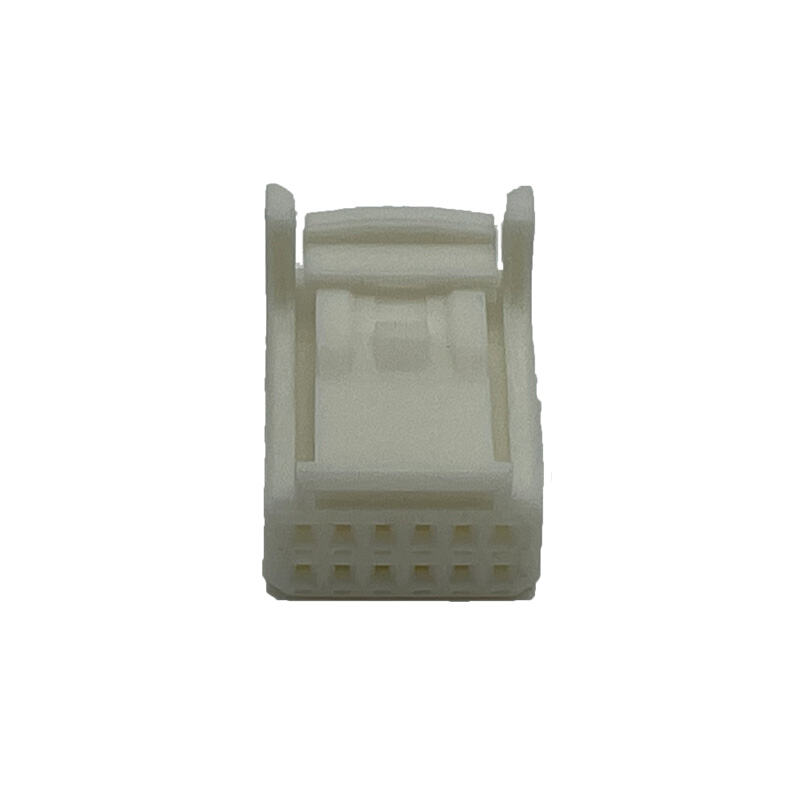

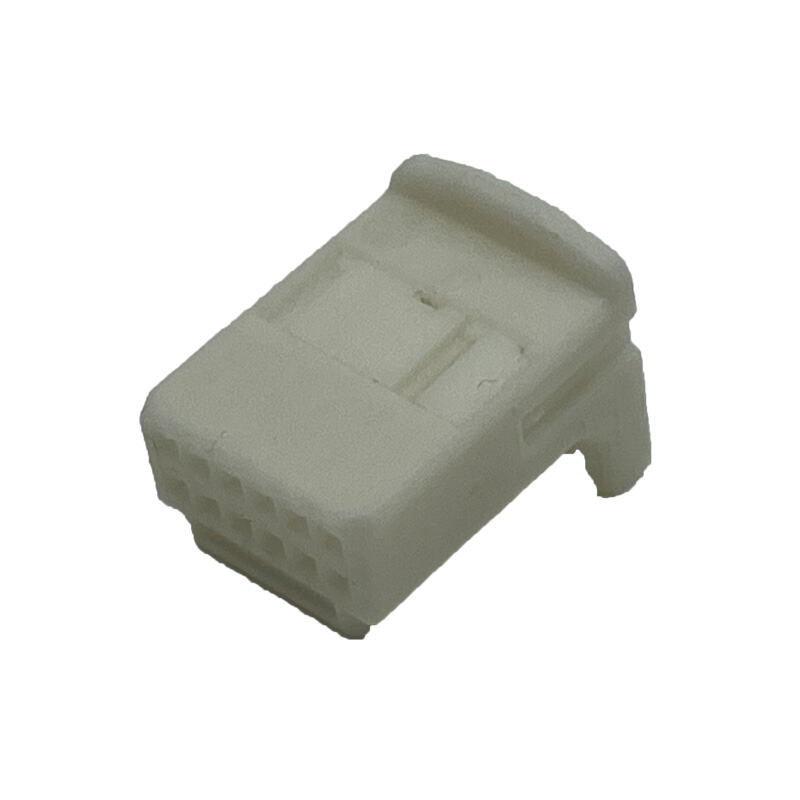

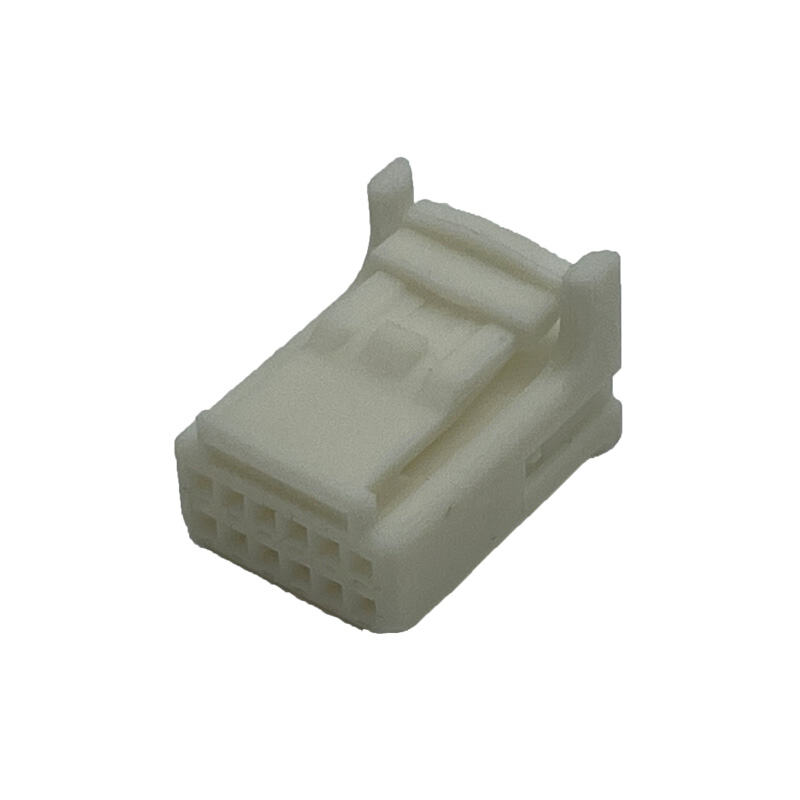

The housing features a rectangular shape, a common form factor for multi-position automotive connectors. It is molded from Polybutylene Terephthalate (PBT), a thermoplastic polyester known for high mechanical strength, dimensional stability, and resistance to heat, chemicals, and automotive fluids. The natural (uncolored) primary product color indicates no added pigment, which is typical for standard-grade PBT materials.

Key mechanical attributes include:

Primary locking feature: Locking lance. This integral molded feature deflects during terminal insertion and snaps behind the terminal shoulder to provide retention.

Mating alignment: With polarization. The housing includes polarization ribs or keyways to ensure correct orientation with the mating header, preventing misinsertion.

Cable exit angle: 180° (straight/inline). Cables enter and exit along the same axis, simplifying harness routing.

Strain relief: Without. No integrated strain relief; external cable management may be required in high-vibration applications.

Connector mounting type: Cable mount (free-hanging). Designed for attachment to wires and cables, not for panel or direct PCB mounting.

3. Contact and Electrical Specifications

The housing accommodates receptacle-type contacts with a contact size of 0.64 mm and a mating tab width of 0.64 mm (0.025 in). This 0.64mm terminal system is a widely adopted industry standard for low-to-medium current automotive signal and power circuits (typically 2-5A continuous). The connector is not a mixed or hybrid type, meaning all 12 positions accept the same contact size and type.

Electrical parameters are strictly defined:

Nominal Voltage Architecture: 12 V

Operating Voltage: 12 VDC

These ratings confirm the housing is intended for 12V DC electrical systems common in passenger cars, light trucks, motorcycles, and other 12V-based vehicles. It should not be used in 24V or higher systems without derating evaluation.

4. Configuration and Dimensional Data

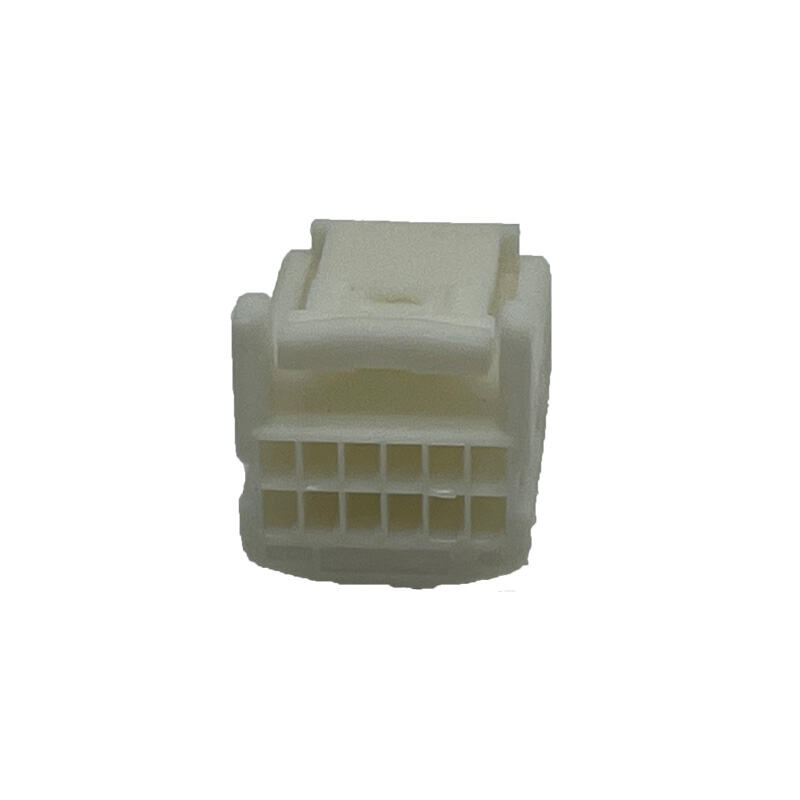

The housing provides 12 positions arranged in 2 rows. Key dimensional specifications are:

Centerline (pitch): 2.2 mm (0.087 in). This tight pitch allows for a compact connector design while maintaining adequate creepage and clearance for 12V applications.

Row-to-row spacing: 3 mm (0.118 in)

Product length: 15.4 mm (0.61 in)

Product width: 21 mm (0.83 in)

Connector height: 15.8 mm (0.62 in)

The 2-row configuration with 2.2 mm pitch and 3 mm row spacing results in a compact rectangular footprint, making it suitable for space-constrained automotive modules such as body control units, interior lighting assemblies, door modules, or HVAC controls.

5. Environmental and Thermal Performance

The operating temperature range is -30 to 105 °C (-22 to 221 °F), with a maximum rated temperature of 105 °C. This range covers typical automotive interior applications (dash, cabin, door) and moderate underhood locations not directly attached to the engine block. The housing is explicitly non-sealable (Sealable: No), meaning it does not include provisions for silicone seals, gaskets, or mat seals. Therefore, it must not be used in locations exposed to direct water spray, high-pressure washing, condensation pools, or submersion.

The PBT material offers good resistance to common automotive fluids such as motor oil, gasoline, diesel, coolants, brake fluid, and salt spray at moderate exposure levels. However, the lack of sealing means fluid ingress into contact cavities is possible if the connector is directly wetted. For dry or dust-only environments, this housing performs reliably.
