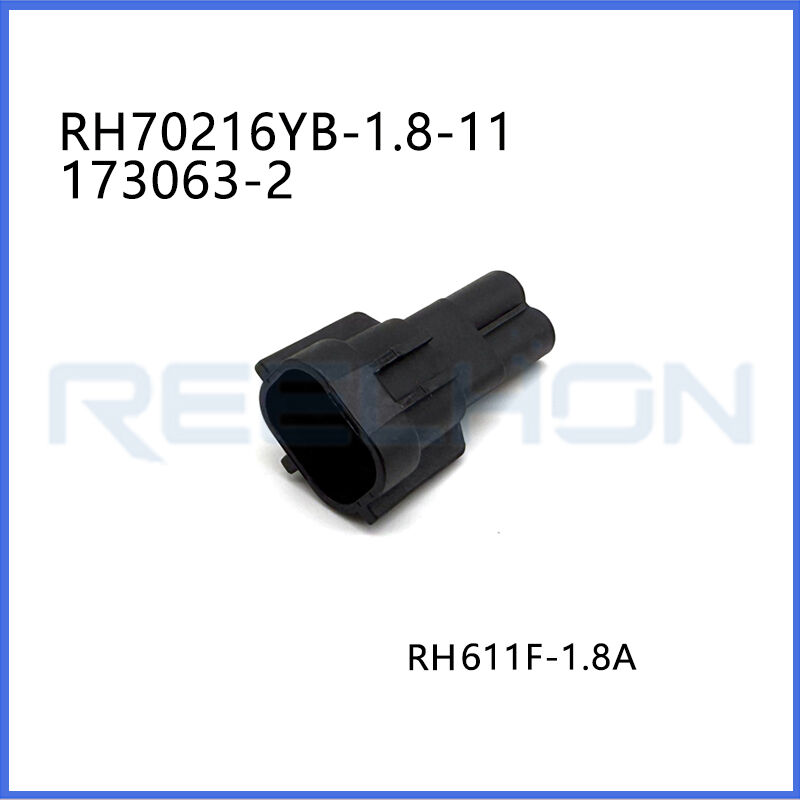

173063-2/70216YB-1.8-11 Automotive Rectangular 2 Pin Wiring Harness Male Housing Connectors

(1) Overview

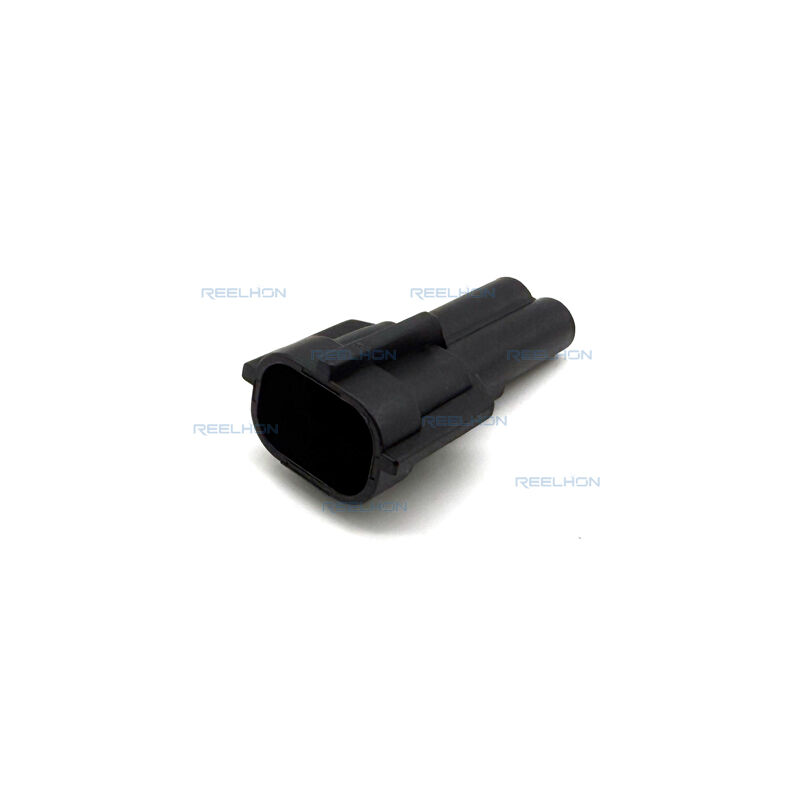

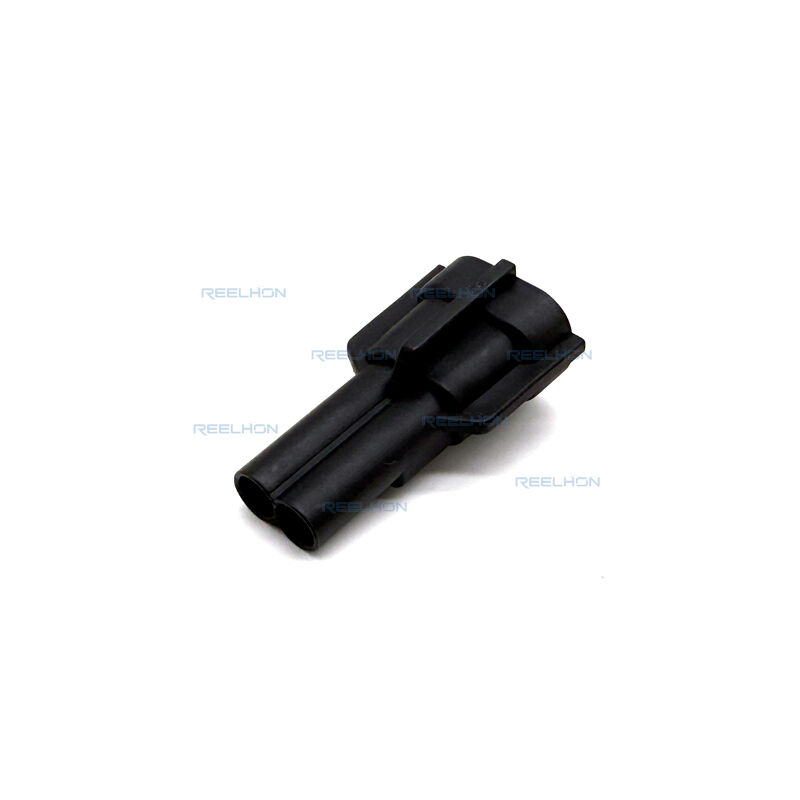

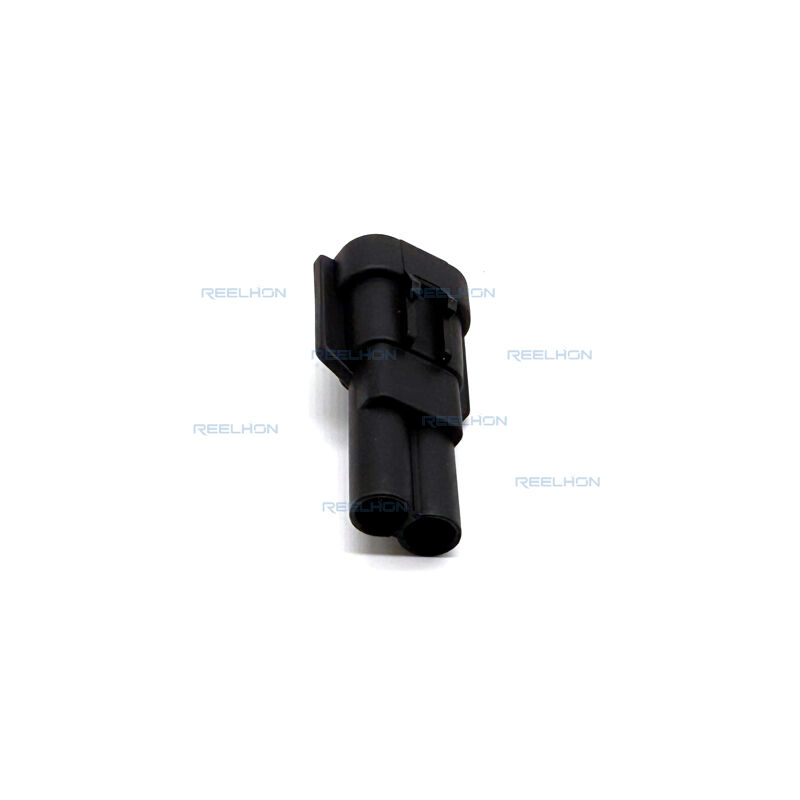

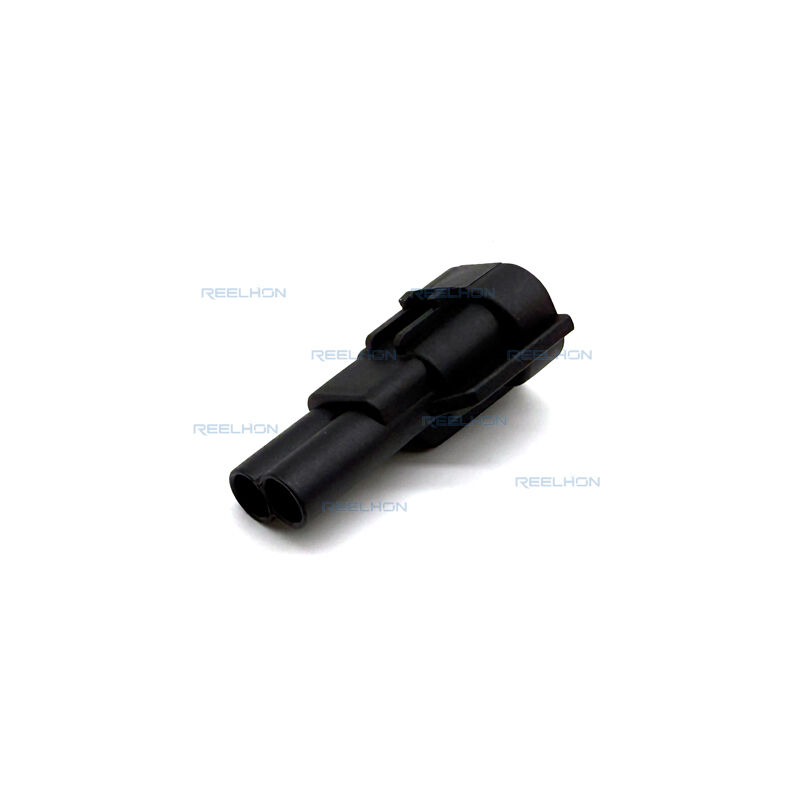

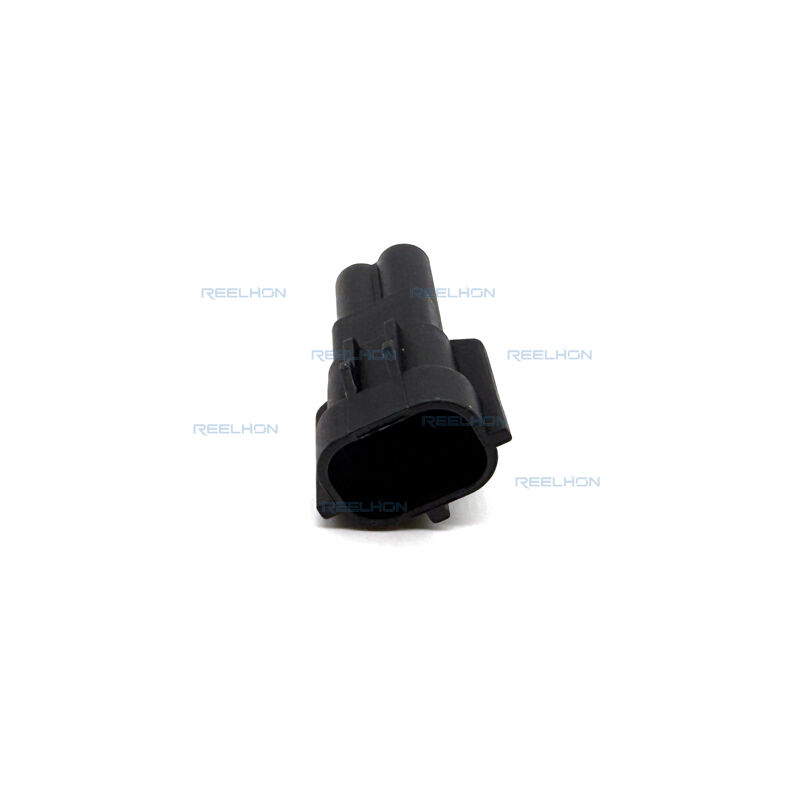

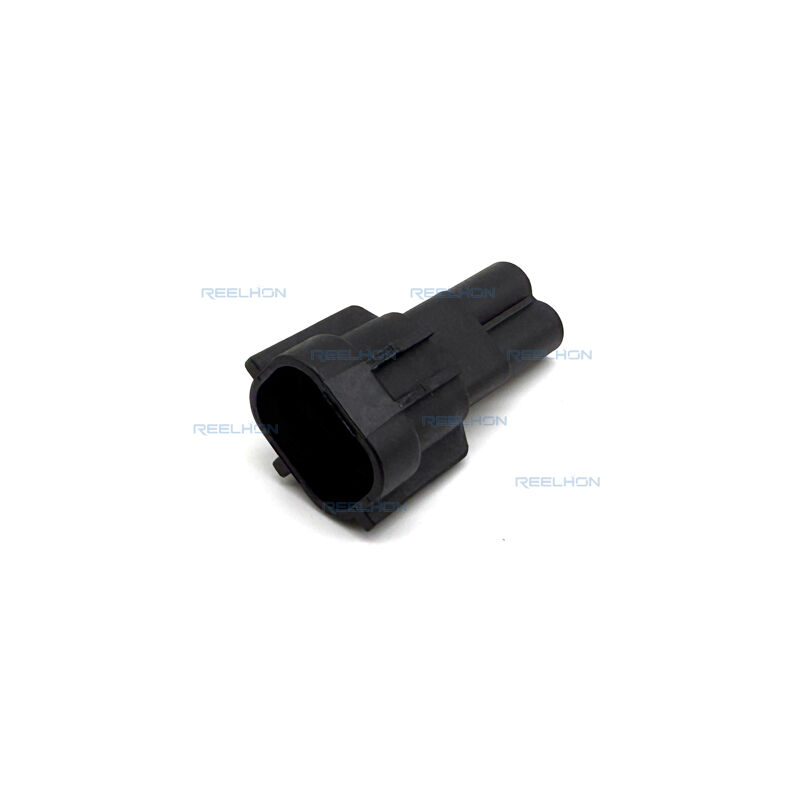

The 173063-2 is a 2-position cap housing from the ECONOSEAL “J”-II connector series. It is designed as a male terminal housing (tab contact housing) for wire-to-wire applications. The housing accommodates .070 series tab contacts. It is intended for 12 V nominal voltage architecture and power circuit applications. The product features a rectangular shape, black color, and is made of PBT (polybutylene terephthalate) material. This cap housing is unsealable and mates with the corresponding plug housing assembly (such as 173090) to form a complete connector assembly.

(2) Key Features and Requirements

Number of Positions: 2 positions in a single row.
Connector System: Wire-to-wire.
Sealable: No. This cap housing is not sealed. When mated with the plug housing (which carries the seal ring), the overall connector assembly provides water-tight sealing. The cap housing itself does not have a seal ring.
Terminal Type: Male (tab) contacts. Accepts tab width of 1.8 mm [.071 in].
Housing Material: Polybutylene Terephthalate (PBT). The specification also allows heat-resistant 6/6 Nylon resin, but the product page specifies PBT.
Primary Product Color: Black.
Mounting Type: Cable mount (free-hanging). No stress relief.
Outage Angle: 180°.
Mating Alignment: Provided with polarization feature.
Centerline (Pitch): 4.8 mm [.189 in].
Operating Temperature Range: -30°C to +105°C (including temperature rise due to energized operation).
Nominal Voltage: 12 V DC. Working voltage is 12 VDC.
Circuit Application: Power.
UL Flammability Rating: UL 94HB.
Packaging: Bag, quantity 100.
Repairability: Serviceable.
Terminal Position Assurance: No.
Connector keying code: None.
Dimensions: Height 13.9 mm [.547 in], Length 18.3 mm [.72 in], Width 33.5 mm [1.32 in].

(3) Environmental and Regulatory Compliance

Based on the product page information:
EU RoHS (2011/65/EU): Compliant, including Delegated Directive 2015/863/EU.
EU ELV Directive 2000/53/EC: Compliant.
China RoHS 2: No restricted substances above threshold.
EU REACH (EC) No. 1907/2006: Compliant, SVHC-free according to ECHA Candidate List of February 2026 (253 substances).
Halogen Content: Low halogen – Br, Cl, F < 900 ppm per homogeneous material. Also BFR/CFR/PVC free.
Solder Process Capability: Not suitable for soldering processes.

(4) Performance Requirements (from ECONOSEAL “J”-II Specification for .070 series connectors)

The following performance data apply to the connector system when assembled with appropriate contacts and mating plug housing:
Appearance: No cracks, damage, breakage, loose parts, rust, or fusion detrimental to function.
Insertion Force of Contact: 2.94 – 7.85 N (initial for .070 series)
Extraction Force of Contact: 2.94 – 7.85 N (initial for .070 series)
Insertion Force of Connector (2 positions): 49 N maximum
Extraction Force of Connector (2 positions): 39.2 N maximum
Termination Resistance (Low Level): 3.0 mΩ max (initial), 10 mΩ max (final after environmental tests)
Termination Resistance (1 A): 3 mV/A max (initial), 10 mV/A max (final)
Insulation Resistance: 100 MΩ min
Dielectric Strength: 1000 V AC for 1 minute, no abnormality
Handling Touch: No obstruction felt during insertion/extraction
Crimp Tensile Strength (minimum):
0.2 mm² – 68.6 N, 0.3 mm² – 78.5 N, 0.5 mm² – 88.3 N, 0.85 mm² – 127.0 N, 1.25 mm² – 177.0 N, 2.0 mm² – 265.0 N, 3.0 mm² – 294.0 N
Contact Retention Force: 78.5 N min
Housing Retention Force: 98.1 N min
Water-tight Sealing (when mated with plug housing): 49 kPa min (initial), 29.4 kPa min (final)
Heat Resistivity: 120±2°C for 120 hours
Cold Resistivity: -50±5°C for 120 hours

“Kojiri” Resistivity: 196 N·cm torque applied during unmating, 25 cycles front-rear and 25 cycles right-left
Cleaning Solvent Resistivity: 50±2°C for 1 hour in windshield cleaning solvent
Oil Resistivity: Immersion in engine oil (50°C, 1 hour), kerosene (room temp, 5 min), gasoline (room temp, 1 hour), then dried
Ozone Resistivity: 50±5 ppm ozone for 24 hours at 40±2°C, no cracking
Weather Aging: 150 hours in sunshine carbon weathermeter at 63±3°C
Dust Bombardment: 1.5 kg Portland cement or Kanto Loam powder dispersed for 1 hour
Temperature Rising: Test current per wire size with reduction coefficient. For 2 positions: coefficient 0.75. For 0.5 mm² wire, test current = 11.0 A × 0.75 = 8.25 A; temperature rise measured at wire crimp, must be ≤65°C above ambient.
Water Splash: 48 cycles of 40 min at 120±3°C followed by 20 min room temperature water spray
Current-loaded Vibration: 44 m/s² (4.5G), 20-200 Hz sweep, 30 hours X, 30 hours Y, 40 hours Z axis, at 90°C ambient. During vibration, test current applied (45 min ON, 15 min OFF) for 100 cycles.

(5) Applicable Wire Sizes (for .070 series tab contacts used with this housing)

From the specification for .070 series tab contacts:

Wires shall be AV or AVS type per JIS C 3406.

(6) Mating and Accessories

The 173063-2 cap housing mates with the corresponding plug housing assembly, such as 173090 (2-position plug housing). The plug housing carries a seal ring to provide water-tight connection when mated. Compatible tab contacts include 171631 and 171661 series. Rubber plugs are used on wires for sealing when assembled with the plug housing. Cavity plugs are available for unused cavities. The cap housing itself is unsealable.

(7) Conclusion

The 173063-2 is a 2-position, black, male terminal cap housing for wire-to-wire power applications in 12 V automotive systems. It is part of the ECONOSEAL “J”-II series, offering reliable performance from -30°C to +105°C. The housing is made of PBT with UL 94HB flammability rating. It meets RoHS, ELV, REACH, and low halogen requirements. When mated with the corresponding plug housing and assembled with appropriate contacts and rubber plugs, the system provides water-tight sealing tested to 49 kPa. The connector is serviceable and packaged in bags of 100 pieces.
