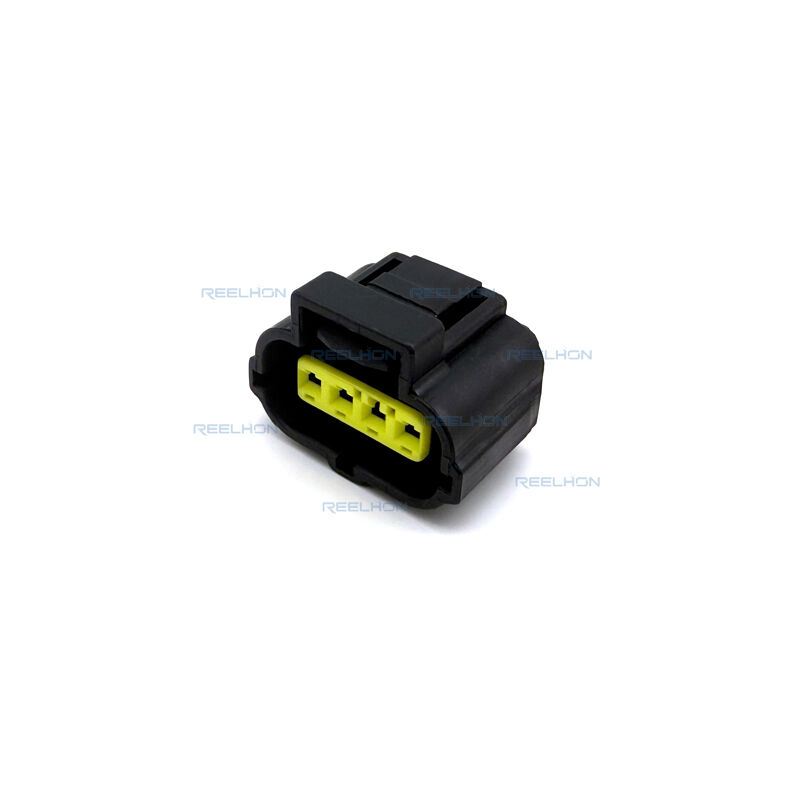

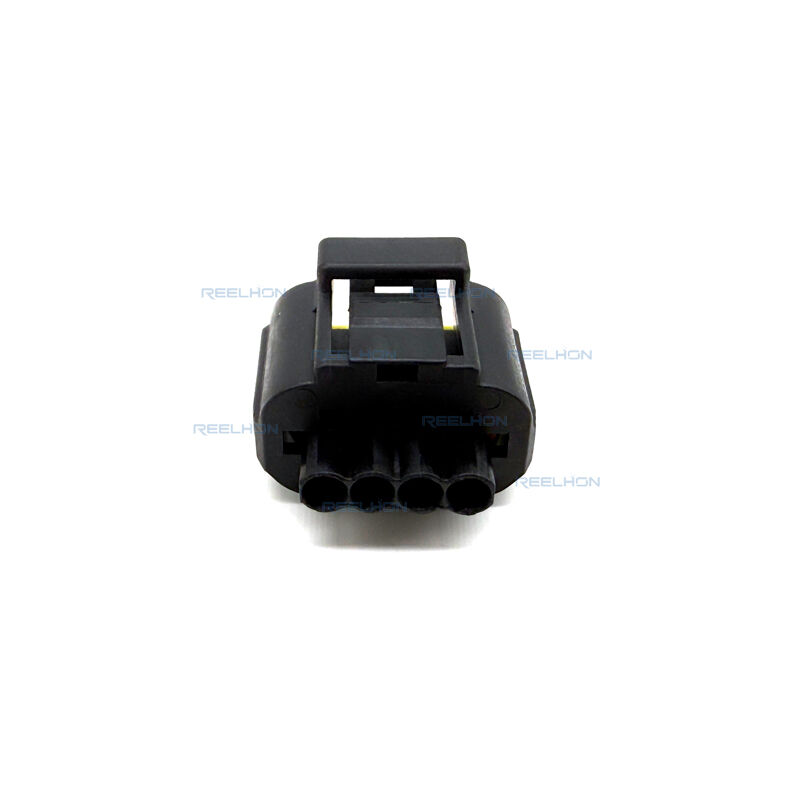

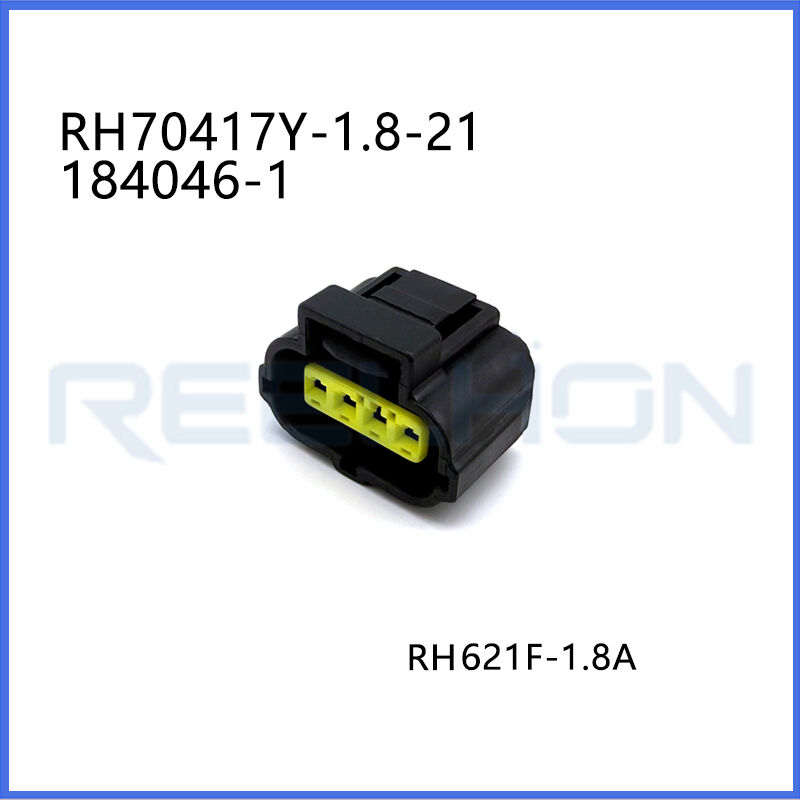

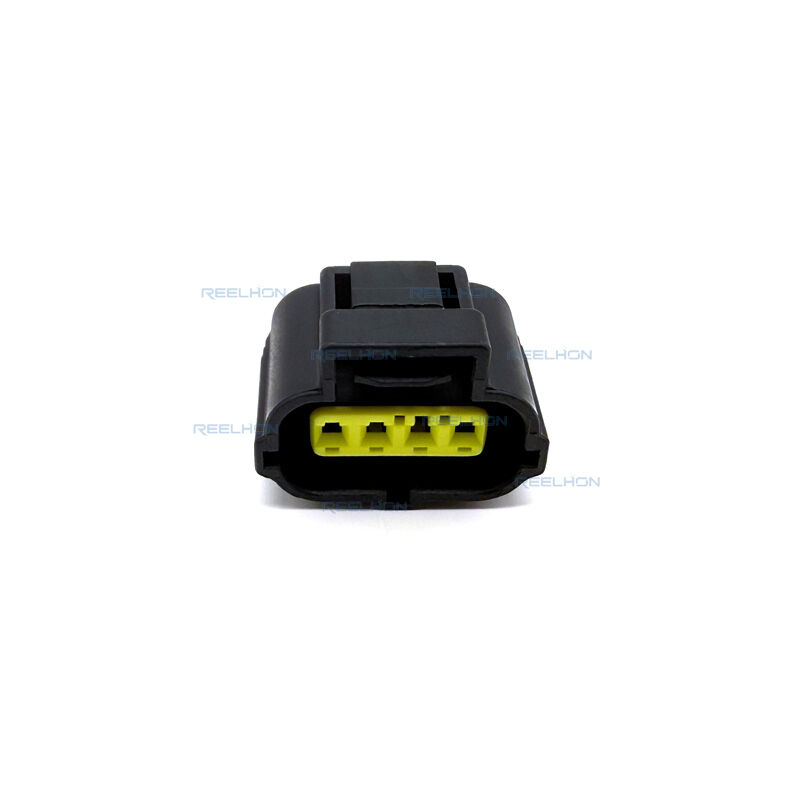

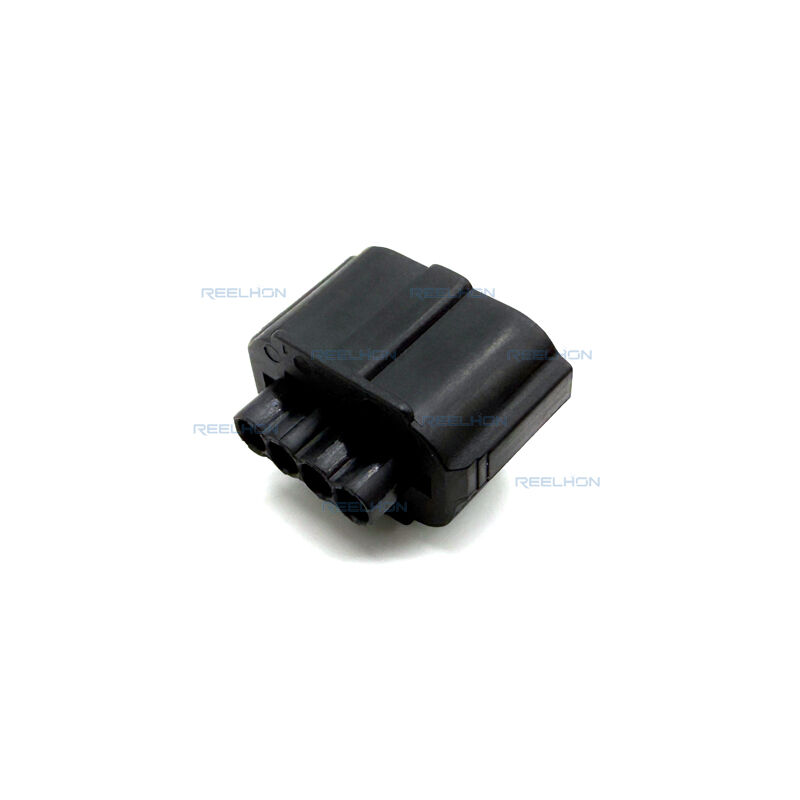

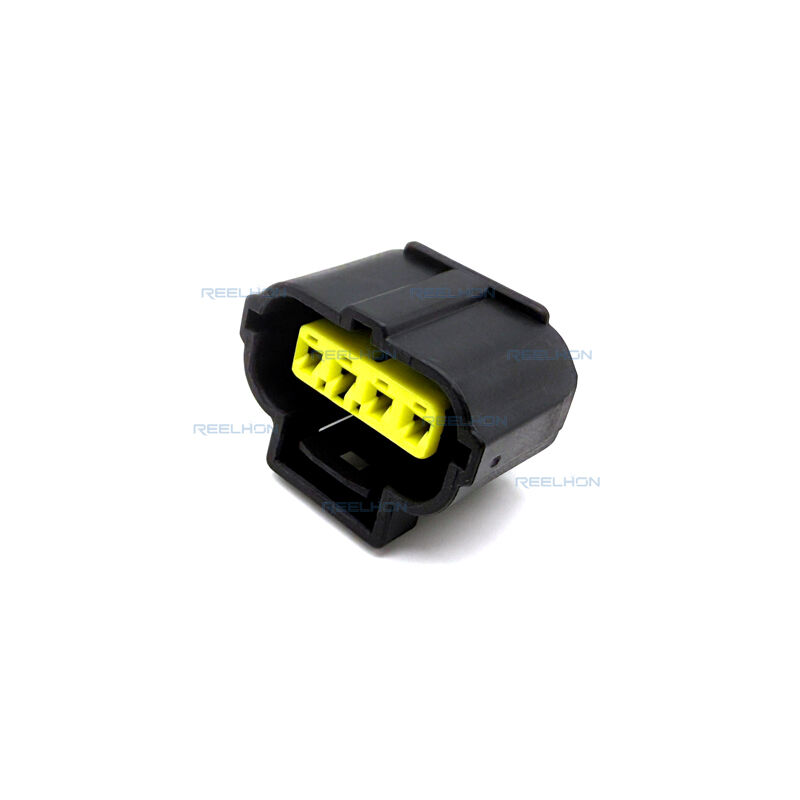

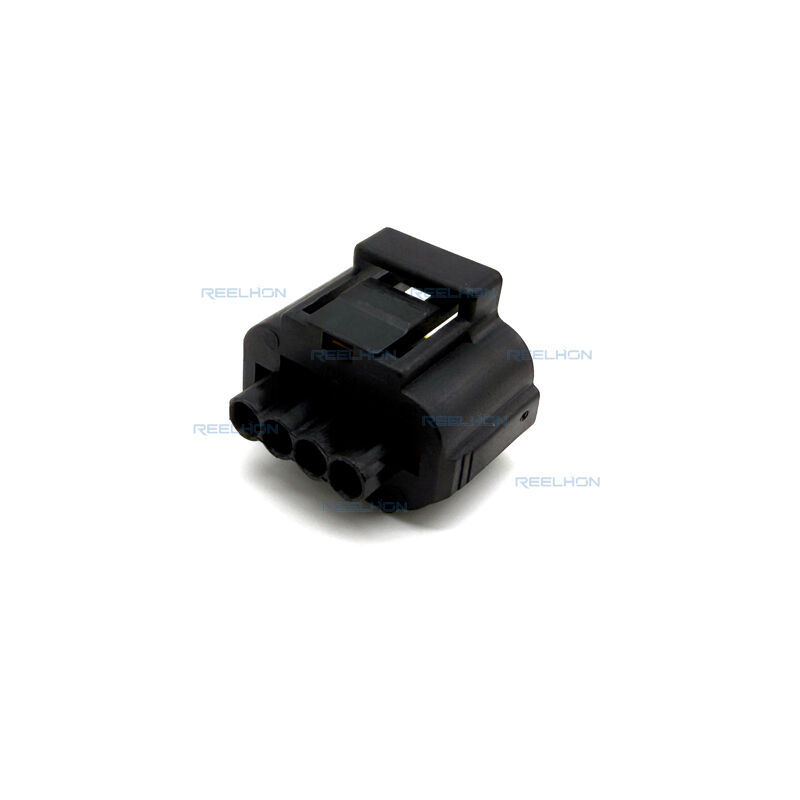

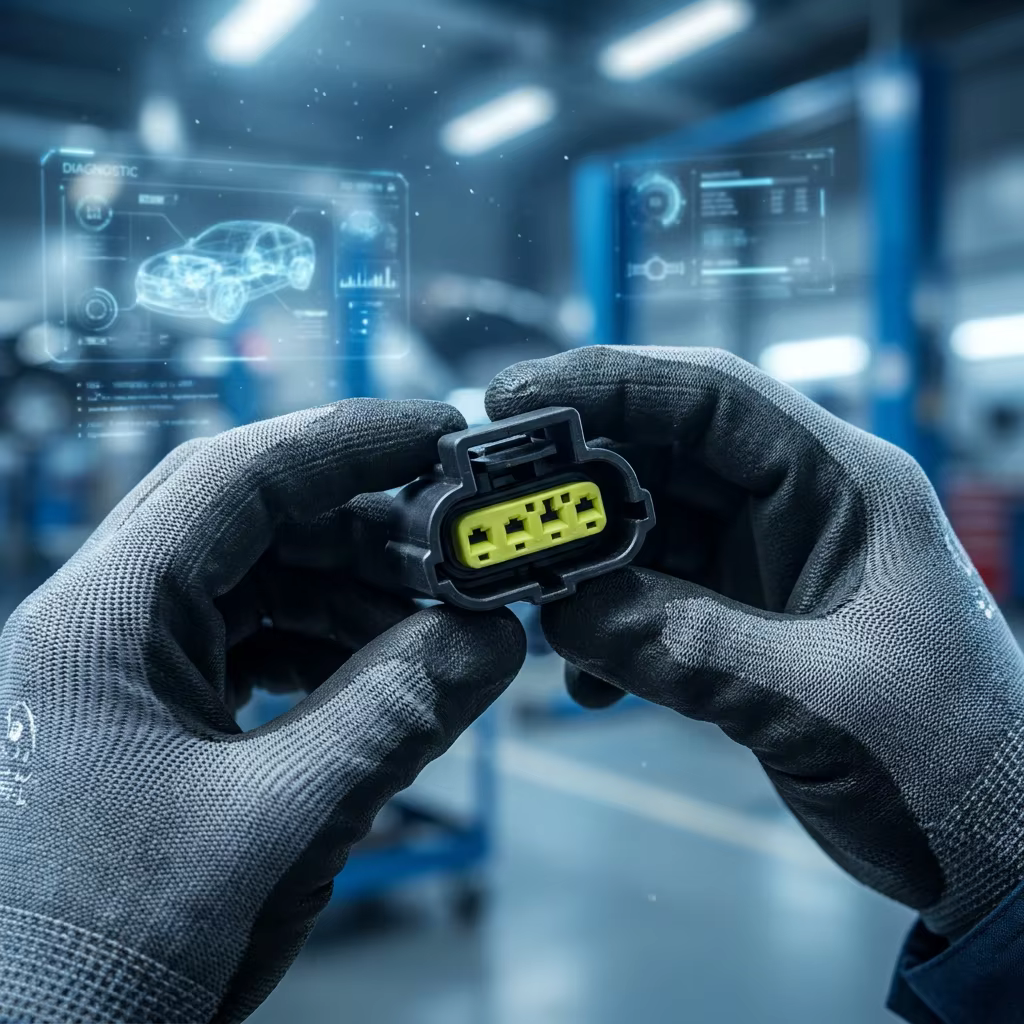

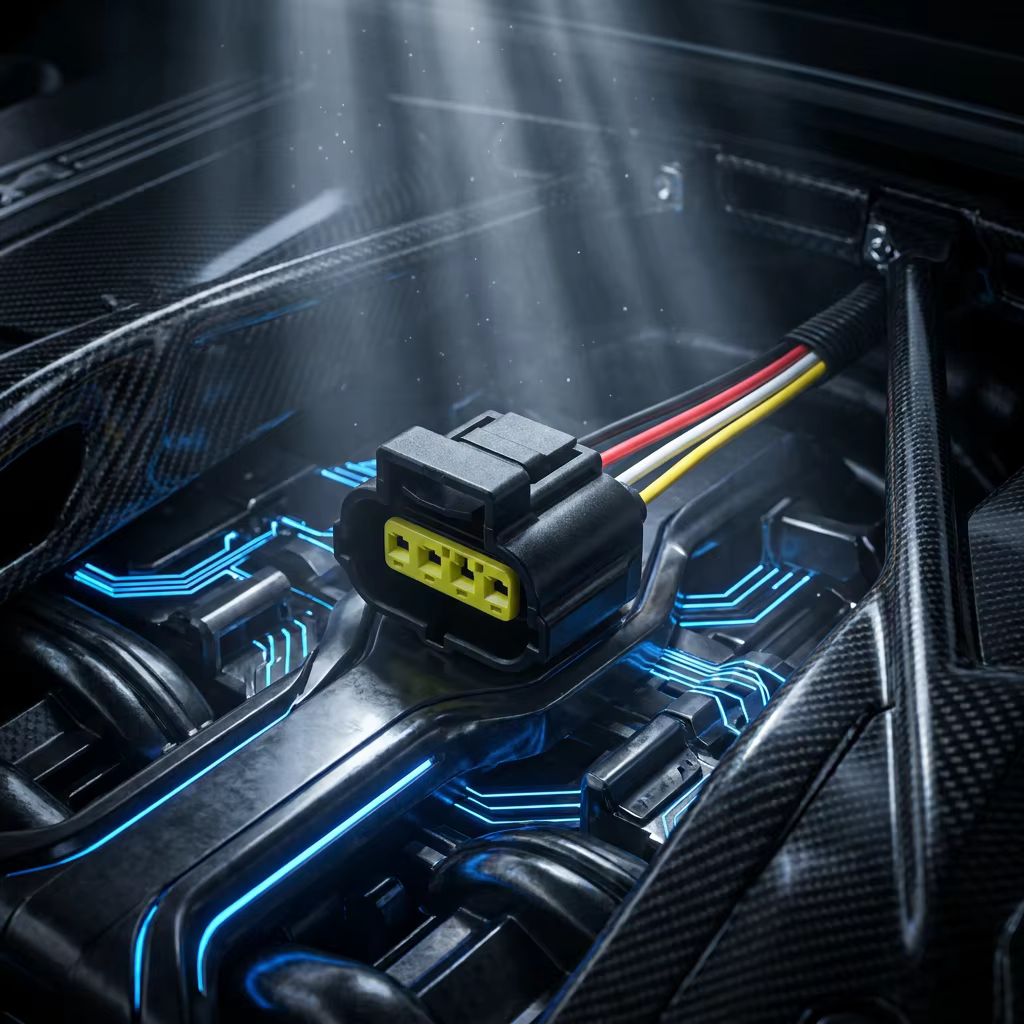

RH70417Y-1.8-21/184046-1 12 V, 4 Position, Automotive Housing for Female Terminals

Detailed Product Description

This product is a 4-position automotive housing specifically designed for female terminals. It operates under a nominal voltage architecture of 12 volts. The housing is sealable, providing protection against environmental contaminants such as moisture and dust. Its operating temperature ranges from -40 °C to 125 °C (-40 °F to 257 °F), making it suitable for harsh automotive environments including engine compartments.

Product Type Features

The connector features a rectangular shape. It is not a mixed or hybrid connector. The connector and housing type is a housing for female terminals. The sealable feature is confirmed as yes. The primary locking feature is located on the terminal. The connector system is wire-to-wire. Additionally, the connector and contact terminate to wire and cable.

Electrical Characteristics

The operating voltage is rated at 125 VDC and also 125 VAC. The nominal voltage architecture for vehicle applications is 12 volts.

Body Features

The cable exit angle is fixed at 180 degrees. The primary product color is black. The connector and keying code is designated as A.

Contact Features

The contact type is a receptacle. The contact size is 1.8 mm. The mating tab width is also 1.8 mm (0.071 inches). The maximum contact current rating is 13 amperes.

Mechanical Attachment

Mating alignment is included. The mating alignment type is keyed. There is no terminal position assurance. Strain relief is added by accessory. The connector mounting type is cable mount, also known as free-hanging.

Housing Features

The housing material is glass-filled PBT. The centerline pitch is 5 mm (0.197 inches).

Dimensions

The connector height is 24.8 mm (0.97 inches). The product length is 32.6 mm (1.28 inches). The product width is 27.6 mm (1.08 inches).

Usage Conditions

The operating temperature range is -40 °C to 125 °C (-40 °F to 257 °F). The maximum operating temperature is 125 °C (257 °F).

Application Guidance

This housing is designed for automotive wiring systems requiring a reliable, sealable connection for female terminals. The 12 V nominal voltage makes it compatible with standard vehicle electrical systems. The 180-degree cable exit allows for straightforward routing in harness assemblies. The keyed mating alignment prevents incorrect connection by ensuring proper orientation. The glass-filled PBT material provides mechanical strength and thermal stability across the wide operating temperature range. The 13 A current rating supports moderate power distribution applications.

Installation Notes

Ensure proper terminal insertion into the housing

The primary locking feature on the terminal must engage correctly

Strain relief is not included but can be added by accessory if required

Verify mating alignment using the keyed feature before final connection

The sealable design requires proper mating with a corresponding sealed connector

Operating temperature should not exceed 125 °C or fall below -40 °C

Compliance and Standards

The product parameters align with common automotive electrical connector standards. The -40 °C to 125 °C temperature range covers engine compartment, under-chassis, and other demanding environments. The 1.8 mm contact size is a standard dimension in many automotive connector systems. The 125 V operating voltage rating provides flexibility for various electrical applications beyond standard 12 V systems.
