RH7026CA-3.5-21 9441292 2 Pin Waterproof Automotive Connector for Volvo Ford Mercedes Ignition Coil ABS Sensor Plug

Company Model: RH7026CA-3.5-21

OE Reference Number: 9441292

Core Specifications:

Number of Positions: 2 (2 Way)

Terminal Size: 2.8 mm x 0.8 mm

Maximum Current: Approx. 25A - 30A

Rated Voltage: 12V / 24V DC

Ingress Protection: IP67

Material & Color: PA66 Glass-Fiber Reinforced (GF) / Black housing with white inner carrier

Operating Temperature: -40°C to +140°C

Certifications: ISO9001, CE

Company Model	RH7026CA-3.5-21
OE Number	9441292
Core Specifications
Number of Positions	2 (2 Way)

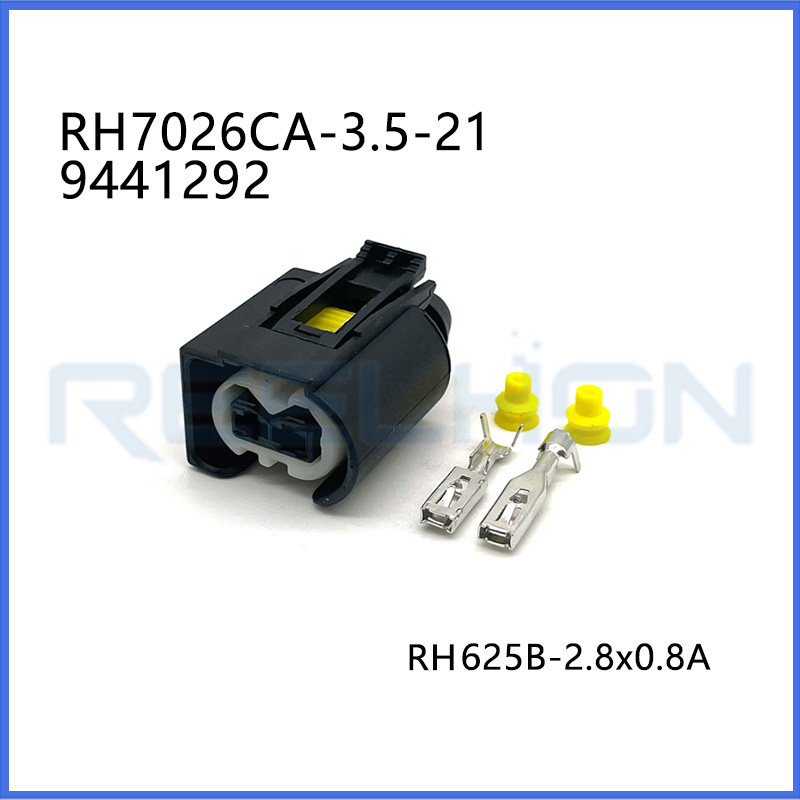

Terminal Size	2.8 mm x 0.8 mm (Matching terminal: RH625B)
Maximum Current	Approx. 25A - 30A (depending on wire gauge, e.g. 2.5mm²)
Rated Voltage	12V / 24V DC (Standard automotive voltage architecture)
Ingress Protection	IP67 / IP6K9K (With excellent radial sealing performance)
Material & Color	PA66 Glass-Fiber Reinforced (GF) / Black housing with white inner carrier
Operating Temperature	-40°C to +140°C
Certifications	ISO9001, CE
Target Market	Europe (Germany/Sweden), North America, South America (Brazil)
Target Audience	Automotive Harness Manufacturers, Engine Component Suppliers, Aftermarket Repair Shops

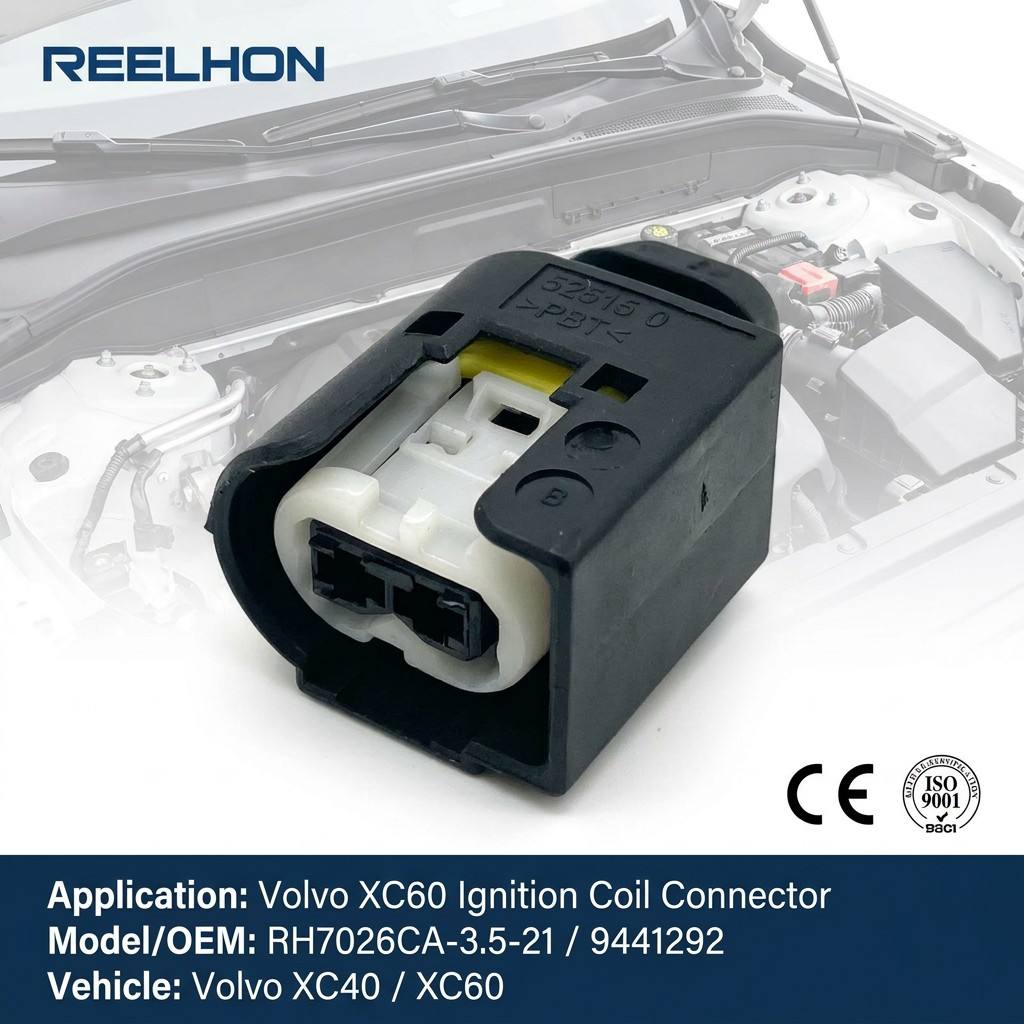

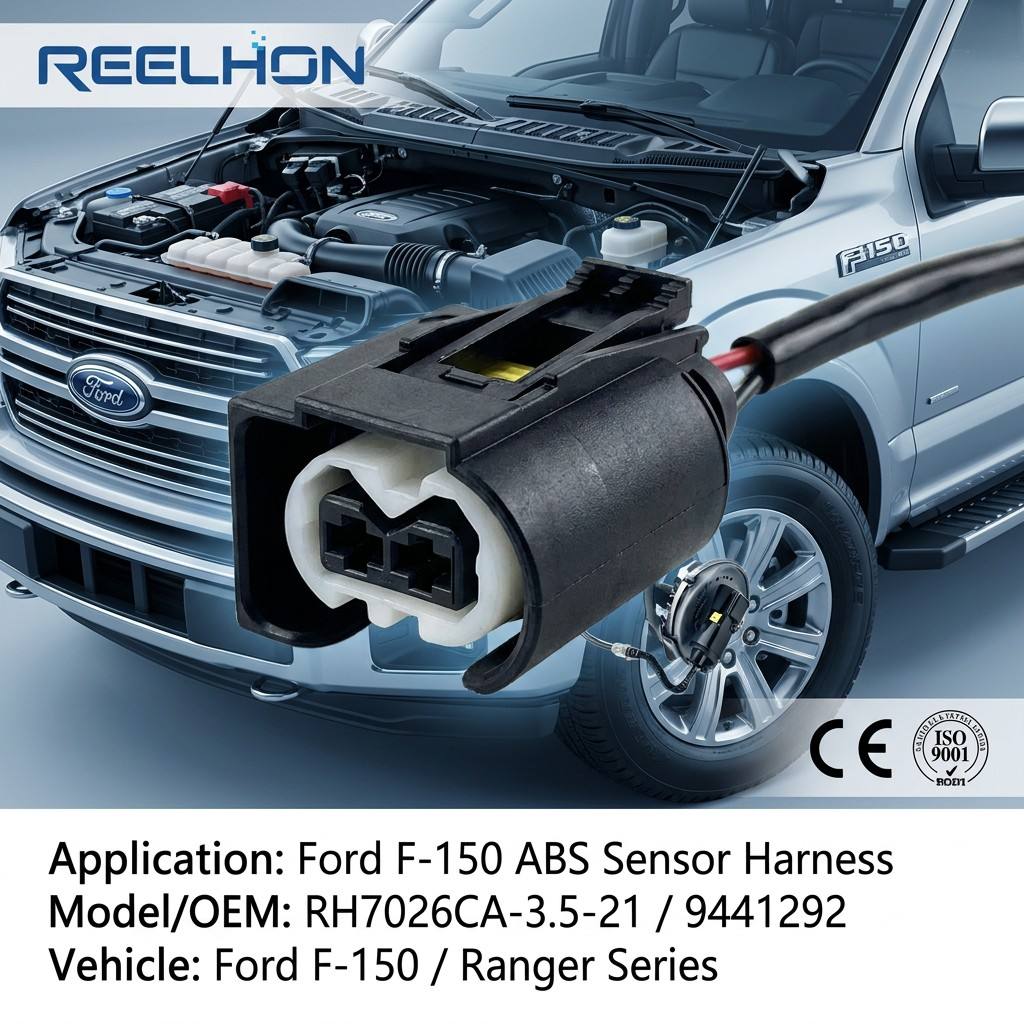

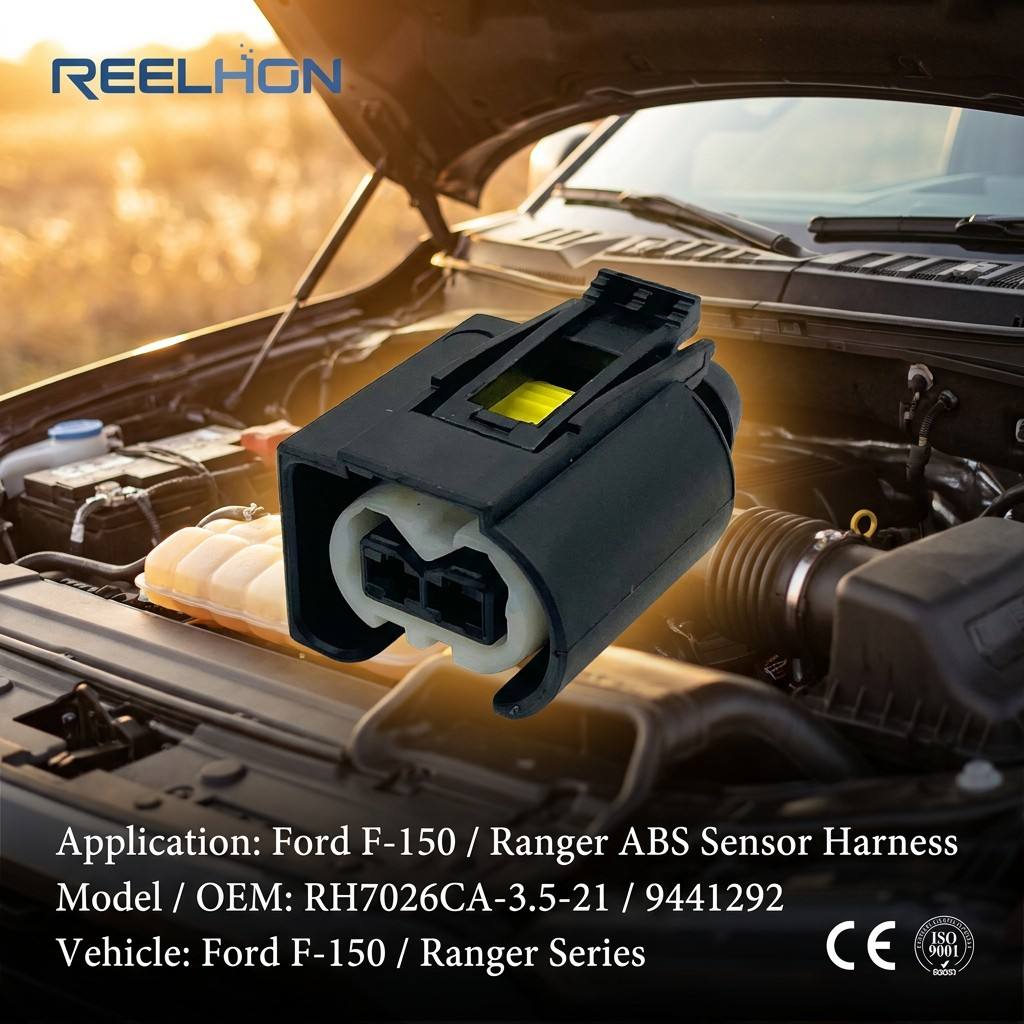

Applicable Models (Cars/Machinery)	Primarily used in Volvo (XC40/XC60), Mercedes-Benz, Ford, and various High-performance Engines
Key Features	High Vibration Resistance, SLK 2.8 Sealed System, Active TPA (Terminal Position Assurance), High Current Capacity

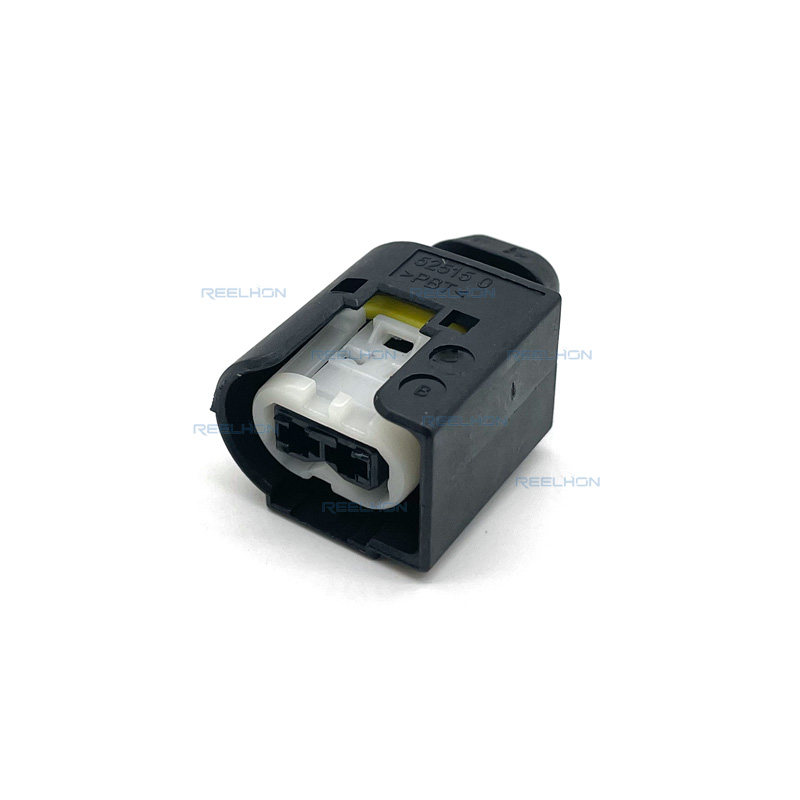

Product Description	2-Way Sealed SLK 2.8 Female Connector Housing, typically used for Ignition Coils and ABS Sensors. Features a 2.8mm blade system and triple-lip radial seals for harsh engine bay environments.
