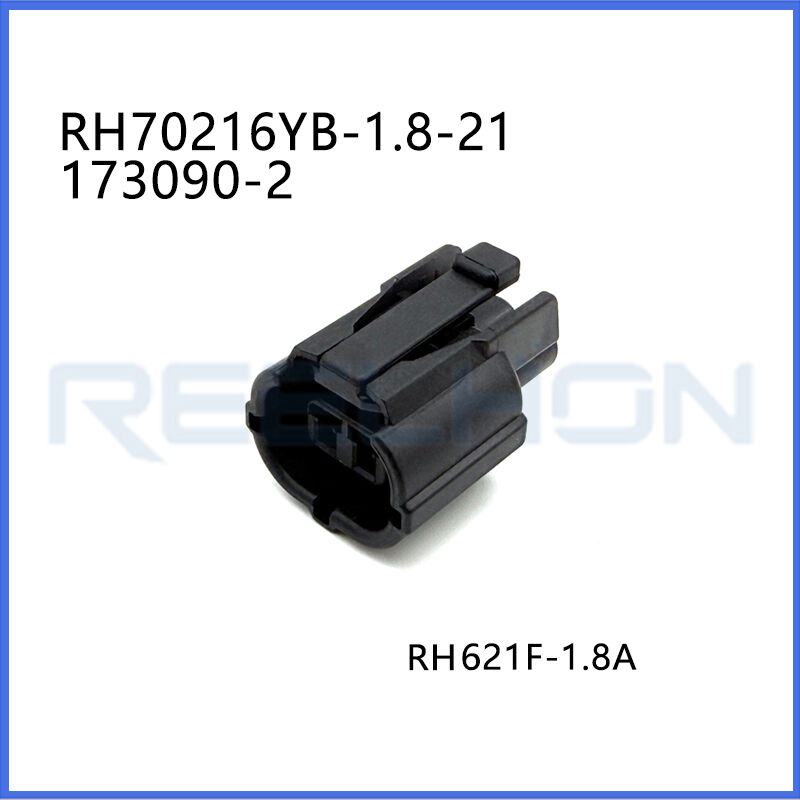

70216YB-1.8-21/173090-2 2 Pin Waterproof Electrical Wire Harness Plug Automotive Sealed Housing Connector

(1) Overview

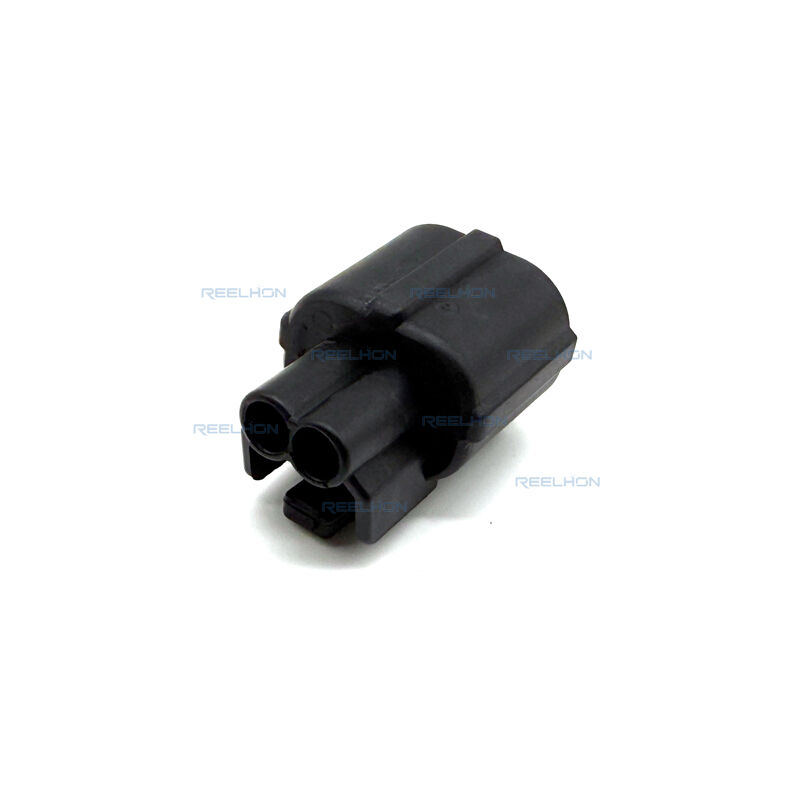

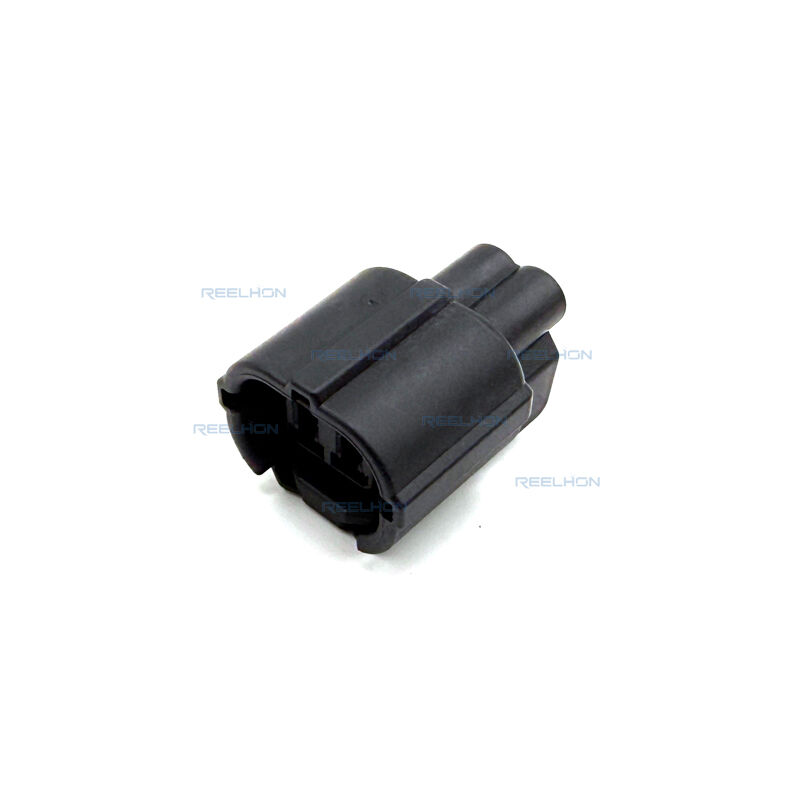

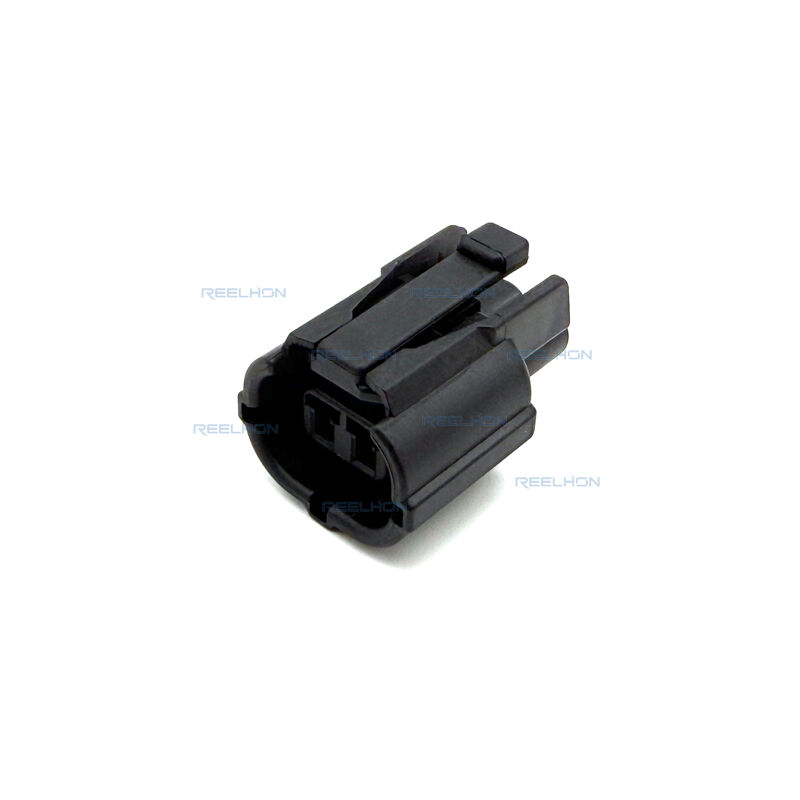

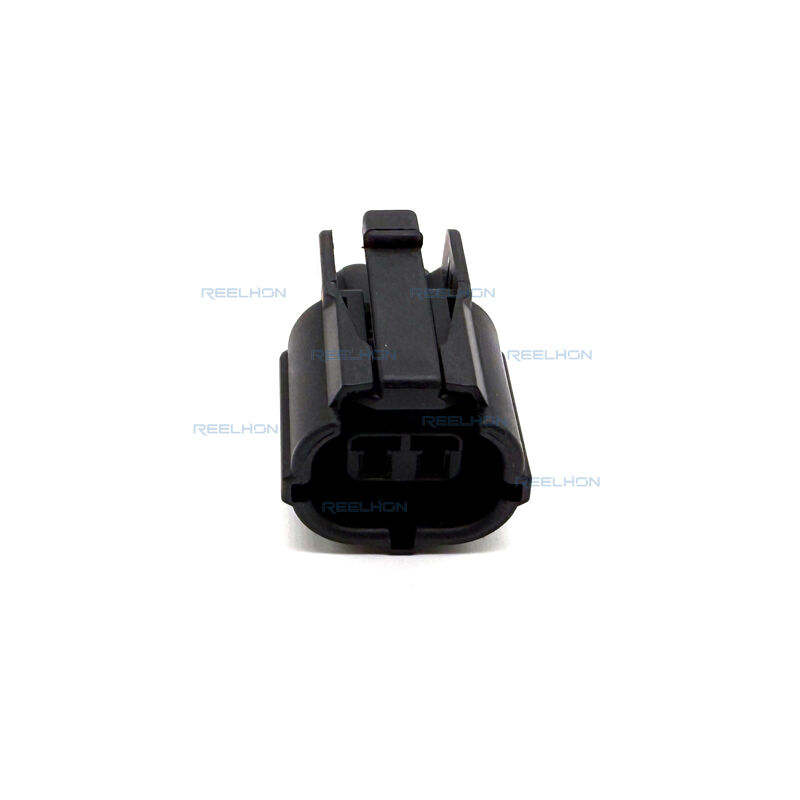

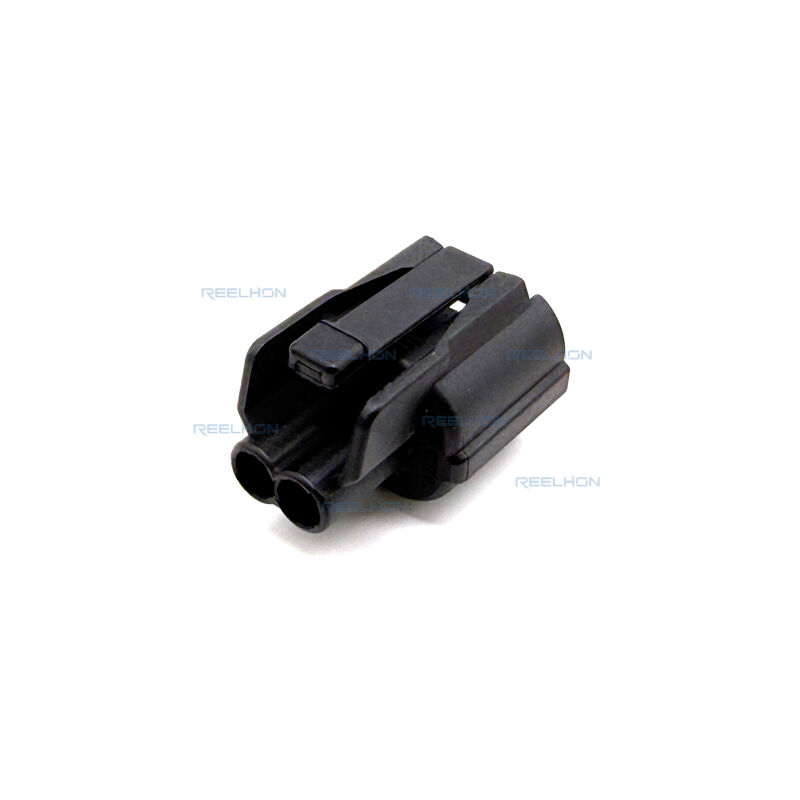

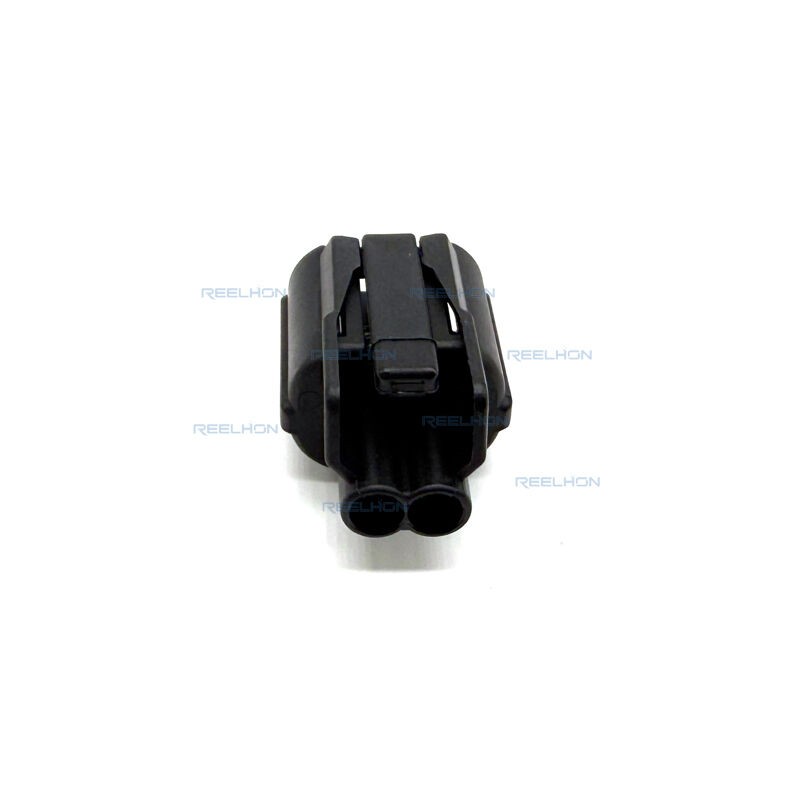

The 173090-2 is a 2-position plug housing assembly from the ECONOSEAL “J”-II connector series. It is designed as a female terminal housing for wire-to-wire applications. The housing accommodates .070 series receptacle contacts and is sealable to provide water-tight performance. The product features a rectangular shape, black color, and is made of glass-filled PBT material. It is intended for 12 V nominal voltage architecture and power circuit applications.

(2) Key Features and Requirements

Number of Positions: 2 positions in a single row.
Connector System: Wire-to-wire.
Sealable: Yes. The housing is designed to be water-tight when mated with the corresponding cap housing, using a seal ring and rubber plugs on wires.
Terminal Type: Female (receptacle) terminals. Accepts mating tab width of 1.8 mm [.07 in].
Housing Material: Glass-filled PBT (polybutylene terephthalate resin), which is heat-resistant.
Primary Product Color: Black.
Mounting Type: Cable mount (free-hanging). Connector installation type is cable mount with no stress relief.
Mating Alignment: Provided with polarization feature (polarizing slot) for positive mating.
Centerline (Pitch): 4.8 mm [.189 in].
Operating Temperature Range: -30°C to +105°C (including temperature rise due to energized operation).
Nominal Voltage: 12 V DC. Working voltage is 12 VDC.
Circuit Application: Power.
UL Flammability Rating: UL 94HB.
Packaging: Bag, quantity 100.
Repairability: Serviceable.
Terminal Position Assurance: Not provided.
Outage Angle: 180°.

(3) Environmental and Regulatory Compliance

Based on the product page information:
EU RoHS (2011/65/EU): Compliant, including Delegated Directive 2015/863/EU.
EU ELV Directive 2000/53/EC: Compliant.
China RoHS 2: No restricted substances above threshold.
EU REACH (EC) No. 1907/2006: Compliant, SVHC-free according to ECHA Candidate List of February 2026 (253 substances).
Halogen Content: Low halogen – Br, Cl, F < 900 ppm per homogeneous material. Also BFR/CFR/PVC free.
Solder Process Capability: Not suitable for soldering processes.

(4) Performance Requirements (from ECONOSEAL “J”-II Specification)

The following performance data are extracted from the product specification for .070 series connectors:
Insertion Force of Contact: 2.94 – 7.85 N (initial)
Extraction Force of Contact: 2.94 – 7.85 N (initial)
Insertion Force of Connector (2 positions): 49 N maximum
Extraction Force of Connector (2 positions): 39.2 N maximum
Termination Resistance (Low Level): 3.0 mΩ max (initial), 10 mΩ max (final after environmental tests)
Insulation Resistance: 100 MΩ min
Dielectric Strength: 1000 V AC for 1 minute, no abnormality
Crimp Tensile Strength: Minimum values per wire size:
0.2 mm² – 68.6 N, 0.3 mm² – 78.5 N, 0.5 mm² – 88.3 N, 0.85 mm² – 127.0 N, 1.25 mm² – 177.0 N, 2.0 mm² – 265.0 N, 3.0 mm² – 294.0 N
Contact Retention Force: 78.5 N min
Housing Retention Force: 98.1 N min
Water-tight Sealing: Withstands 49 kPa minimum (initial), 29.4 kPa minimum (final after environmental cycling)
Temperature Rating: -30°C to +105°C
Heat Resistivity: 120±2°C for 120 hours
Cold Resistivity: -50±5°C for 120 hours
Oil Resistivity: Immersion in engine oil, kerosene, gasoline per sequence
Ozone Resistivity: 50±5 ppm ozone for 24 hours at 40±2°C
Weather Aging: 150 hours using sunshine carbon weathermeter at 63±3°C
Dust Bombardment: 1.5 kg Portland cement or Kanto Loam powder, 1 hour

Temperature Rising: Test current per wire size with reduction coefficient (for 2 positions: reduction coefficient 0.75). For 0.5 mm² wire, test current = 11.0 A × 0.75 = 8.25 A; temperature rise measured at wire crimp.
Water Splash: 48 cycles of 40 min at 120±3°C followed by 20 min room temperature water spray.
Current-loaded Vibration: 44 m/s² (4.5G), 20-200 Hz sweep, 30 hours X, 30 hours Y, 40 hours Z axis, at 90°C ambient.

(5) Applicable Wire Sizes

From the specification for .070 series contacts used with this housing:

Wires shall be AV or AVS type per JIS C 3406.

(6) Mating and Accessories

The 173090-2 plug housing assembly mates with the corresponding cap housing (e.g., 173063 for 2-position). A seal ring is attached to the plug housing to provide water-tight connection when mated. Rubber plugs are used on wires next to the crimp for sealing. Cavity plugs are used for unused cavities. Compatible receptacle contacts include 171630 and 171661 series. Rubber plugs and cavity plugs are available in NBR (nitrile butadiene rubber) or silicone (900324, 900325).

(7) Conclusion

The 173090-2 is a 2-position, sealable, black female terminal housing for wire-to-wire power applications in 12 V automotive systems. It is part of the ECONOSEAL “J”-II series, offering reliable performance from -30°C to +105°C. The housing is made of glass-filled PBT with UL 94HB flammability rating. It meets RoHS, ELV, REACH, and low halogen requirements. When assembled with appropriate contacts, rubber plugs, and seal ring, it provides water-tight sealing tested to 49 kPa. The connector is serviceable and packaged in bags of 100 pieces.
