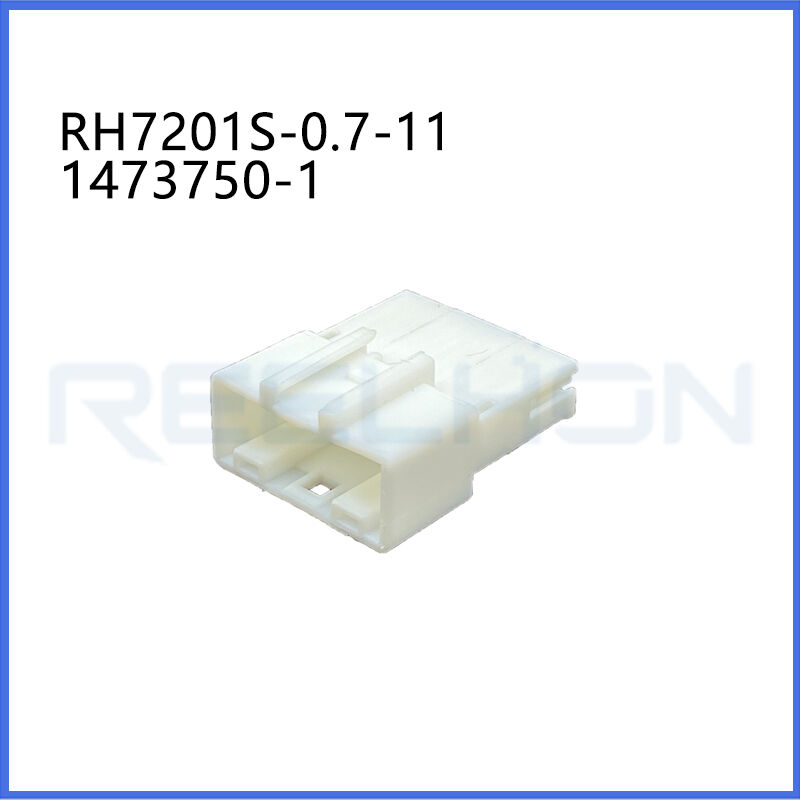

1473750-1/7201S-0.7-11 20 Pin Male Assembly Wiring Harness Automotive Connector Car Electrical Wire Socket

(1) Overview

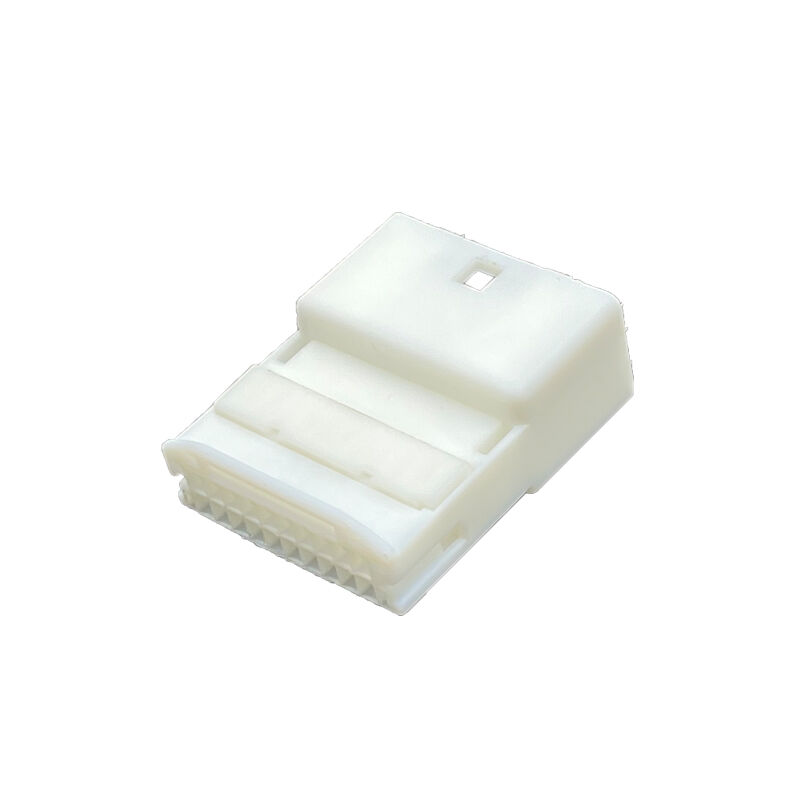

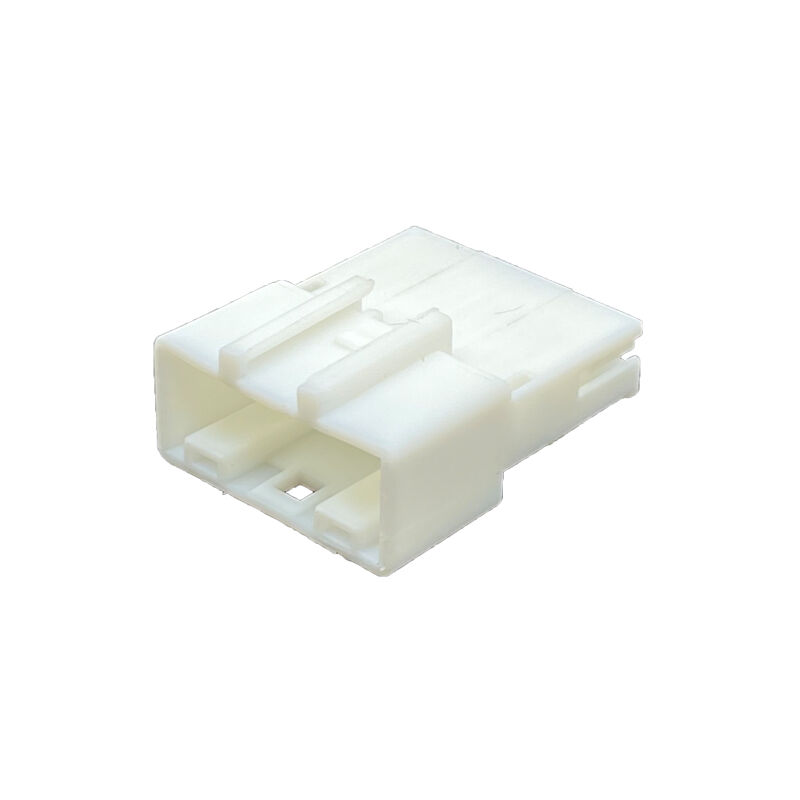

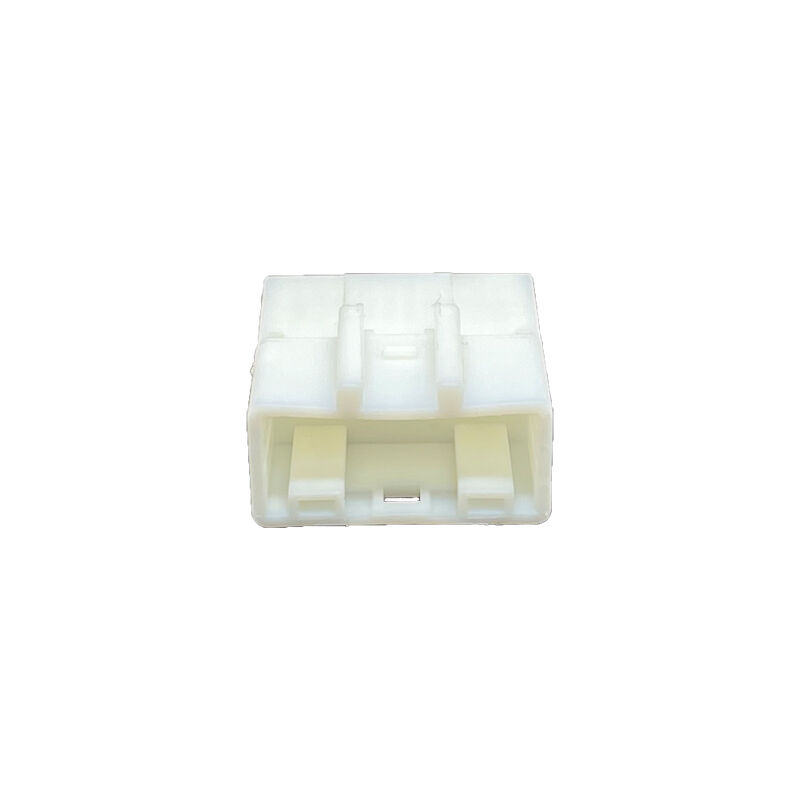

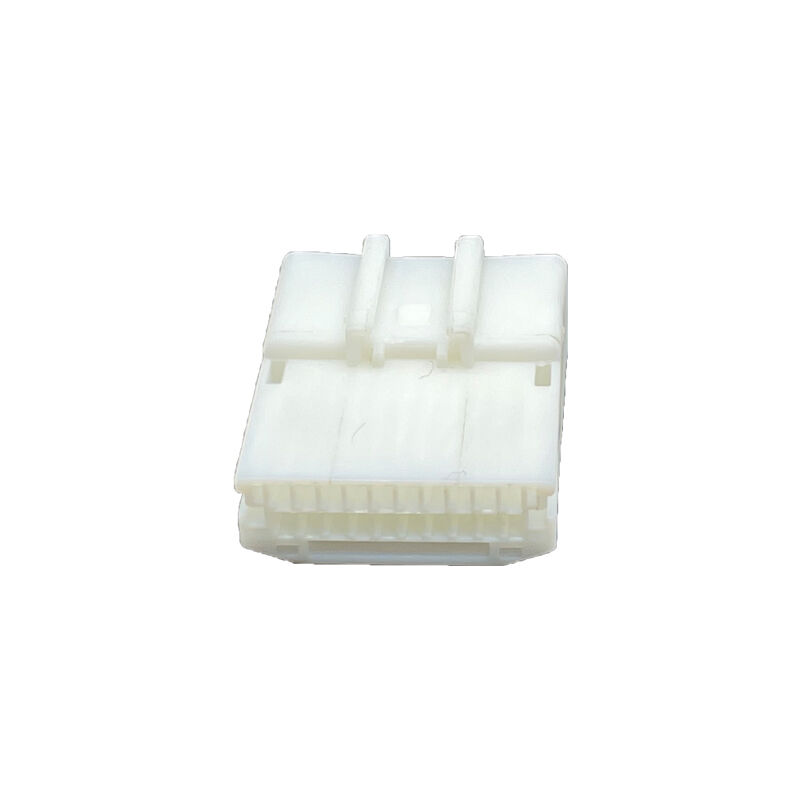

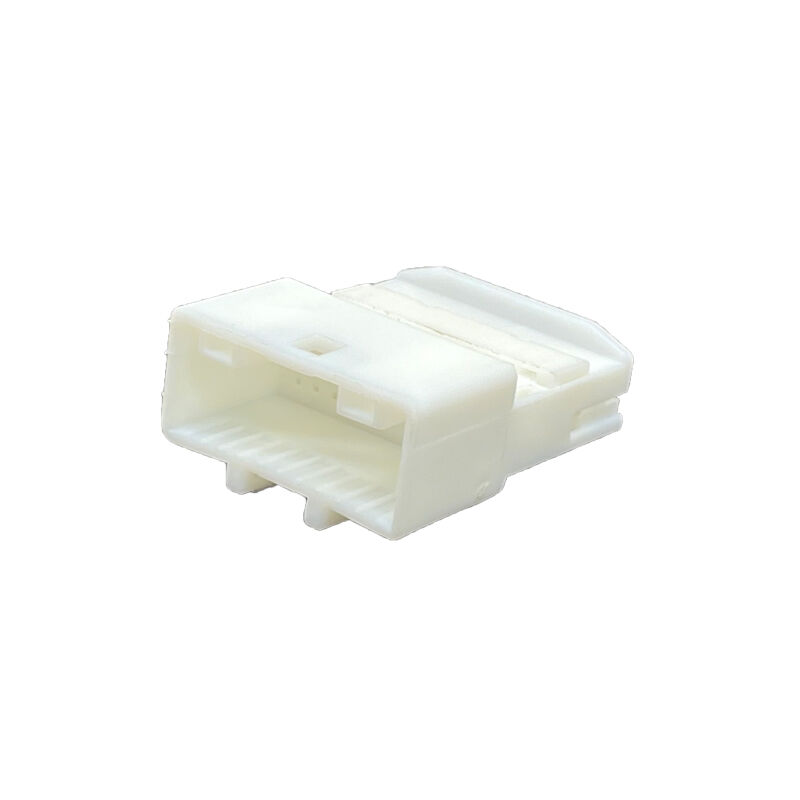

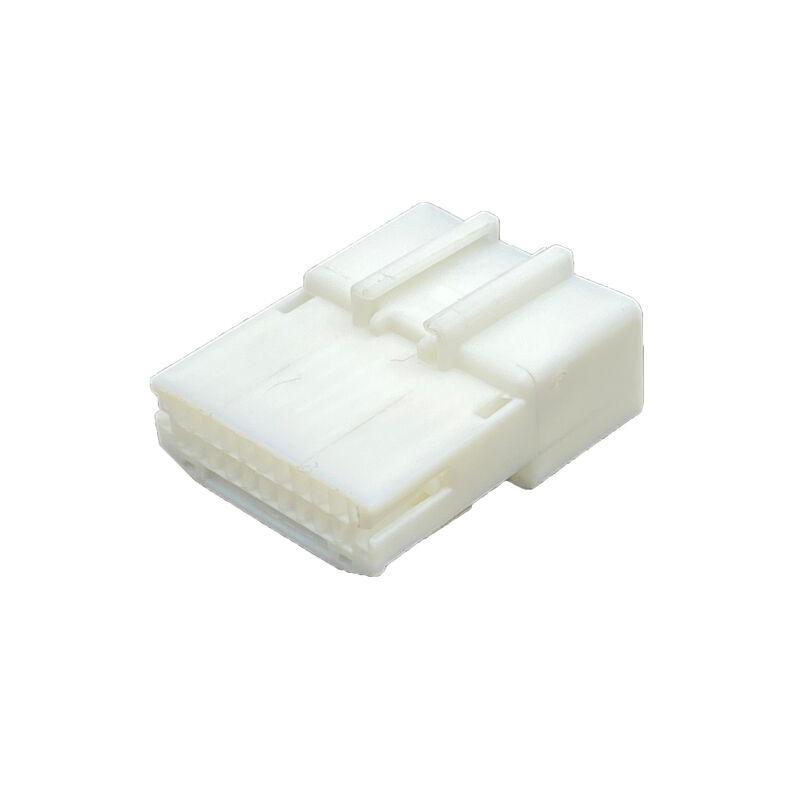

The 025 20POS CAP ASSY W TO W (TE internal part number 1473750-1) is a 20-position, wire-to-wire automotive housing for male terminals. This product is part of the 025 IDC Connector family. The connector system is wire-to-wire, and the connector and terminals terminate to wire and cable. The product is natural in color and features a rectangular shape.

(2) Key Features and Requirements

Product Type Features:

Connector Shape: Rectangular
Hybrid Board Connector: No
Connector and Housing Type: Automotive housing for male terminals
Sealable: No
Primary Locking Feature: On terminal
Connector System: Wire-to-wire
Connector and Contact Terminates To: Wire and cable

Structural Characteristics:

Number of Positions: 20
Number of Rows: 2
Electrical Characteristics:
Working Voltage: 12 VDC
Nominal Voltage Architecture: 12 V

Body Characteristics:

Outlet Angle: 180°
Primary Product Color: Natural (ivory/tan)

Contact Characteristics:

Terminal Type: Male terminal
Terminal Size: 0.64 mm
Mating Tab Width: 0.64 mm [.025 in]

Mechanical Attachment:

Mating Alignment: Provided
Mating Alignment Type: Polarized
Terminal Position Assurance: Yes
Stress Relief: No
Connector Mounting Type: Cable mount (free hanging)

Housing Characteristics:

Housing Material: Polybutylene Terephthalate (PBT)
Centerline (Pitch): 2.2 mm [.087 in]

Dimensions:

Connector Height: 15.8 mm [.622 in]
Product Length: 27.4 mm [1.08 in]
Product Width: 35.2 mm [1.38 in]
Row-to-Row Spacing: 3 mm [.118 in]

Environmental:

Operating Temperature Range: -30°C to 80°C
Maximum Operating Temperature: 80°C

Application:

Circuit Application: Signal

Industry Standards:

UL Flammability Rating: UL 94HB
Packaging:
Packaging Method: Bag
Packaging Quantity: 100

Other:

Serviceable: Yes
Connector Position Assurance: No

(3) Performance Requirements and Test Descriptions

The product is designed to meet electrical, mechanical and environmental performance requirements as specified in the specification. All tests are performed at room temperature unless otherwise specified.
Confirmation of Product: Meets requirements of product drawing and AMP Specification 114-5276. Visually, dimensionally and functionally inspected per applicable quality inspection plan.
Electrical Requirements:
Termination Resistance (Low Level): 8 mΩ max. initial, 16 mΩ max. final. Subject mated contacts assembled in housing to 20 mV max open circuit at 10 mA per AMP Spec. 109-5311-1.
Termination Resistance (Specified Current): 8 mV/A max. initial, 16 mV/A max. final. Subject mated contacts assembled in housing to 12 V max open circuit at 1A per AMP Spec. 109-5311-2.
Dielectric Withstanding Voltage: No creeping discharge nor flashover shall occur. Impressed voltage 1 kVAC for 1 minute on mated connector per AMP Spec. 109-5301.
Insulation Resistance: 100 MΩ min. initial and final. Impressed voltage 500 VDC on mated connector per AMP Spec. 109-5302.
Current Leakage: 3 mA max. Impressed voltage 14 VDC per AMP Spec. 109-5312.
Temperature Rise: 60°C max. Measure temperature rise at wire crimped by applied current to all positions per AMP Spec. 109-5310.
Over Current Loading: No ignition is allowed during the test. Apply current to only one position.
Physical Requirements:
Vibration (High Frequency): No electrical discontinuity greater than 1 μsec shall occur. Vibration frequency 20→200→20 Hz/3 min, acceleration 44.1 m/s², directions X, Y, Z, duration 3 hours each.
Shock: No electrical discontinuity greater than 1 μsec shall occur. Acceleration 980 m/s², half sine wave, duration 6 msec, 3 drops each in X, -X, Y, -Y, Z, -Z directions (18 drops total).
Connector Mating Force: 70 N max. Operation speed 100 mm/min per AMP Spec. 109-5206.
Connector Unmating Force: 70 N max. Operation speed 100 mm/min (without housing lock) per AMP Spec. 109-5206.
Connector Locking Strength: 100 N min. Apply axial pull-off load to one of the mated housings per AMP Spec. 109-5210.
Tensile Strength of Wire Termination: For 0.08 mm² wire: initial 10 N min, final 7 N min. For 0.22 mm² wire: initial 30 N min, final 20 N min. For 0.3 mm² wire: initial 55 N min, final 40 N min. For 0.5 mm² wire: initial 80 N min, final 60 N min.
Contact Retention Force (Secondary Lock): 90 N min per AMP Spec. 109-5212.
Resistance to "Kojiri": Satisfy requirements of test sequence. Repeated mating-unmating by hand in up-down and right-left directions for 10 cycles per AMP Spec. 109-5215.
Handling Ergonomics: No abnormalities allowed in manual mating/unmating handling.
Environmental Requirements:
Thermal Shock: Per test sequence.
Humidity (Steady State): Per test sequence.
Industrial SO2 Gas: Per test sequence.
Temperature Life (Heat Aging): Per test sequence.
Resistance to Cold: Per test sequence.
Humidity–Temperature Cycling: Per test sequence.
Dust Bombardment: Per test sequence.
Compound Environment Resistance: Temperature 80°C, vibration frequency 20→200→20 Hz/3 min (log), acceleration 44.1 m/s², directions X, Y, Z, duration 300 hours. No electrical discontinuity greater than 1 μsec shall occur.
Dew Formation Test: 0°C/10 min, 80°C/90-95% RH/30 min as one cycle, repeat 48 cycles. Monitor current leakage during test.

(4) Materials

Contact Materials:
Tab (Male): Copper Alloy or Brass with Tin-Plating
Receptacle (Female): Copper Alloy with Tin-Plating (reference)
Housing Material: PBT (Polybutylene Terephthalate)

(5) Ratings

Voltage Rating: 12 V DC
Temperature Rating: -30°C to 80°C

(6) Product Qualification Test Sequence

Qualification inspection verifies product performance per test sequence. Test groups include confirmation of product, termination resistance, dielectric withstanding voltage, insulation resistance, current leakage, temperature rise, over current loading, vibration, shock, mating/unmating force, locking strength, tensile strength of wire termination, contact retention force, resistance to "Kojiri", handling ergonomics, thermal shock, humidity, SO2 gas, temperature life, resistance to cold, humidity-temperature cycling, dust bombardment, compound environment resistance, and dew formation test.

(7) Applicable Wire Sizes and Test Current

Wire sizes accepted: 0.08 mm², 0.22 mm², 0.3 mm², 0.5 mm². Test current values vary by wire size per specification figures.

(8) Environmental and Regulatory Compliance

EU RoHS (2011/65/EU): Compliant
EU ELV Directive 2000/53/EC: Compliant
China RoHS 2: No Restricted Substance(s) Above Threshold
EU REACH Regulation (EC) No. 1907/2006: Does not contain REACH SVHC
Halogen Content: Low halogen - Br, Cl, F < 900 ppm per homogeneous material. Also no BFR/CFR/PVC
Solder Process Capability: Not suitable for soldering process

(9) Conclusion

The 1473750-1 is a 20-position, 2-row, 180°, non-sealed, wire-to-wire automotive housing for male terminals with 12 V DC rating, 2.2 mm pitch, 0.64 mm terminal size, operating temperature -30°C to 80°C. It meets RoHS, ELV, China RoHS 2, and REACH (SVHC-free), is low halogen, and is not suitable for soldering. Housing material is PBT with UL 94HB flammability rating. Packaging is bag of 100 pieces.
