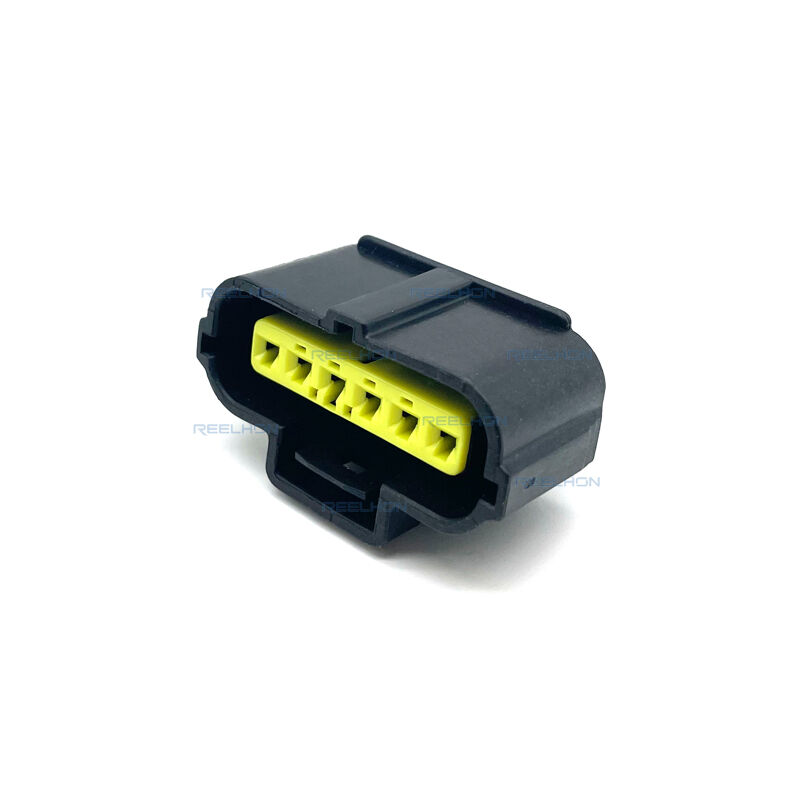

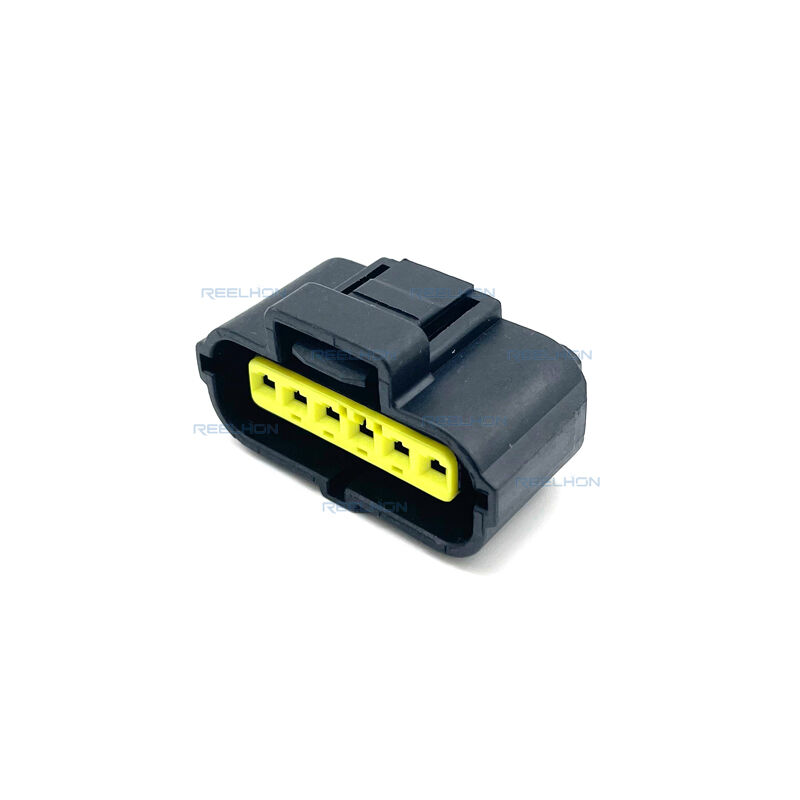

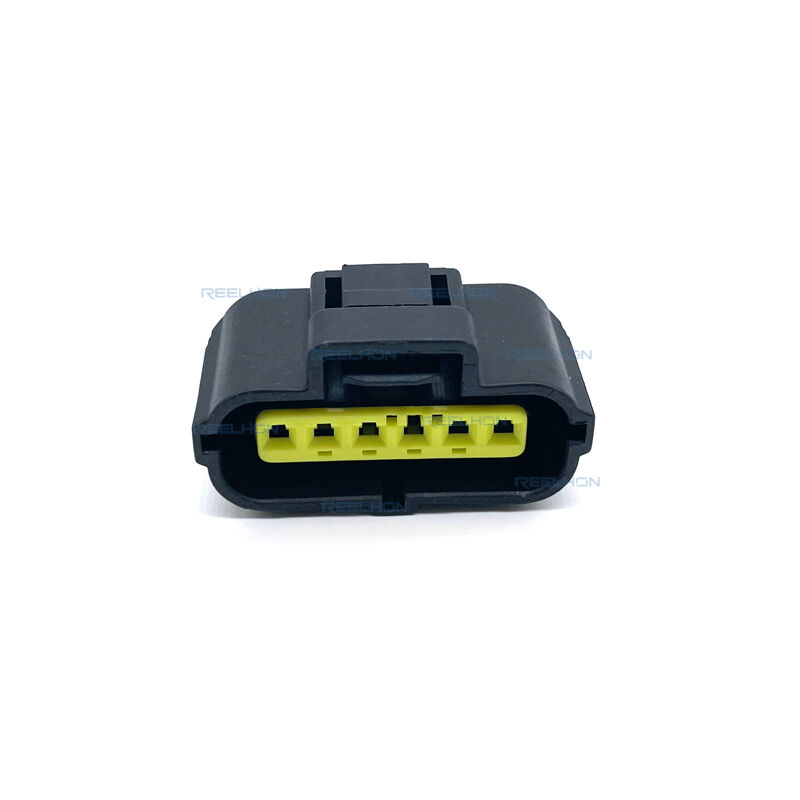

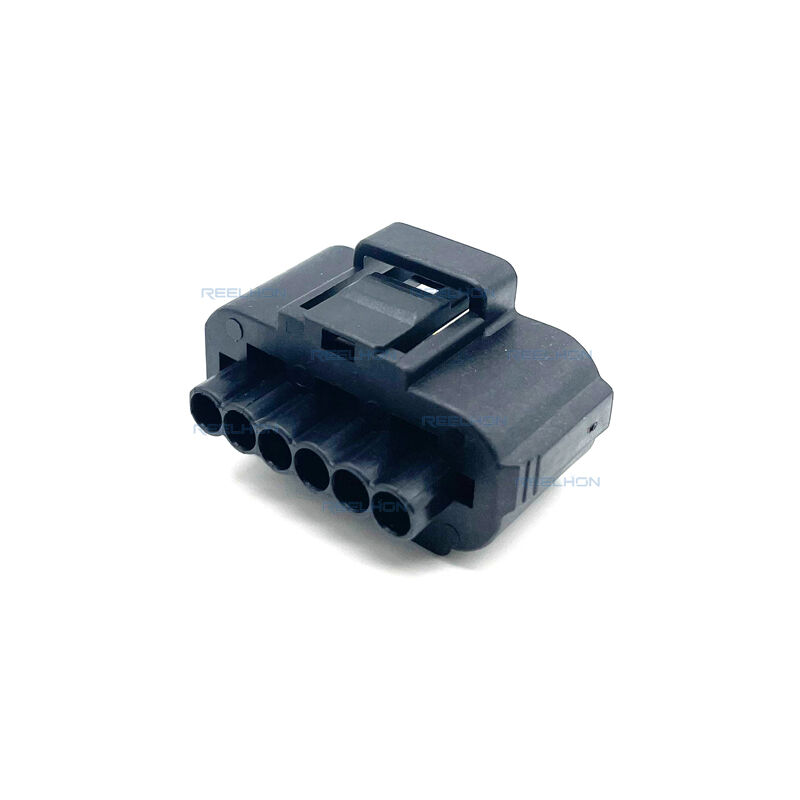

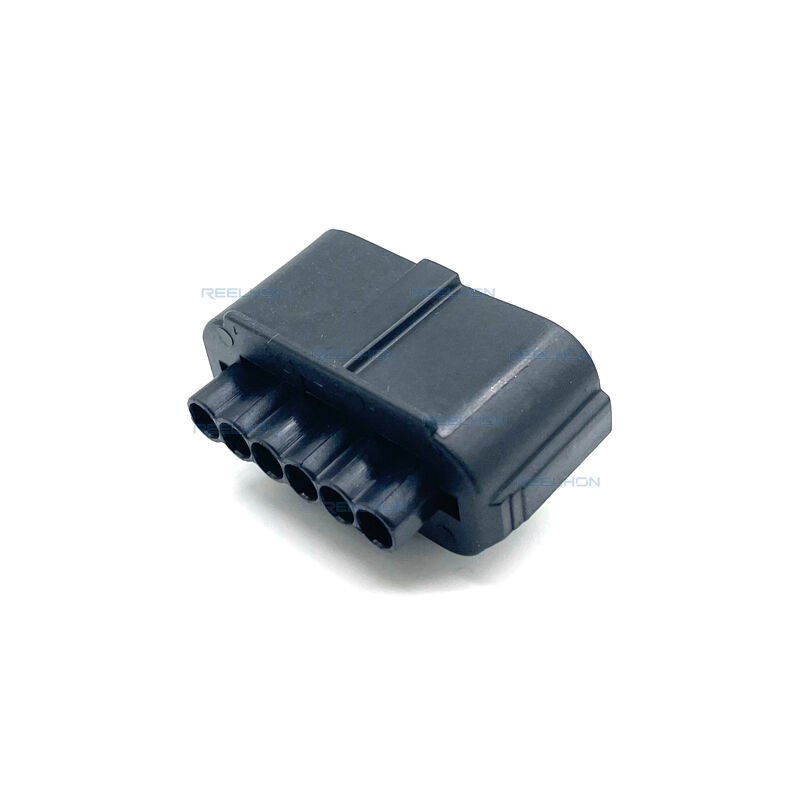

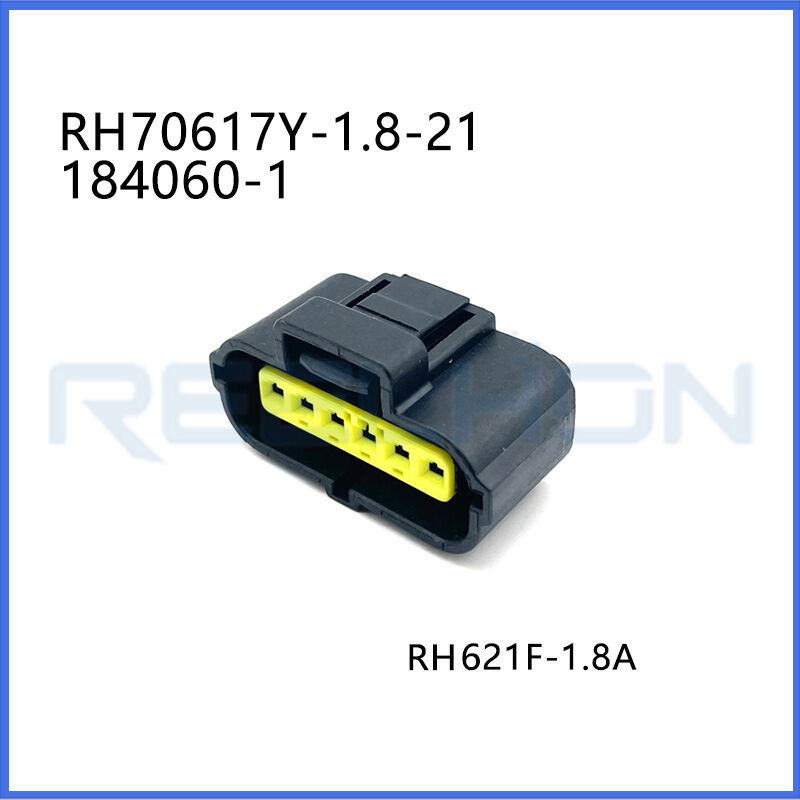

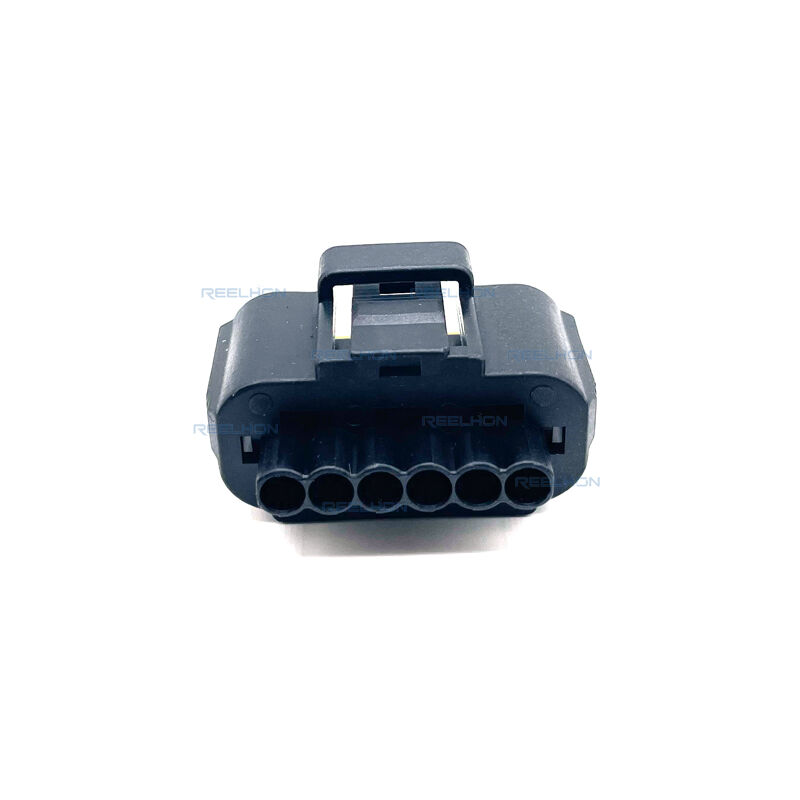

RH70617Y-1.8-21/184060-1 12 V, 6 Position, Automotive Housing for Female Terminals

Detailed Product Description:

This product is a 6-position automotive housing designed specifically for female terminals. It operates under a nominal voltage architecture of 12 volts. The housing is sealable, ensuring protection against environmental contaminants such as moisture and dust. Its operating temperature range extends from -40 °C to 125 °C, making it suitable for harsh automotive environments.

Product Type Features:

The connector features a rectangular shape. The connector and housing type is a housing for female terminals. The sealable feature is confirmed as yes. The primary locking mechanism is integrated both in the housing and on the terminal. The connector system is wire-to-wire. Additionally, the connector and contact terminate to wire and cable.

Configuration Features:

The number of positions is exactly 6. These positions are arranged in a single row.

Electrical Characteristics:

The operating voltage is rated at 125 VDC and also 125 VAC. The nominal voltage architecture for vehicle applications is 12 volts.

Body Features:

The cable exit angle is fixed at 180 degrees. The primary product color is black. The connector and keying code is designated as A.

Contact Features:

The contact type is a receptacle. The contact size is 1.8 mm. The mating tab width is also 1.8 mm (0.07 inches). The maximum contact current rating is 13 amperes.

Mechanical Attachment:

Mating alignment is included. The mating alignment type is keyed. There is no terminal position assurance. Strain relief is added by accessory. The connector mounting type is cable mount.

Housing Features:

The housing material is PBT. The centerline pitch is 5 mm (0.197 inches).

Dimensions:

The connector height is 24.8 mm (0.98 inches). The product length is 43.2 mm (1.7 inches). The product width is 27.6 mm (1.087 inches).

Usage Conditions:

The operating temperature range is -40 °C to 125 °C (-40 °F to 257 °F). The maximum operating temperature is 125 °C (257 °F).

Summary of Key Attributes:

Rectangular shape with a single row of 6 positions

Designed for wire-to-wire connections

Supports both DC and AC operating voltages up to 125 V

Black color with keying code A

Receptacle contact type with 1.8 mm contact size

Maximum current rating of 13 A

Free-hanging mounting type

Glass-filled PBT housing material for durability

180-degree straight cable exit angle

Integrated primary locking feature on both housing and terminal

No terminal position assurance; strain relief available as accessory

Operating temperature from -40 °C to 125 °C

Application Guidance:

This housing is intended for automotive wiring systems requiring a reliable, sealable connection for female terminals. The 12 V nominal voltage makes it compatible with standard vehicle electrical systems. The 180-degree cable exit allows for straightforward routing in harness assemblies. The keyed mating alignment prevents incorrect connection. The glass-filled PBT material provides mechanical strength and thermal stability across the wide operating temperature range.

Installation Notes:

Ensure proper terminal insertion into the housing

The primary locking feature on the terminal must engage correctly

Use appropriate accessory for strain relief if required

Verify mating alignment before final connection

Compliance and Standards:

The product parameters align with common automotive electrical connector standards. The 13 A current rating supports moderate power distribution applications. The -40 °C to 125 °C temperature range covers engine compartment and under-chassis environments.
