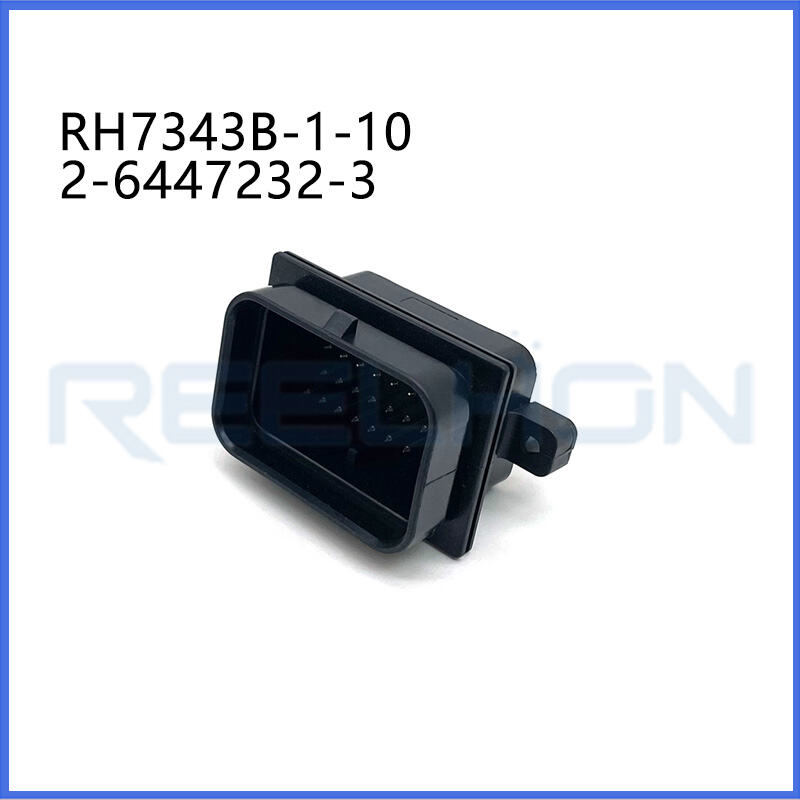

2-6447232-3/7343B-1-10 34 Pin Female Assembly Wiring Harness Automotive Connector Car Electrical Wire Socket

(1) Overview

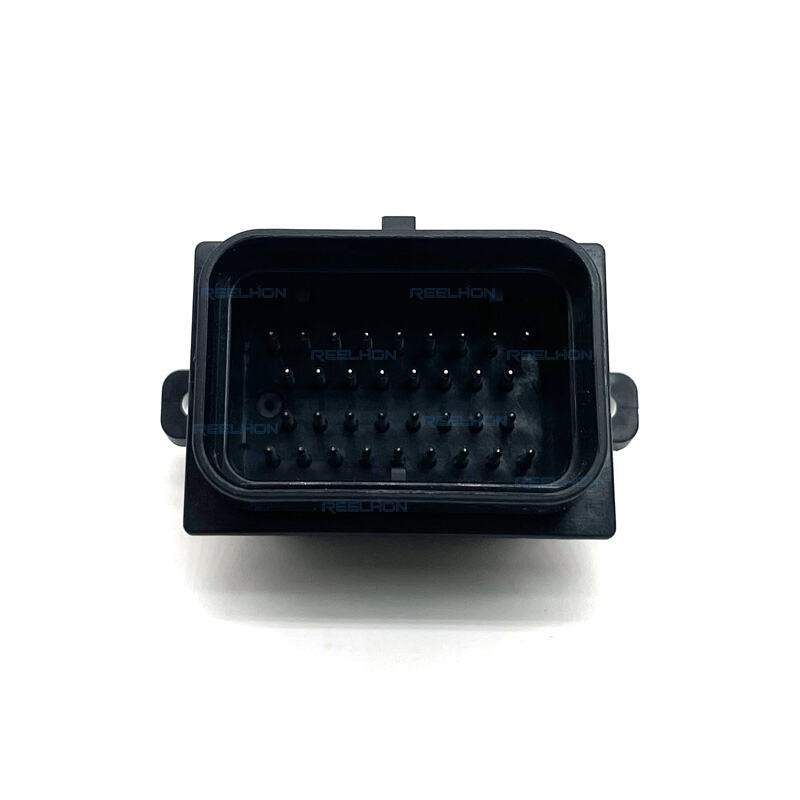

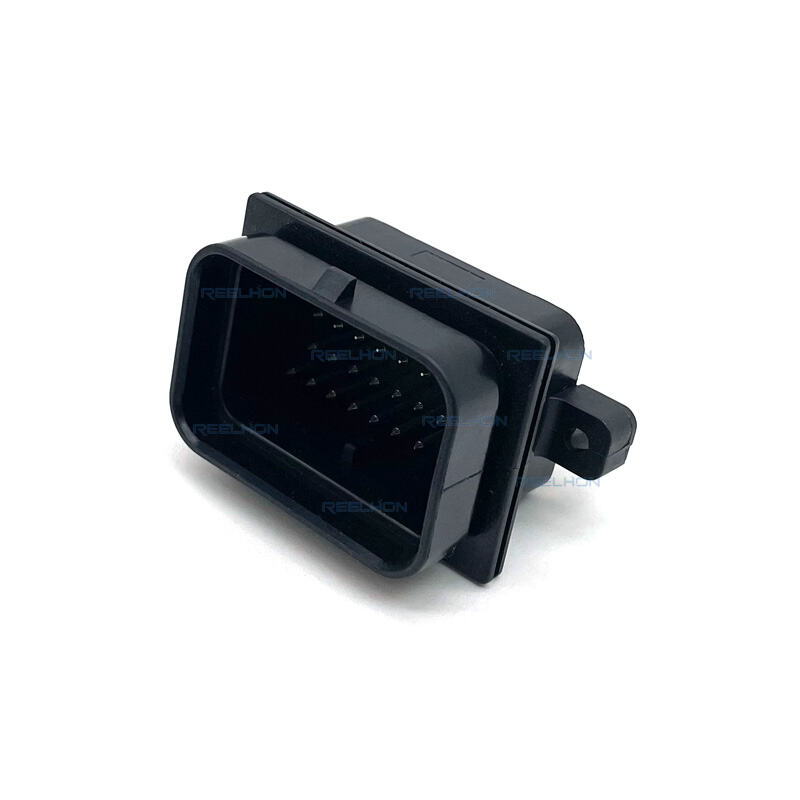

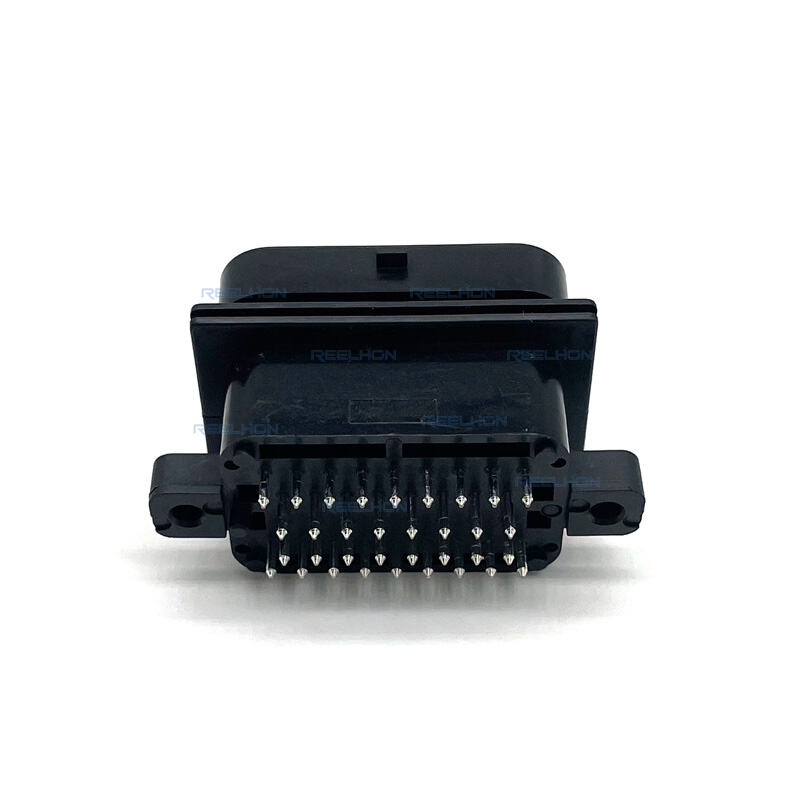

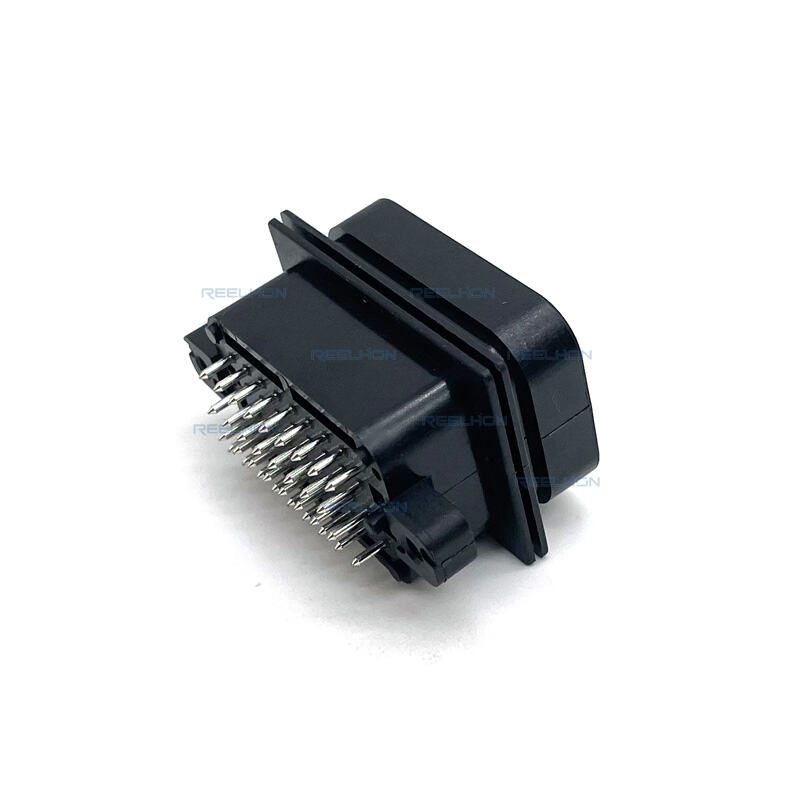

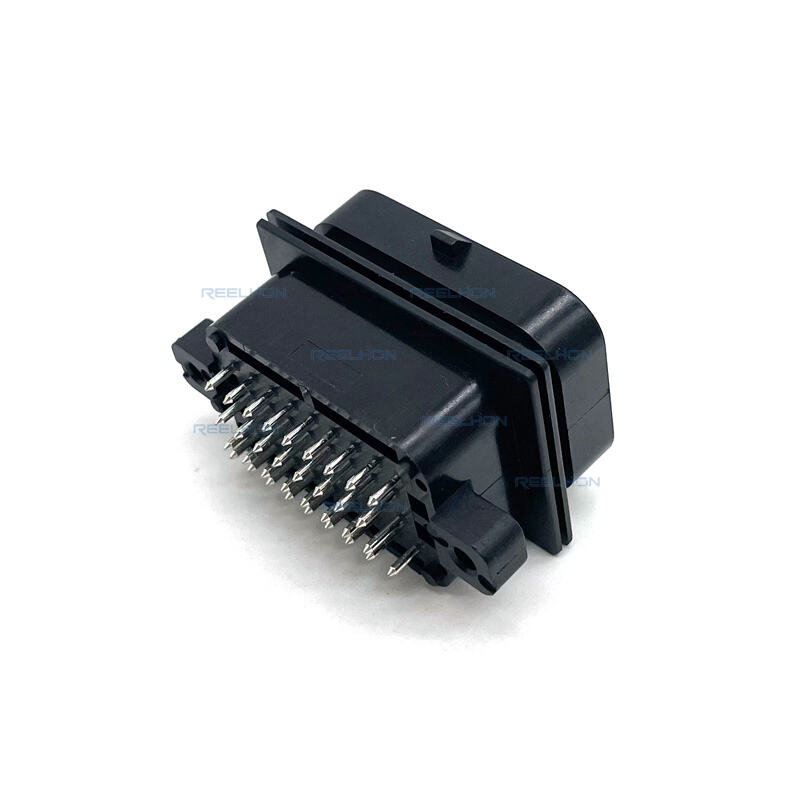

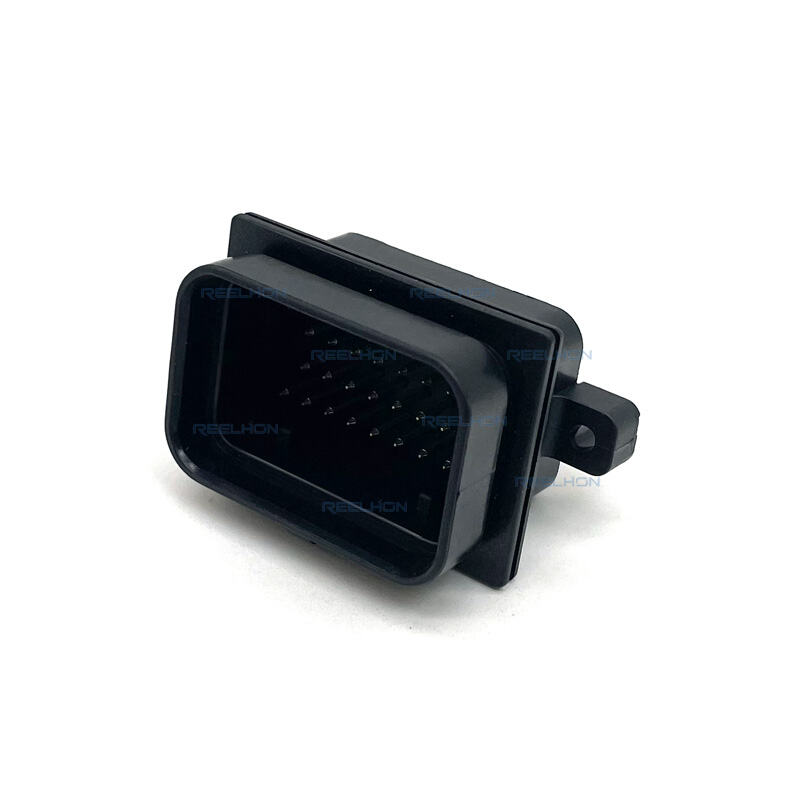

The 2-6447232-3 is a 34-position, wire-to-board sealed header assembly from the SUPERSEAL 1.0mm connector series. It features a vertical PCB mounting orientation and 4 rows of contacts with a 3 mm [.118 in] centerline pitch. The connector is fully sealable with an IPX7 rating, providing water resistance for demanding automotive and industrial environments. The header is designed for printed circuit board termination via through-hole soldering. The terminal pins are gold (Au) plated, with a mating pin diameter of 1 mm [.039 in]. The nominal current rating per terminal is 3 A. The product is black in color and supports a wide operating temperature range from -40°C to +125°C.

(2) Key Features and Requirements

Product Type Features:
Connector Shape: Rectangular
Header Type: Fully Shrouded
Hybrid Board Connector: No
Connector Product Type: Connector Assembly
Sealable: Yes
Connector System: Wire-to-Board
Connector and Contact Terminates To: Printed Circuit Board
Structural Characteristics:
Number of Signal Positions: 34
Number of Positions: 34
Number of Rows: 4
PCB Mounting Direction: Vertical
Electrical Characteristics:
Nominal Voltage Architectures: 12 V, 24 V, 42 V, 48 V, 240 V
Maximum Voltage Rating (VDC): 250 V
Maximum Voltage Rating (VAC): 250 V
Working Voltage (VDC): 250 V
Working Voltage (VAC): 250 V
Contact Characteristics:
Terminal Type: Pin
Mating Pin Diameter: 1 mm [.039 in]
Maximum Terminal Current Rating: 3 A
Contact Base Material Plating: Gold (Au)
Termination Characteristics:
PCB Termination Method: Through-Hole – Solder
Mechanical Attachment:
PCB Mounting Alignment: Provided
Mating Alignment: Provided
Mounting Holes: Provided
PCB Mounting Fixation: Not provided
Mating Fixation Type: Locking Interface
Panel Mount Feature: Not provided
Connector Mounting Type: Board Mount
Housing Characteristics:
Centerline (Pitch): 3 mm [.118 in]
Dimensions:
Connector Length: 46.5 mm [1.83 in]
PCB Profile Height: 24 mm [.945 in]
Connector Width: 27.4 mm [1.08 in]
Environmental:
Maximum Operating Temperature: 125°C [257°F]
Operating Temperature Range: -40°C to +125°C [-40°F to 257°F]
Application:
Shielding: No
Circuit Application: Signal
Industry Standard:
IP Rating: IPX7
Packaging:
Packaging Method: Tube
Packaging Quantity: 14

(3) Crimping Specifications for Compatible Receptacle Contacts

The following crimping requirements apply to the receptacle contacts (e.g., 3-1447221-3, 3-1447221-4, 2461132-1, 2461132-2, 1-2461132-1, 1-2461132-2) that mate with this header.
Applicable Wire Sizes and Crimping Dimensions:
For small barrel contacts (0.5 mm² wire):
With AVSS/CAVS wire (φ1.6 – 1.9 mm): Wire barrel width 1.6±0.1 mm, height 0.9±0.05 mm; Insulation barrel width max 2.3 mm, height max 2.2 mm; Tensile strength min 88.2 N (9 kgf)
With ISO 19642-3 thin wall wire (φ1.4 – 1.7 mm): Wire barrel width 1.6±0.1 mm, height 0.9±0.05 mm; Insulation barrel width max 2.1 mm, height max 2.0 mm; Tensile strength min 88.2 N (9 kgf)
For normal barrel contacts (0.75 – 1.25 mm² wires):
0.75 mm² (AVSS/AESSX, φ1.6 – 1.9 mm): Wire barrel width 1.85±0.1 mm, height 1.0±0.05 mm; Insulation barrel width max 2.3 mm, height max 2.2 mm; Tensile strength min 117.6 N (12 kgf)
0.85 mm² (AVSS/CAVS): Wire barrel width 1.85±0.1 mm, height 1.05±0.05 mm; Tensile strength min 127.4 N (13 kgf)
1.0 mm² (ISO 19642-3 thin wall, φ1.9 – 2.1 mm): Wire barrel width 1.85±0.1 mm, height 1.1±0.05 mm; Insulation barrel width max 2.6 mm, height max 2.5 mm; Tensile strength min 147 N (15 kgf)
1.25 mm² (AVSS/CAVS, φ1.9 – 2.2 mm): Wire barrel width 1.85±0.1 mm, height 1.2±0.05 mm; Insulation barrel width max 2.6 mm, height max 2.5 mm; Tensile strength min 176.4 N (18 kgf)
Crimp Quality Requirements (Figure 2):
Bent up: 3° or less
Bent down: 3° or less
Twist: 3° or less
Rolling: 6° or less
Bellmouth: 0.2 – 0.4 mm
Seam: Closed, core wire not projected
Wire projecting length: 0.3 – 0.8 mm
Insulation projecting length: Over 0.5 mm, with core wire visible from top side
Interval between burr and bottom: 0 or more
Slipped wire length (reference): 3.5 +1 -0 mm
Bending Test Requirement: Crimping height and width of insulation barrel shall not result in drawing from the barrel part or breakage during bending test as shown in Figure 1.
Applicator Part Numbers (for reference):
2151241-1: For contacts 3-1447221-3, 2461132-1 (Ocean Applicator)
2151705-1: For contacts 3-1447221-4, 2461132-2 (Ocean Applicator)
Contact TE to order applicator for 1-2461132-2

(4) Environmental and Regulatory Compliance

EU RoHS (2011/65/EU): Compliant, including Delegated Directive 2015/863/EU.
EU ELV Directive 2000/53/EC: Compliant.
China RoHS 2 (MIIT Order No. 32, 2016): No Restricted Substance(s) Above Threshold.
EU REACH Regulation (EC) No. 1907/2006: Does not contain REACH SVHC. ECHA Candidate List: February 2026 (253) declared against June 2023 (235).
Halogen Content: Not low halogen – contains Br or Cl > 900 ppm.
Solder Process Capability: Wave soldering up to 240°C.

(5) Mating and Accessories

The 2-6447232-3 header mates with corresponding SUPERSEAL 1.0mm series receptacle connectors (not specified in provided material). Compatible receptacle contacts for wire termination include part numbers 3-1447221-3, 3-1447221-4, 2461132-1, 2461132-2, 1-2461132-1, and 1-2461132-2 with gold, silver, or tin plating as indicated.

(6) Conclusion

The 2-6447232-3 is a 34-position, 4-row, vertical, sealed wire-to-board header for signal applications. It features a 3 mm pitch, gold-plated pins (1 mm diameter), and a 3 A current rating per contact. The connector is rated for 250 V (AC/DC) and operates from -40°C to +125°C, with IPX7 sealing. It meets RoHS, ELV, and REACH compliance (SVHC-free) but is not low halogen. Termination is through-hole soldering to PCB, and packaging is in tubes of 14 pieces. When mated with appropriate SUPERSEAL 1.0mm receptacle connectors and using the recommended crimping specifications (wire sizes 0.5 mm² to 1.25 mm², crimp height/width limits, tensile strength minima), the system provides reliable signal transmission in harsh environments.
