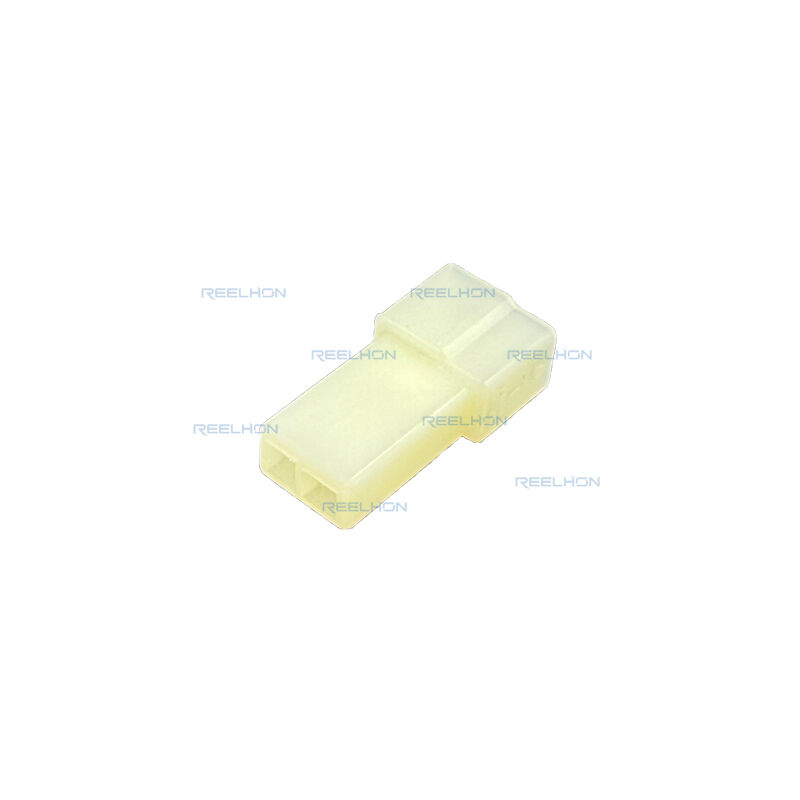

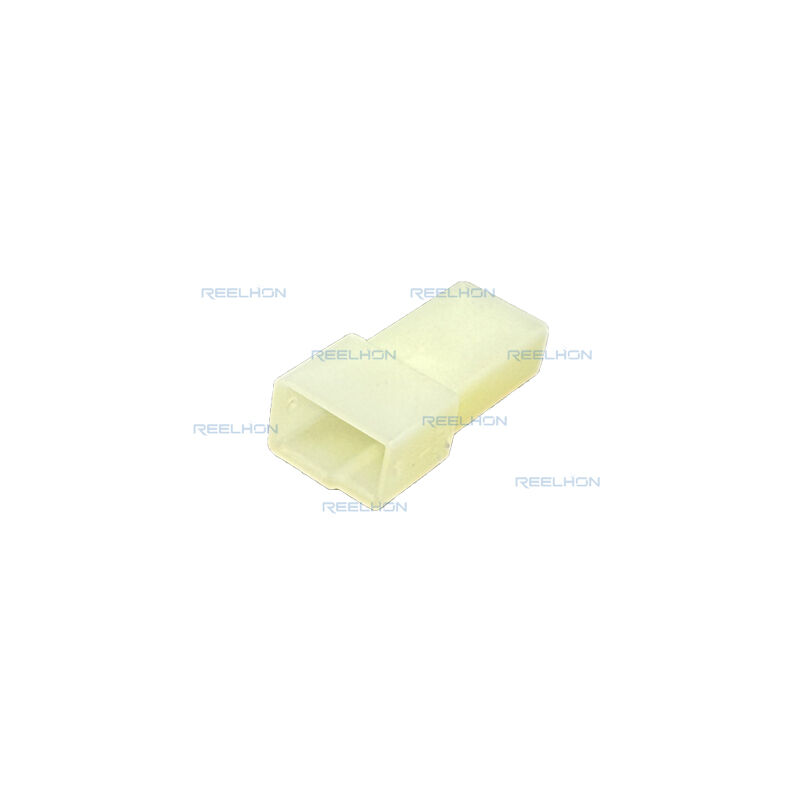

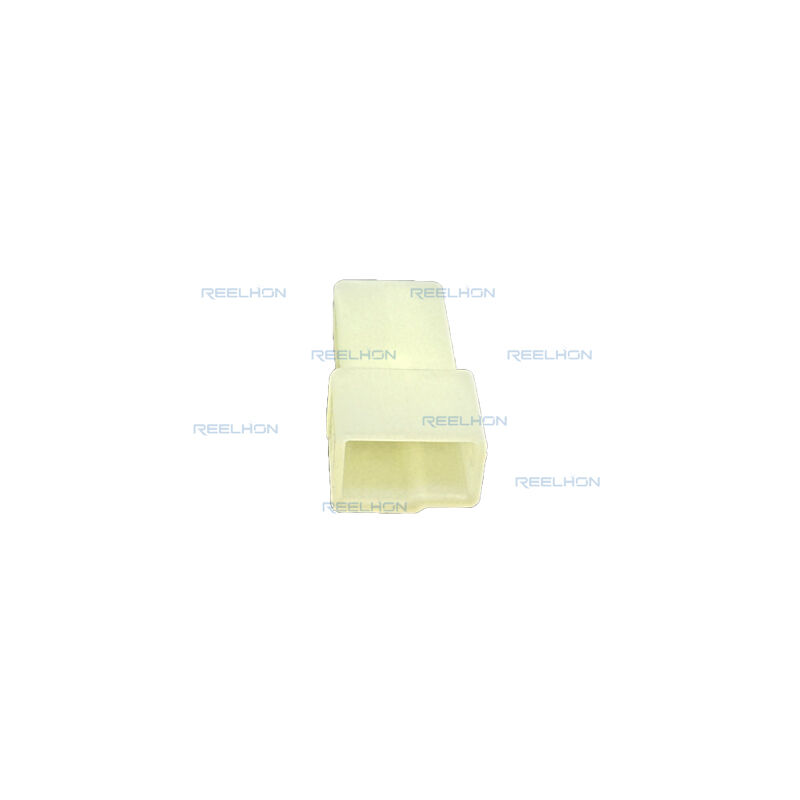

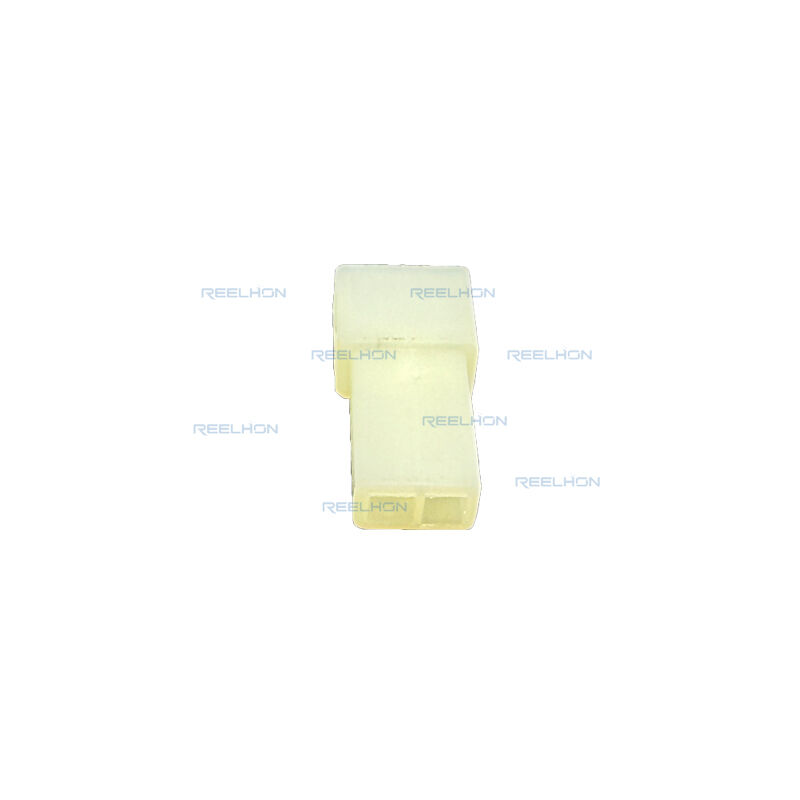

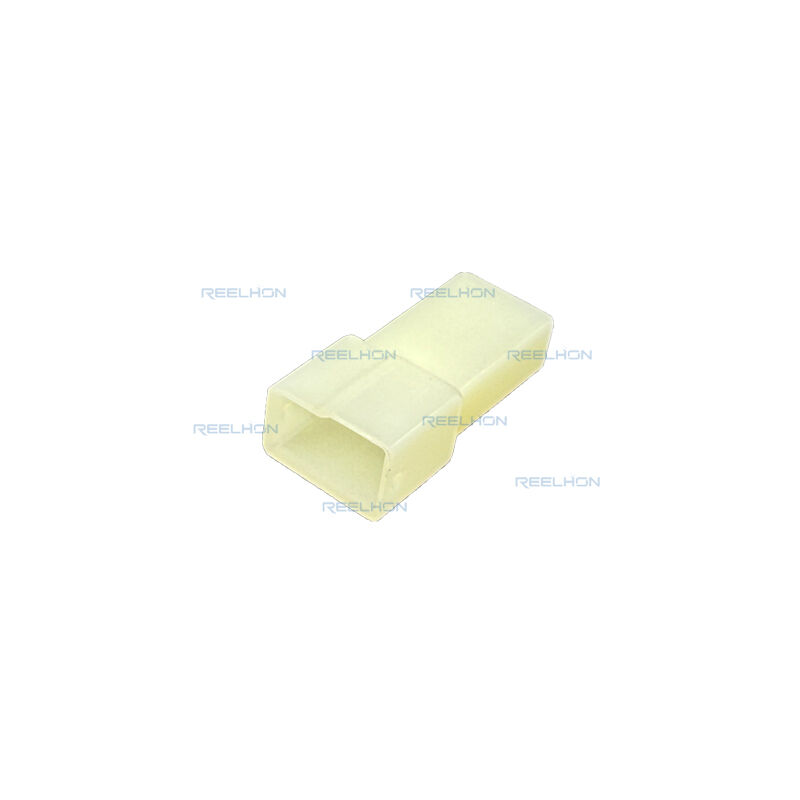

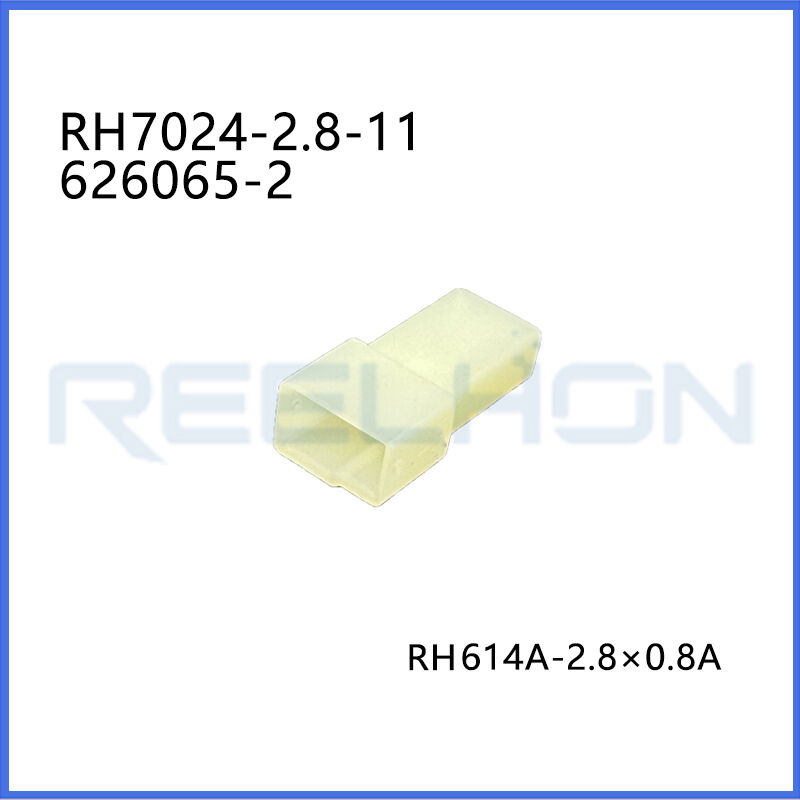

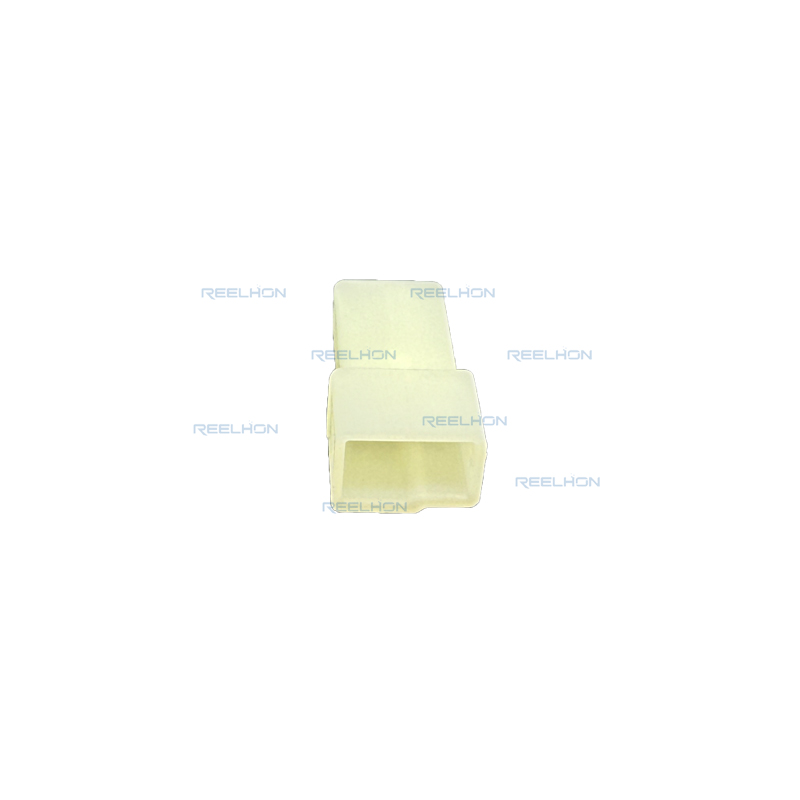

2.8mm Series Male Auto Connector 1-626065-2

Detailed Product Description

Product Type Features This product is a professional automotive low-voltage wire-to-board free-hanging male connector, specially developed for vehicle body wiring harness and automotive electronic supporting systems. It adopts non-sealable overall design, focusing on lightweight and high-cost performance for conventional interior and exterior wiring scenarios. The main structure is Tab Housing integrated shell, which is matched with standard Tab male terminals. It supports large-scale automatic assembly of wiring harness factories and manual on-site maintenance and replacement. The overall structure is compact, does not occupy installation space, and fully meets the durable use standards of automotive original factory assembly and after-market replacement parts.

Configuration Features The connector is designed with fixed 2 positions integrated layout, with reasonable internal cavity arrangement, independent wiring and conduction, no mutual signal interference. It is equipped with integrated mating alignment guide structure to prevent mis-insertion and reverse insertion during wiring operation. The internal lock position is precisely reserved, which can be perfectly matched with the same series of female terminals and supporting rubber shells on the market. The unified modular configuration is convenient for inventory management, batch procurement and rapid assembly of production lines, effectively improving the overall wiring efficiency of automotive complete vehicles.

Electrical Characteristics Matched with high-precision stamping Tab conductive terminals, the product has stable conductive performance, low contact resistance and strong current-carrying capacity, which can stably support vehicle body signal transmission and low-power power supply circuit conduction. The terminals adopt straight-through one-piece forming process, with uniform force and good electrical conductivity. The built-in contact locking structure ensures reliable contact fit, effectively avoids poor virtual connection and signal interruption caused by vehicle vibration, and guarantees long-term stable and safe operation of vehicle electrical circuits.

Body Features The overall body of the connector is natural original color without secondary dyeing, no miscellaneous impurities, no recycled materials mixed in. The overall shell is small in size, light in weight, and does not increase the extra load of vehicle body wiring harness. The surface is smooth and burr-free, the dimensional tolerance is strictly controlled, and the assembly tightness is high. The integrated one-piece injection molding process is adopted to enhance the overall structural toughness, not easy to crack, deform or loose during long-term use in the vehicle environment, and adapt to long-term bumpy driving working conditions.
 Contact Features Equipped with standard Tab professional terminals, the terminal orientation is straight horizontal arrangement, which is convenient for straight wiring and linear wiring harness arrangement. It is designed with independent contact mating retention function. After successful docking, it can form a stable anti-retreat lock to prevent terminal loosening, retreating and falling off caused by vibration and shaking during vehicle driving. The contact surface is precisely polished, with good oxidation resistance, stable contact performance, and no poor contact failure after long-term plugging and unplugging and long-term use.

imensions The product adopts industry-standard unified spacing design, the accurate centerline pitch is 4.6 mm (0.181 inches), the overall size is standardized, fully matching the size specifications of mainstream 2.8mm series automotive supporting terminals and rubber shells. The internal cavity size is precisely opened according to the original factory standard, the assembly clearance is reasonable, the plugging is smooth without jamming, and it is completely interchangeable with the original 1-626065-2 connector in size, no need to adjust the wiring harness fixture.

Usage Conditions It adapts to the full temperature range of complex automotive working environments, the standard operating temperature range is -40°C to 105°C (-40°F to 221°F). It can resist low-temperature frost and cold cracking in northern winter, and also withstand high-temperature baking and heat aging in engine compartment in summer. It is resistant to daily humidity, dust and slight oil pollution in the vehicle, suitable for long-term stable use in indoor and outdoor vehicle body environments, and will not fail or age due to environmental temperature changes.


Summary of Key Attributes Core advantages include original standard size, 2-position practical layout, straight Tab terminal conduction, PA6.6 high-temperature resistant housing material, with mating positioning and anti-retention locking structure. It has UL 94V-0 flame retardant safety certification, wide temperature resistance, free-hanging cable installation, natural environmentally friendly shell, non-sealable cost-saving design, stable electrical performance and strong vibration resistance. It is a high-quality, low-cost and high-reliability essential accessory for automotive wiring harness supporting.
Application Guidance Widely used in all kinds of passenger cars, commercial vehicles, new energy vehicle body low-voltage wiring harness, door internal control circuit, light signal connection, small sensor wiring, instrument panel electrical connection and auxiliary electrical equipment matching. It is suitable for OEM original factory supporting assembly, auto repair shop circuit maintenance, wiring harness factory finished product processing, automotive electrical modification and other scenarios, with strong versatility and wide application range.


Installation Notes This connector adopts cable mount free-hanging installation method, no drilling, no fixed base is required. Before installation, check whether the terminals are inserted in place and whether the lock is buckled firmly. Keep the wiring harness arranged neatly, avoid excessive pulling and sharp bending. Avoid long-term immersion in water and strong corrosive liquid after installation. After docking, shake slightly to confirm that there is no loosening to ensure safe use.

Compliance and Standards The housing material is high-quality polyamide PA6.6, which meets automotive environmental protection material standards. It has passed UL 94V-0 international flame retardant grade test, with excellent fireproof and flame retardant performance, meeting vehicle safety regulations. The whole machine conforms to automotive industry mechanical and electrical performance standards, with stable quality and compliant performance. All products are packed in standard cartons for moisture-proof and compression resistance, meeting export transportation and industrial warehousing management specifications.
