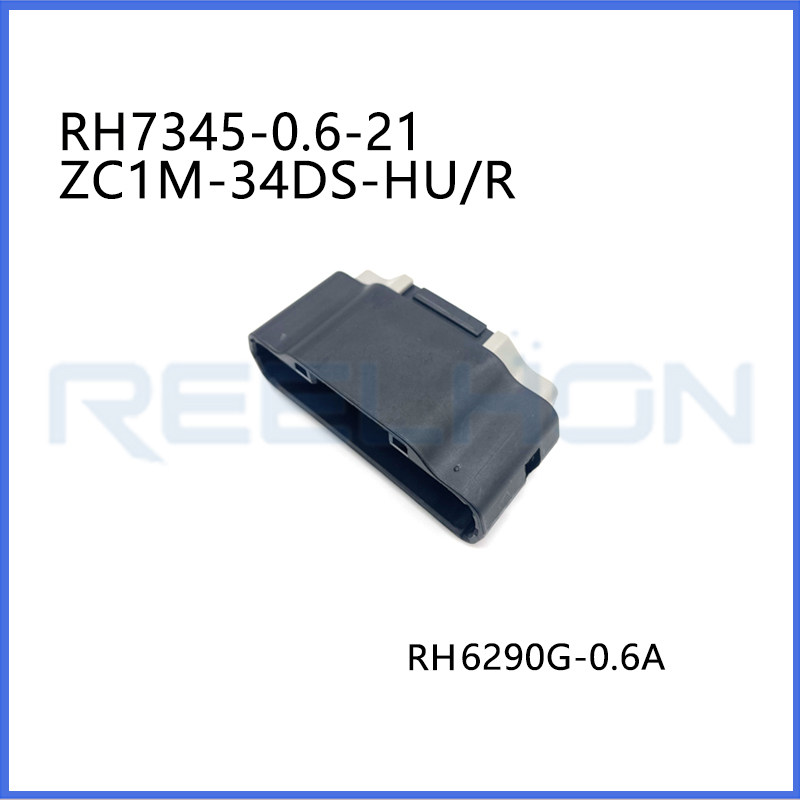

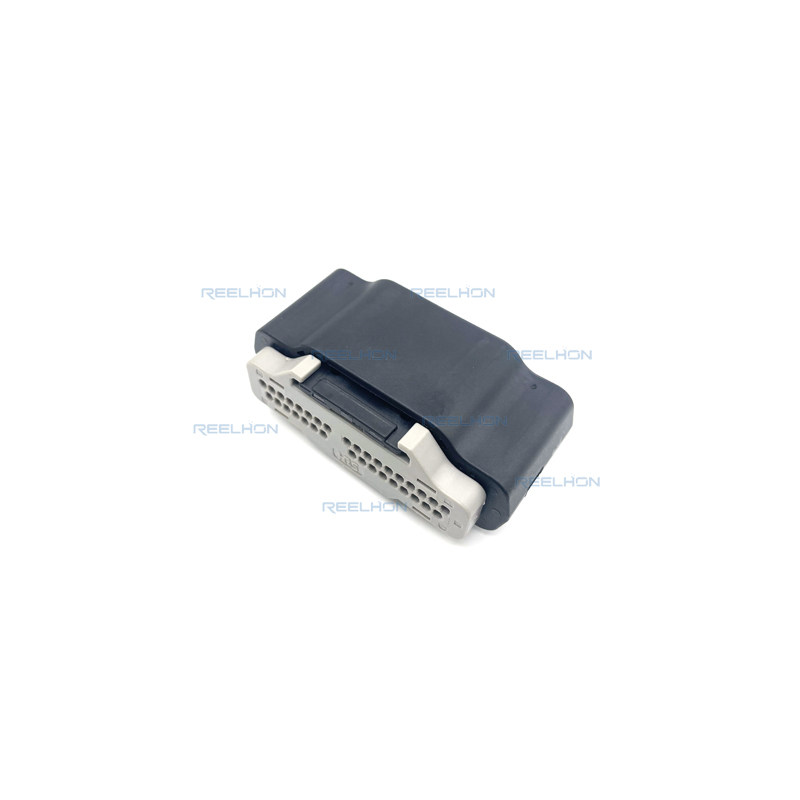

RH7345-0.6-21 ZC1M-34DS-HU/R 34 Pin High Density Automotive Connector for Infotainment ECU Module Hirose ZC1 Series

Company Model: RH7345-0.6-21

OE Number: Hirose ZC1M-34DS-HU/R

Core Specifications:

Number of Positions: 34 (34 Way)

Terminal Size: 0.6 mm (Matching terminal: RH6290G-0.6A)

Maximum Current: 2.0A - 3.0A (Per-pin current rating, depending on wire gauge)

Rated Voltage: 12V / 24V DC (Max 50V AC/DC)

Ingress Protection: Not specified (Typically Non-Sealed, actual testing recommended)

Material & Color: PBT / Black, with light gray Retainer

Operating Temperature: -40°C to +125°C

Company Model	RH7345-0.6-21
OE Number	Hirose ZC1M-34DS-HU/R
Core Specifications
Number of Positions	34 (34 Way)
Terminal Size	0.6 mm (Matching terminal: RH6290G-0.6A)
Maximum Current	2.0A - 3.0A (Per-pin current rating, depending on wire gauge)
Rated Voltage	12V / 24V DC (Max 50V AC/DC)
Ingress Protection	Not specified (Typically Non-Sealed, actual testing recommended)
Material & Color	PBT / Black, with light gray Retainer
Operating Temperature	-40°C to +125°C
Certifications	ISO9001, CE
Target Market	Japan, USA, Germany, South Korea, China
Target Audience	Automotive Infotainment Manufacturers, ECU System Integrators, Harness Assemblers
Applicable Models (Cars/Machinery)	Toyota, Nissan, Honda, Mazda, and Modern EV Infotainment Modules
Key Features	High Density (34-Way), Ultra-compact 0.6mm System, High Vibration Resistance, Automotive Grade Reliability
Product Description	ZC1M-34DS-HU/R 34-Way Automotive Interface Connector, designed for high-density signal transmission in vehicle infotainment and control modules. Compact design with integrated retainer for terminal position assurance.
