Number of Positions: 24
Terminal Size: 1.0 mm
Maximum Current: 15A
Rated Voltage: 250V AC/DC
Ingress Protection: IP67
Material / Color: PBT + GF / Black
Operating Temperature: -40°C ~ +125°C
Certifications: ISO9001, CE

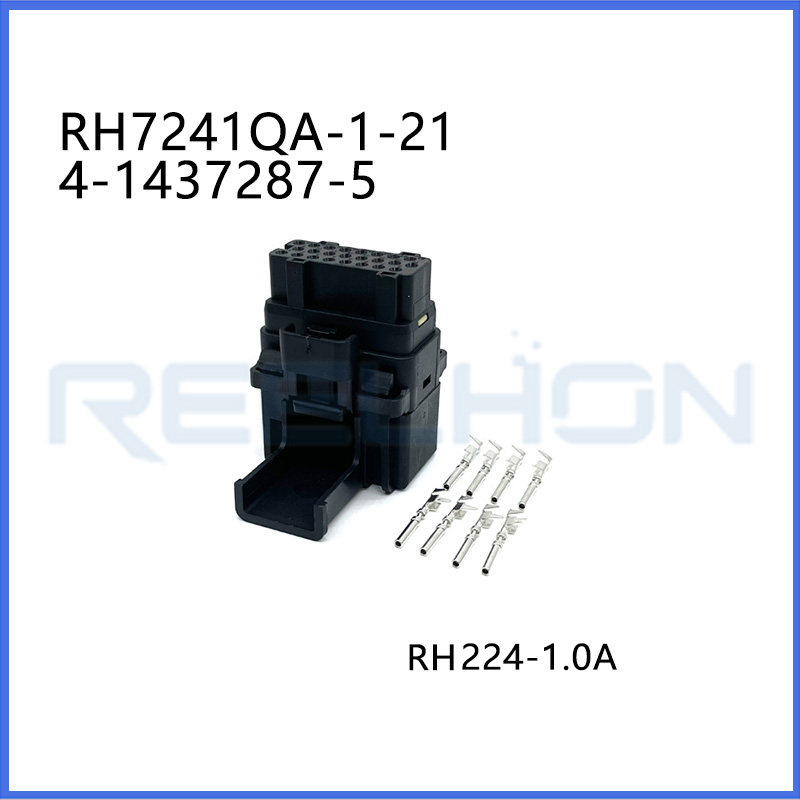

| Company Model | RH7241QA-1-21 |
| Industry Benchmark / OE Reference Number | 4-1437287-5 (TE Connectivity / AMP) |
| Core Specifications | |
| Number of Positions | 24 |
| Terminal Size | 1.0 mm |
| Maximum Current | 15A (depending on wire gauge) |
| Rated Voltage | 250V AC/DC |
| Ingress Protection | IP67 / IP69K (High-performance waterproof sealing) |
| Material / Color | PBT + GF / Black |
| Operating Temperature | -40°C ~ +125°C |
| Certifications | ISO9001, CE |
| Target Market | Europe, North America, Southeast Asia (Heavy-duty truck, agricultural machinery, and vehicle modification markets) |
| Target Audience | ECU Manufacturers, Wiring Harness Manufacturers, Heavy Machinery Maintenance Service Providers |
| Applicable Models (Cars/Machinery) | Widely used in trucks, buses, tractors, and various industrial control units (ECU/PCM) |
| Key Features | Lever Lock structure ensures stable connection under vibration; High-density 1.0mm series layout |

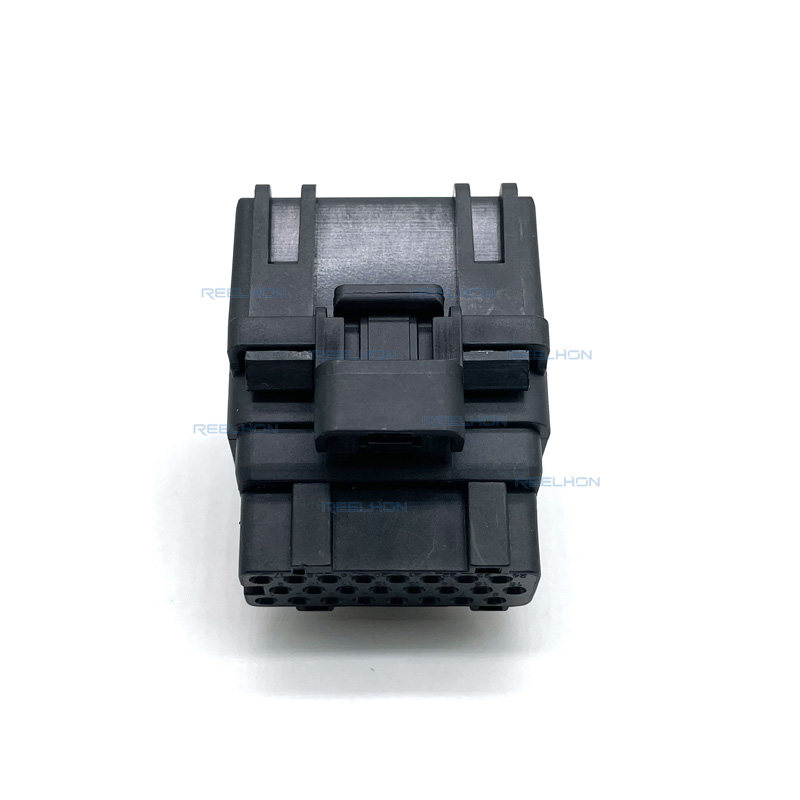

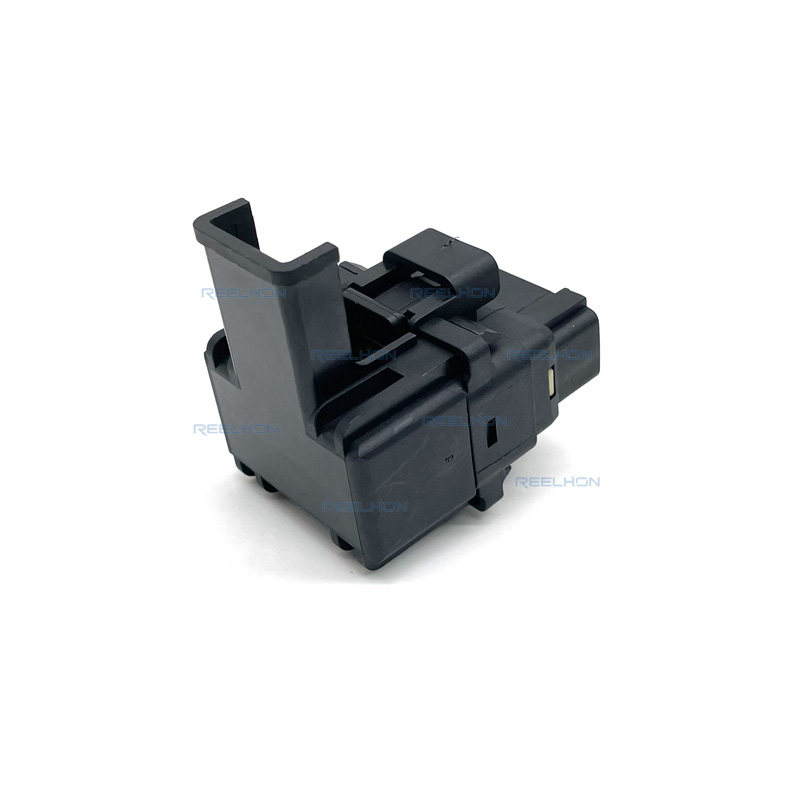

| Product Description | 24-Pin AMP Superseal 1.0mm series female plug with lever-assist mechanism. High-performance waterproof sealing for reliable signal connection in heavy-duty automotive electronics. |
