Number of Positions: 24
Terminal Size: 0.64 mm (Pin Side Width)
Maximum Current: 3A (for signal transmission purposes)
Rated Voltage: 3V / 5V / 12V DC (Signal Voltage)
Ingress Protection: Unsealed
Material / Color: PBT / Gray
Operating Temperature: -40°C ~ +85°C (Standard automotive signal environment)
Certifications: ISO9001, CE

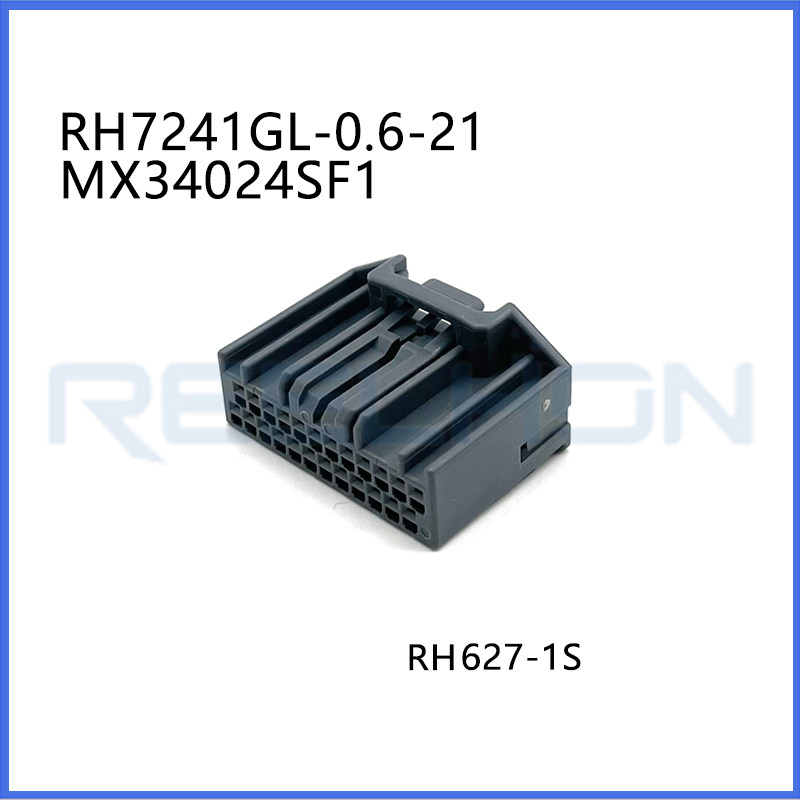

| Company Model | RH7241GL-0.6-21 (Housing) / RH627-1S (Terminal) |
| Industry Benchmark / OE Reference Number | MX34024SF1 (JAE - Japan Aviation Electronics) |
| Core Specifications | |
| Number of Positions | 24 |
| Terminal Size | 0.64 mm (Pin Side Width) |
| Maximum Current | 3A (for signal transmission purposes) |
| Rated Voltage | 3V / 5V / 12V DC (Signal Voltage) |
| Ingress Protection | Unsealed |
| Material / Color | PBT / Gray |
| Operating Temperature | -40°C ~ +85°C (Standard automotive signal environment) |
| Certifications | ISO9001, CE |
| Target Market | In-car audio/video upgrade, OBD diagnostic wiring harness processing, instrument cluster signal systems |
| Target Audience | In-vehicle electronic system integrators, automotive modification shops, automotive multimedia system developers |
| Applicable Models (Cars/Machinery) | Widely used in instrument panel and audio control units of Mazda, Nissan and other Japanese models |
| Key Features | Ultra-compact high-density design; 2.2mm pitch saves space; Reliable mechanical latch prevents vibration-induced disconnection |

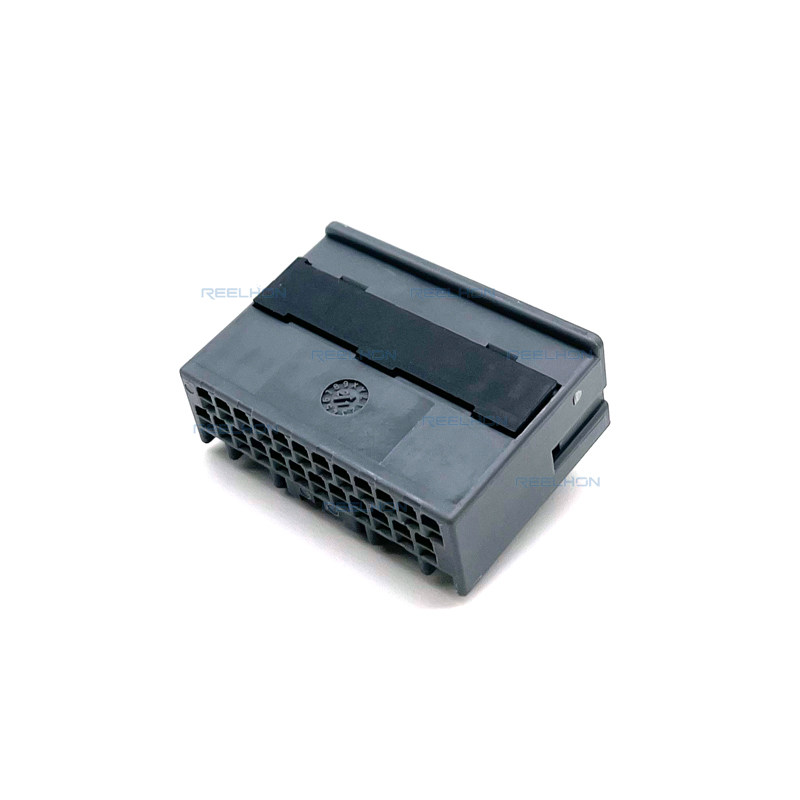

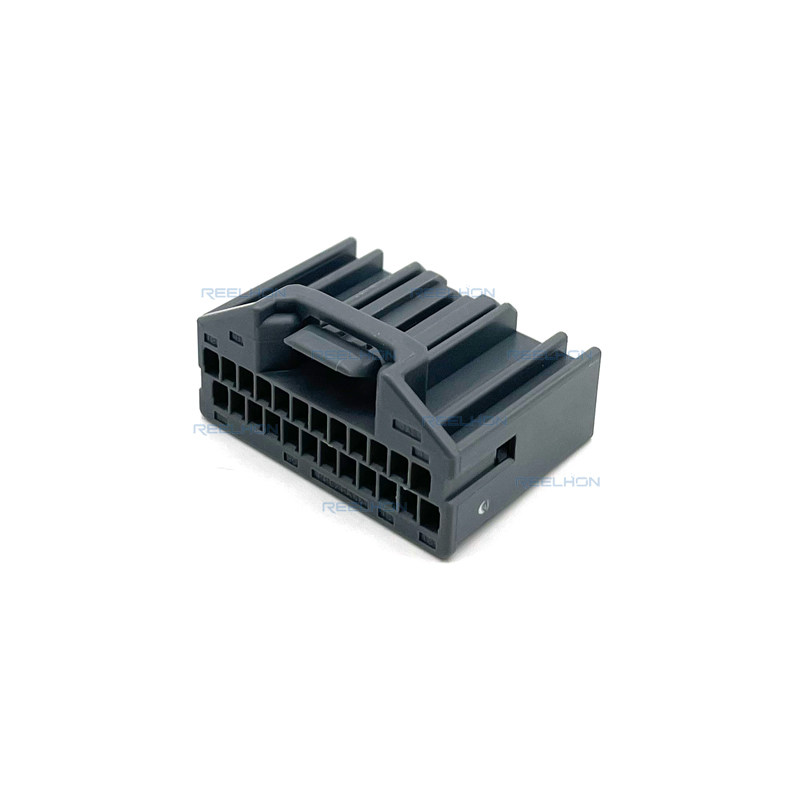

| Product Description | 24-Pin JAE MX34 series compatible unsealed female connector. Ideal for compact automotive signal applications requiring high-density pin layouts and stable connections. |
