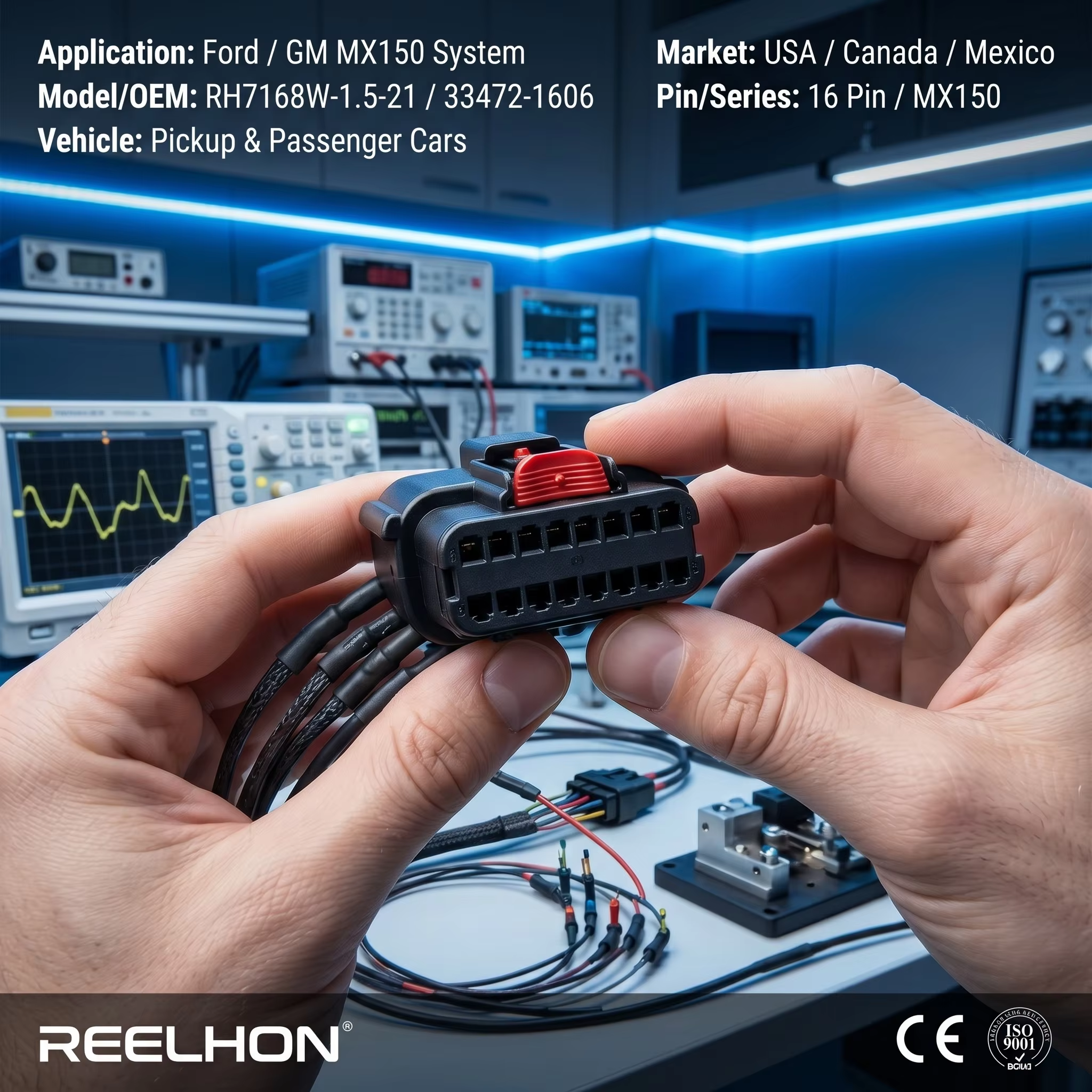

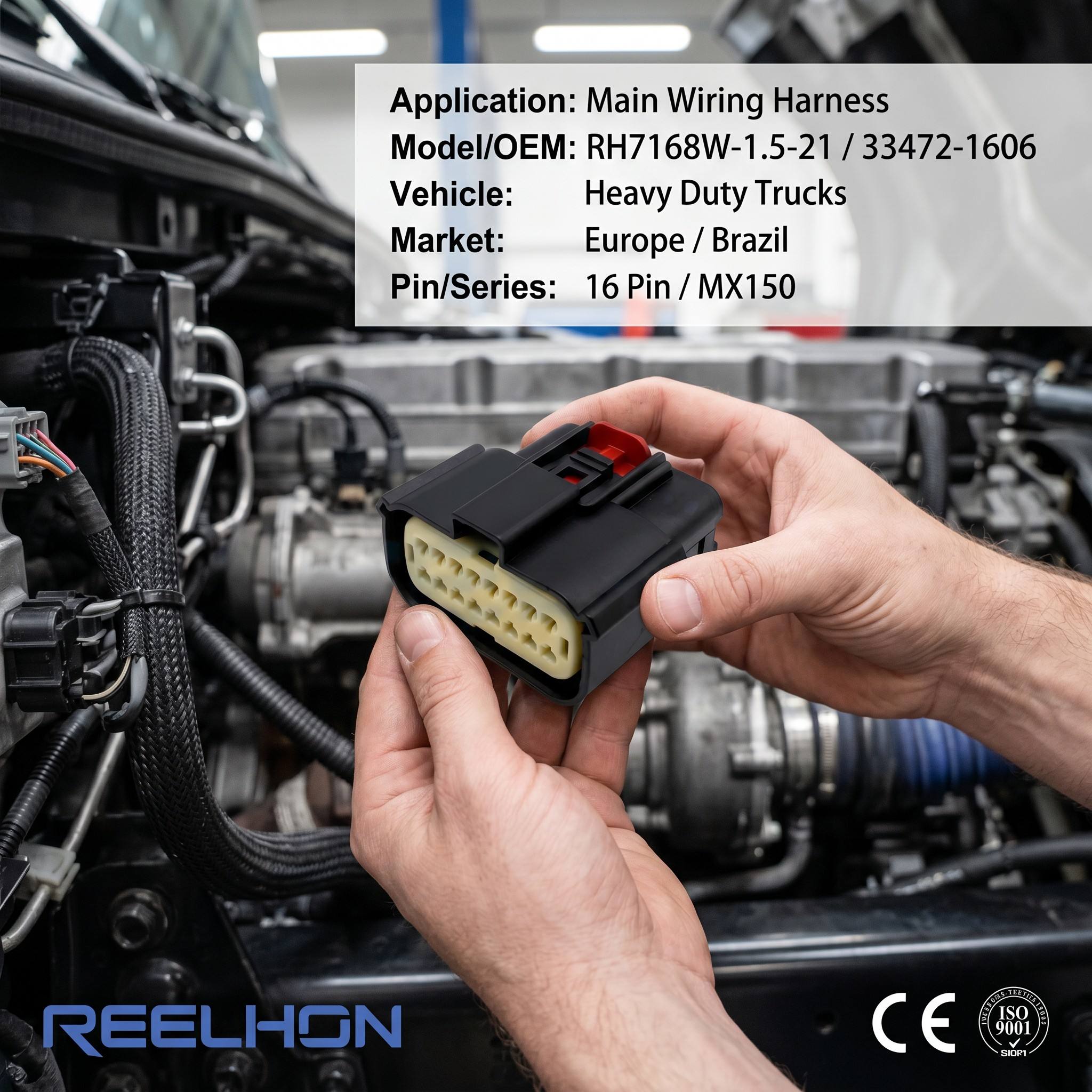

RH7168W-1.5-21 33472-1606 16 Pin Waterproof Female Automotive Connector for Ford GM Headlight ECU Plug Molex MX150 Series

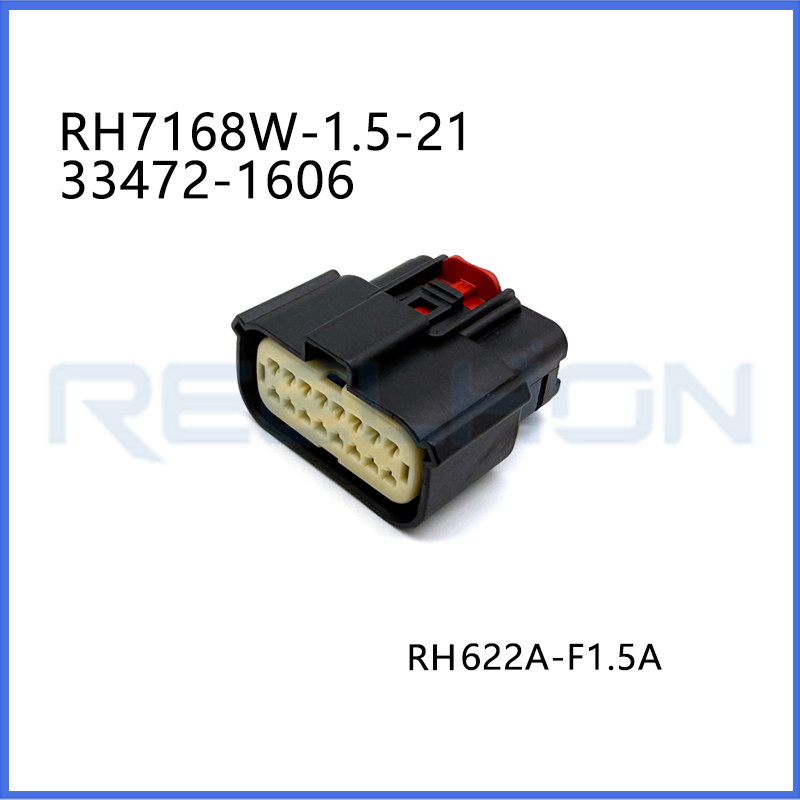

Company Model: RH7168W-1.5-21

OE Number: 33472-1606

Core Specifications:

Number of Positions: 16 (16 Way / 16 Pin)

Terminal Size: 1.5 mm (MX150 series, matching terminal: RH622A-F1.5A)

Maximum Current: 22A (depending on wire gauge)

Rated Voltage: 12V / 24V DC

Ingress Protection: IP67 / IP6K9K (Achieved through integrated mat seal)

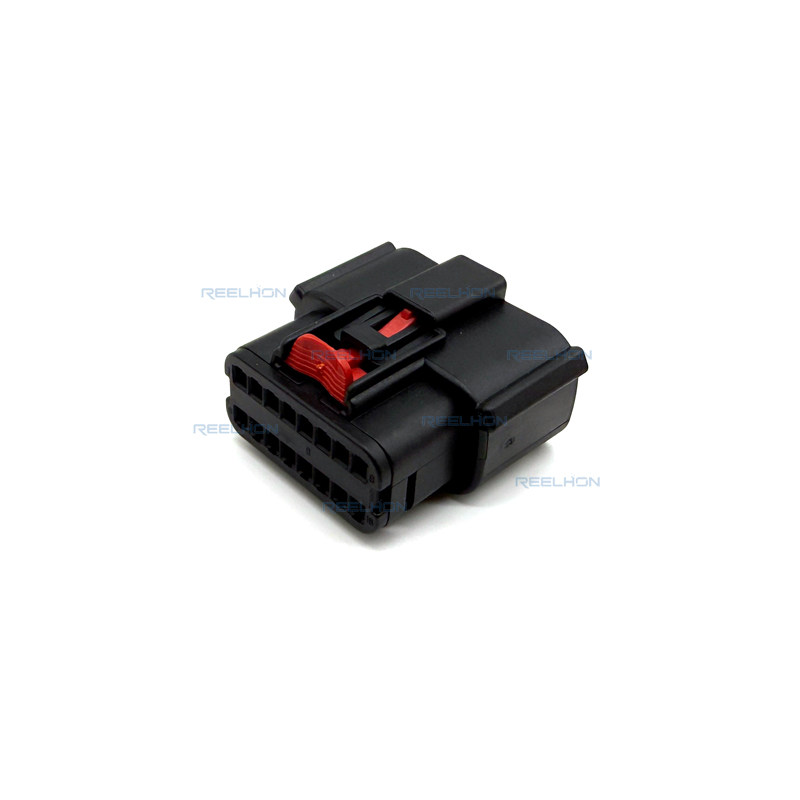

Material & Color: PA66+GF (High-temperature resistant reinforced nylon) / Black, with light gray terminal face and red CPA lock

Operating Temperature: -40°C to +125°C

Certifications: ISO9001, CE

Company Model	RH7168W-1.5-21
OE Number	33472-1606
Core Specifications
Number of Positions	16 (16 Way / 16 Pin)
Terminal Size	1.5 mm (MX150 series, matching terminal: RH622A-F1.5A)
Maximum Current	22A (depending on wire gauge)
Rated Voltage	12V / 24V DC
Ingress Protection	IP67 / IP6K9K (Achieved through integrated mat seal)
Material & Color	PA66+GF (High-temperature resistant reinforced nylon) / Black, with light gray terminal face and red CPA lock
Operating Temperature	-40°C to +125°C
Certifications	ISO9001, CE
Target Market	USA, Canada, Mexico, Europe, Brazil
Target Audience	Ford/GM Wiring Harness Repair Shops, Auto Lighting Manufacturers, ECU System Suppliers

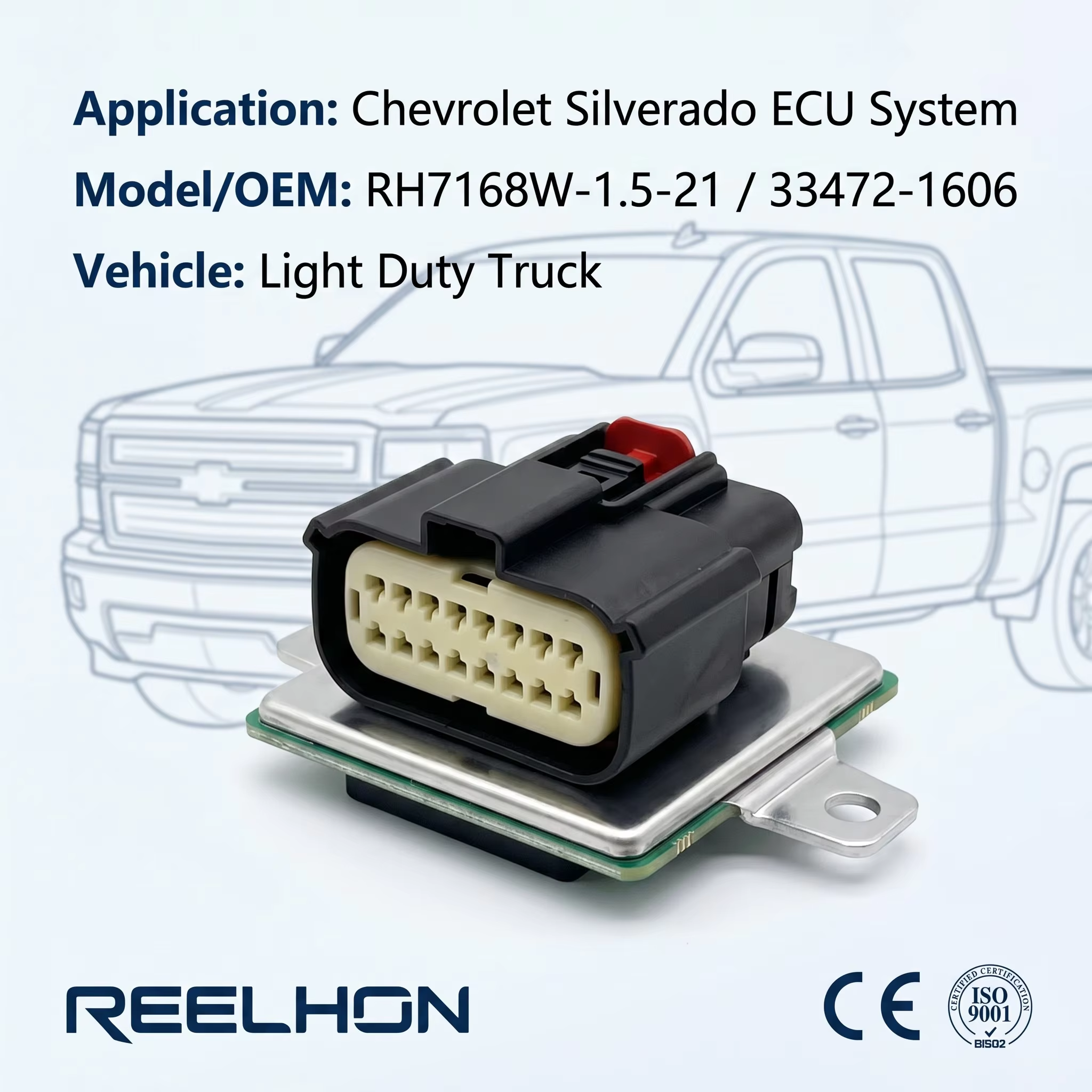

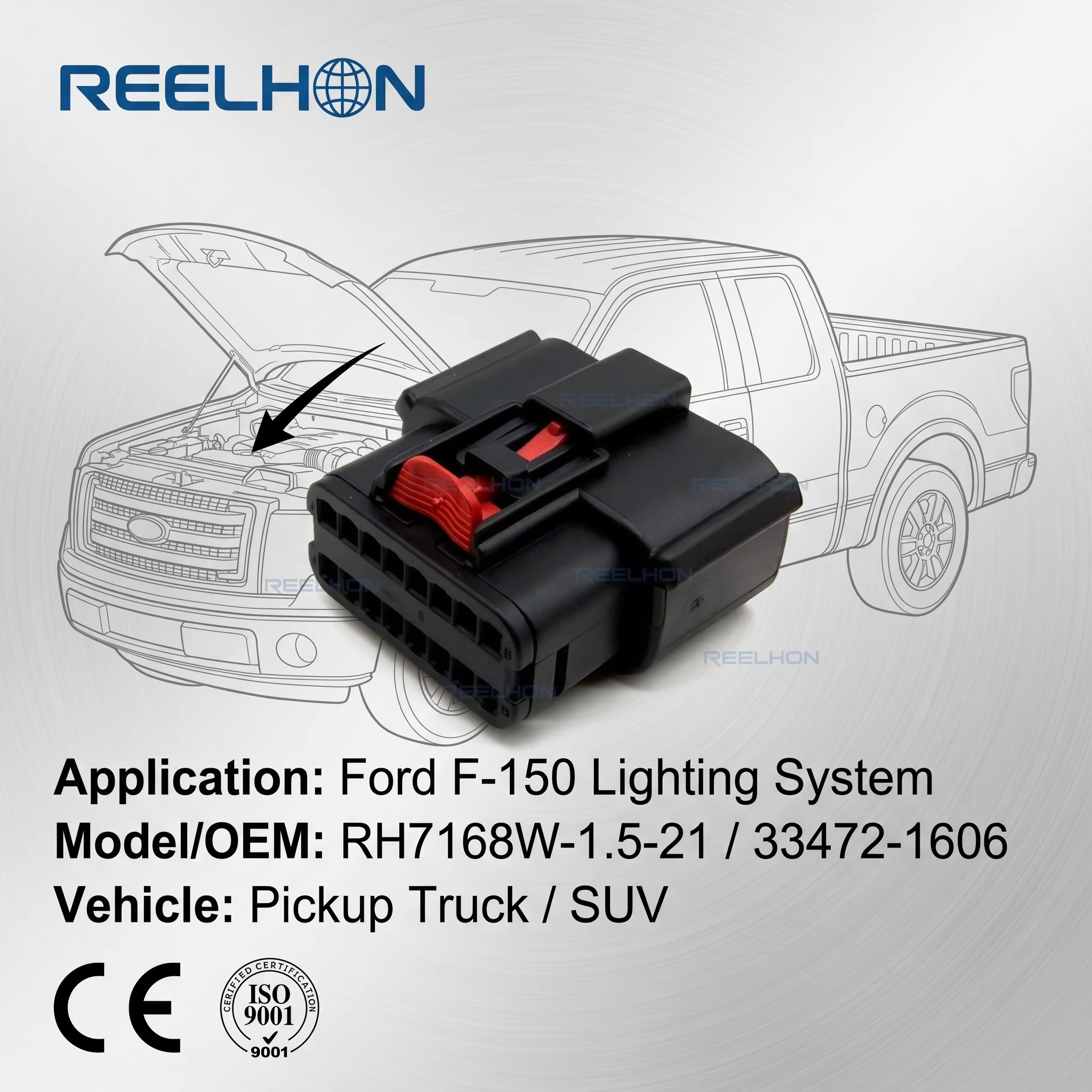

Applicable Models (Cars/Machinery)	Ford F-150, Chevrolet Silverado, GMC, and various vehicles using Molex MX150 systems
Key Features	MX150 Sealed System, Integrated Mat Seal, Red CPA Locking Tab, 1.5mm Blade Size, Vibration Proof
Product Description	16-Way Sealed Female Receptacle Housing, MX150 Series, designed for high-performance automotive signal and power applications. Features superior environmental sealing and secondary locking for high-vibration environments.
