Nominal Voltage Architecture (V): 12 | 24 | 48

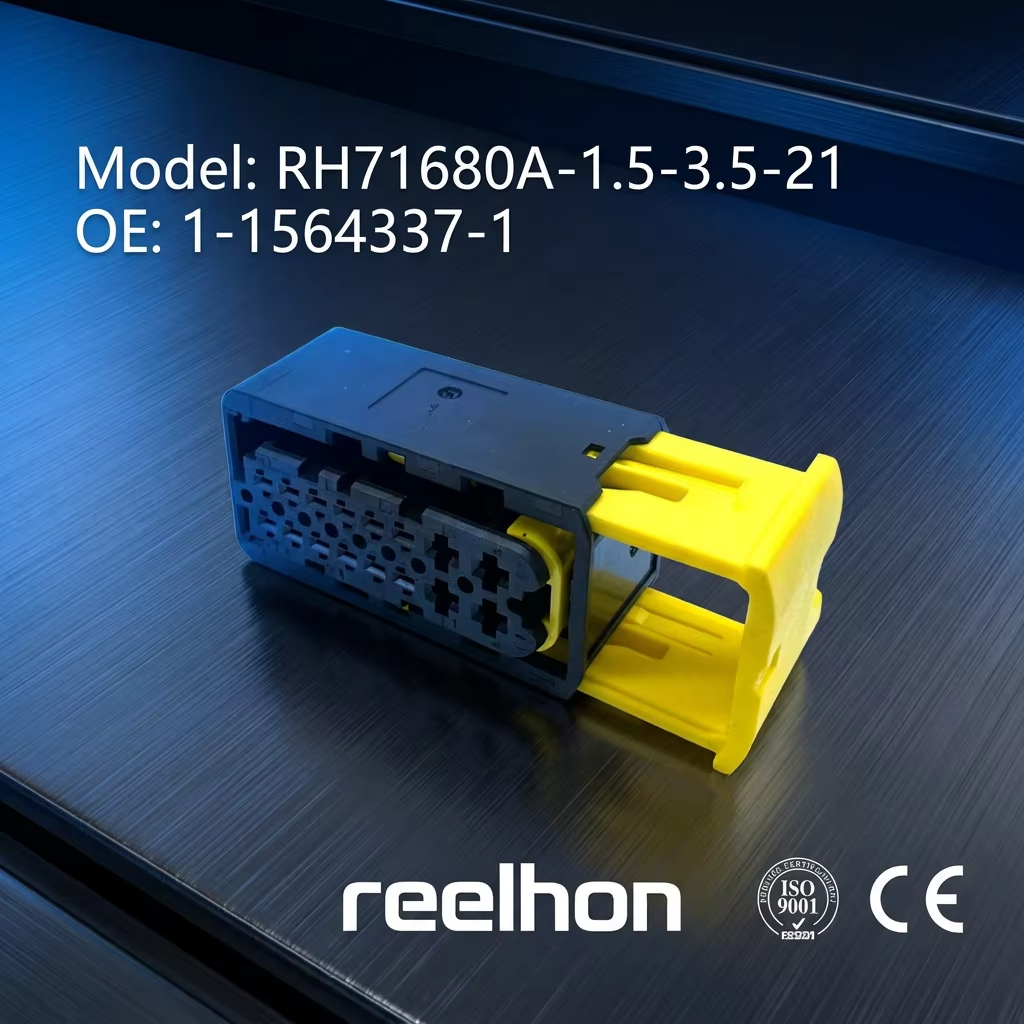

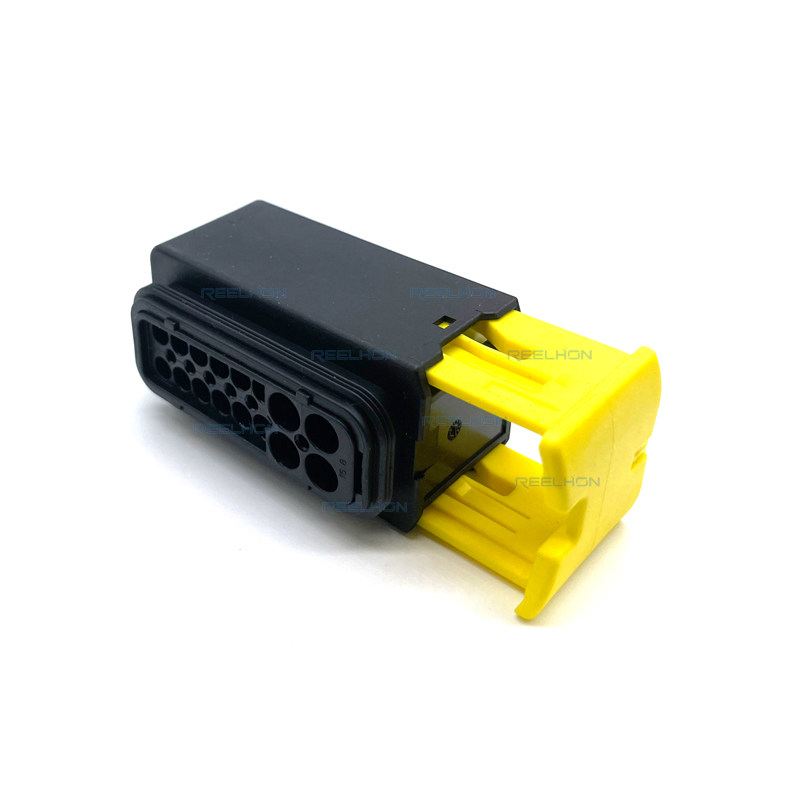

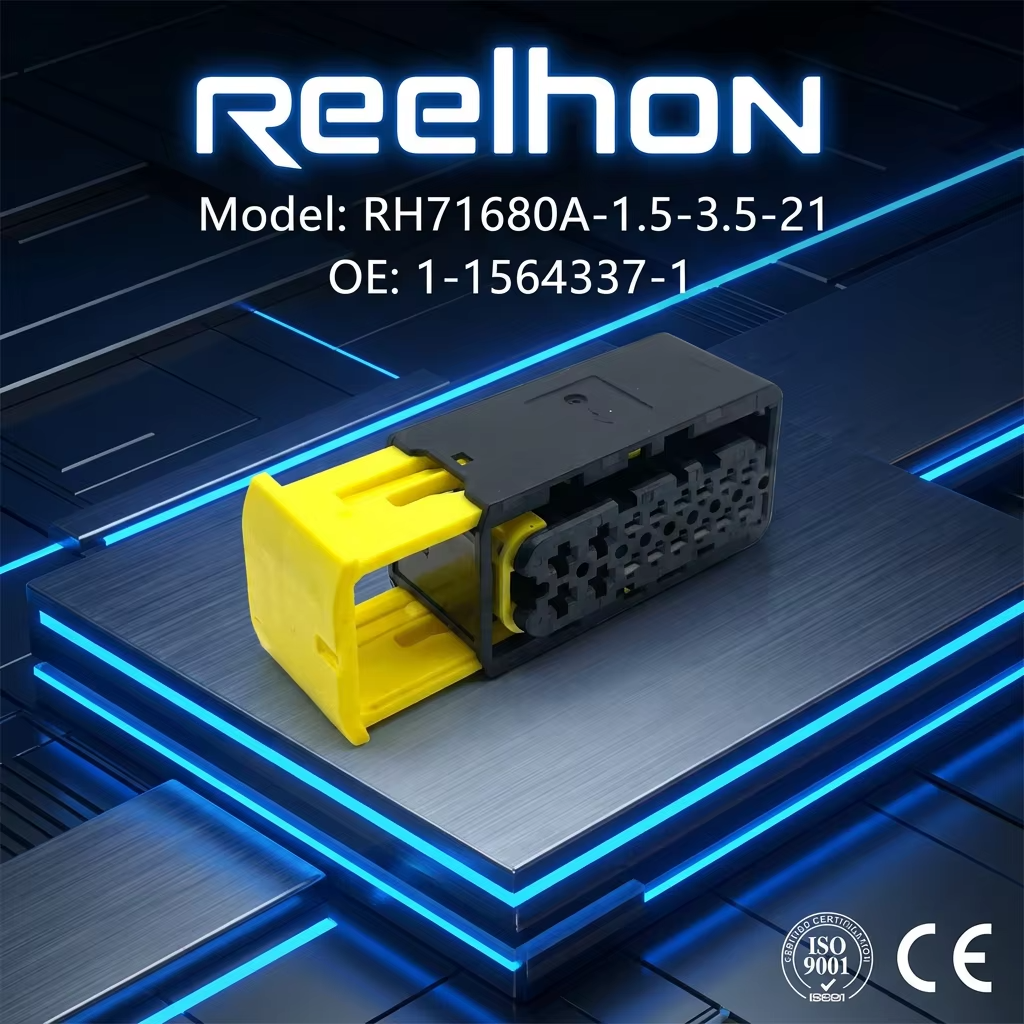

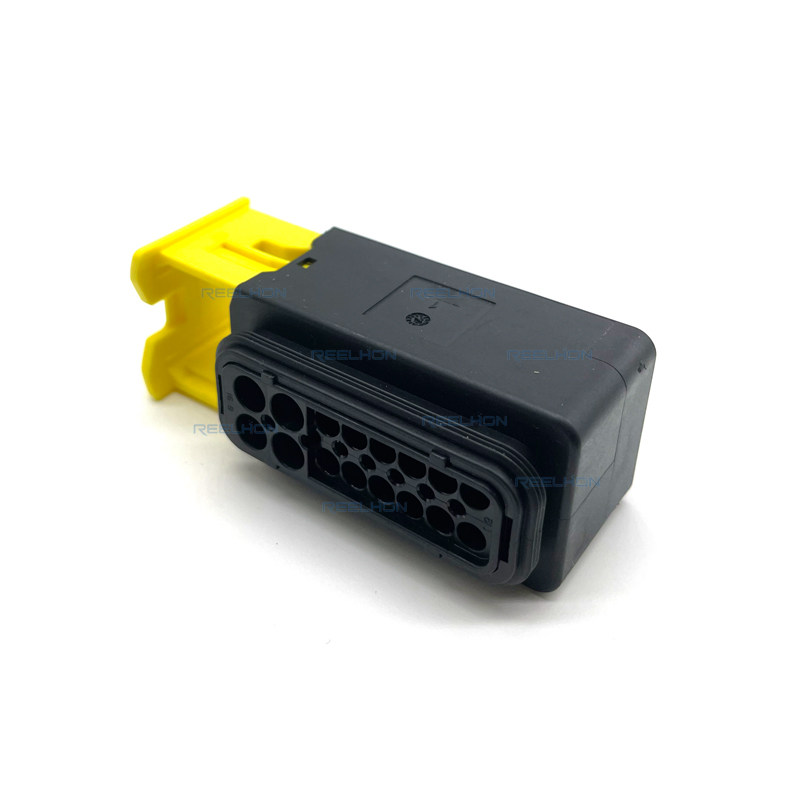

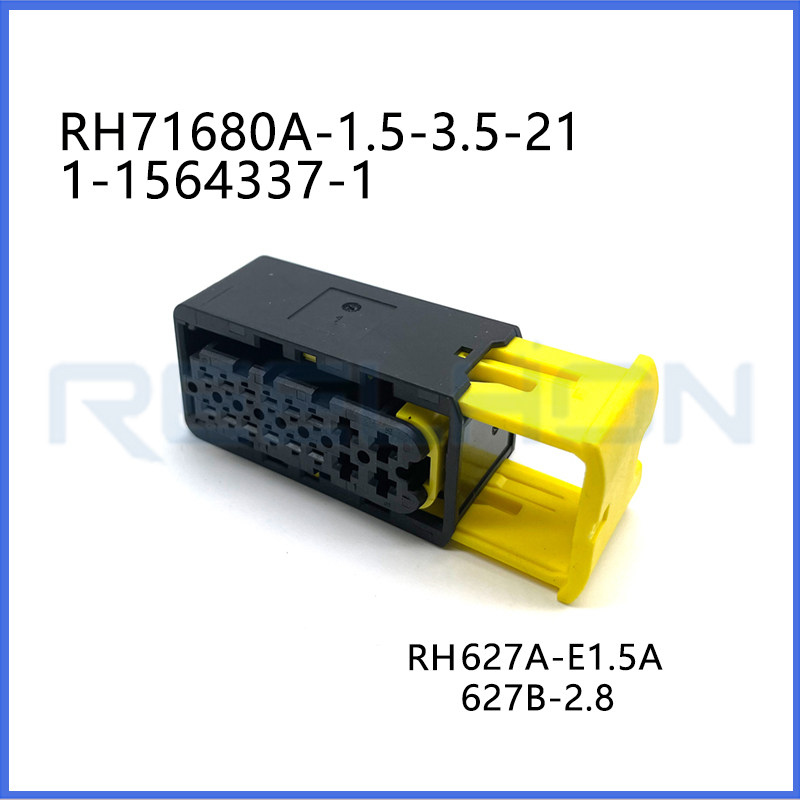

Connector & Housing Type : Housing for Female Terminals
Number of Positions : 16
Sealable : Yes
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
| Product Type Features | |
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | Yes |
| Connector & Housing Type | Housing for Female Terminals |
| Sealable | Yes |
| Primary Locking Feature | On the Terminal |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Configuration Features | |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Electrical Characteristics | |
| Operating Voltage (VDC) | 60 |
| Nominal Voltage Architecture (V) | 12 | 24 | 48 |
| Body Features | |
| Cable Exit Angle (°) | 90 | 180 |
| Primary Product Color | Black |
| Connector & Keying Code | A |
| Contact Features | |
| Contact Type | Receptacle |
| Contact Size | 1.5K | 2.8mm |
| Mating Tab Width (mm) | 1.5 | 2.8 |
| Mating Tab Width (in) | .059 | .11 |
| Contact Current Rating (Max) (A) | 40 |
| Mechanical Attachment | |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Terminal Position Assurance | No |
| Strain Relief | Without |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Housing Features | |
| Housing Material | PBT GF30 |
| Centerline (Pitch) (mm) | 4 | 6 |
| Centerline (Pitch) (in) | .157 | .236 |
| Dimensions | |
| Connector Height | 31.25 mm [1.23 in] |
| Product Length | 67.2 mm [2.646 in] |
| Product Width | 25.7 mm [1.012 in] |
| Usage Conditions | |
| Operating Temperature Range | -40 – 140 °C [-40 – 284 °F] |
| Operating Temperature (Max) | 140 °C [284 °F] |
