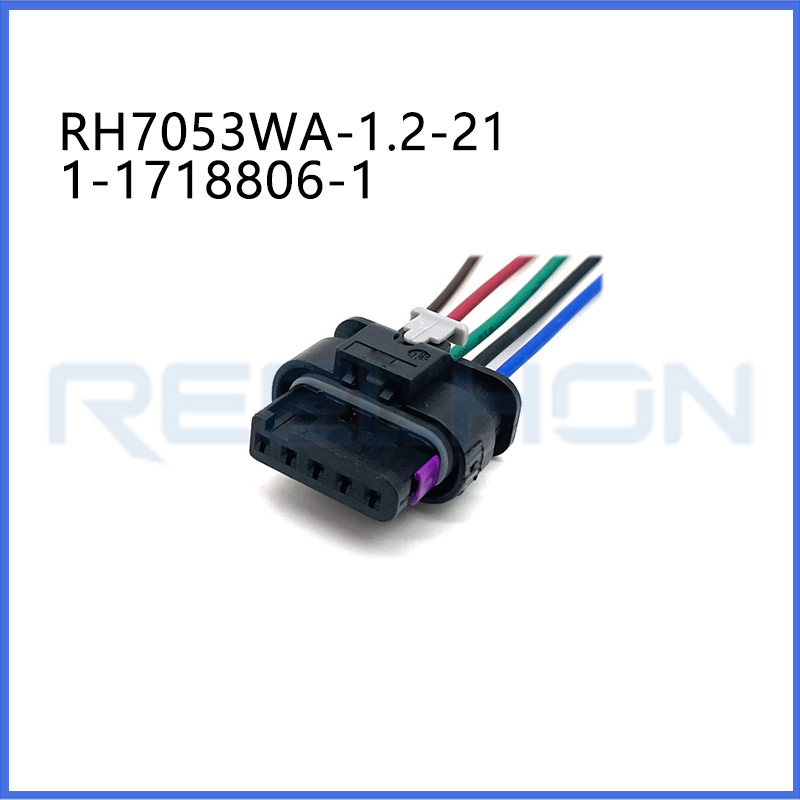

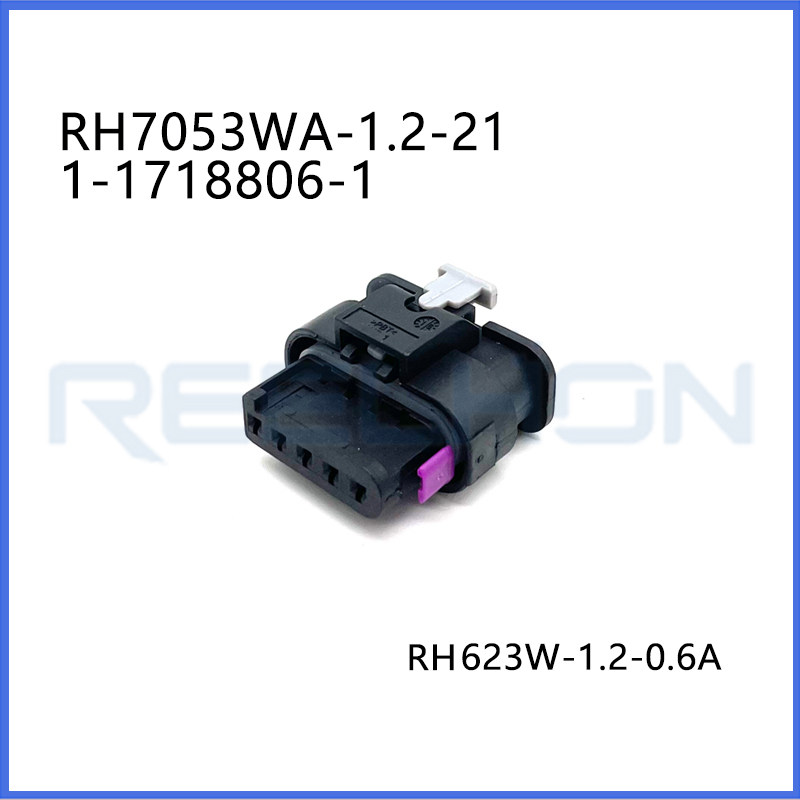

Part Number: RH7053WA-1.2-21 (Housing) / RH623W-1.2-0.6A (Terminal)
OE Number: 1-1718806-1
Key Specifications:
Number of Positions: 5 Positions
Terminal Size: 1.2 mm (MCON Tab)
Maximum Current: 12A Max
Rated Voltage: 12V / 24V DC
Ingress Protection: IP67 / IP68 / IP69K
Material & Color: PBT + GF / Black, with White CPA lock and purple seal
Operating Temperature: -40°C to +125°C
Certificates: ISO9001, CE
| Part Number | RH7053WA-1.2-21 (Housing) / RH623W-1.2-0.6A (Terminal) |
| OE Number | 1-1718806-1 |
| Key Specifications | |
| Number of Positions | 5 |
| Terminal Size | 1.2 mm (MCON Tab) |
| Maximum Current | 12A Max |
| Rated Voltage | 12V / 24V DC |
| Ingress Protection | IP67 / IP68 / IP69K |
| Material & Color | PBT + GF / Black, with White CPA lock and purple seal |
| Operating Temperature | -40°C to +125°C |
| Certifications | ISO9001, CE |
| Target Market | Germany, UK, Poland, USA, Turkey |
| Target Audience | Automotive sensor wiring harness manufacturers, heavy machinery maintenance centers, European vehicle aftermarket modification shops |

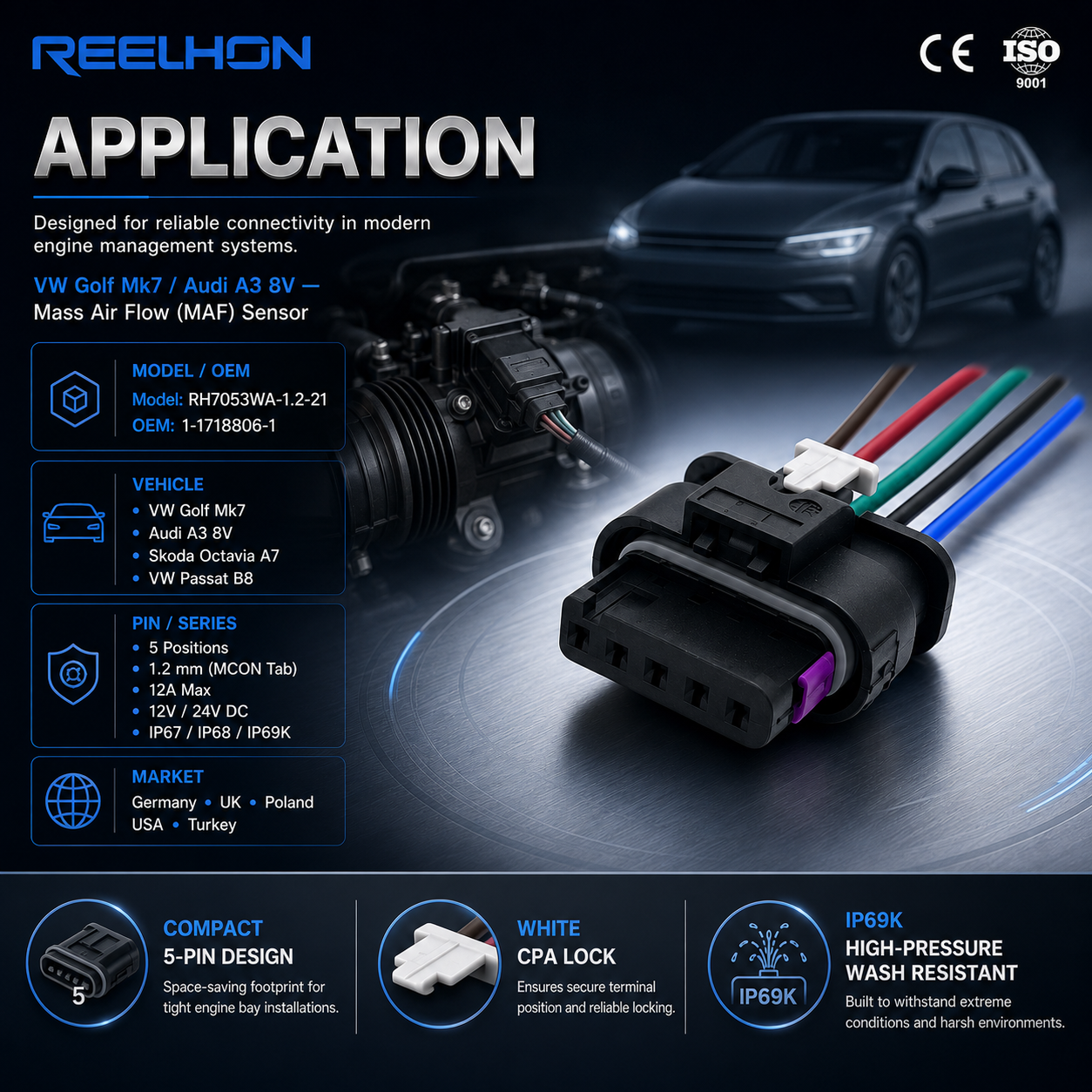

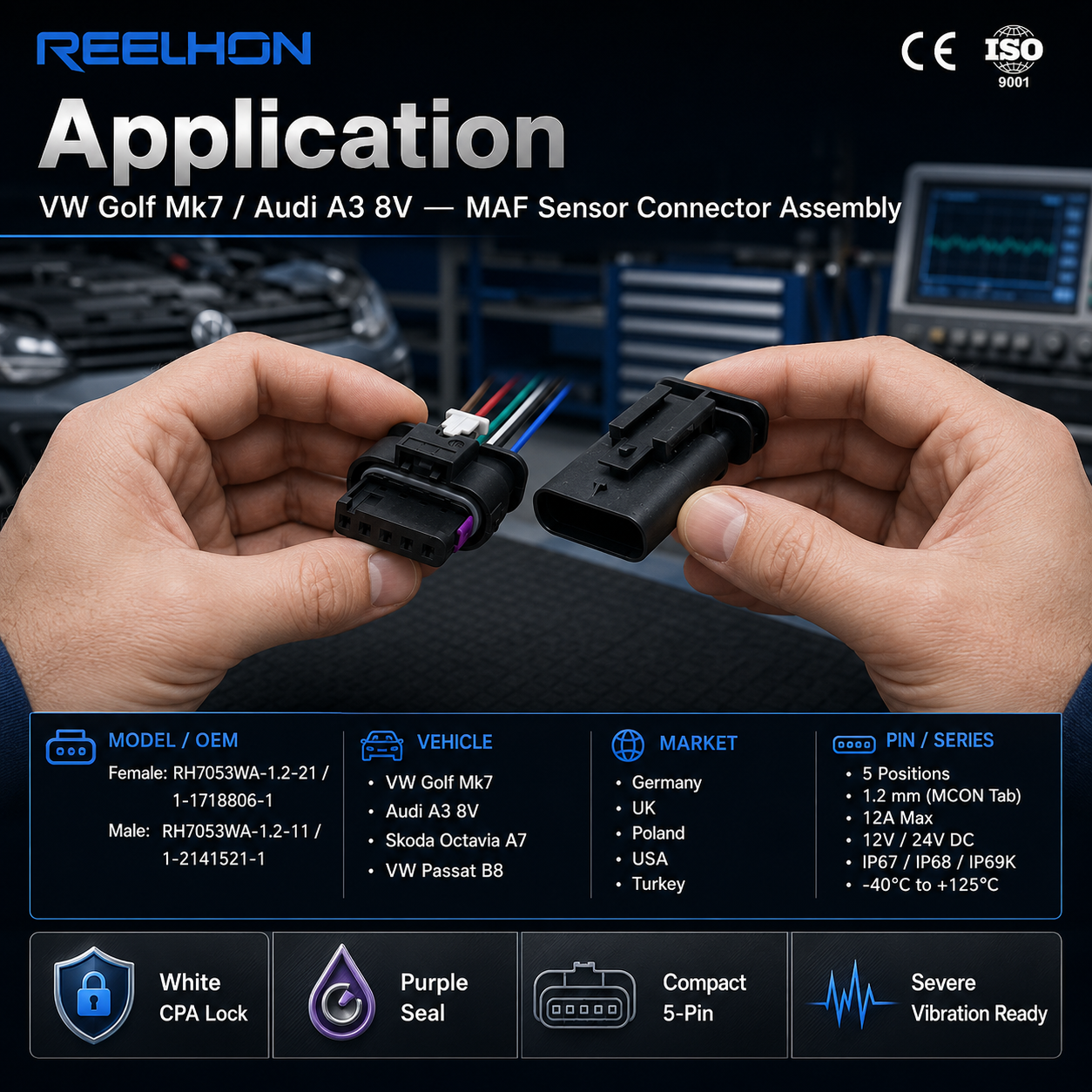

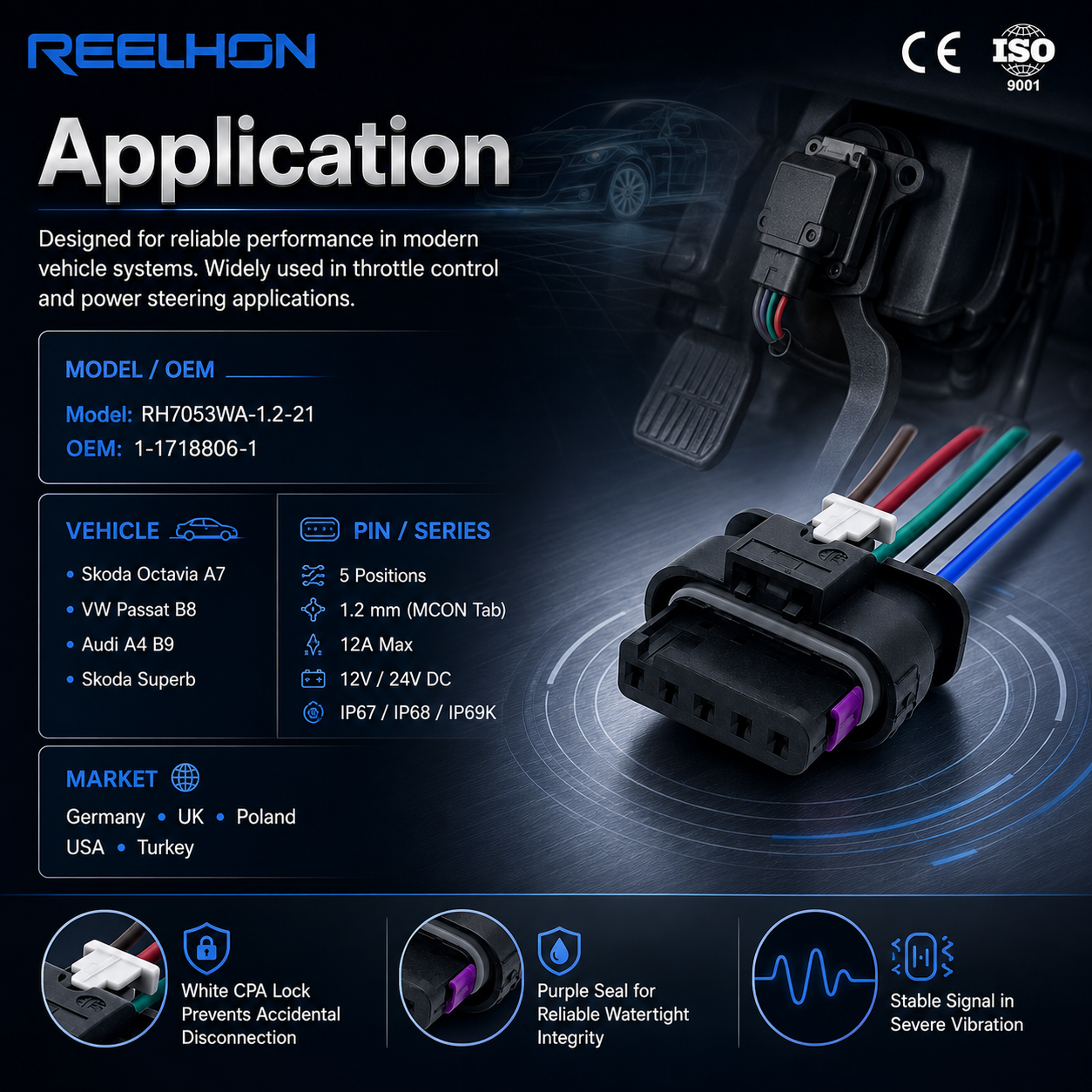

| Applicable Models (Cars/Machinery) | Widely used in VW, Audi, Skoda and other models for Mass Air Flow (MAF) sensors, throttle pedal sensors, and power steering pumps |
| Key Features | Extremely compact high-density 5-pin design; White CPA lock prevents accidental disconnection; IP69K rating withstands high-pressure water jet cleaning |
| Product Description | 5-Way MCON 1.2mm series sealed female receptacle housing, equivalent to 1-1718806-1. Specifically designed for critical sensor connections in European vehicles, ensuring ultimate reliability and signal purity under severe vibration. |
