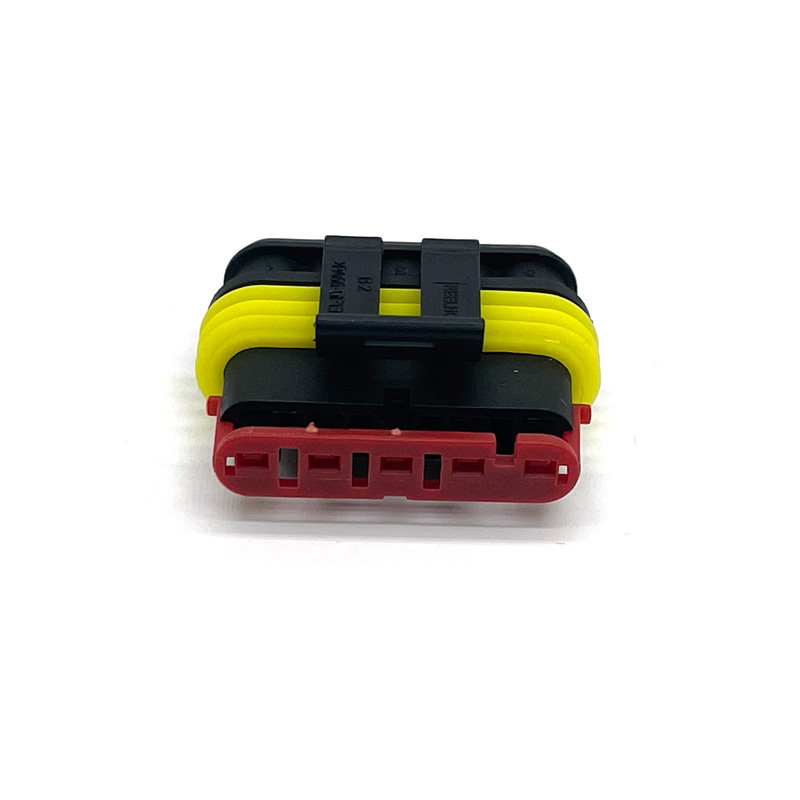

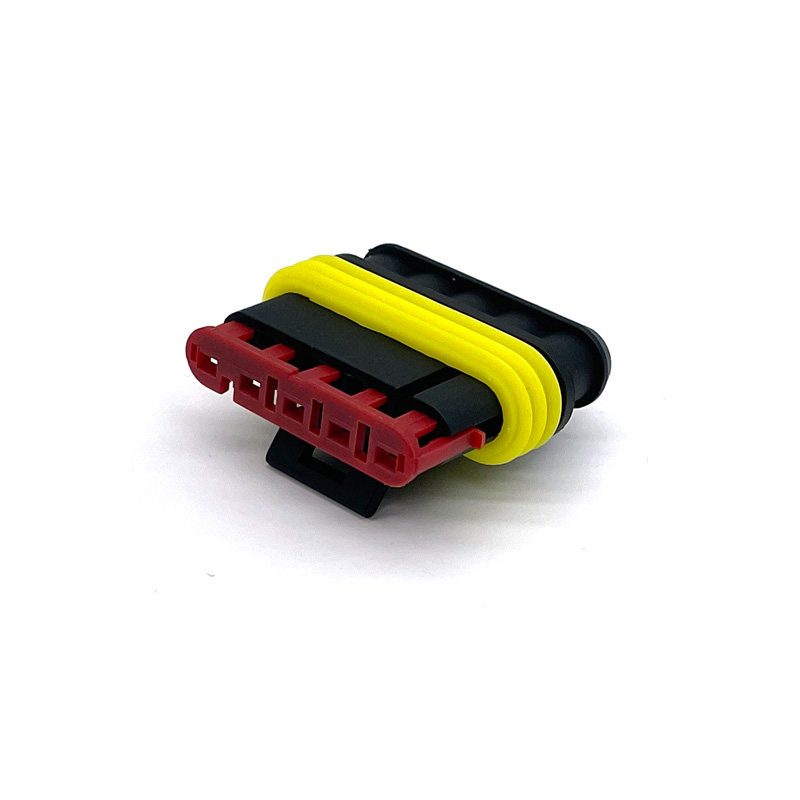

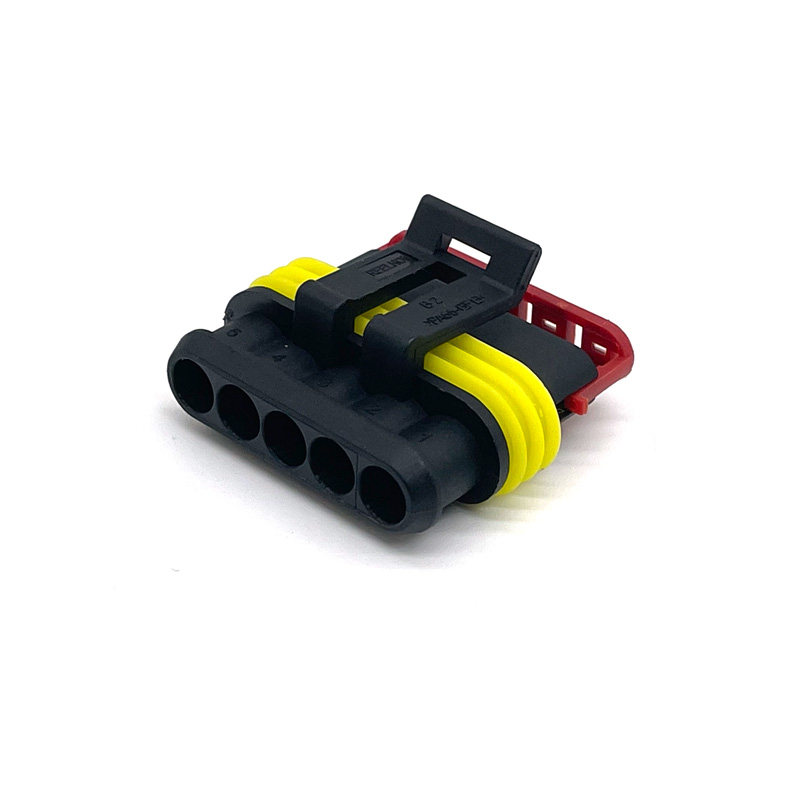

RH7051Y-1.8-21 5 Pin 282089-1 AMP Superseal 1.5 Female Waterproof Connector for Car Sensor Harness

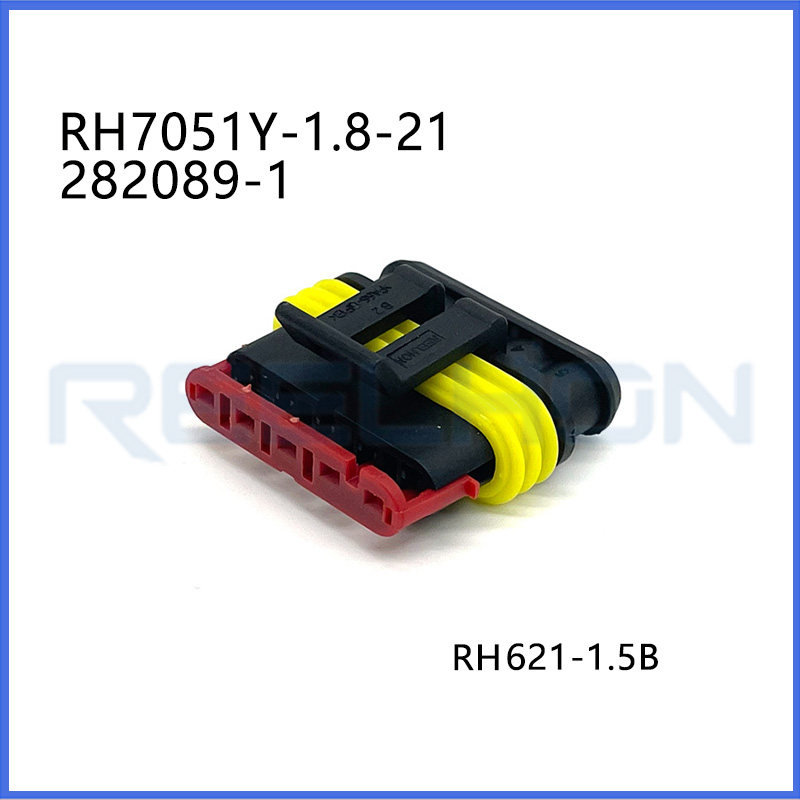

Part Number: RH7051Y-1.8-21 (Housing) / RH621-1.5B (Terminal)

OE Number: 282089-1

Key Specifications:

Number of Positions: 5

Terminal Size: 1.5 mm

Maximum Current: 14A Max (with 1.5mm² wire)

Rated Voltage: 24V DC (Max 250V AC/DC)

Ingress Protection: IP67 / IP69K

Material & Color: PA66+GF / Black, with yellow silicone seal and red secondary lock

Operating Temperature: -40°C to +125°C

Certifications: ISO9001, CE

Part Number	RH7051Y-1.8-21 (Housing) / RH621-1.5B (Terminal)
OE Number	282089-1
Key Specifications
Number of Positions	5
Terminal Size	1.5 mm
Maximum Current	14A Max
Rated Voltage	24V DC
Ingress Protection	IP67 / IP69K
Material & Color	PA66+GF / Black, with yellow silicone seal and red secondary lock
Operating Temperature	-40°C to +125°C
Certifications	ISO9001, CE
Target Market	Global automotive electrical parts aftermarket, off-road vehicle high-power lighting modification, heavy machinery control circuit repair kits
Target Audience	Custom wiring harness assemblers, heavy truck and agricultural machinery repair engineers, automotive aftermarket distributors

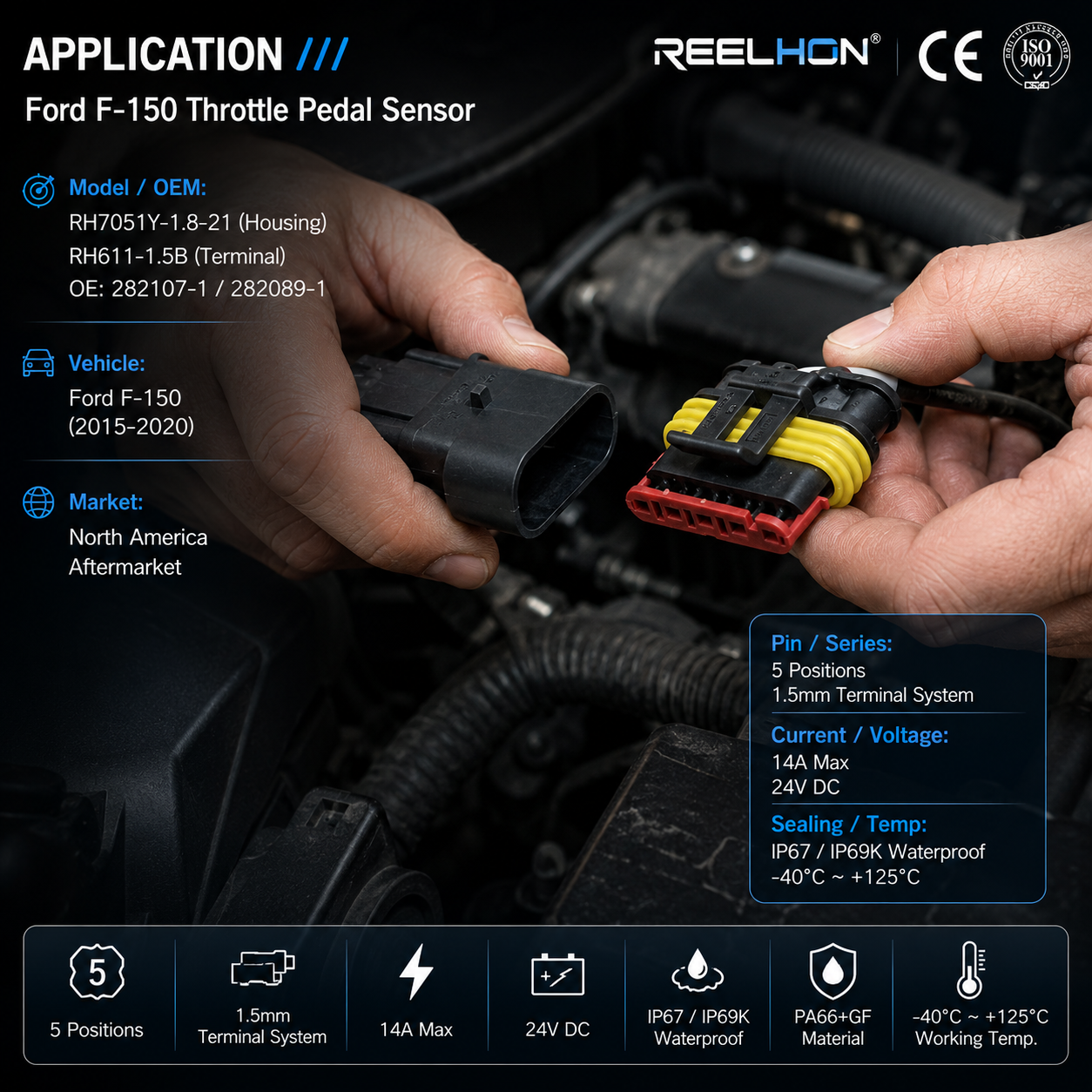

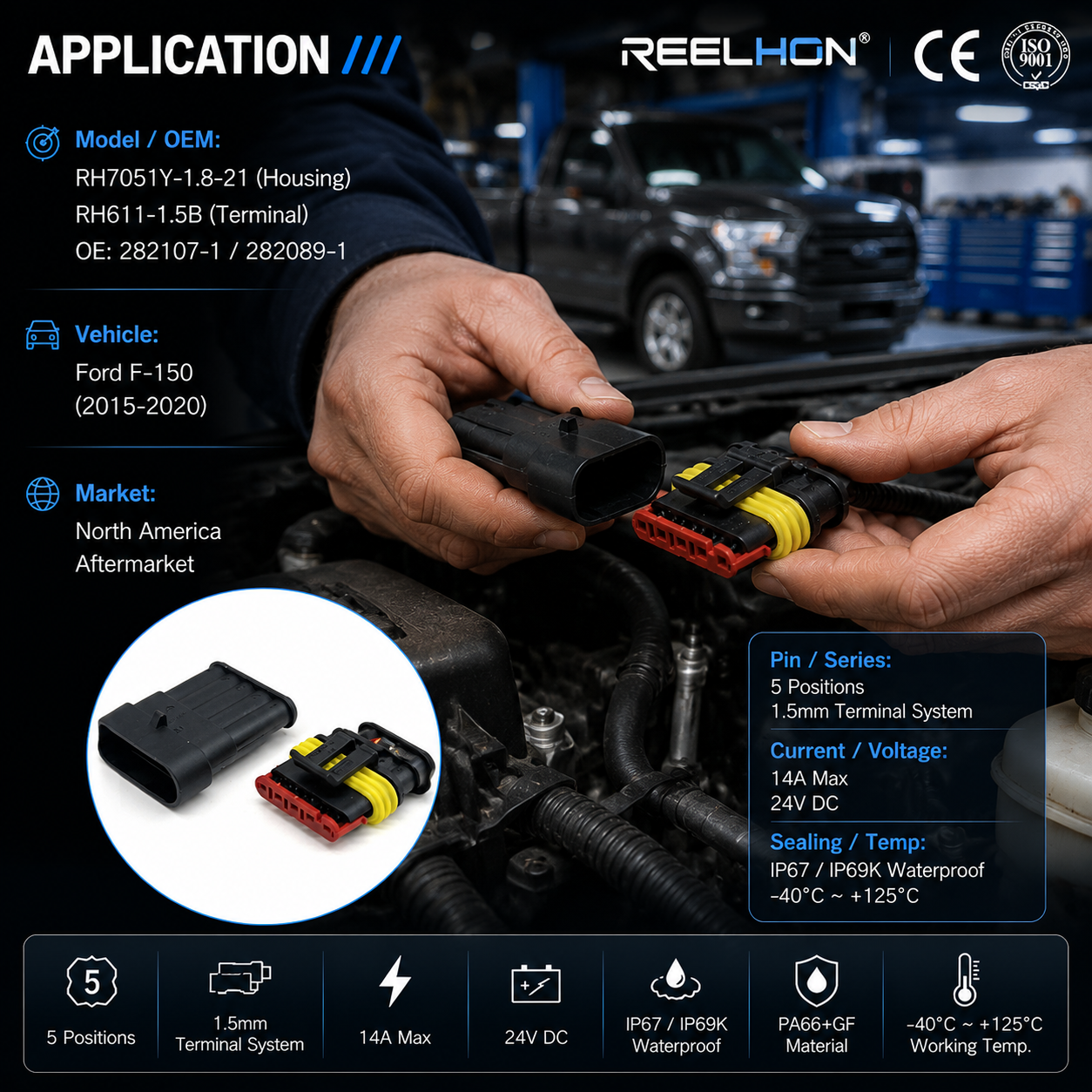

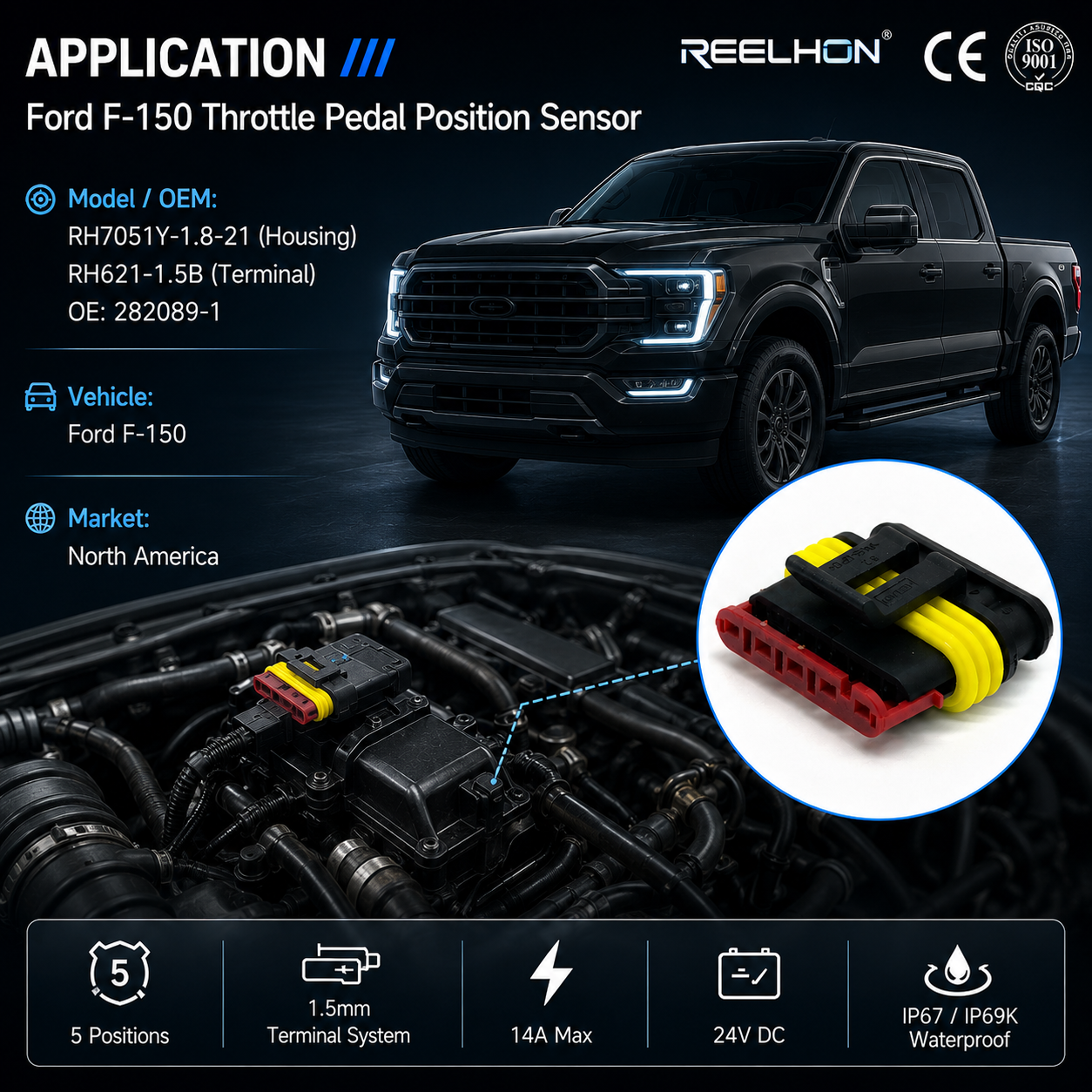

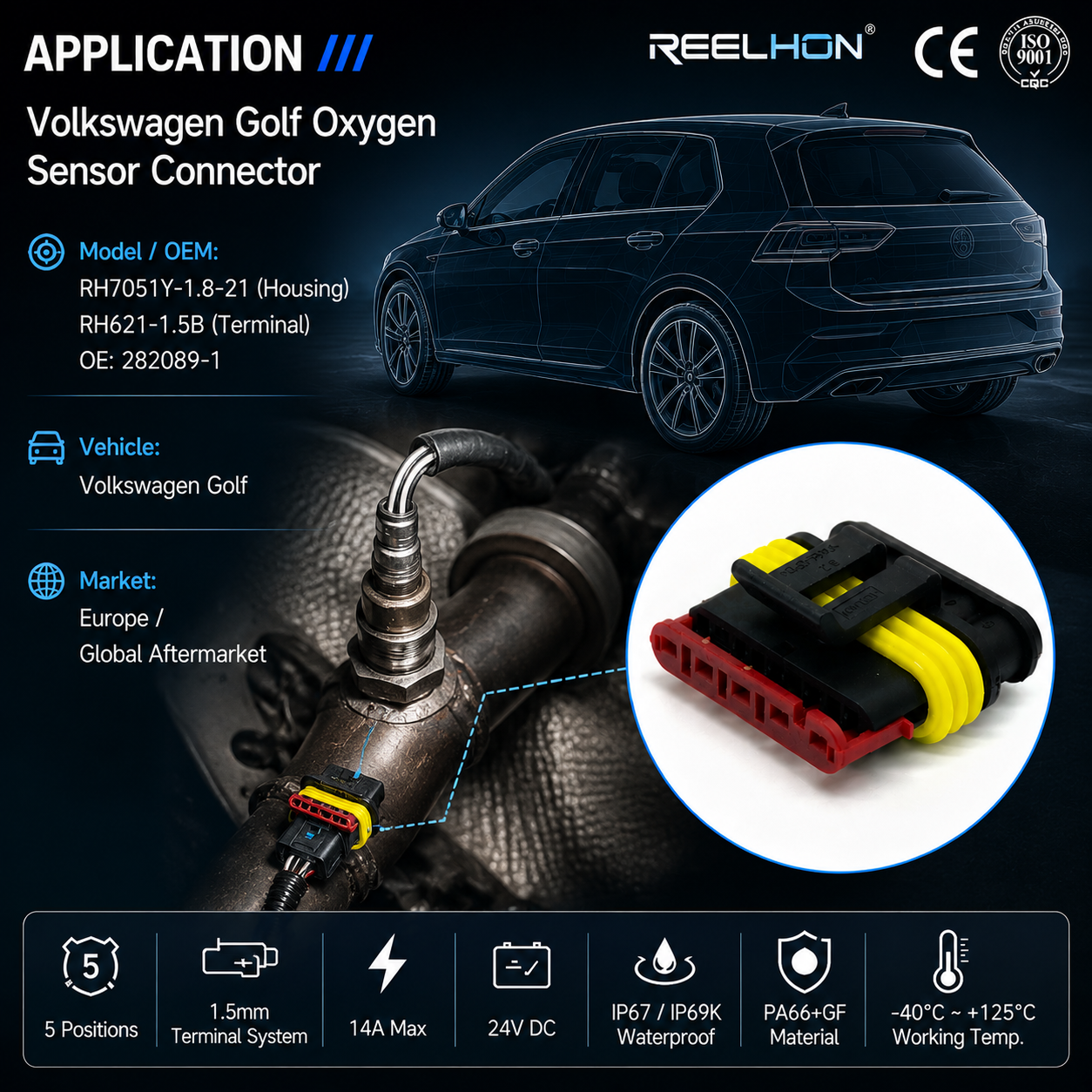

Applicable Models (Cars/Machinery)	Applicable to passenger vehicles (e.g., Ford, Volkswagen), Harley-Davidson and other premium motorcycles, trucks, tractors, as well as automotive oxygen sensors, stepper motors, 5-wire throttle pedal circuits
Key Features	5-pin in-line relay connection; Bright yellow corrugated dual-layer waterproof rubber seal; High-temperature resistant flame-retardant PA66 for complex engine bay environments
