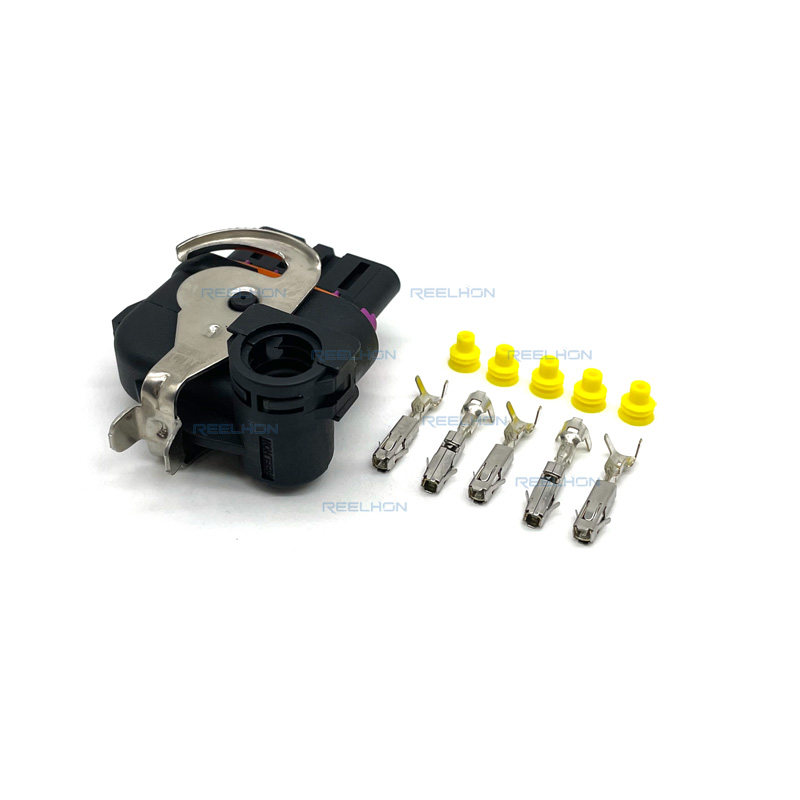

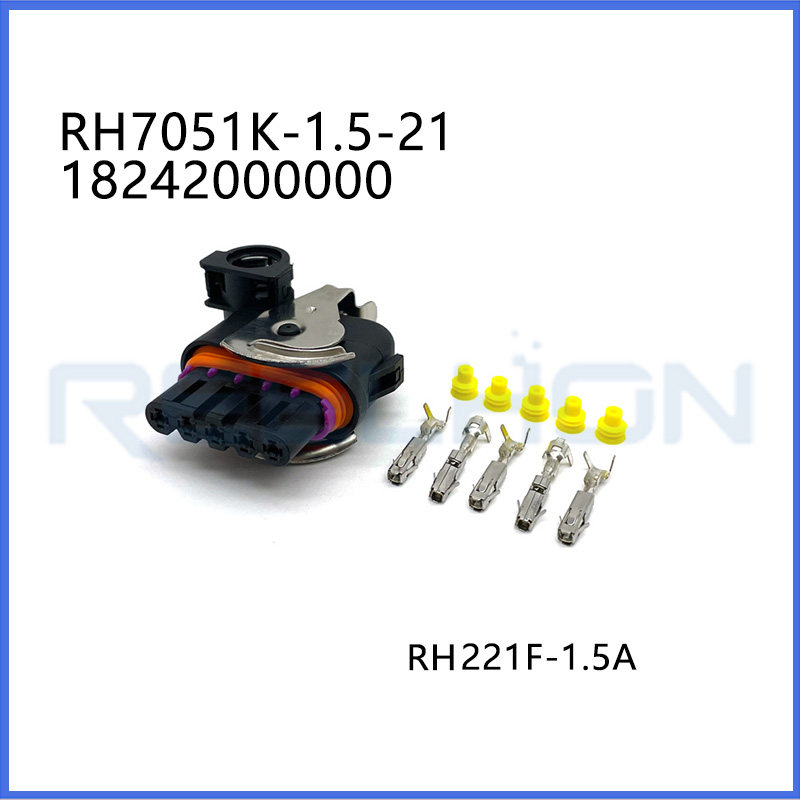

RH7051K-1.5-21 18242000000 5 Pin Waterproof Female Automotive Connector for Bosch Alternator Wiper Motor Socket Lear 1.5mm Series

Company Model: RH7051K-1.5-21

OE Number: 18242000000

Core Specifications:

Number of Positions: 5 (5 Way / 5 Pin)

Terminal Size: 1.5 mm (Matching terminal: RH221F)

Maximum Current: Approx. 14A (depending on 1.5mm² wire gauge)

Rated Voltage: 12V / 24V DC

Ingress Protection: IP67 (Dustproof and waterproof)

Material & Color: PA66 Glass-Fiber Reinforced (GF) / Black, with orange seal

Operating Temperature: -40°C to +125°C

Certifications: ISO9001, CE

Company Model	RH7051K-1.5-21
OE Number	18242000000
Core Specifications
Number of Positions	5 (5 Way / 5 Pin)
Terminal Size	1.5 mm (Matching terminal: RH221F)
Maximum Current	Approx. 14A (depending on 1.5mm² wire gauge)
Rated Voltage	12V / 24V DC
Ingress Protection	IP67 (Dustproof and waterproof)
Material & Color	PA66 Glass-Fiber Reinforced (GF) / Black, with orange seal
Operating Temperature	-40°C to +125°C
Certifications	ISO9001, CE
Target Market	Russia, Brazil, USA, Turkey, Southeast Asia
Target Audience	Heavy-duty Truck Parts Wholesalers, Alternator/Generator Factories, Wiper Motor Manufacturers
Applicable Models (Cars/Machinery)	Mercedes-Benz, Volvo, Geely, Great Wall, Heavy-duty Trucks (Delong), and various Bus models
Key Features	Lever Lock System (Handheld), Robust Sealing, High Vibration Resistance, 1.5mm Terminal Series
Product Description	5-Way Sealed Automotive Connector with Lever Lock, designed for Generator and Wiper Motor applications. Provides reliable connectivity in high-temperature and high-vibration engine environments.
