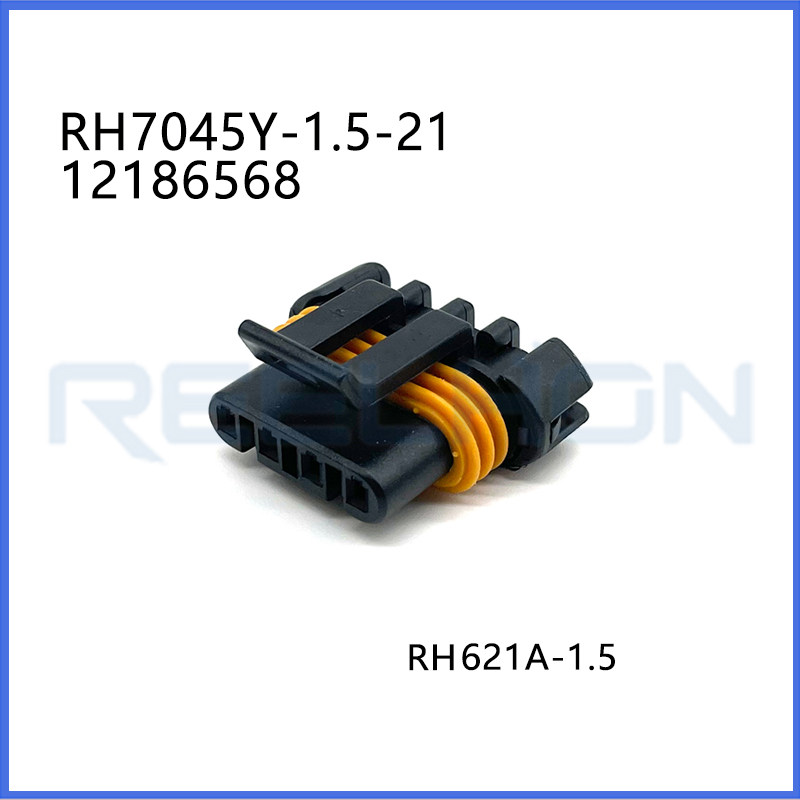

Part Number: RH7045Y-1.5-21 (Housing) / RH621-1.5B (Terminal)
OE Number: 282091-1
Key Specifications:
Number of Positions: 5 Positions (1×5 layout)
Terminal Size: 1.5 mm (Superseal 1.5 Series)
Maximum Current: 14A Max (with 1.5mm² wire)
Rated Voltage: 24V DC (Max 250V AC/DC)
Ingress Protection: IP67 / IP69K
Material & Color: PA66 + GF / Grey, with yellow silicone seal and red secondary lock
Operating Temperature: -40°C to +125°C
Certificates: ISO9001, CE
| Part Number | RH7045Y-1.5-21 (Housing) / RH621-1.5B (Terminal) |
| OE Number | 282091-1 |
| Key Specifications | |
| Number of Positions | 5 (1×5 layout) |
| Terminal Size | 1.5 mm (Superseal 1.5 Series) |
| Maximum Current | 14A Max (with 1.5mm² wire) |
| Rated Voltage | 24V DC (Max 250V AC/DC) |
| Ingress Protection | IP67 / IP69K |
| Material & Color | PA66 + GF / Grey, with yellow silicone seal and red secondary lock |
| Operating Temperature | -40°C to +125°C |
| Certifications | ISO9001, CE |
| Target Market | UK, Italy, Australia, Mexico, South Africa |
| Target Audience | Automotive wiring harness manufacturers, heavy agricultural equipment repair providers, off-road vehicle/motorcycle lighting system integrators |

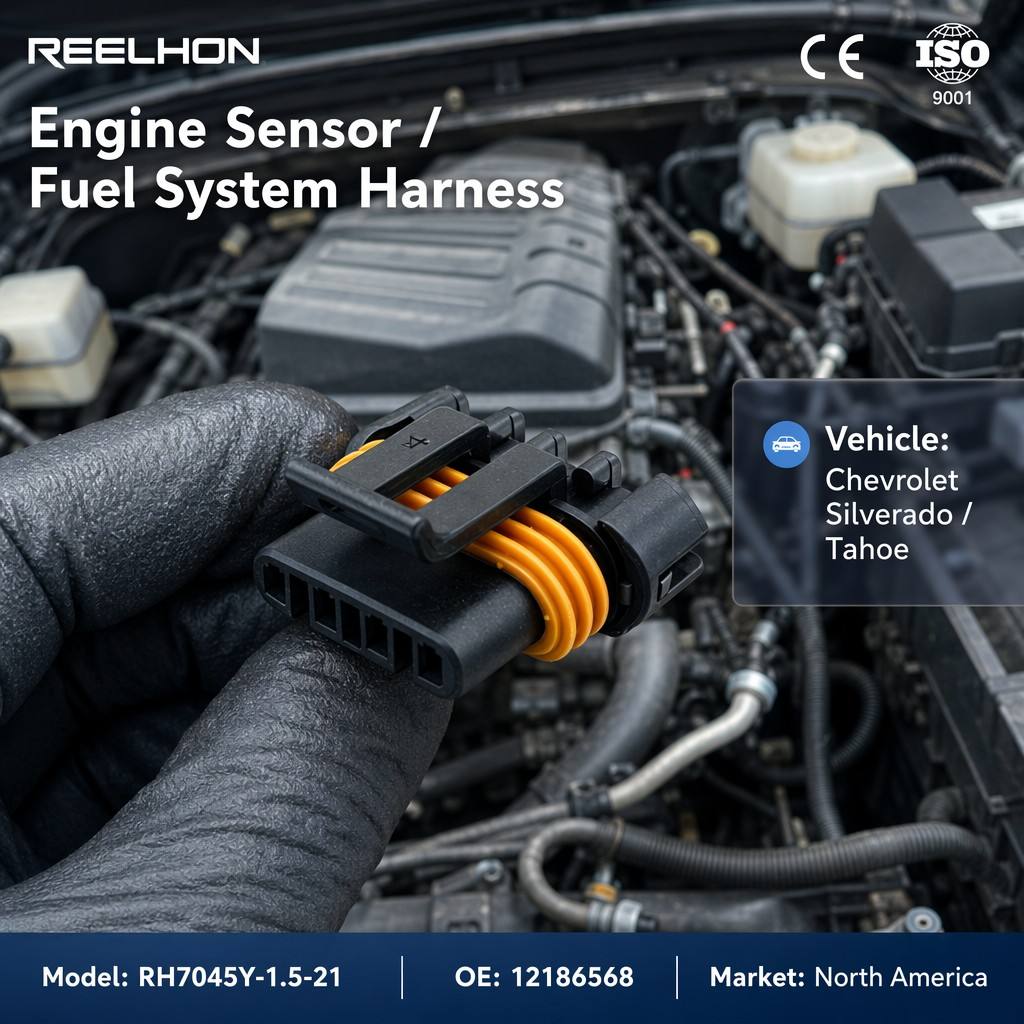

| Applicable Models (Cars/Machinery) | Widely used in motorcycles (Ducati, Triumph), trucks, tractors, and various passenger vehicles for sensors and exterior lighting (fog lamps/turn signals) circuit connections |
| Key Features | Classic dual-layer yellow corrugated seal; Red secondary locking latch prevents terminal back-out; High flame-retardant temperature-resistant PA66 material |

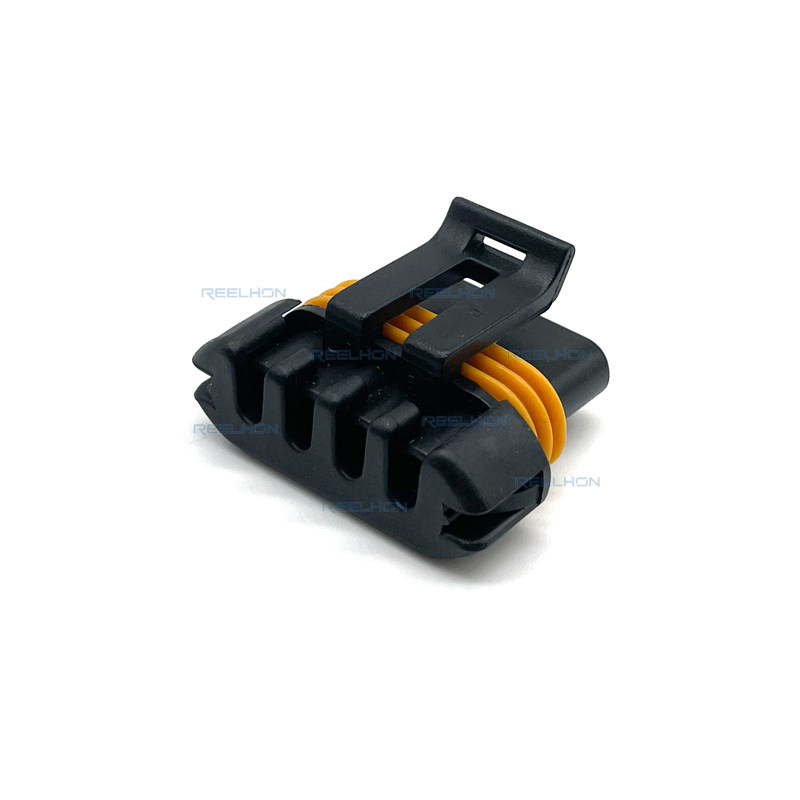

| Product Description | Professional 5-way AMP Superseal 1.5mm series sealed female receptacle housing, equivalent to 282091-1. Globally recognized and trusted for providing bulletproof waterproof connections in harsh automotive and marine environments. |
