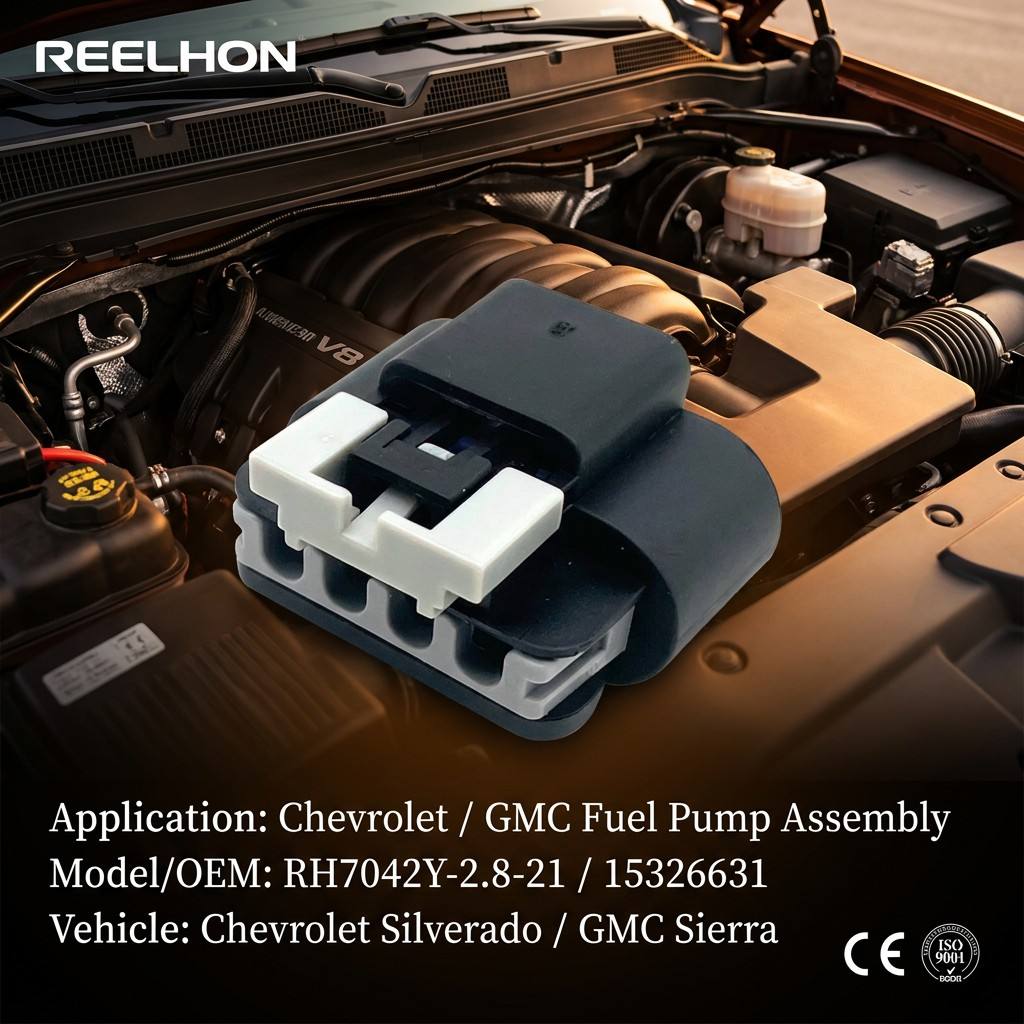

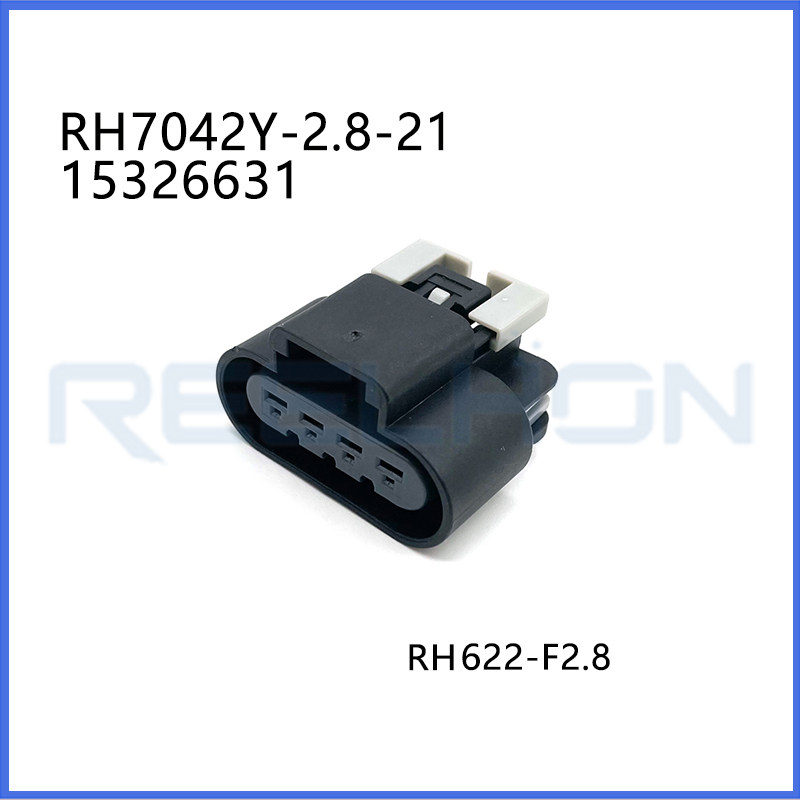

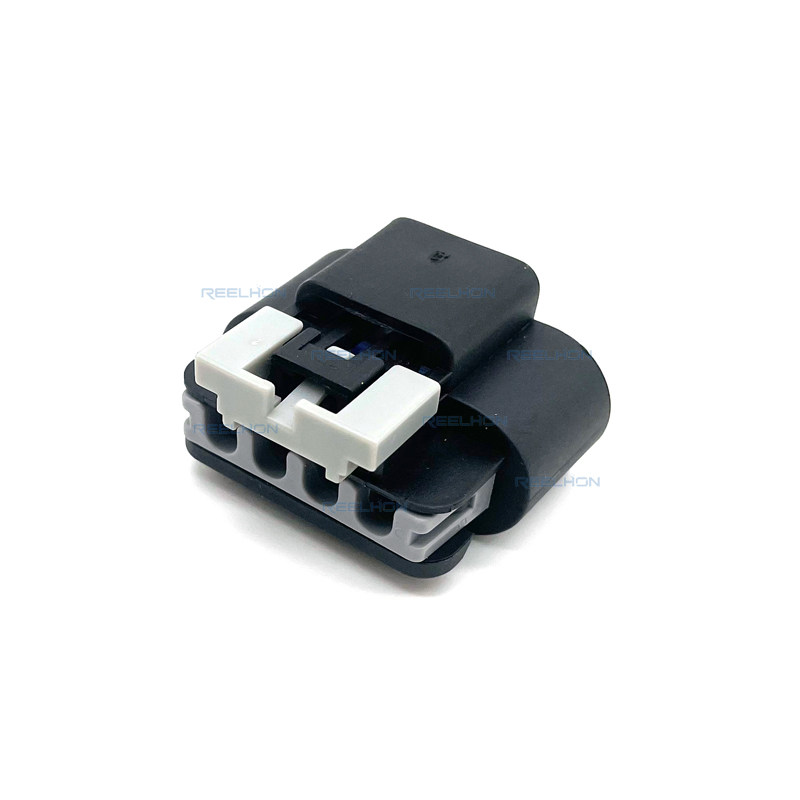

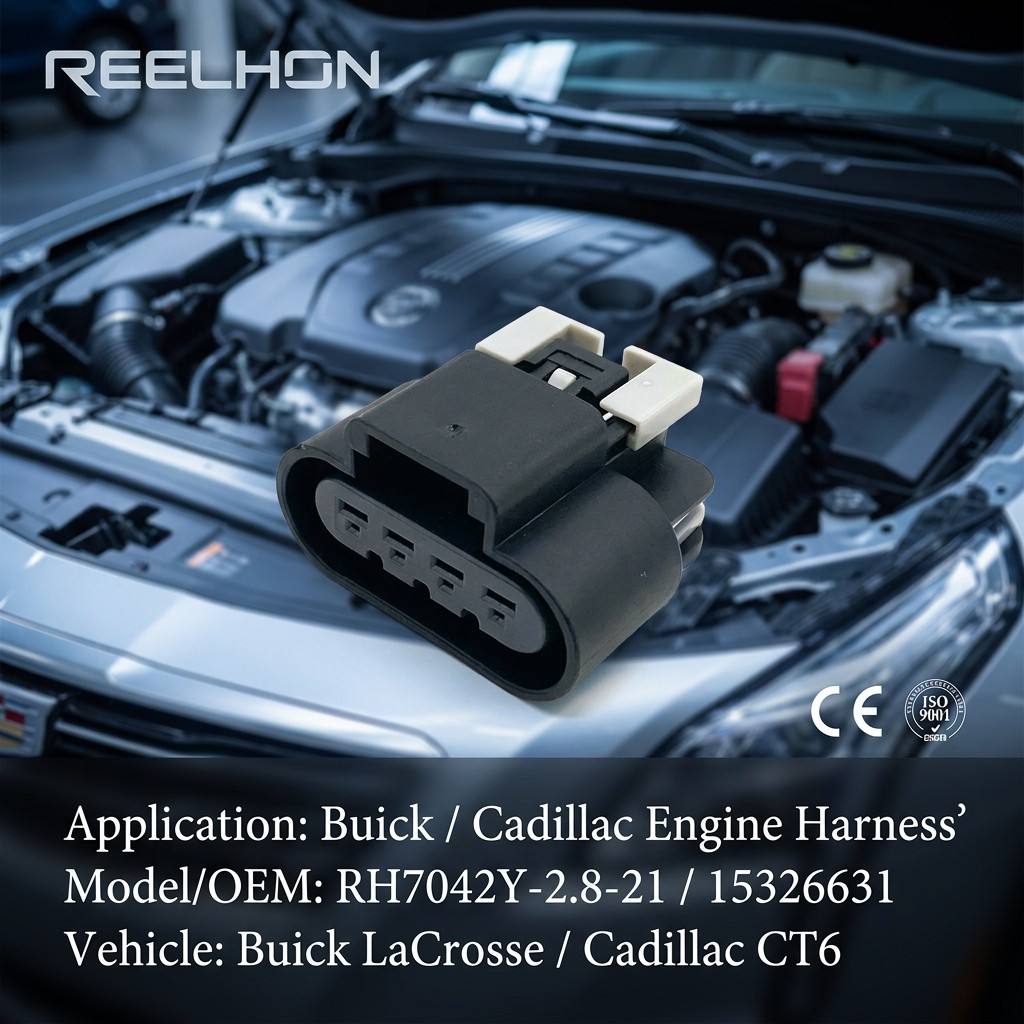

RH7042Y-2.8-21 15326631 4 Pin Waterproof Female Automotive Connector for GM Buick Chevrolet Fuel Pump Headlight Plug Aptiv GT 280 Series

Company Model: RH7042Y-2.8-21

OE Number: 15326631 (Alternative: 13521459)

Core Specifications:

Number of Positions: 4 (4 Way / 4 Pin)

Terminal Size: 2.8 mm (GT 280 series, matching terminal: RH622-F2.8)

Maximum Current: 25A (depending on wire gauge, e.g. 3.0mm²)

Rated Voltage: 12V / 24V DC

Ingress Protection: IP67 / IP6K9K (Achieved through triple-lip silicone seals)

Material & Color: PA66+GF (Reinforced Nylon) / Black, with gray locking latch

Operating Temperature: -40°C to +125°C

Certifications: ISO9001, CE

Company Model	RH7042Y-2.8-21
OE Number	15326631 (Alternative: 13521459)
Core Specifications
Number of Positions	4 (4 Way / 4 Pin)
Terminal Size	2.8 mm (GT 280 series, matching terminal: RH622-F2.8)
Maximum Current	25A (depending on wire gauge, e.g. 3.0mm²)
Rated Voltage	12V / 24V DC
Ingress Protection	IP67 / IP6K9K (Achieved through triple-lip silicone seals)
Material & Color	PA66+GF (Reinforced Nylon) / Black, with gray locking latch
Operating Temperature	-40°C to +125°C
Certifications	ISO9001, CE
Target Market	North America, Brazil, Europe, Southeast Asia
Target Audience	Fuel Pump Assembly Manufacturers, Automotive Lighting Suppliers, Aftermarket Repair Experts
Applicable Models (Cars/Machinery)	Buick, Chevrolet, GMC, Cadillac, VW, and other vehicles using GM GT 280 systems
Key Features	GT 280 Series, High Current (25A), Tangless Terminals, Secure TPA Lock, Environmental Sealing
Product Description	4-Way Sealed Female Connector Assembly, GT 280 Series, optimized for Fuel Pumps and Engine Harnesses. Features a robust secondary lock (TPA) and premium silicone seals for harsh environments.
