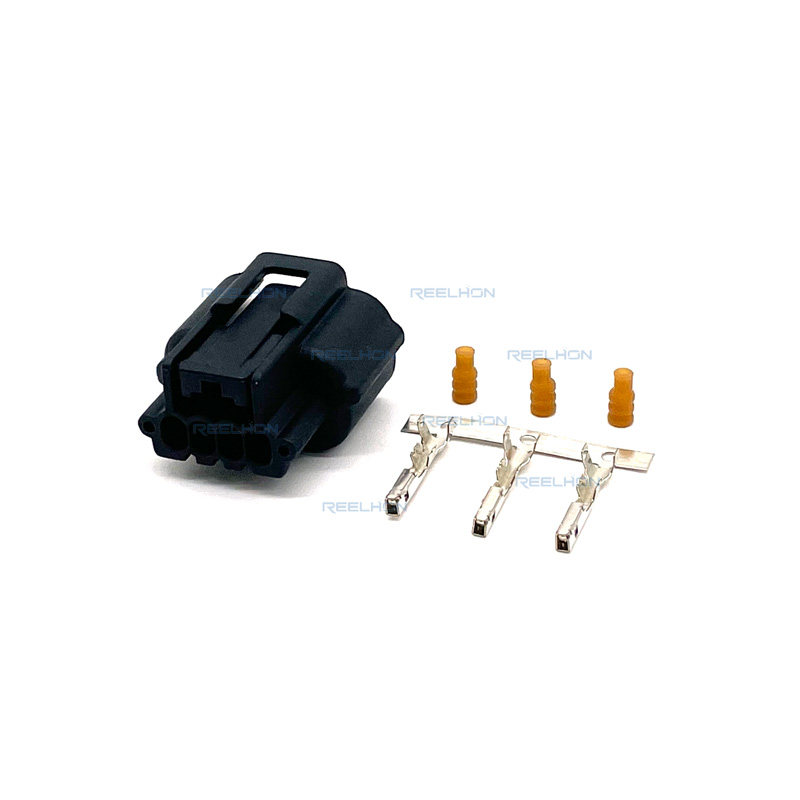

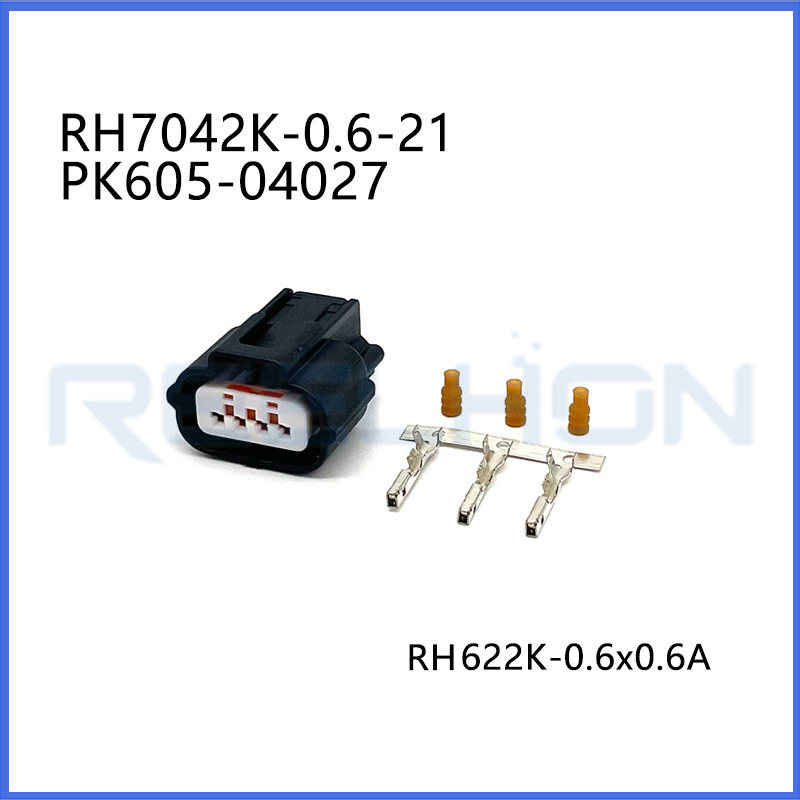

Part Number: RH7042K-0.6-21 (Housing) / RH622K-0.6x0.6A (Terminal)
OE Number: PK605-04027
Key Specifications:
Number of Positions: 4 Positions
Terminal Size: 0.64 mm (.025")
Maximum Current: 7A Max
Rated Voltage: 12V / 24V DC
Ingress Protection: IP67 / IP68
Material & Color: PBT + GF / Black, with white retainer and orange seals
Operating Temperature: -40°C to +125°C
Certificates: ISO9001, CE
| Part Number | RH7042K-0.6-21 (Housing) / RH622K-0.6x0.6A (Terminal) |
| OE Number | PK605-04027 |
| Key Specifications | |
| Number of Positions | 4 |
| Terminal Size | 0.64 mm (.025") |
| Maximum Current | 7A Max |
| Rated Voltage | 12V / 24V DC |
| Ingress Protection | IP67 / IP68 |
| Material & Color | PBT + GF / Black, with white retainer and orange seals |
| Operating Temperature | -40°C to +125°C |
| Certifications | ISO9001, CE |
| Target Market | Japan, USA, UAE, Thailand, Russia |
| Target Audience | Japanese vehicle sensor wiring harness manufacturers, advanced engine diagnostic service centers, precision electronic component distributors |
| Applicable Models (Cars/Machinery) | Widely used in Toyota, Honda, Mitsubishi, Nissan and other brands for camshaft position sensors, knock sensors, and air conditioning pressure sensors |
| Key Features | Compact 0.64mm interface design saves space; High-strength self-locking inner retainer ensures terminals stay secure under extreme vibration; Oil-resistant and high-temperature resistant |
| Product Description | Professional 4-way high-density sealed female connector assembly, equivalent to Furukawa PK605-04027 and Sumitomo 6189-0771. Engineered for reliable signal transmission in critical engine systems, providing superior environmental protection for precision Japanese automotive sensors. |
