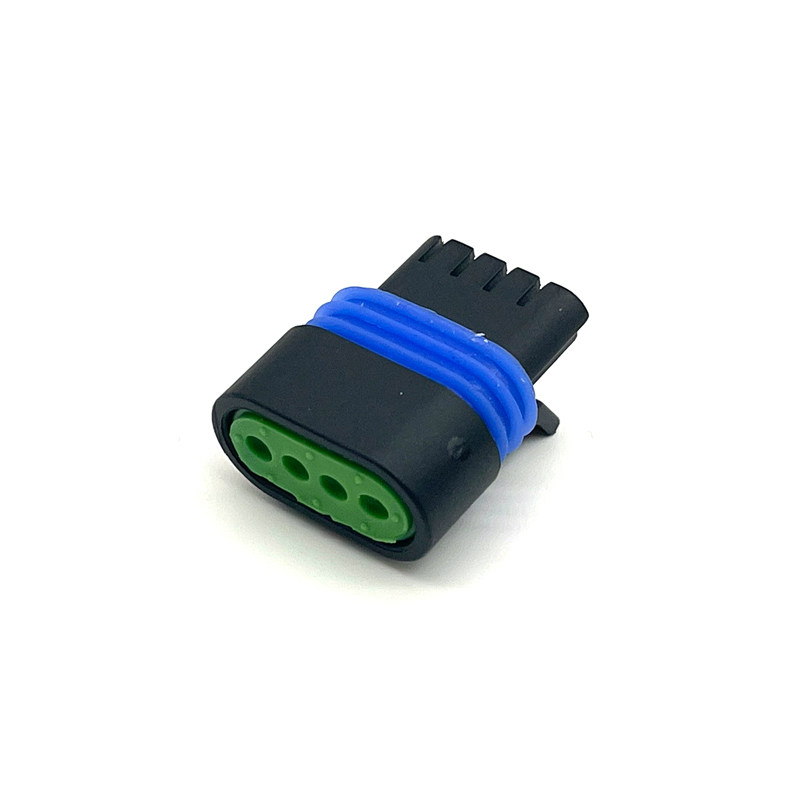

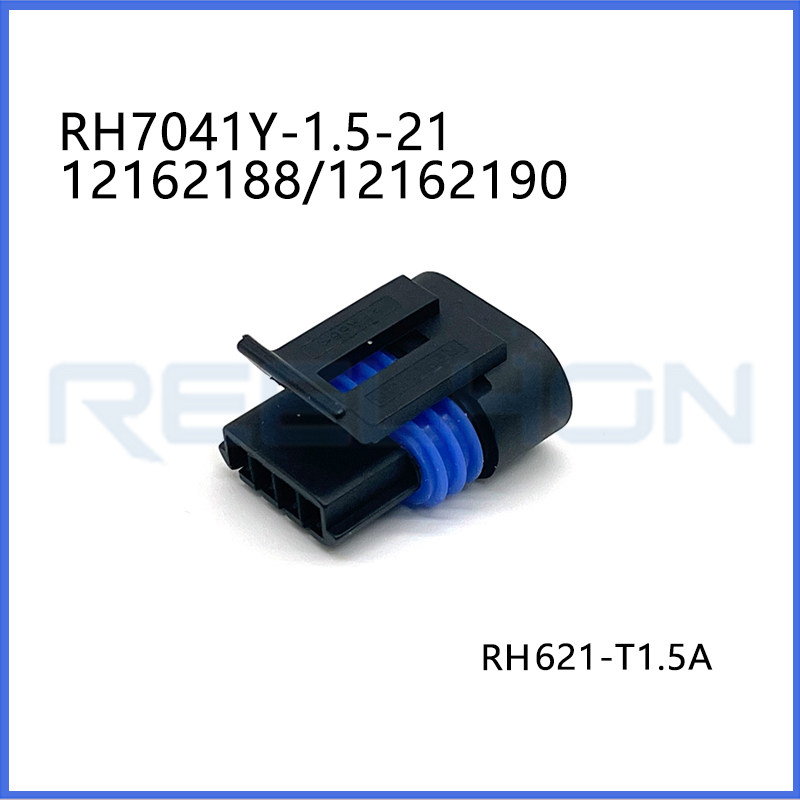

Company Model: RH7041Y-1.5-21
OE Number: 12162188 / 12162190
Number of Positions: 4
Terminal Size: 1.5 mm
Maximum Current: 14A Max
Rated Voltage: 12V / 24V DC
Ingress Protection: IP67 / IP68
Material / Color: PA66 + GF / Black
Operating Temperature: -40°C ~ +125°C
Certifications: ISO9001, CE

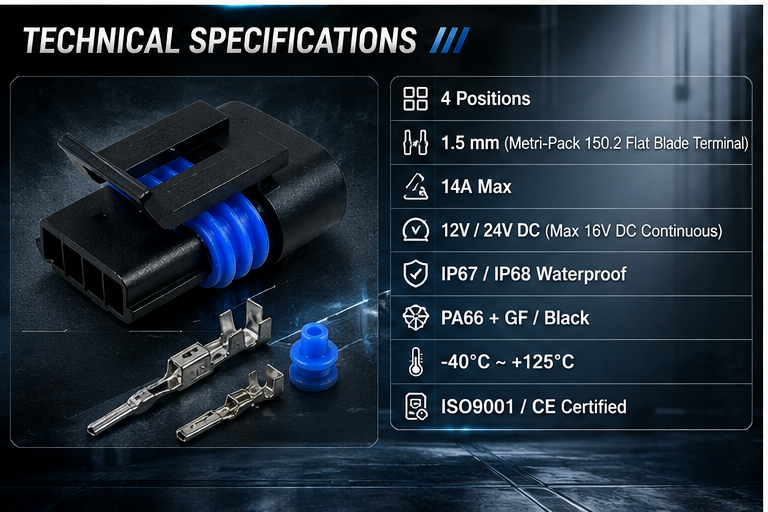

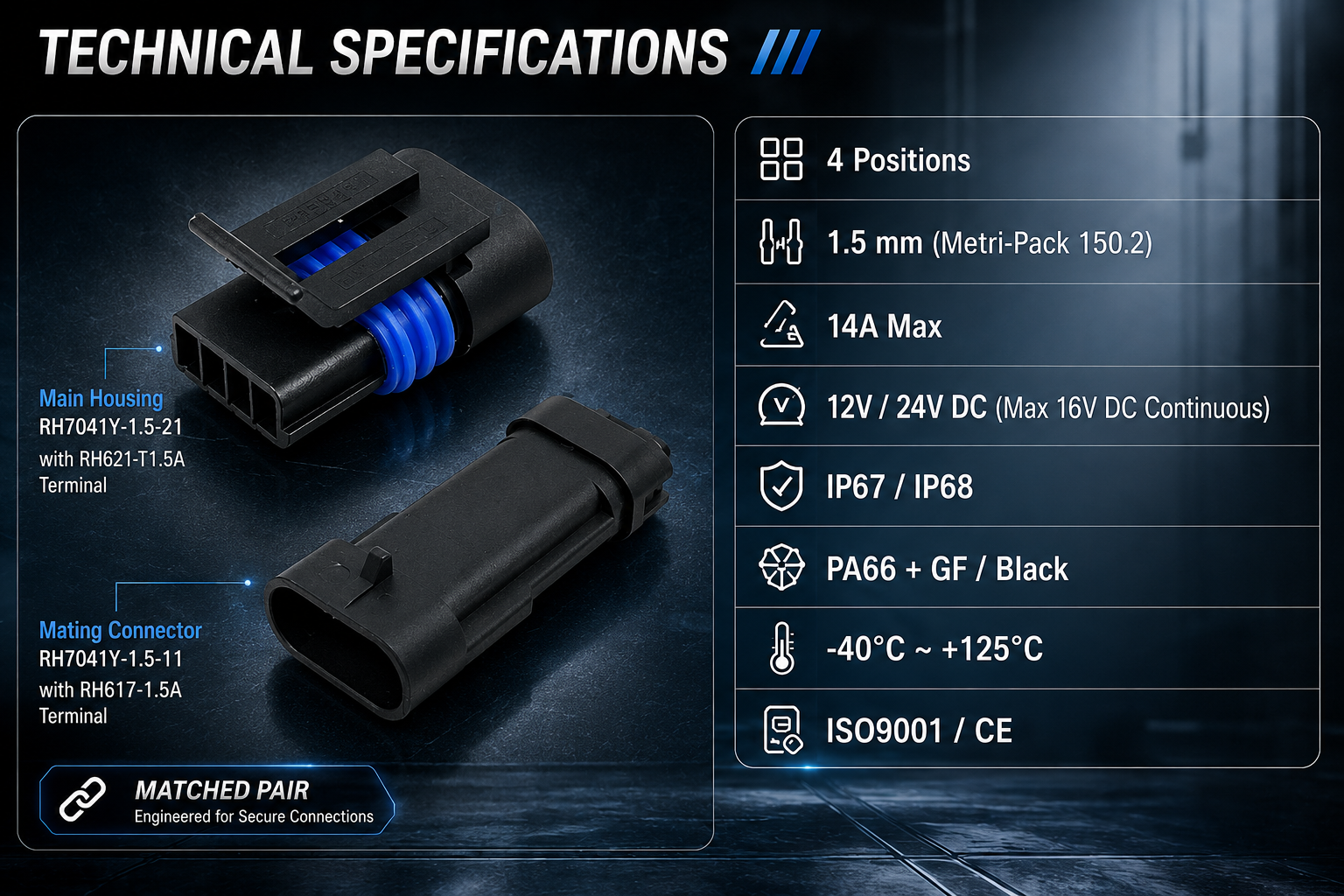

| Company Model | RH7041Y-1.5-21 |
| Industry OE Reference Number | 12162188 / 12162190 |
| Core Specifications | |
| Number of Positions | 4 |
| Terminal Size | 1.5 mm |
| Maximum Current | 14A Max |
| Rated Voltage | 12V / 24V DC |
| Ingress Protection | IP67 / IP68 |
| Material / Color | PA66 + GF / Black |
| Operating Temperature | -40°C ~ +125°C |
| Certifications | ISO9001, CE |
| Target Market | North America, Latin America (Absolute necessity for GM vehicle modification, LS engine upgrades, and truck aftermarket maintenance) |
| Target Audience | LS ignition coil repair harness manufacturers, GM vehicle modification service providers, sensor OEM manufacturers |
| Applicable Models (Cars/Machinery) | Widely applicable to Chevrolet (LS1/LS6 engines, etc.), Cadillac, Buick and other GM vehicle series for ignition coils, air pressure sensors, distributor modules |
| Key Features | Unique Pull-to-Seat structure ensures zero terminal back-out; High-quality flame-retardant PA66 withstands high engine bay temperatures; Blue silicone sealing provides excellent oil and moisture resistance |
