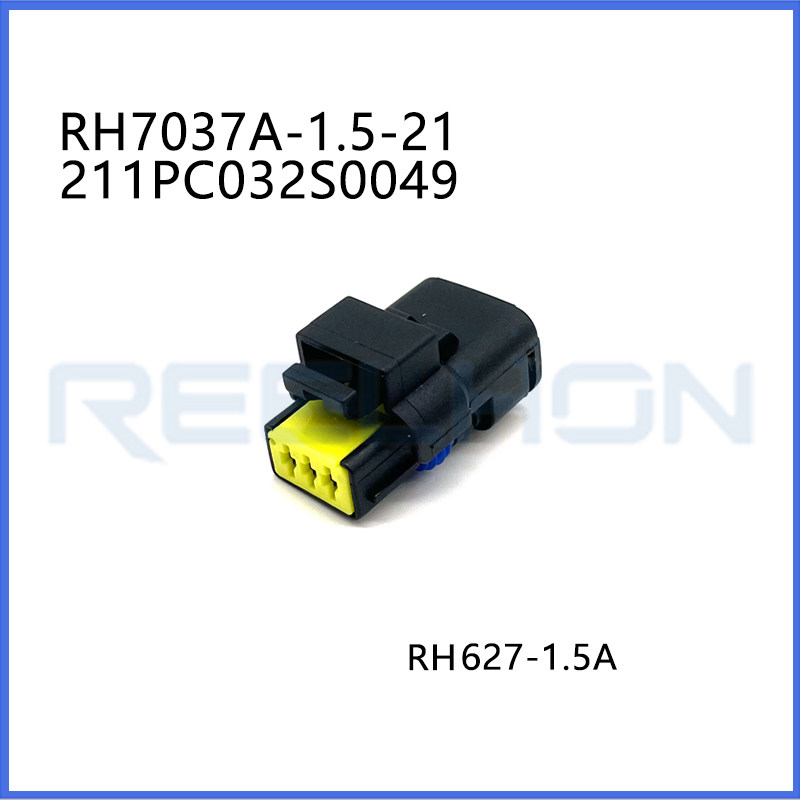

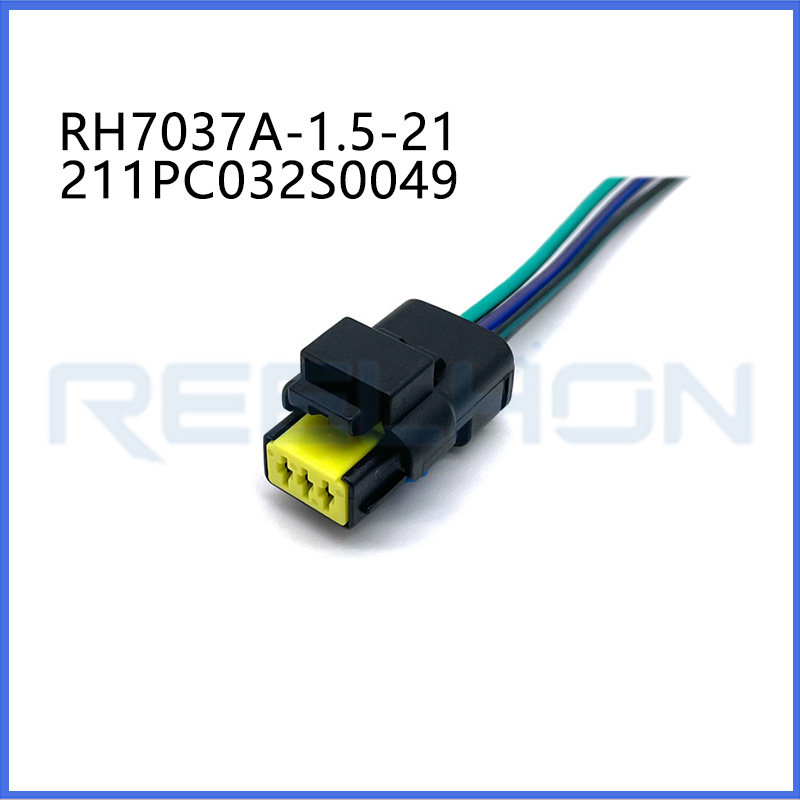

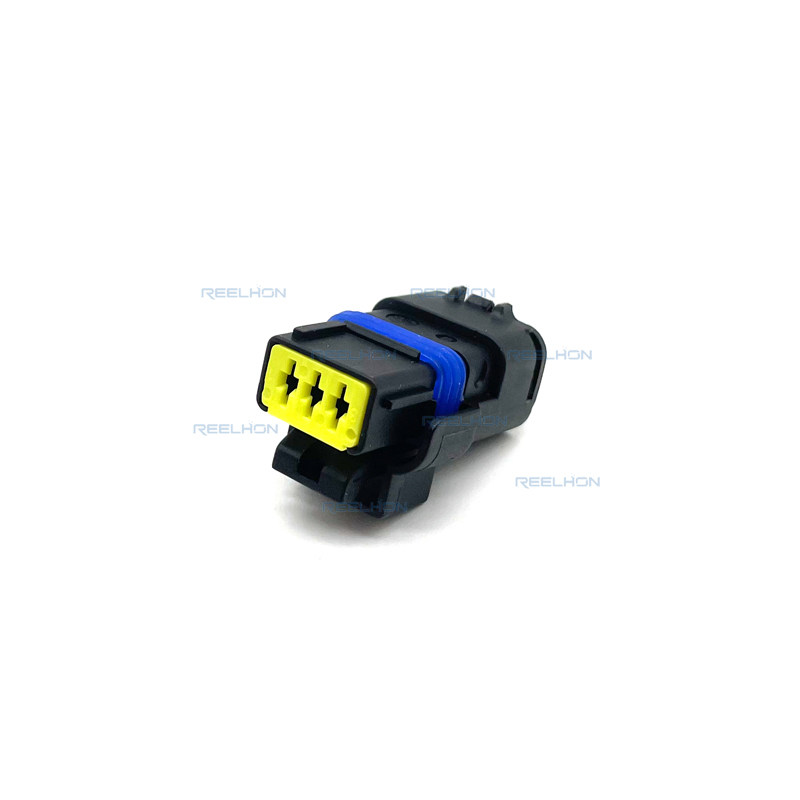

Part Number: RH7037A-1.5-21 (Housing) / RH627-1.5A (Terminal)
OE Number: 211PC032S0049
Key Specifications:
Number of Positions: 3 Positions
Terminal Size: 1.5 mm (Sicma 1.5 Series)
Maximum Current: 16A Max
Rated Voltage: 12V / 24V DC
Ingress Protection: IP67 / IP68
Material & Color: PBT + GF / Black, with Yellow Slider Lock and blue silicone seal
Operating Temperature: -40°C to +125°C
Certificates: ISO9001, CE
| Part Number | RH7037A-1.5-21 (Housing) / RH627-1.5A (Terminal) |
| OE Number | 211PC032S0049 |
| Key Specifications | |
| Number of Positions | 3 |
| Terminal Size | 1.5 mm (Sicma 1.5 Series) |
| Maximum Current | 16A Max |
| Rated Voltage | 12V / 24V DC |
| Ingress Protection | IP67 / IP68 |
| Material & Color | PBT + GF / Black, with Yellow Slider Lock and blue silicone seal |
| Operating Temperature | -40°C to +125°C |
| Certifications | ISO9001, CE |
| Target Market | France, Italy, Brazil, Turkey, Romania |
| Target Audience | Automotive wiring harness manufacturers, sensor/ignition coil manufacturers, European vehicle electrical repair specialists |
| Applicable Models (Cars/Machinery) | Widely used in Peugeot, Citroën, Renault and Fiat models for ignition coils, throttle position sensors, and camshaft position sensors |
| Key Features | Yellow Slider Lock ensures 100% mating confirmation; High-seal blue silicone ring; Specifically designed for high-heat, high-vibration engine bay environments |
| Product Description | Professional 3-way Sicma 1.5mm series sealed female receptacle housing, equivalent to 211PC032S0049. Featuring a secure yellow sliding lock for error-free mating and superior watertight integrity in critical automotive sensor applications. |
