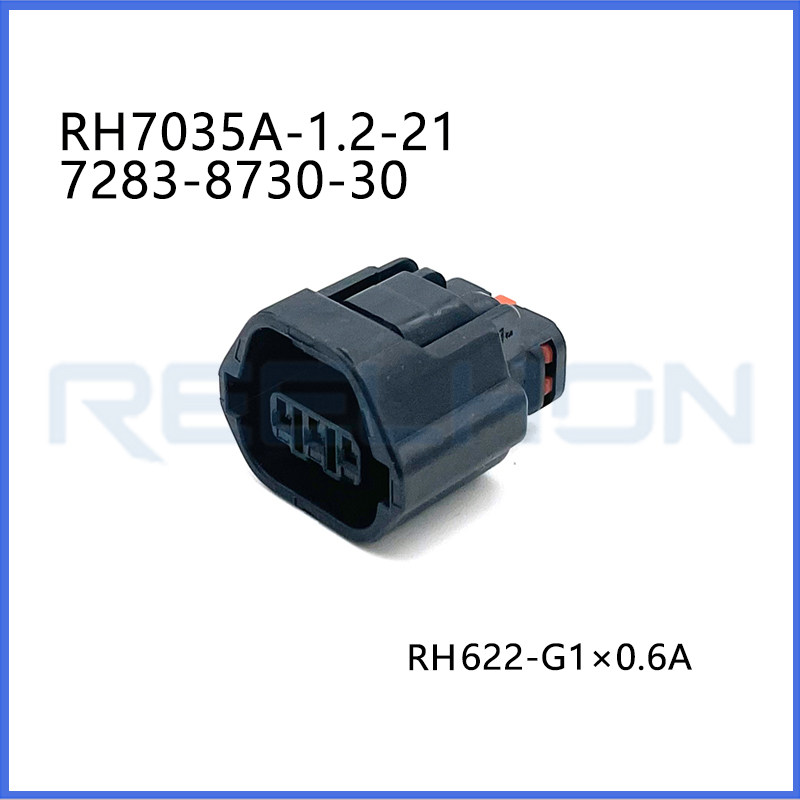

Part Number: RH7035A-1.2-21 (Housing) / RH622-G1x0.6A (Terminal)
OE Number: 7283-8730-30
Key Specifications:
Number of Positions: 3 Positions
Terminal Size: 0.64 mm (.025")
Maximum Current: 7A Max
Rated Voltage: 12V / 24V DC
Ingress Protection: IP67 / IP68
Material & Color: PBT + GF / Black, with orange silicone seal
Operating Temperature: -40°C to +125°C
Certificates: ISO9001, CE
| Part Number | RH7035A-1.2-21 (Housing) / RH622-G1x0.6A (Terminal) |
| OE Number | 7283-8730-30 |
| Key Specifications | |
| Number of Positions | 3 |
| Terminal Size | 0.64 mm (.025") |
| Maximum Current | 7A Max |
| Rated Voltage | 12V / 24V DC |
| Ingress Protection | IP67 / IP68 |
| Material & Color | PBT + GF / Black, with orange silicone seal |
| Operating Temperature | -40°C to +125°C |
| Certifications | ISO9001, CE |
| Target Market | Japan, USA, UAE, Thailand, Australia |
| Target Audience | Automotive sensor manufacturers, wiring harness manufacturers, Japanese performance vehicle (e.g. EVO/STi) modification and repair specialists |
| Applicable Models (Cars/Machinery) | Widely used in Toyota, Lexus, Mitsubishi (EVO), Subaru for camshaft position sensors and vehicle speed sensors |
| Key Features | Extremely compact Yazaki SSD interface design; Bright orange silicone seal provides 100% airtight waterproofing; High vibration-resistant structure suitable for extreme engine bay environments |

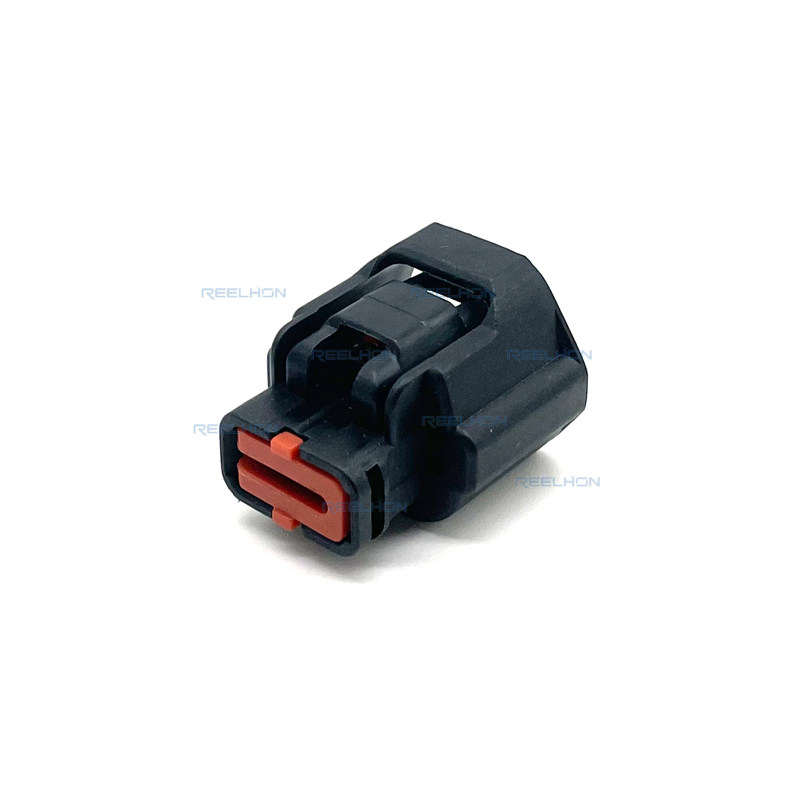

| Product Description | Professional 3-way Yazaki SSD series compatible sealed female connector assembly, equivalent to 7283-8730-30. Designed for critical sensor feedback circuits in high-performance Japanese engines, ensuring signal purity and maximum environment sealing. |
