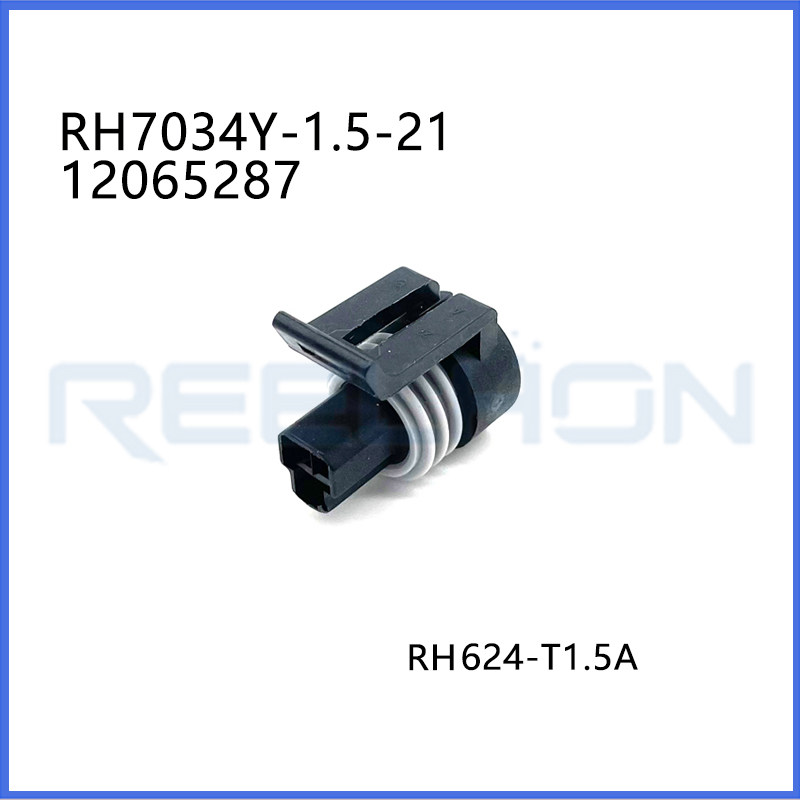

Part Number: RH7034Y-1.5-21 (Housing) / RH624-T1.5A (Terminal)
OE Number: 12065287
Key Specifications:
Number of Positions: 3 Positions
Terminal Size: 1.5 mm (Metri-Pack 150 Series)
Maximum Current: 14A Max
Rated Voltage: 24V DC
Ingress Protection: IP67
Material & Color: PBT+GF / Black, with grey silicone seal
Operating Temperature: -40°C to +125°C
Certificates: ISO9001, CE
| Part Number | RH7034Y-1.5-21 (Housing) / RH624-T1.5A (Terminal) |
| OE Number | 12065287 |
| Key Specifications | |
| Number of Positions | 3 |
| Terminal Size | 1.5 mm (Metri-Pack 150 Series) |
| Maximum Current | 14A Max |
| Rated Voltage | 24V DC |
| Ingress Protection | IP67 |
| Material & Color | PBT+GF / Black, with grey silicone seal |
| Operating Temperature | -40°C to +125°C |
| Certifications | ISO9001, CE |
| Target Market | North America, Europe, and Southeast Asia automotive sensor and engine wiring harness markets |
| Target Audience | Automotive sensor manufacturers (TPS/temperature/pressure), wiring harness manufacturers, GM vehicle series aftermarket repair providers |

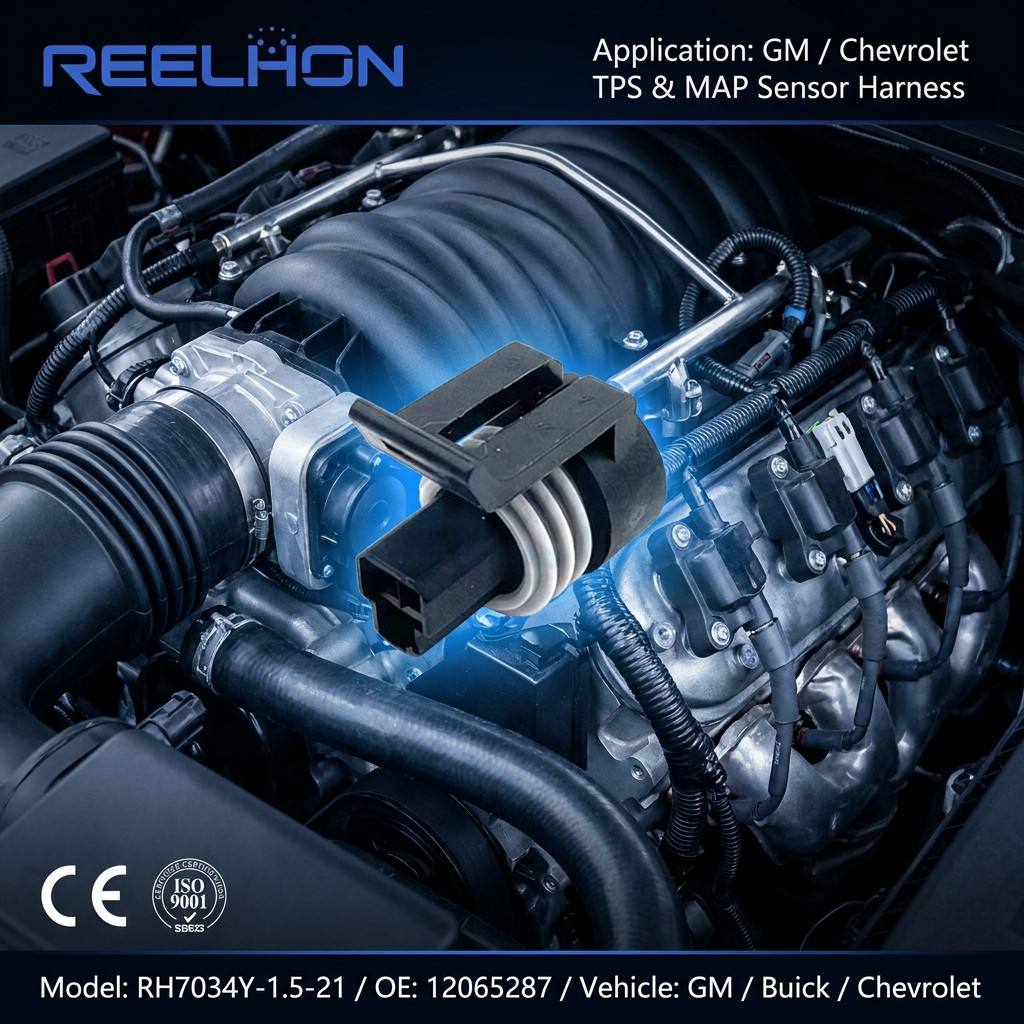

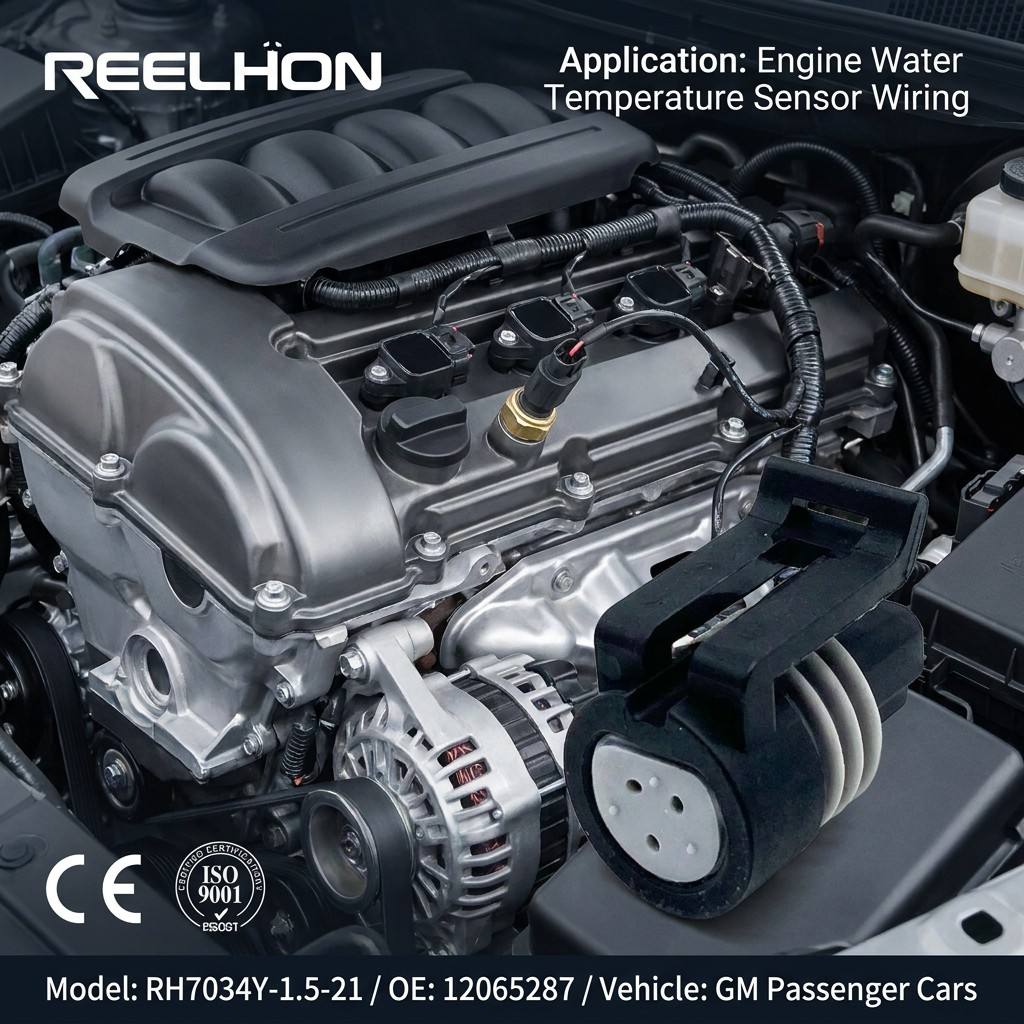

| Applicable Models (Cars/Machinery) | Widely used in GM, Chevrolet, Buick for Throttle Position Sensor (TPS), coolant temperature sensor, MAP sensor |

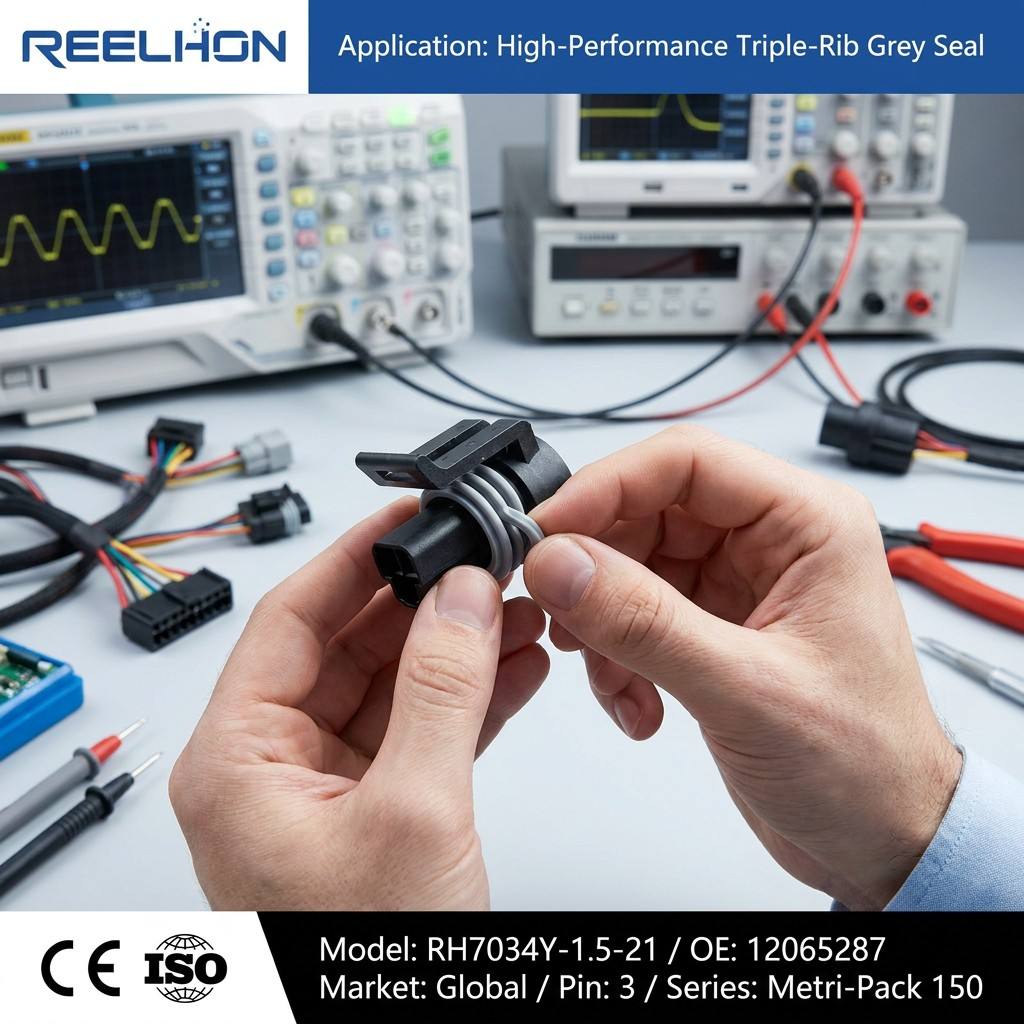

| Key Features | Metri-Pack 150 standard interface with high interchangeability; Premium grey silicone seal provides excellent waterproof and dustproof performance; Flame-retardant PA66/PBT material |

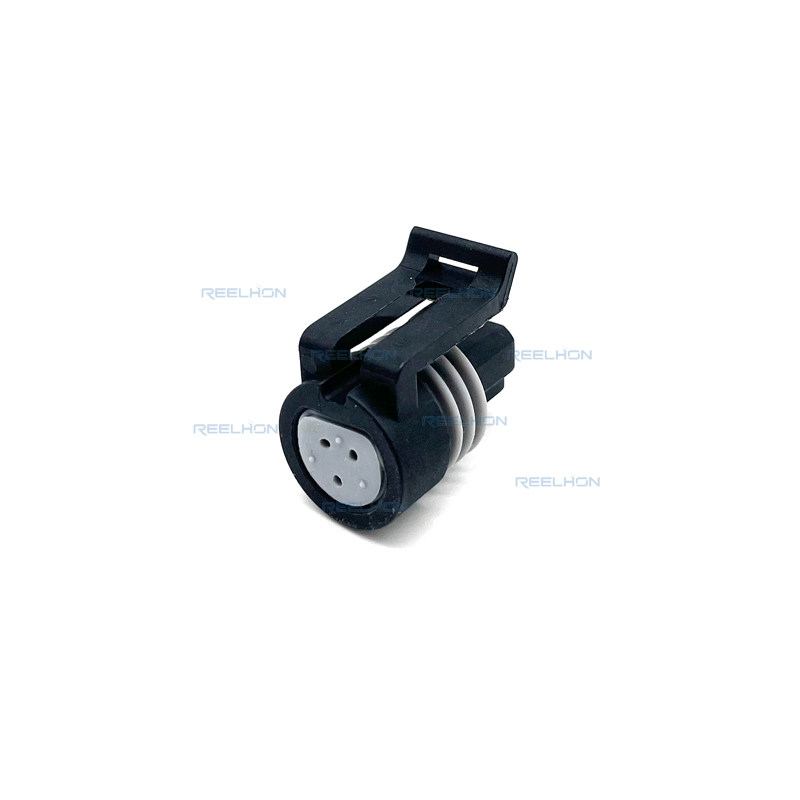

| Product Description | 3-Way Metri-Pack 150 series sealed female connector assembly, equivalent to 12065287. Perfectly engineered for critical sensor connections in automotive engine environments, ensuring stable signal integrity and environmental protection. |
