Nominal Voltage Architecture (V): 12 | 24 | 48

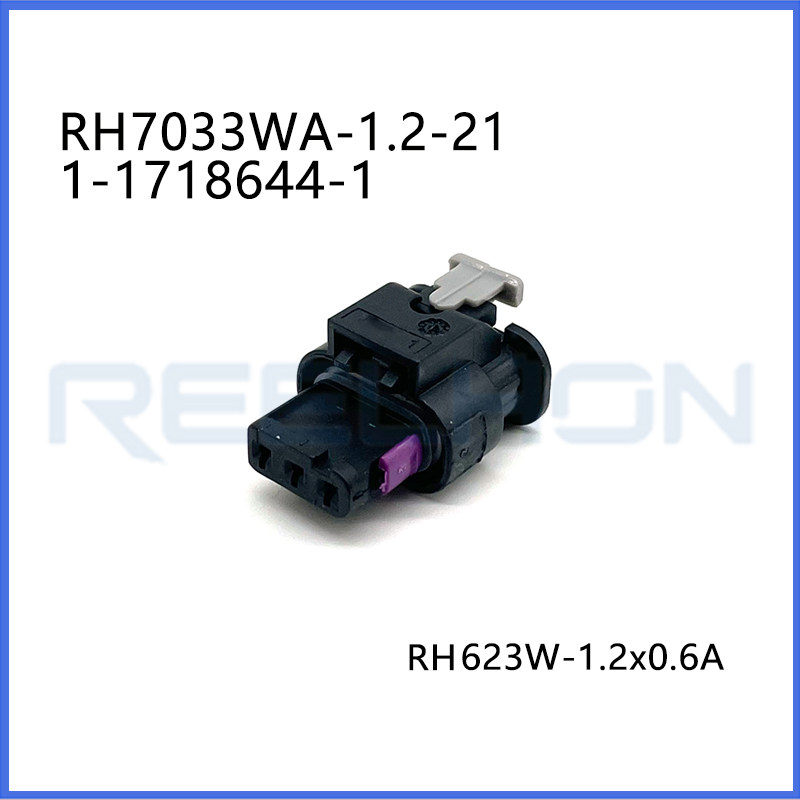

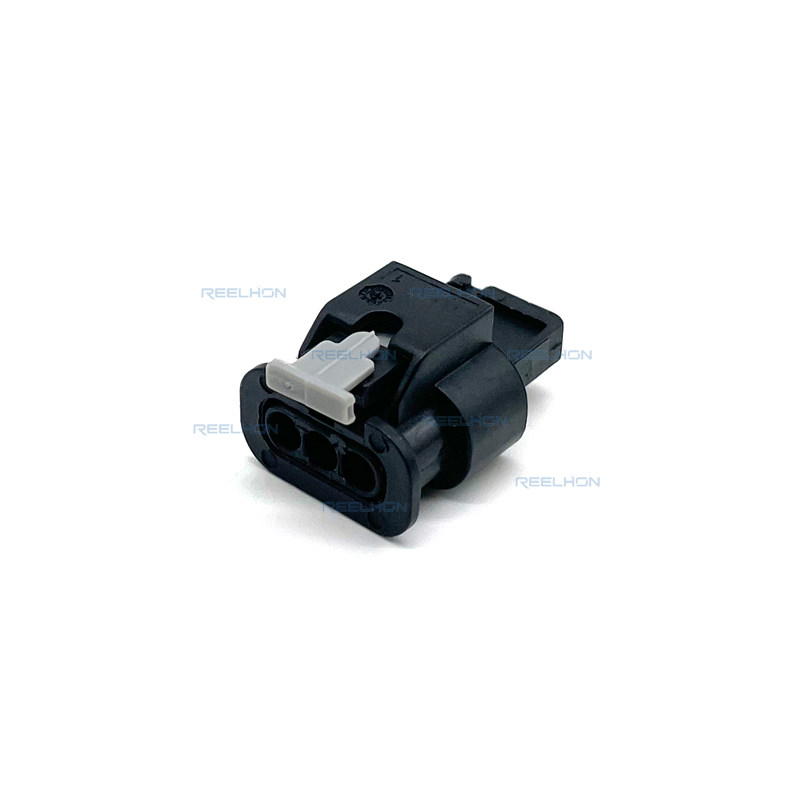

Connector & Housing Type : Housing for Female Terminals
Number of Positions : 3
Sealable : Yes
Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | No |
| Connector & Housing Type | Housing for Female Terminals |
| Sealable | Yes |
| Primary Locking Feature | Locking Lance |
| Connector System | Wire-to-Board | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Configuration Features | |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Electrical Characteristics | |
| Nominal Voltage Architecture (V) | 12 | 24 | 48 |
| Body Features | |
| Cable Exit Angle (°) | 180 |
| Primary Product Color | Black |
| Connector & Keying Code | A |
| Contact Features | |
| Contact Type | Receptacle |
| Contact Size | 1.2mm |
| Mating Tab Width | 1.2 mm [.05 in] |
| Mechanical Attachment | |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Terminal Position Assurance | No |
| Strain Relief | Without |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Housing Features | |
| Housing Material | PA 66 GF30 |
| Centerline (Pitch) | 4 mm [.157 in] |
| Dimensions | |
| Connector Height | 14.8 mm [.583 in] |
| Product Length | 19 mm [.748 in] |
| Product Width | 26.5 mm [1.043 in] |
| Usage Conditions | |
| Operating Temperature Range | -40 – 130 °C [-40 – 266 °F] |
| Operating Temperature (Max) | 130 °C [266 °F] |
