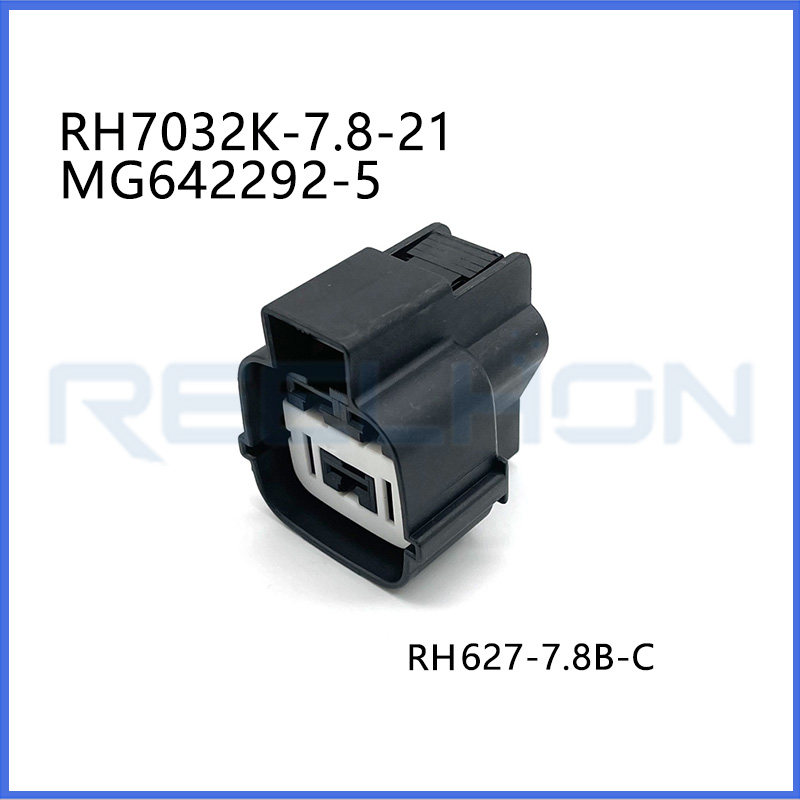

Part Number: RH7032K-7.8-21 (Housing) / RH627-7.8B-C (Terminal)
OE Number: MG642292-5
Key Specifications:
Number of Positions: 3 Positions
Terminal Size: 7.8 mm (312 Series)
Maximum Current: 45A Max (Dependent on wire gauge)
Rated Voltage: 12V / 24V DC
Ingress Protection: IP67 / IP68
Material & Color: PBT + GF / Black, with white inner retainer and orange seals
Operating Temperature: -40°C to +125°C
Certificates: ISO9001, CE
| Part Number | RH7032K-7.8-21 (Housing) / RH627-7.8B-C (Terminal) |
| OE Number | MG642292-5 |
| Key Specifications | |
| Number of Positions | 3 |
| Terminal Size | 7.8 mm (312 Series) |
| Maximum Current | 45A Max (Dependent on wire gauge) |
| Rated Voltage | 12V / 24V DC |
| Ingress Protection | IP67 / IP68 |
| Material & Color | PBT + GF / Black, with white inner retainer and orange seals |
| Operating Temperature | -40°C to +125°C |
| Certifications | ISO9001, CE |
| Target Market | Korea, Russia, USA, Turkey, Egypt |
| Target Audience | Automotive cooling system integrators, Korean vehicle (Hyundai/Kia) aftermarket repair providers, wiring harness manufacturers |

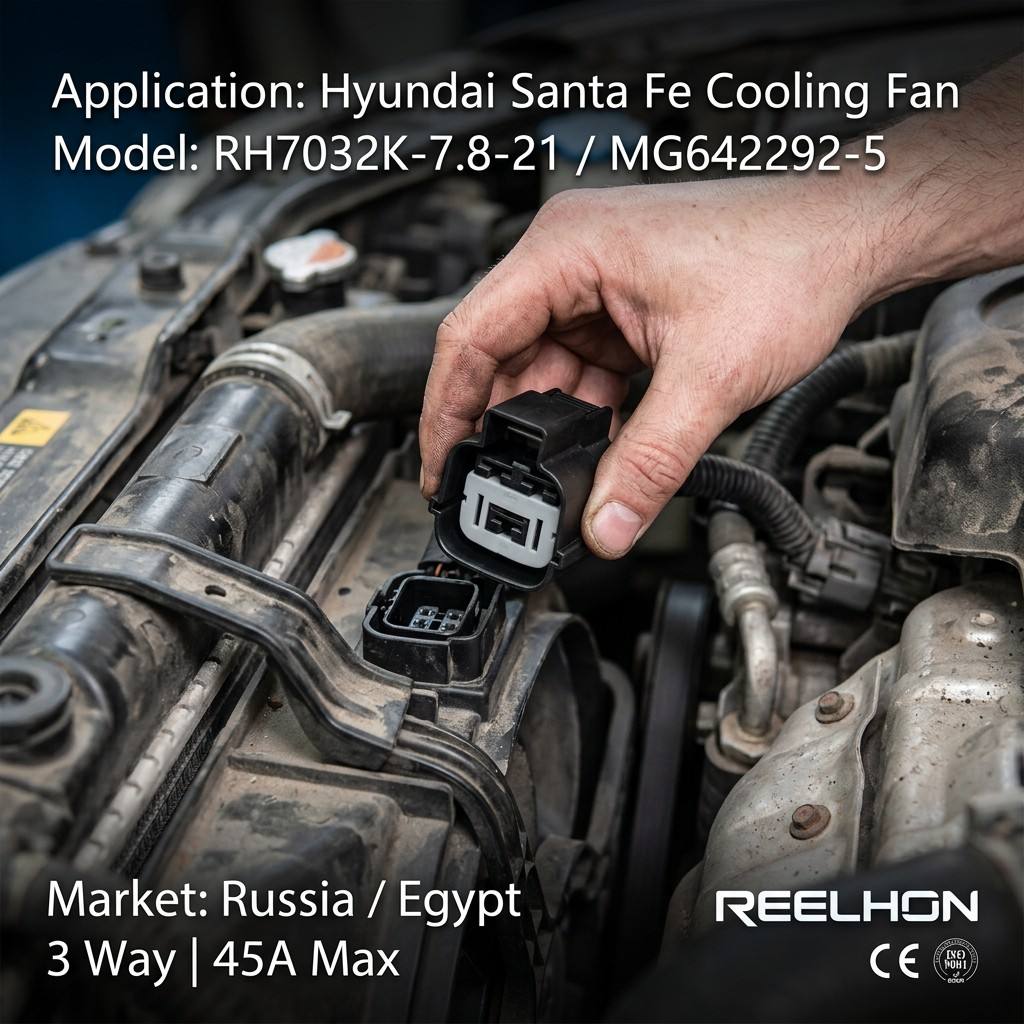

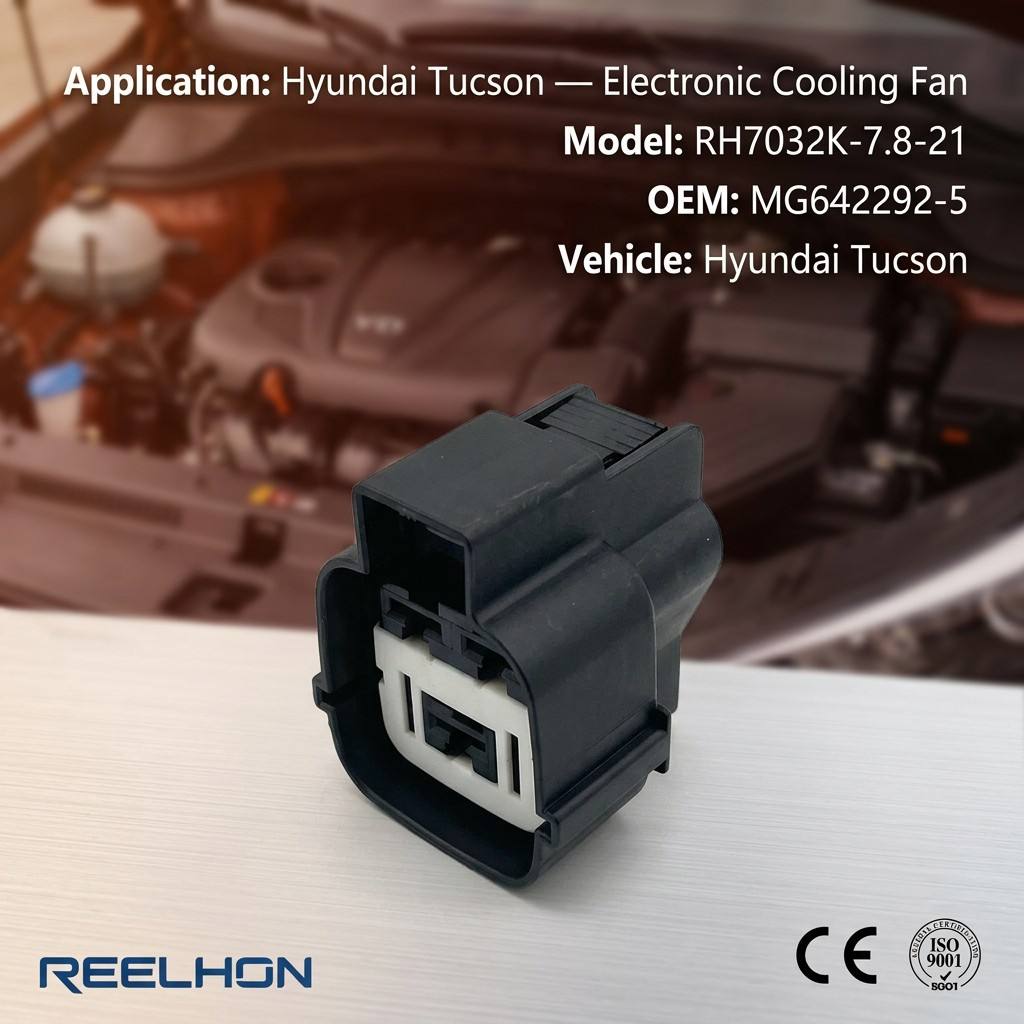

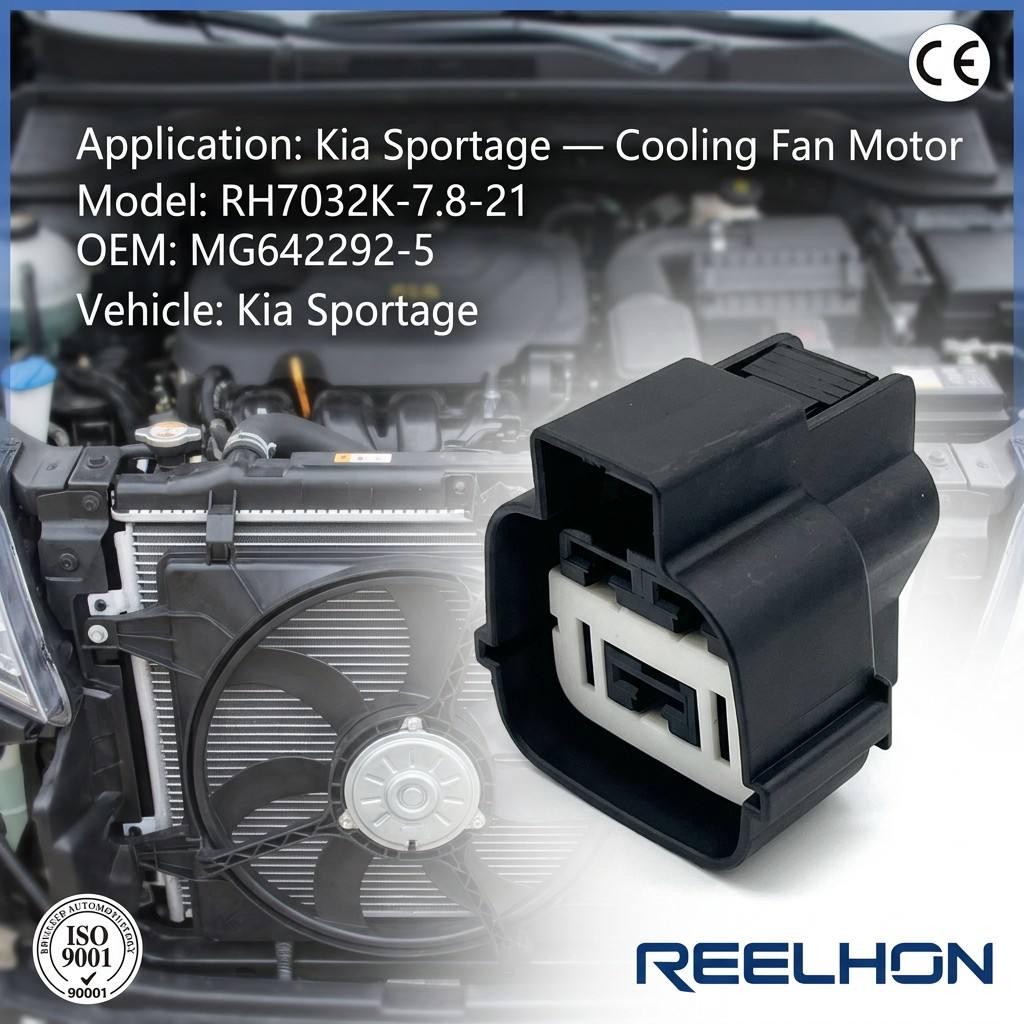

| Applicable Models (Cars/Machinery) | Widely used in Hyundai (Tucson/Santa Fe), Kia (Sportage) and other models for electronic cooling fan assemblies and motor connections |
| Key Features | High current carrying capacity (up to 45A); Dual locking mechanism ensures 100% terminal retention; Excellent waterproof sealing rating, withstands high-temperature and high-humidity engine bay conditions |
| Product Description | High-current 3-way KET 312II series compatible sealed female connector assembly, equivalent to MG642292-5. Specially designed for automotive cooling fan motors and heavy-duty electrical distribution, providing maximum reliability under severe vibration and thermal stress. |
