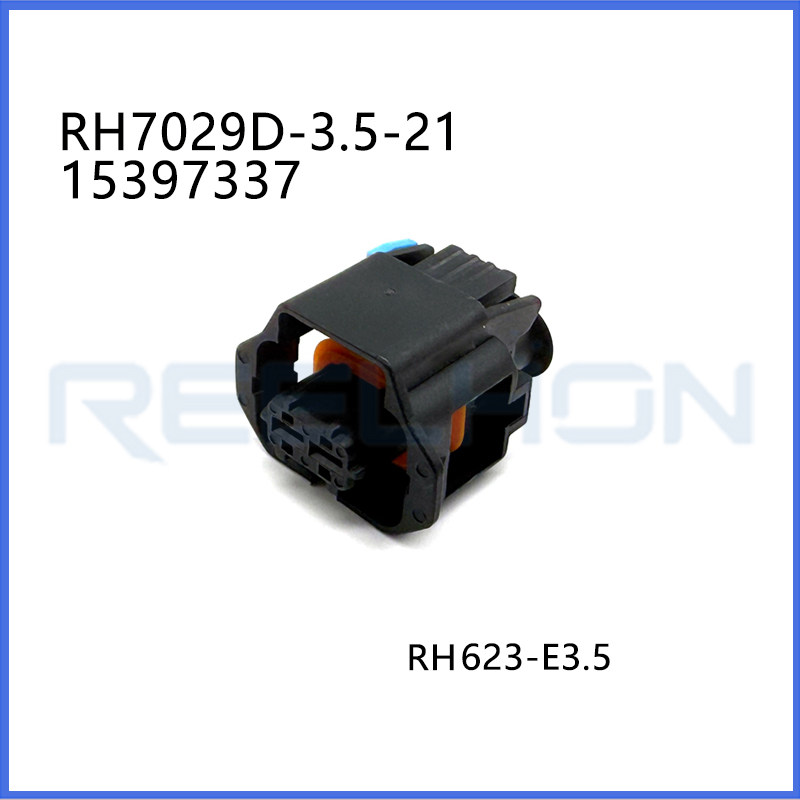

Part Number: RH7029D-3.5-21 (Housing) / RH623-E3.5 (Terminal)
OE Number: 15397337
Key Specifications:
Number of Positions: 2 Positions
Terminal Size: 2.8 mm (Timer series)
Maximum Current: 20A Max
Rated Voltage: 12V / 24V DC
Ingress Protection: IP67 / IP68
Material & Color: PA66+GF / Black, with blue sliding lock and orange silicone seal
Operating Temperature: -40°C to +125°C
Certificates: ISO9001, CE
| Part Number | RH7029D-3.5-21 (Housing) / RH623-E3.5 (Terminal) |
| OE Number | 15397337 |
| Key Specifications | |
| Number of Positions | 2 |
| Terminal Size | 2.8 mm (Timer series) |
| Maximum Current | 20A Max |
| Rated Voltage | 12V / 24V DC |
| Ingress Protection | IP67 / IP68 |
| Material & Color | PA66+GF / Black, with blue sliding lock and orange silicone seal |
| Operating Temperature | -40°C to +125°C |
| Certifications | ISO9001, CE |
| Target Market | Germany, Poland, UK, Russia, USA |
| Target Audience | Automotive sensor wiring harness manufacturers, German vehicle (Opel/Vauxhall) repair workshops, ignition system upgrade service providers |

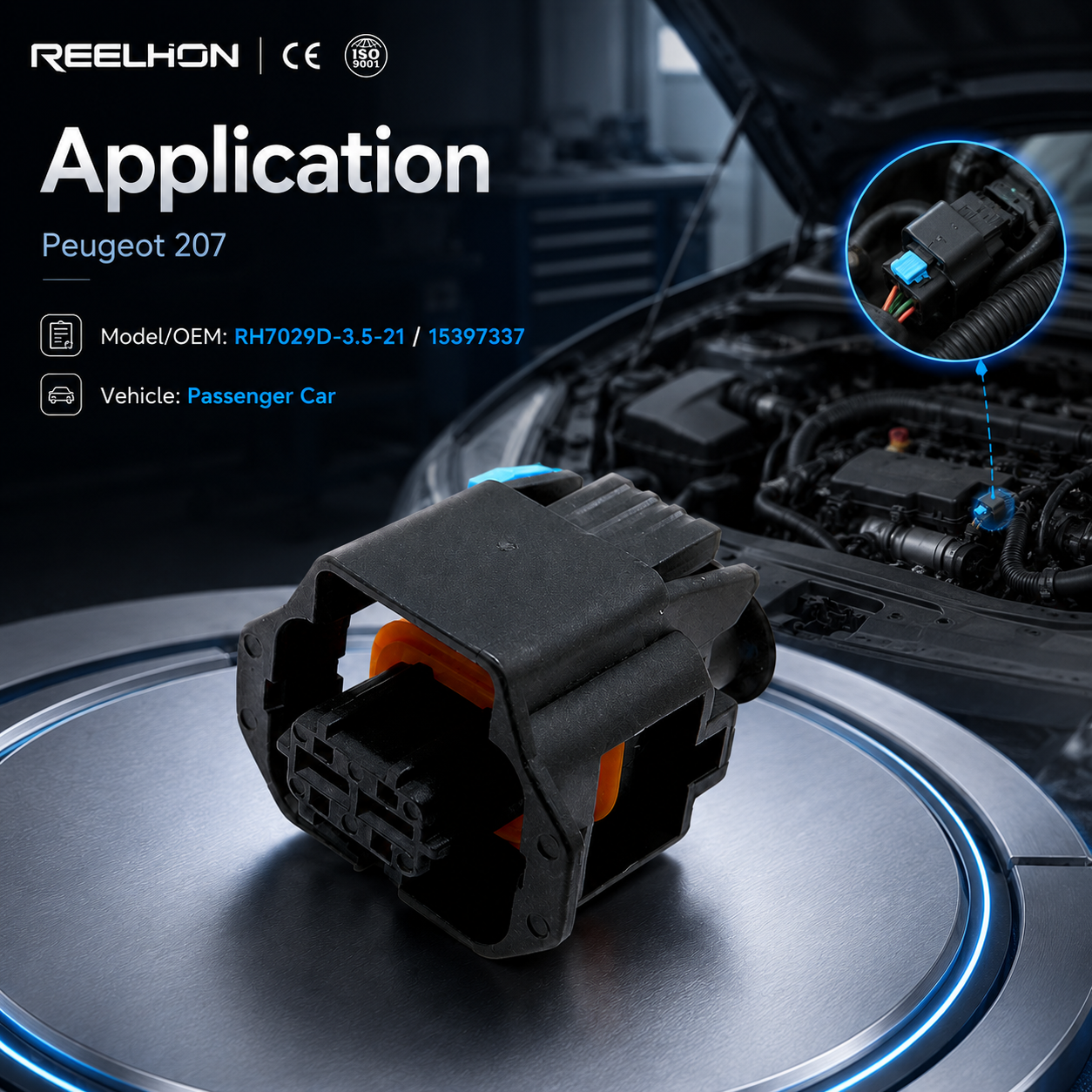

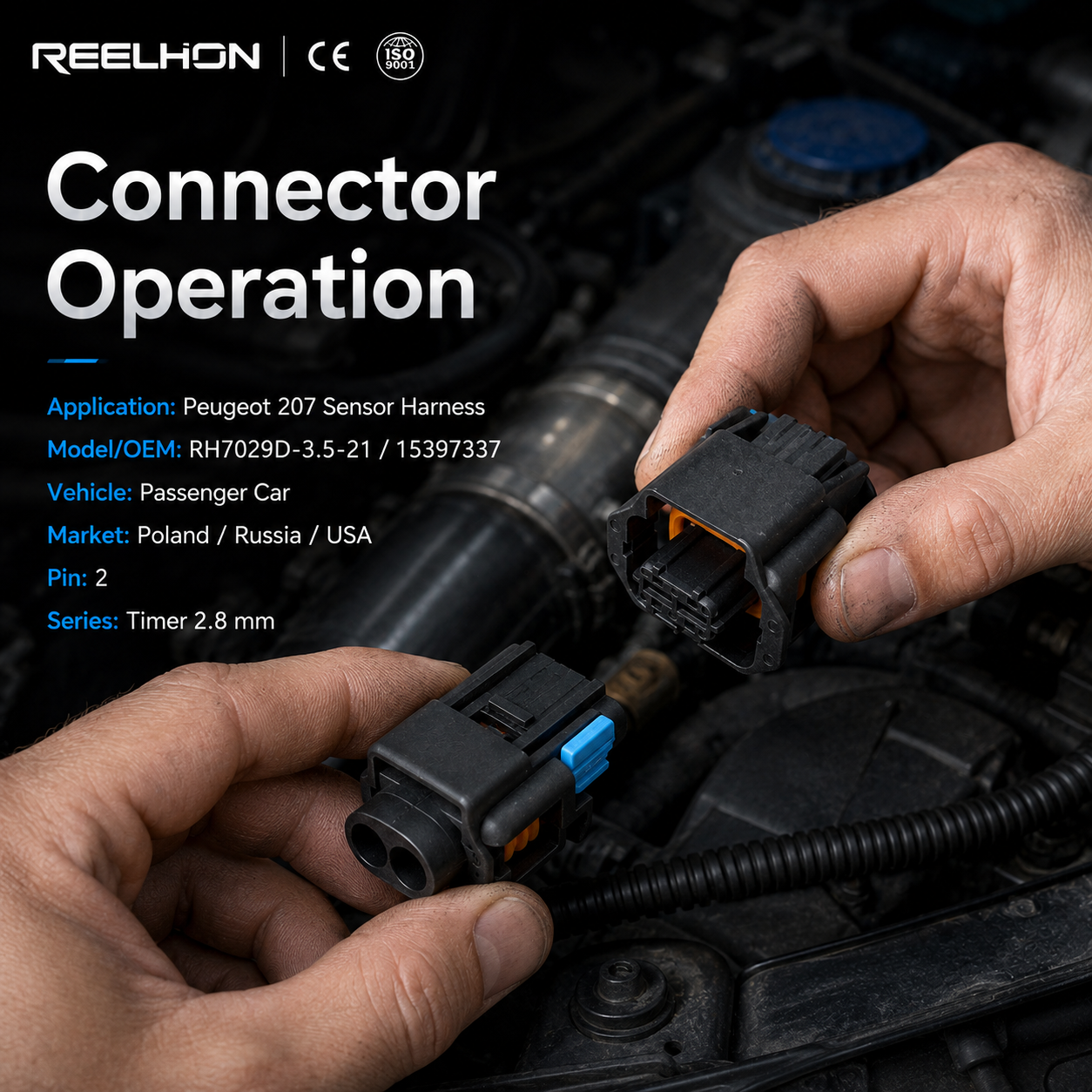

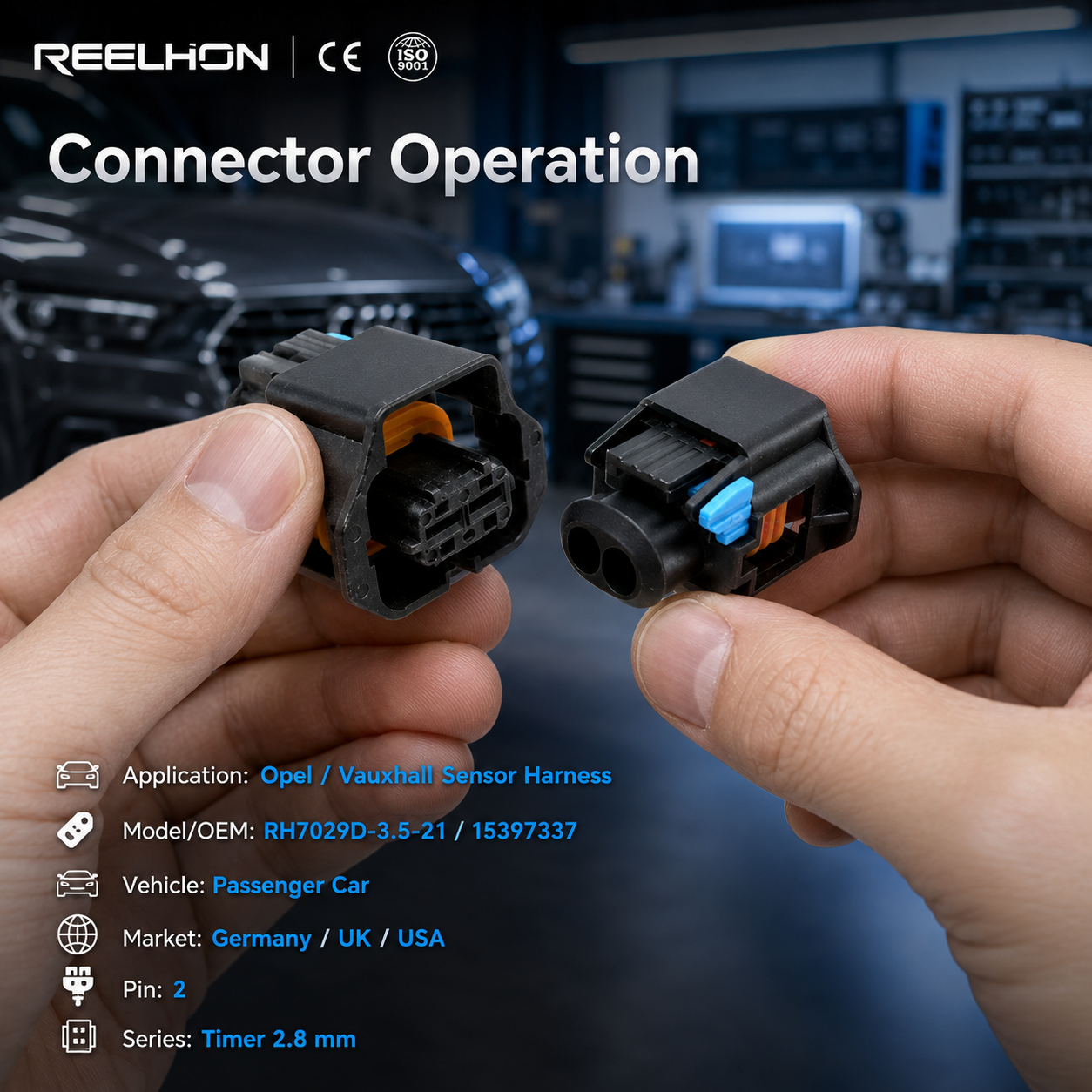

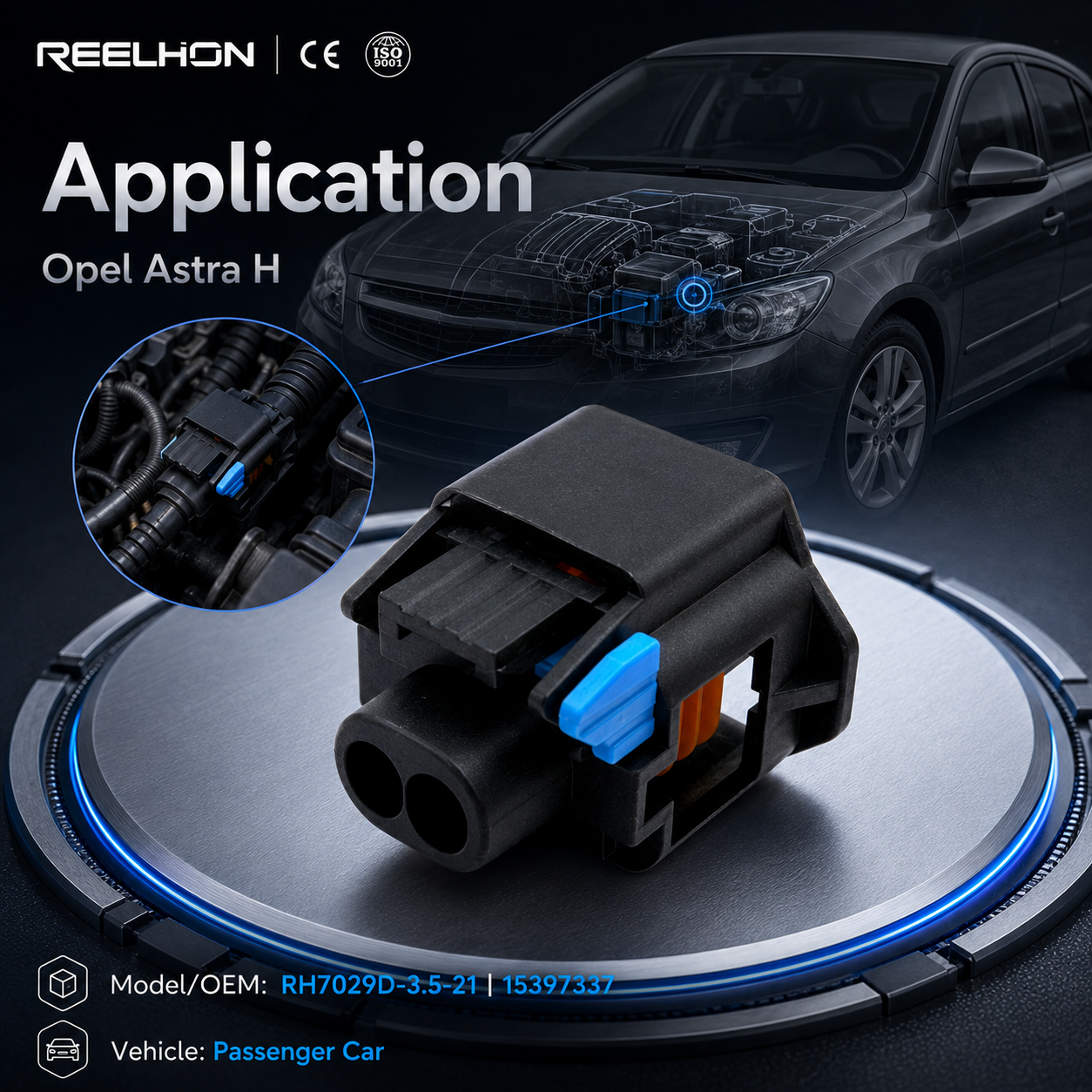

| Applicable Models (Cars/Machinery) | Widely used in Opel, Vauxhall, Peugeot and other models for intake air pressure sensors, coolant temperature sensors, and ignition coils |

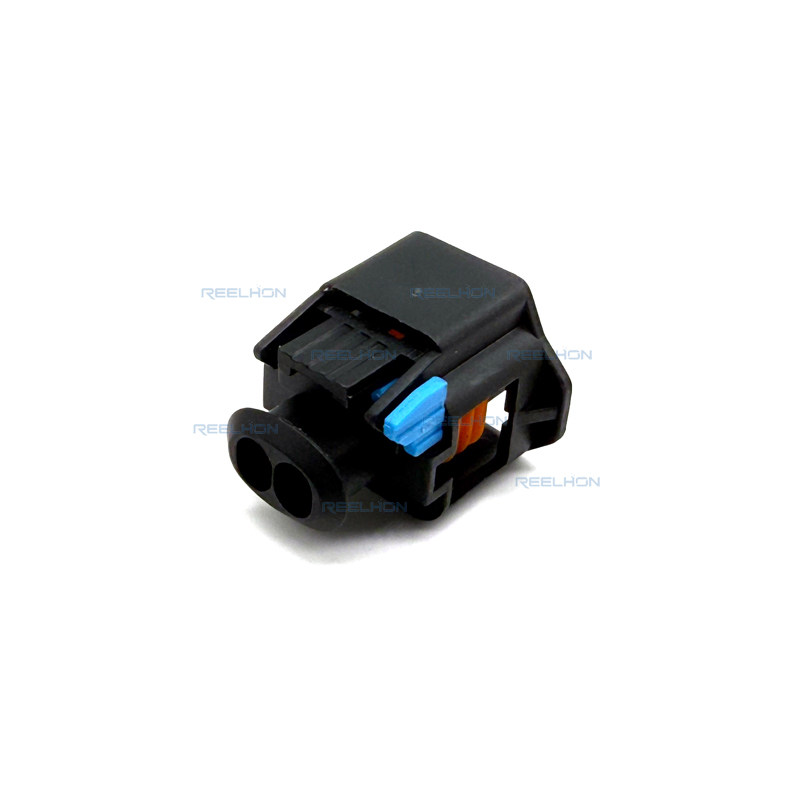

| Key Features | Signature blue self-locking structure ensures 100% physical locking; Orange silicone seal provides ultimate waterproof and oil-resistant performance; High-temperature resistant flame-retardant nylon housing |
| Product Description | Professional 2-way Timer series sealed female receptacle housing, equivalent to 15397337. Engineered for high-temperature automotive sensor applications, featuring a secure sliding lock and premium environment sealing for Opel and other European vehicles. |
