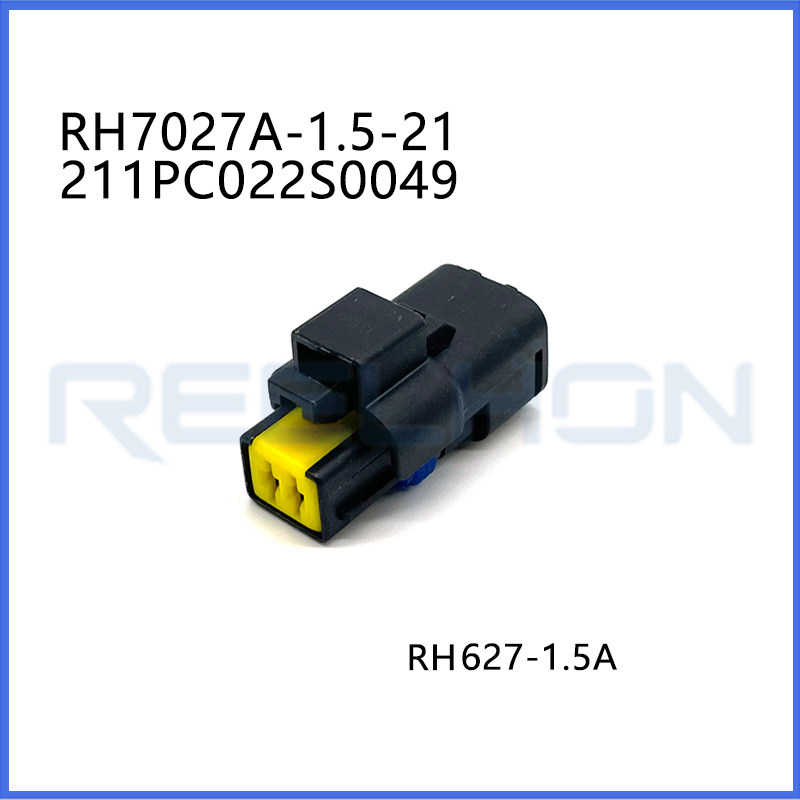

Part Number: RH7027A-1.5-21 (Housing) / RH627-1.5A (Terminal)
OE Number: 211PC022S0049
Key Specifications:
Number of Positions: 2 Positions
Terminal Size: 1.5 mm (Sicma 1.5 Series)
Maximum Current: 16A Max
Rated Voltage: 12V / 24V DC
Ingress Protection: IP67 / IP68
Material & Color: PBT / Black, with Yellow Slider Lock and blue silicone seal
Operating Temperature: -40°C to +125°C
Certificates: ISO9001, CE
| Part Number | RH7027A-1.5-21 (Housing) / RH627-1.5A (Terminal) |
| OE Number | 211PC022S0049 |
| Key Specifications | |
| Number of Positions | 2 |
| Terminal Size | 1.5 mm (Sicma 1.5 Series) |
| Maximum Current | 16A Max |
| Rated Voltage | 12V / 24V DC |
| Ingress Protection | IP67 / IP68 |
| Material & Color | PBT / Black, with Yellow Slider Lock and blue silicone seal |
| Operating Temperature | -40°C to +125°C |
| Certifications | ISO9001, CE |
| Target Market | France, Romania, Brazil, China, Turkey |
| Target Audience | Automotive sensor manufacturers, automotive electrical repair shops, European vehicle series (Peugeot/Citroën) wiring harness repair kit factories |
| Applicable Models (Cars/Machinery) | Widely used in Peugeot, Citroën, Renault and Fiat models for intake air pressure, crankshaft position, and oil pressure sensors |
| Key Features | Yellow Slider Lock design enables easy insertion with firm locking; High-precision Sicma terminals ensure zero signal delay |

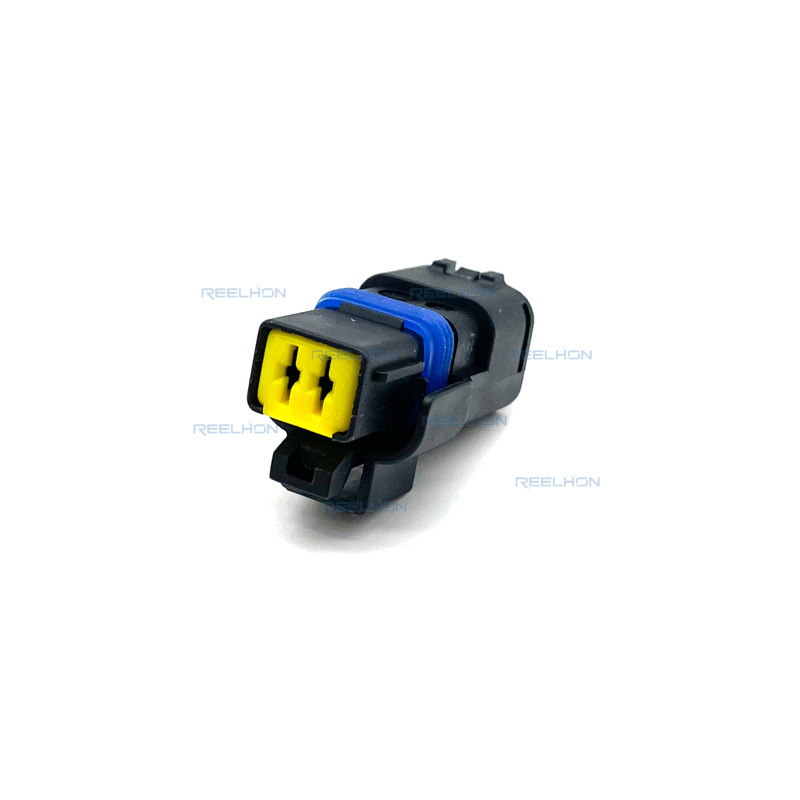

| Product Description | Professional 2-way Sicma 1.5mm series sealed female connector assembly, equivalent to 211PC022S0049. Featuring a signature yellow sliding lock for secure mating, it provides reliable environmental protection for critical automotive sensor circuits. |
