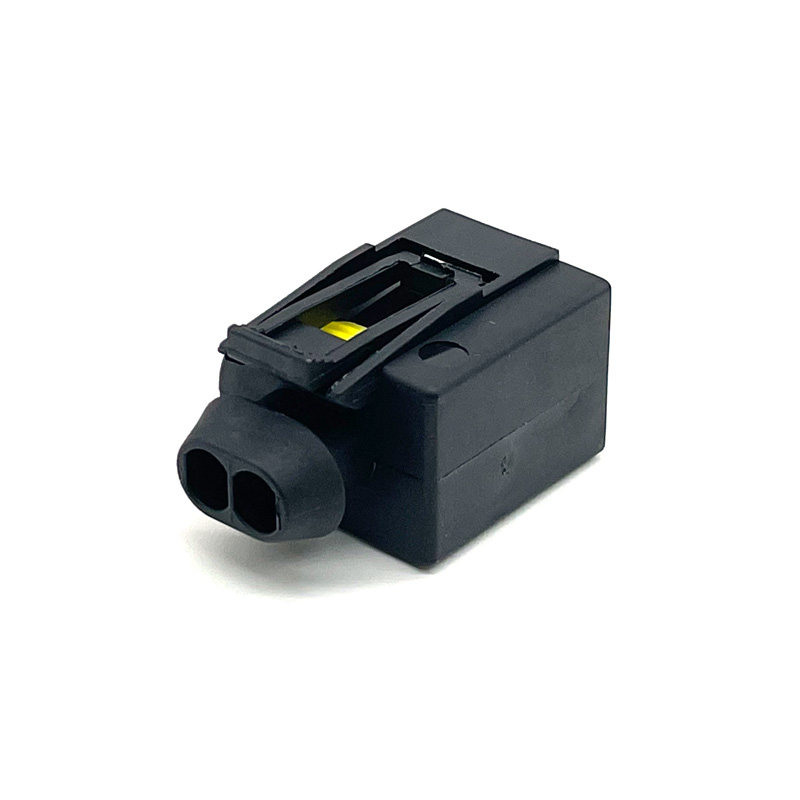

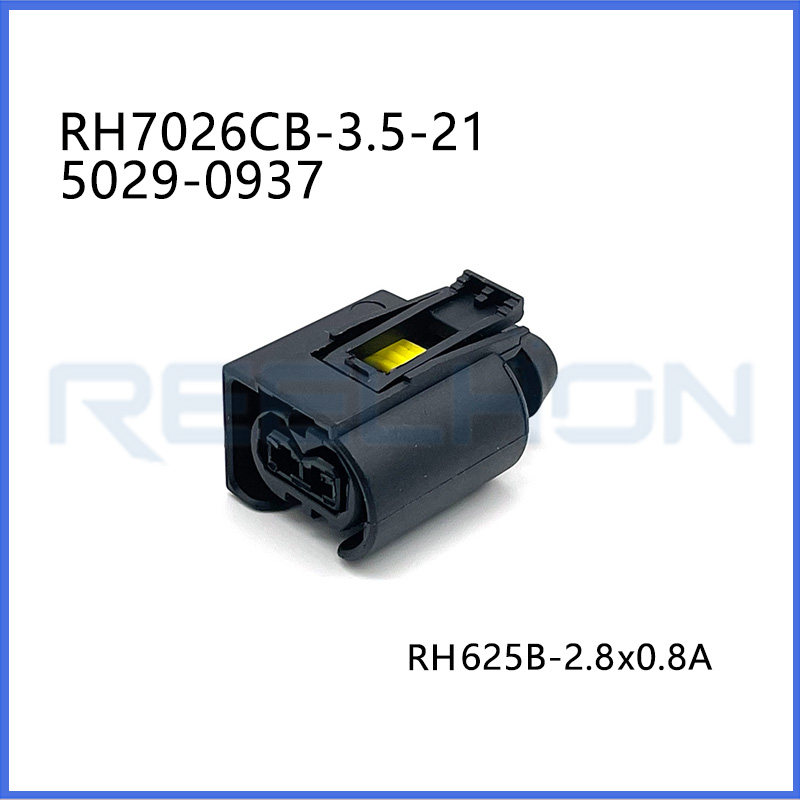

RH7026CB-3.5-21 5029-0937 2 Pin Waterproof Female Automotive Connector for BMW Benz VW Ignition Coil Crankshaft Sensor Plug

Company Model: RH7026CB-3.5-21

OE Reference Number: 5029-0937

Core Specifications:

Number of Positions: 2 (2 Way / 2 Pin)

Terminal Size: 2.8 mm x 0.8 mm (Matching terminal: RH625B)

Maximum Current: 30A (depending on 2.5mm² wire gauge)

Rated Voltage: 12V / 24V DC

Ingress Protection: IP67 / IP6K9K (Triple-lip radial sealing)

Material & Color: PA66+GF / Black

Operating Temperature: -40°C to +140°C

Certifications: ISO9001, CE

Company Model	RH7026CB-3.5-21
Industry Benchmark OE Reference Number	5029-0937
Core Specifications
Number of Positions	2 (2 Way)
Terminal Size	2.8 mm x 0.8 mm (Matching terminal: RH625B)
Maximum Current	Approx. 30A (depending on wire gauge configuration)
Rated Voltage	12V / 24V DC
Ingress Protection	IP67 / IP6K9K
Material & Color	PA66 Glass-Fiber Reinforced (GF) / Black
Operating Temperature	-40°C to +140°C
Certifications	ISO9001, CE
Target Market	Germany, UK, USA, Brazil, Turkey
Target Audience	Automotive Wire Harness Manufacturers, Engine Sensor Suppliers, Diesel Injection Service Centers

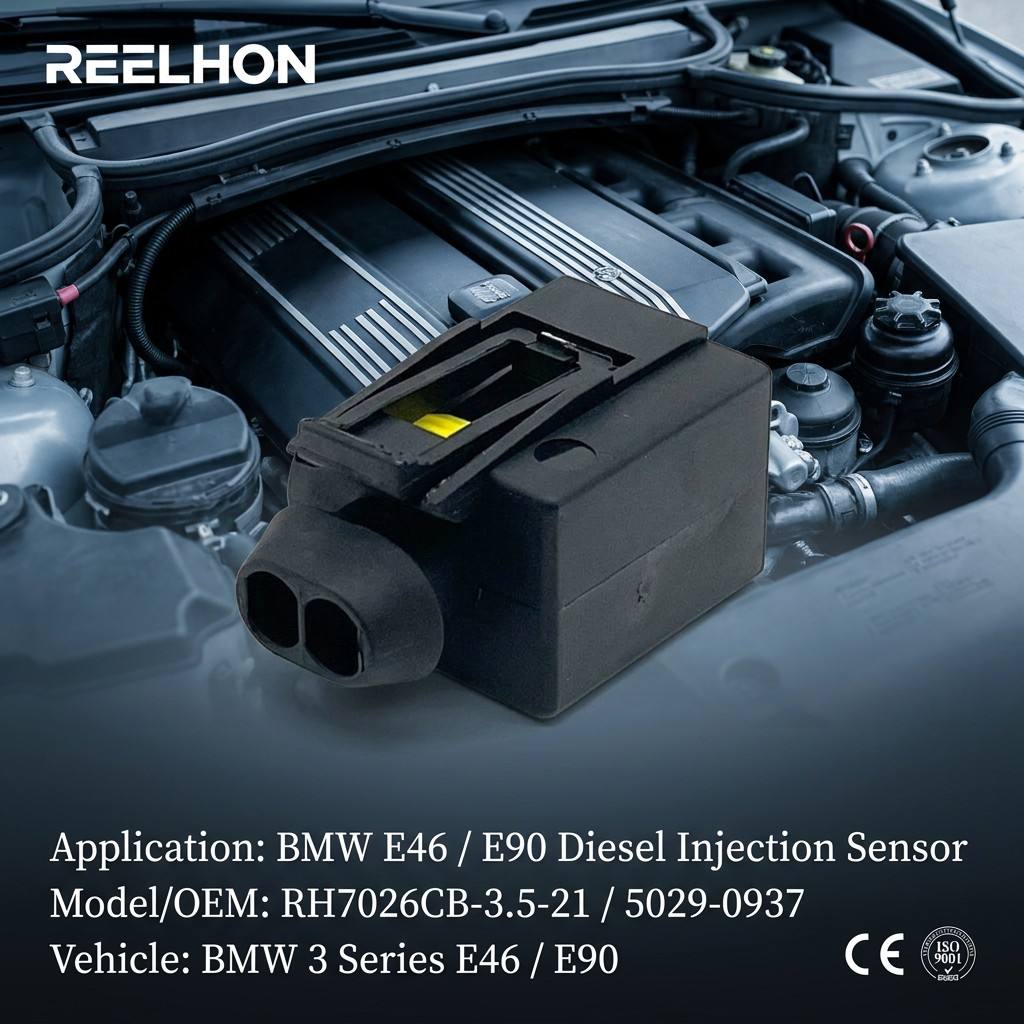

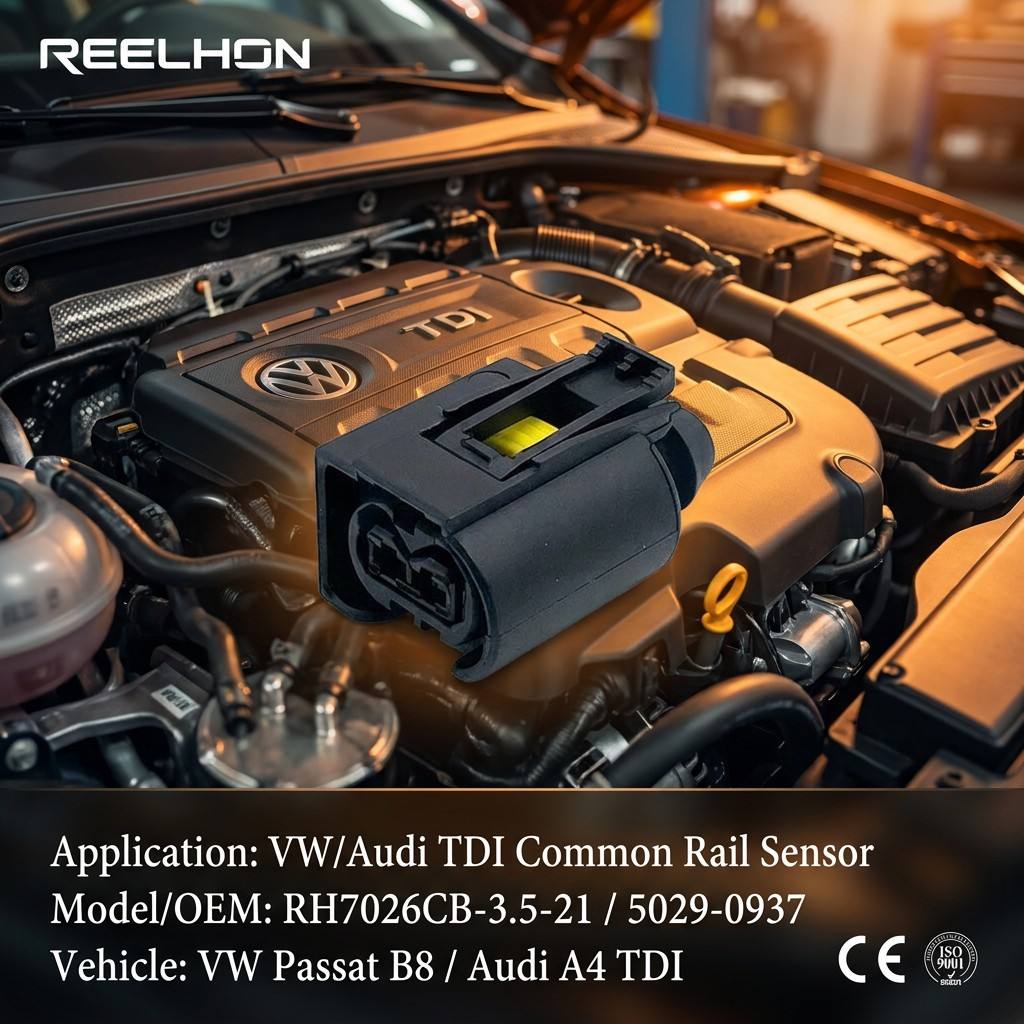

Applicable Models (Cars/Machinery)	BMW (E46/E90), Mercedes-Benz, VW/Audi Group, and various Common Rail Diesel Engines
Key Features	KOSTAL SLK 2.8 Sealed System, Coding A, Excellent Vibration Stability, High Temperature Resistance, Robust TPA Locking
Product Description	2-Way Sealed SLK 2.8 Female Connector, precision-engineered for automotive sensor and ignition applications. Features triple-lip radial seals for reliable performance in harsh engine bay environments.
