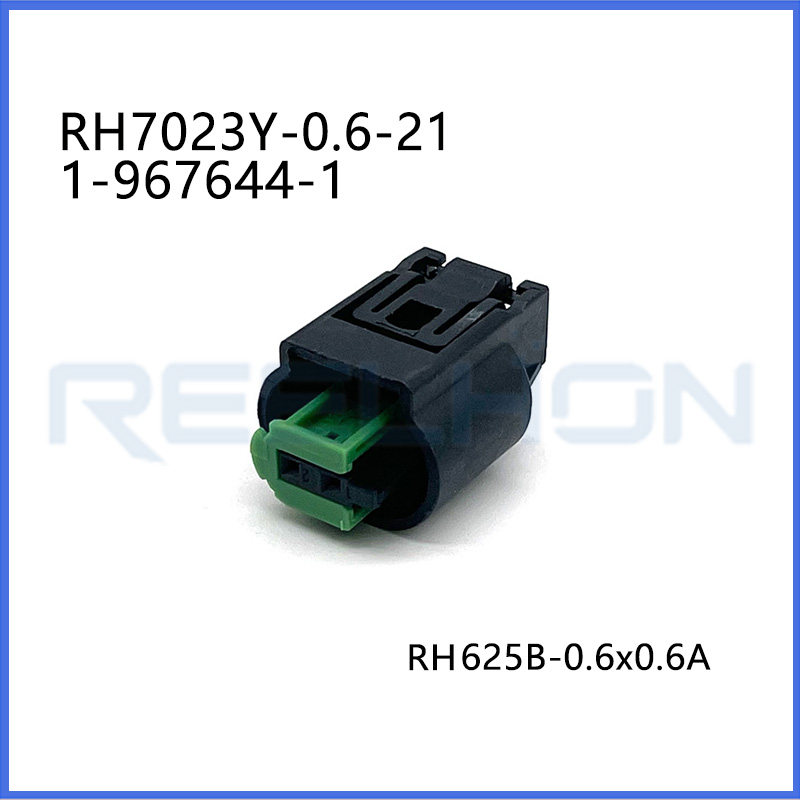

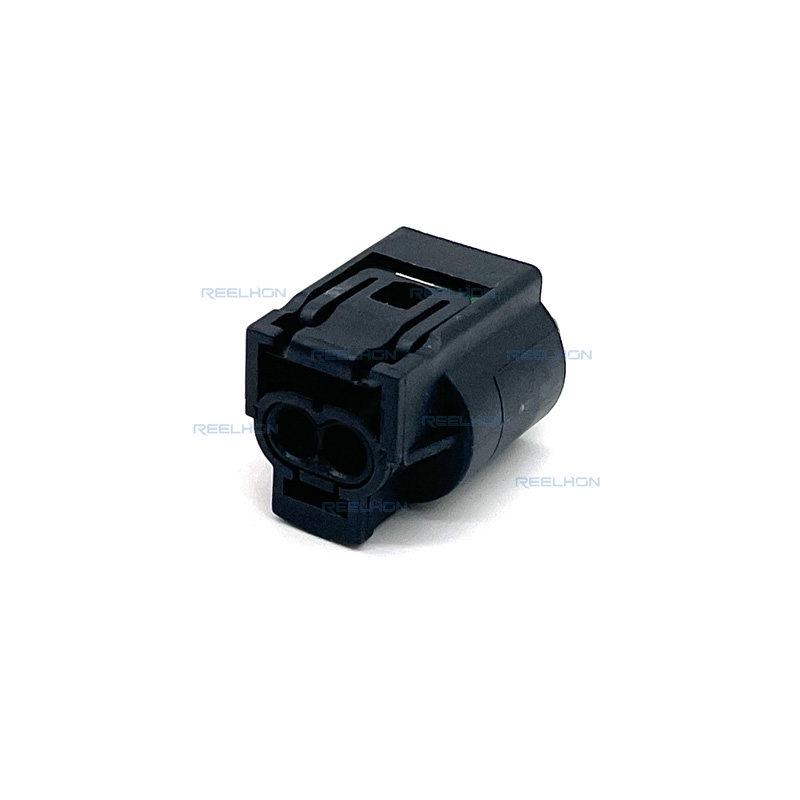

Part Number: RH7023Y-0.6-21 (Housing) / RH625B-0.6x0.6A (Terminal)
OE Number: 1-967644-1
Key Specifications:
Number of Positions: 2 Positions
Terminal Size: 0.63 mm (Micro Quadlock System)
Maximum Current: 7.5A Max
Rated Voltage: 12V / 24V DC
Ingress Protection: IP67 / IP69K
Material & Color: PBT + GF / Black, with Green locking component
Operating Temperature: -40°C to +120°C
Certificates: ISO9001, CE
| Part Number | RH7023Y-0.6-21 (Housing) / RH625B-0.6x0.6A (Terminal) |
| OE Number | 1-967644-1 |
| Key Specifications | |
| Number of Positions | 2 |
| Terminal Size | 0.63 mm (Micro Quadlock System) |
| Maximum Current | 7.5A Max |
| Rated Voltage | 12V / 24V DC |
| Ingress Protection | IP67 / IP69K |
| Material & Color | PBT + GF / Black, with Green locking component |
| Operating Temperature | -40°C to +120°C |
| Certifications | ISO9001, CE |
| Target Market | Germany, USA, Japan, Poland, UK |
| Target Audience | Automotive sensor wiring harness manufacturers, advanced brake system repair specialists, ADAS/radar system integrators |

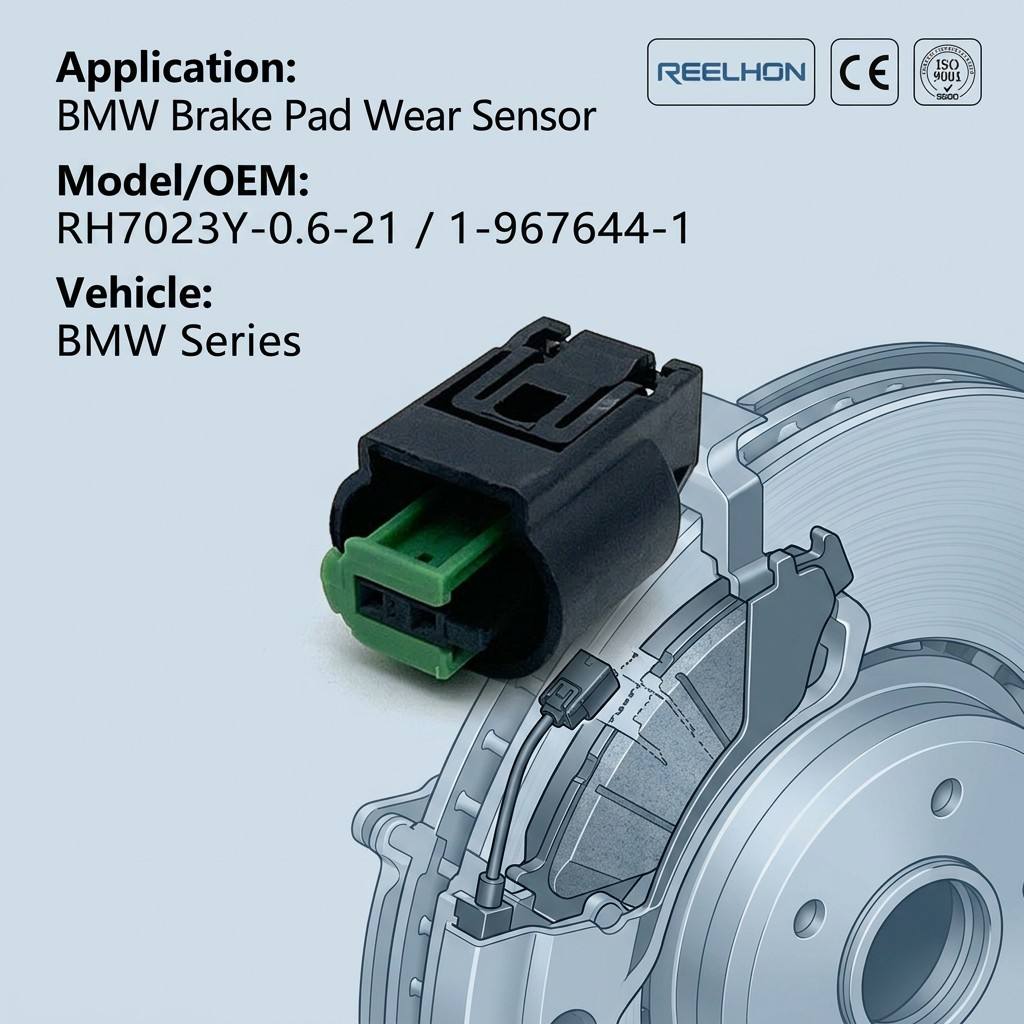

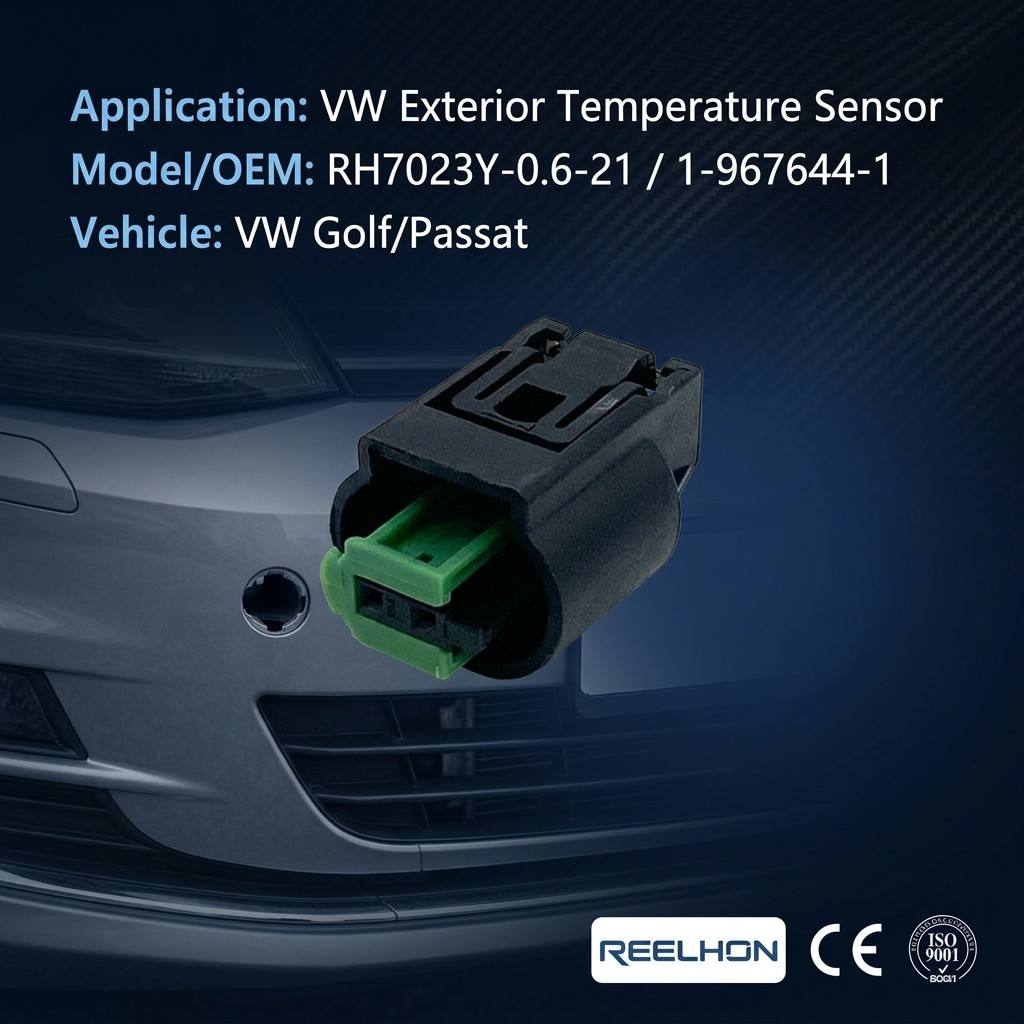

| Applicable Models (Cars/Machinery) | Widely used in BMW, VW, Mercedes-Benz and other brands for brake pad wear sensors, exterior temperature sensors, and various micro-switch signal wires |
| Key Features | Extremely compact MQS 0.63mm system design; Green secondary lock ensures 100% terminal retention; Top-level IP69K waterproof and vibration-proof performance |
| Product Description | Professional 2-way MQS series sealed female connector assembly, equivalent to 1-967644-1. Engineered for high-precision, low-current signal integrity in extreme automotive environments, ensuring reliable data transmission for critical sensors. |
