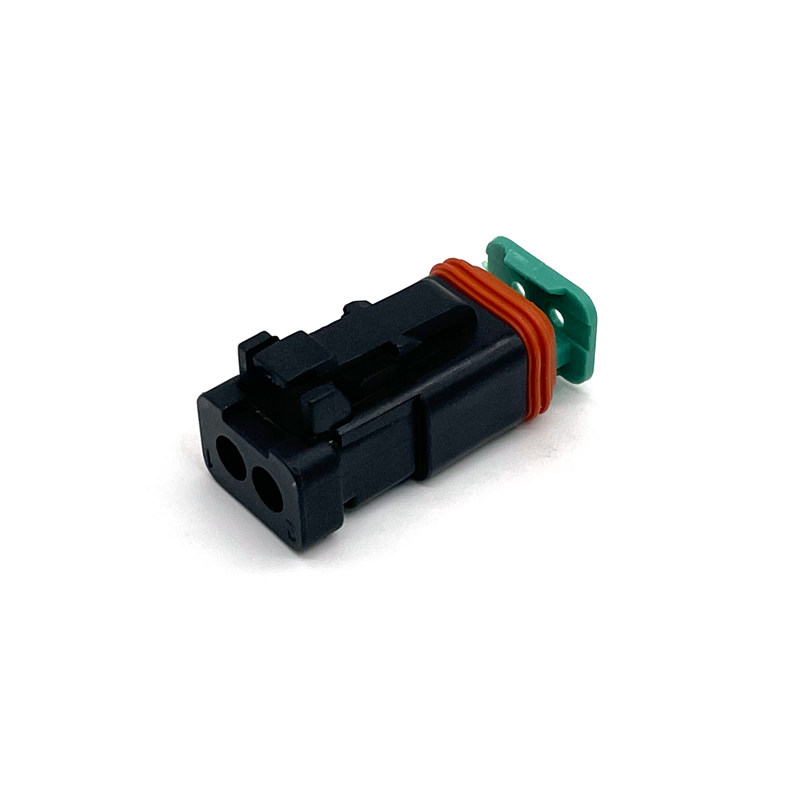

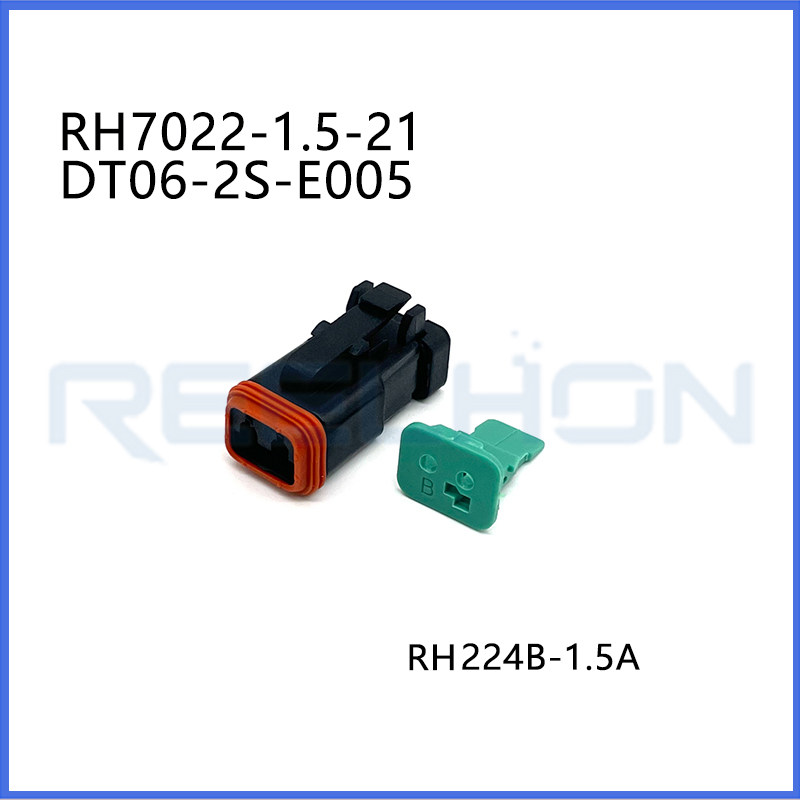

RH7022-1.5-21 DT06-2S-E005 2 Pin Waterproof Female Automotive Connector for Deutsch DT Series Black Housing Heavy Duty Truck Plug

Company Model: RH7022-1.5-21

OE Number: DT06-2S-E005 (TE Connectivity / DEUTSCH)

Core Specifications:

Number of Positions: 2 (2 Way / 2 Pin)

Terminal Size: Size 16 (Compatible with 1.5mm terminals, e.g. matching terminal RH224B)

Maximum Current: 13A

Rated Voltage: 250V DC

Ingress Protection: IP68 / IP6K9K (Excellent sealing, submersible)

Material & Color: Thermoplastic / Black, with orange seal and green wedge lock

Operating Temperature: -55°C to +125°C

Certifications: ISO9001, CE

Company Model	RH7022-1.5-21
OE Number	DT06-2S-E005 (TE Connectivity / DEUTSCH)
Core Specifications
Number of Positions	2 (2 Way / 2 Pin)
Terminal Size	Size 16 (Compatible with 1.5mm terminals, e.g. matching terminal RH224B)
Maximum Current	13A
Rated Voltage	250V DC
Ingress Protection	IP68 / IP6K9K (Excellent sealing, submersible)
Material & Color	Thermoplastic / Black, with orange seal and green wedge lock
Operating Temperature	-55°C to +125°C
Certifications	ISO9001, CE
Target Market	North America, Australia (Mining/Off-road), Europe
Target Audience	Heavy Equipment OEM, Marine Electronics, Agricultural Machinery Harness Makers
Applicable Models (Cars/Machinery)	Caterpillar, John Deere, Cummins, Case IH, and Marine/Off-road Lighting
Key Features	Environmental Sealing, Field-Proven Reliability, Durable Thermoplastic, Quick Connection & Disconnection
Product Description	2-Way Female Deutsch DT Series Plug, E005 Black Modification with End Cap. Engineered for severe environmental conditions, providing a weather-resistant and reliable connection for industrial and automotive applications.
