Nominal Voltage Architecture (V): 12 | 24 | 48

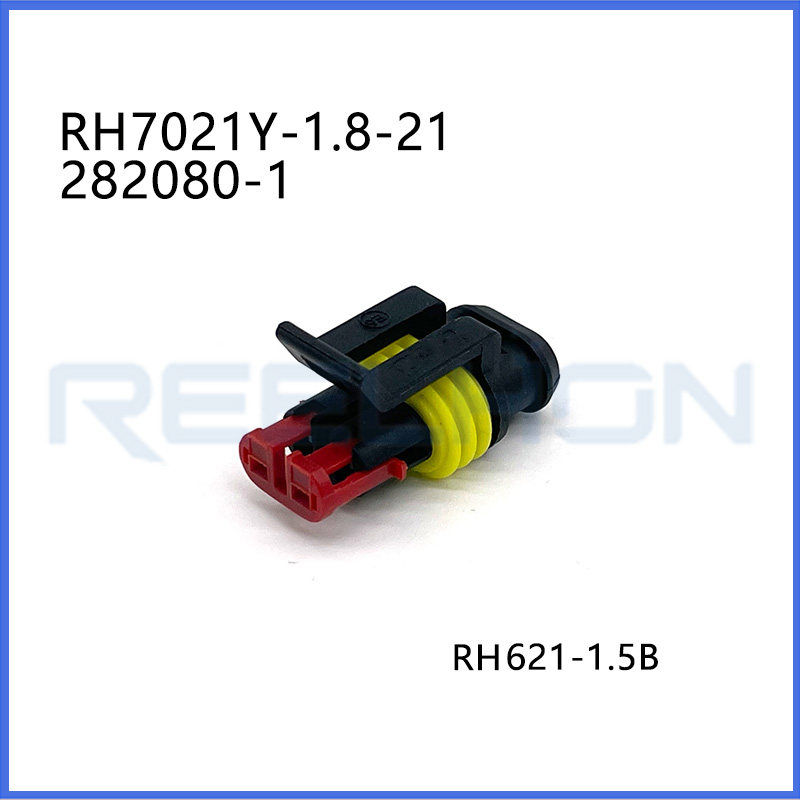

Connector & Housing Type : Housing for Male Terminals
Number of Positions : 2
Sealable : Yes
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
| Product Type Features | |
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | No |
| Connector & Housing Type | Housing for Male Terminals |
| Sealable | Yes |
| Primary Locking Feature | Integrated in Housing |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Configuration Features | |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Electrical Characteristics | |
| Operating Voltage (VDC) | 24 |
| Nominal Voltage Architecture (V) | 12 | 24 | 48 |
| Body Features | |
| Cable Exit Angle (°) | 180 |
| Primary Product Color | Black |
| Connector & Keying Code | Neutral |
| Contact Features | |
| Contact Type | Tab |
| Contact Size | 1.5mm |
| Mating Tab Width | 1.5 mm [.059 in] |
| Contact Current Rating (Max) (A) | 14 |
| Mechanical Attachment | |
| Mating Alignment | With |
| Mating Alignment Type | Polarizing Rib |
| Terminal Position Assurance | No |
| Strain Relief | Without |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Housing Features | |
| Housing Material | PA 66 GF |
| Centerline (Pitch) | 6 mm [.236 in] |
| Dimensions | |
| Connector Height | 13.8 mm [.543 in] |
| Product Length | 42 mm [1.654 in] |
| Product Width | 19.8 mm [.78 in] |
| Usage Conditions | |
| Operating Temperature Range | -40 – 125 °C [-40 – 257 °F] |
| Operating Temperature (Max) | 125 °C [257 °F] |
| Operation/Application | |
| Circuit Application | Power |
