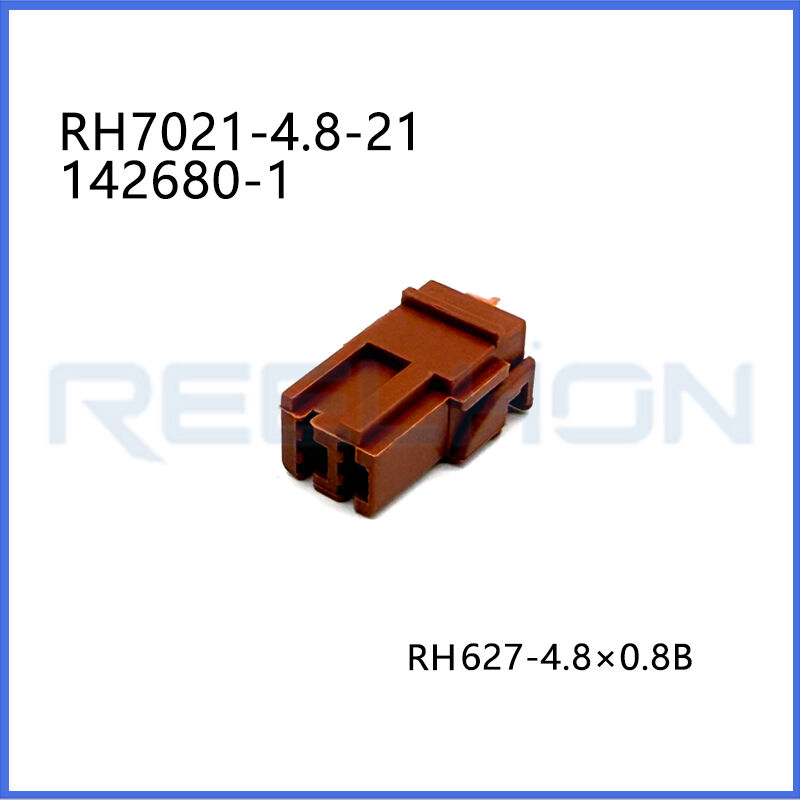

RH7021-4.8-21/142680-1 12 V / 24 V / 48 V, 6 Position, Automotive Female

This high-performance receptacle terminal housing, identified by its internal part number 7021-4.8-21, is a precision-engineered electrical component designed to deliver reliable interconnection solutions for a wide range of automotive and industrial applications. As a core part of cable wire harness and auto cable connector assemblies, this 7021-4.8-21 model combines robust construction, thoughtful design, and industry-compliant specifications to ensure long-term performance even in the most demanding operating environments. Whether used as a replacement socket in automotive wiring systems, a key component in industrial control setups, or a critical part of electrical instrumentation, this receptacle terminal housing stands out for its exceptional durability, user-friendly installation, and consistent functionality, making it a trusted choice for engineers and technicians across industries.

The 7021-4.8-21 receptacle terminal housing features a 2-position configuration, specifically engineered to accommodate dual-circuit connection applications. This design is ideal for scenarios where two separate electrical pathways need to be securely established, such as in automotive lighting systems, sensor connections, or industrial control signal transmission. The terminal positions are spaced with a 5 mm centerline, a standard spacing that ensures seamless compatibility with common terminal contacts and facilitates efficient wiring layout. This precise spacing not only reduces the risk of contact interference but also simplifies assembly processes, allowing for faster, more accurate installation and minimizing the potential for human error during setup. Additionally, the terminal orientation is straight, which enables straightforward, space-efficient installation—particularly valuable in tight automotive or industrial enclosures where wiring space is limited, allowing for neat, organized routing of cables without unnecessary bends or twists that could compromise connection integrity.

In terms of physical characteristics, the 7021-4.8-21 receptacle terminal housing boasts a brown finish, a color that aligns with standard industrial color-coding practices for easy identification. This brown housing not only enhances visual distinction during assembly and maintenance but also ensures consistency with existing wiring systems, reducing the chance of misinstallation and streamlining workflow for technicians. The housing itself is constructed from high-performance Polyamide 6.6 with glass fiber reinforcement (PA66 GF), a premium material chosen for its exceptional mechanical strength, superior heat resistance, and excellent dimensional stability. PA66 GF is renowned for its ability to withstand harsh conditions, including extreme temperatures ranging from -40°C to 120°C, mechanical stress from constant vibration, and exposure to chemicals such as oils, fuels, and cleaning agents—all common in automotive and industrial environments where reliability is non-negotiable. This material also offers excellent resistance to wear and tear, ensuring the housing maintains its structural integrity and performance over extended service life.

Designed for cable mount installation, the 7021-4.8-21 receptacle terminal housing is engineered to integrate seamlessly with cable wire harnesses, serving as a dependable car replacement socket and automotive socket connector. Its cable mount design allows for secure attachment to the cable, ensuring a stable connection that resists dislodgment even during vehicle vibration, industrial machinery operation, or frequent movement. To further enhance connection security, the housing is equipped with a positive lock mechanism, which ensures a tight, secure mating with corresponding connectors. This positive lock features a snap-fit design that engages firmly once the connector is fully mated, preventing accidental disengagement under mechanical stress, vibration, or thermal expansion. This level of security is critical for automotive electrical systems, industrial control panels, and electrical instrumentation, where interruptions in power or signal transmission could lead to equipment failure, safety hazards, or costly downtime.

As a receptacle-type terminal and housing assembly, the 7021-4.8-21 model is designed to work with receptacle female terminals, which are optimized for reliable electrical contact and stable signal/power transmission. The female terminals feature precision-engineered contact points that ensure low resistance and consistent conductivity, minimizing signal loss and maximizing performance. The housing assembly provides essential structural support and insulation protection for the internal terminals, shielding them from dust, moisture, and physical damage, while also preventing electrical short circuits that could damage equipment or pose safety risks. Compliant with industry-standard 197 series specifications, this receptacle terminal housing meets rigorous quality and performance standards, ensuring compatibility with a wide range of industry-standard components and systems, making it a versatile solution for various applications.

This versatile component is suitable for use in a variety of demanding applications, including automotive wiring systems (such as engine bays, interior electronics, and lighting), industrial control equipment (including programmable logic controllers, sensors, and actuators), electrical instrumentation (such as meters and gauges), and other wiring setups that require stable, durable interconnection solutions. As a high-quality car replacement socket, it serves as a dependable alternative to original equipment, ensuring that vehicle electrical systems continue to operate smoothly and efficiently. Its durable construction, secure locking mechanism, and compatibility with cable wire harnesses make it an essential component for any application where reliable electrical connectivity is critical. Overall, the 7021-4.8-21 receptacle terminal housing combines precision engineering, high-quality materials, and user-centric design to deliver a solution that meets the rigorous demands of modern automotive and industrial environments, providing long-term value and peace of mind for users.
