Nominal Voltage Architecture (V): 12 | 24 | 48

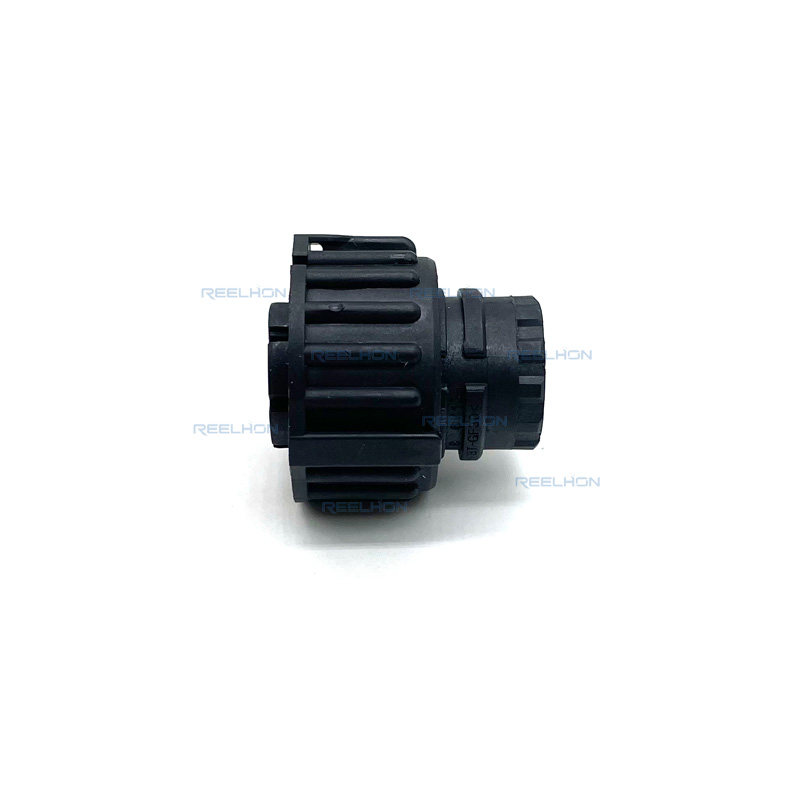

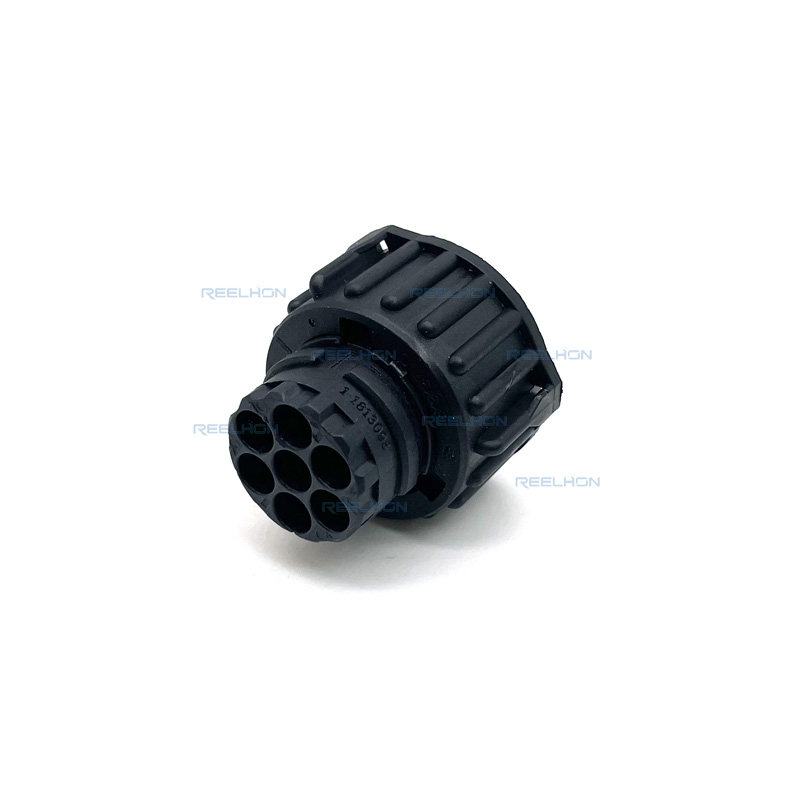

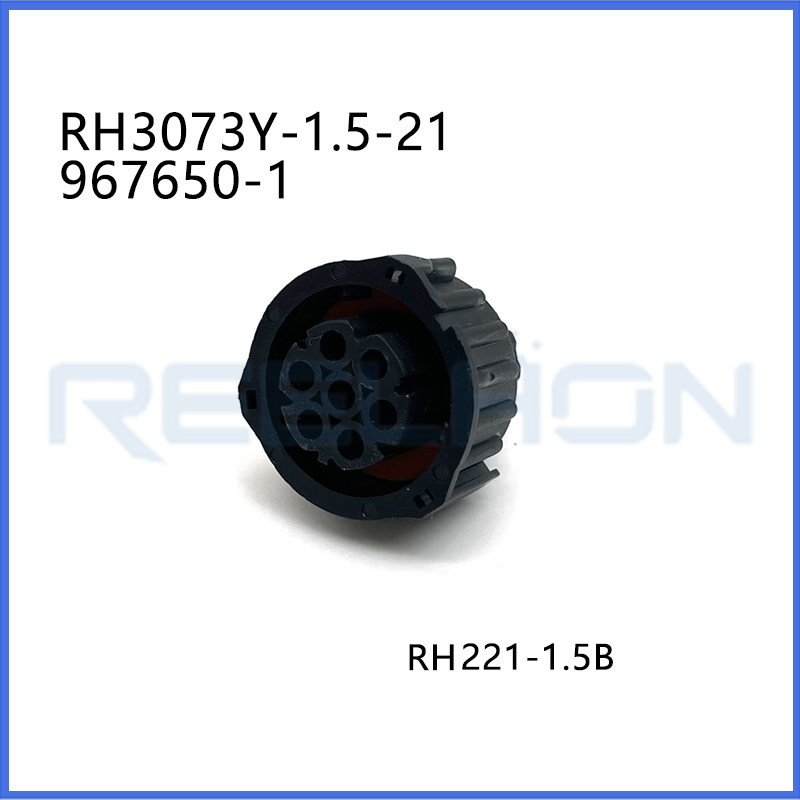

Connector & Housing Type : Housing for Female Terminals
Number of Positions : 7
Sealable : Yes
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
| Product Type Features | |
| Connector Shape | Circular |
| Mixed & Hybrid Connector | No |
| Connector & Housing Type | Housing for Female Terminals |
| Sealable | Yes |
| Primary Locking Feature | Integrated in Housing |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Configuration Features | |
| Number of Positions | 7 |
| Electrical Characteristics | |
| Operating Voltage (VDC) | 48 |
| Nominal Voltage Architecture (V) | 12 | 24 | 48 |
| Body Features | |
| Cable Exit Angle (°) | 90 | 180 |
| Primary Product Color | Black |
| Connector & Keying Code | A |
| Contact Features | |
| Contact Type | Socket |
| Contact Size | 1.5mm |
| Mating Pin Diameter | 1.5 mm [.059 in] |
| Mechanical Attachment | |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Terminal Position Assurance | No |
| Strain Relief | Add By Accessory |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Housing Features | |
| Housing Material | Glass-Filled PBT |
| Dimensions | |
| Connector Height | 32.8 mm [1.291 in] |
| Product Length | 32.8 mm [1.291 in] |
| Product Width | 31 mm [1.22 in] |
| Usage Conditions | |
| Operating Temperature Range | -40 – 120 °C [-40 – 248 °F] |
| Operating Temperature (Max) | 120 °C [248 °F] |
