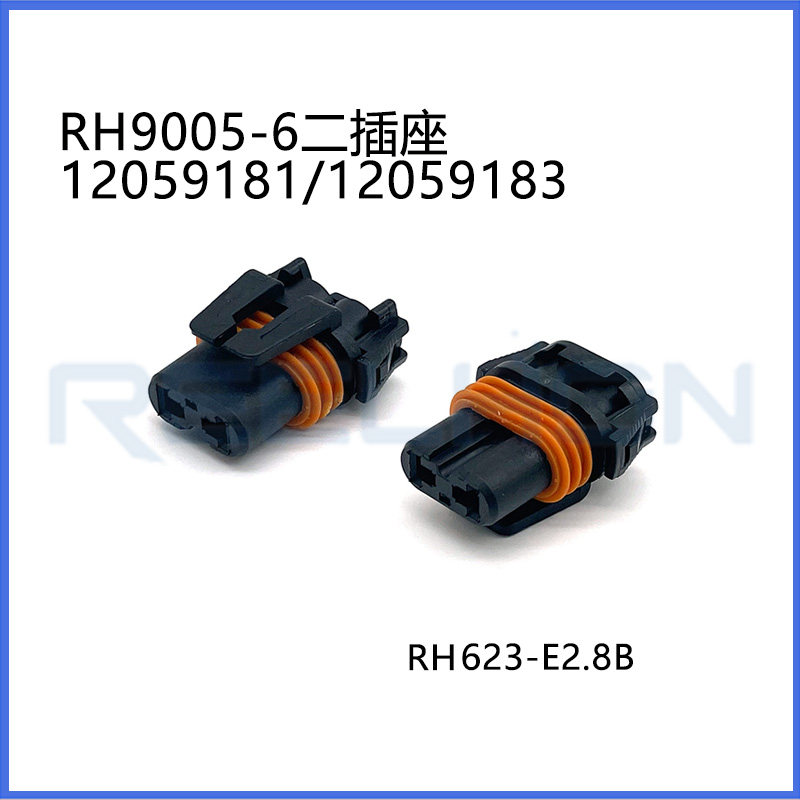

Part Number: RH9005-6 (Housing) / RH623-E2.8B (Terminal)
OE Number: 12059181 / 12059183
Key Specifications:
Number of Positions: 2 Positions
Terminal Size: 2.8 mm (Metri-Pack 280)
Maximum Current: 30A Max
Rated Voltage: 12V / 24V DC
Ingress Protection: IP67 / IP68
Material & Color: PBT + GF / Black, with orange silicone seal
Operating Temperature: -40°C to +125°C
Certificates: ISO9001, CE
| Part Number | RH9005-6 (Housing) / RH623-E2.8B (Terminal) |
| OE Number | 12059181 / 12059183 |
| Key Specifications | |
| Number of Positions | 2 |
| Terminal Size | 2.8 mm (Metri-Pack 280) |
| Maximum Current | 30A Max |
| Rated Voltage | 12V / 24V DC |
| Ingress Protection | IP67 / IP68 |
| Material & Color | PBT + GF / Black, with orange silicone seal |
| Operating Temperature | -40°C to +125°C |
| Certifications | ISO9001, CE |
| Target Market | USA, Germany, Mexico, Saudi Arabia, Russia |
| Target Audience | Modified lighting service providers, off-road vehicle lighting system assembly plants, automotive wiring harness repair kit distributors |

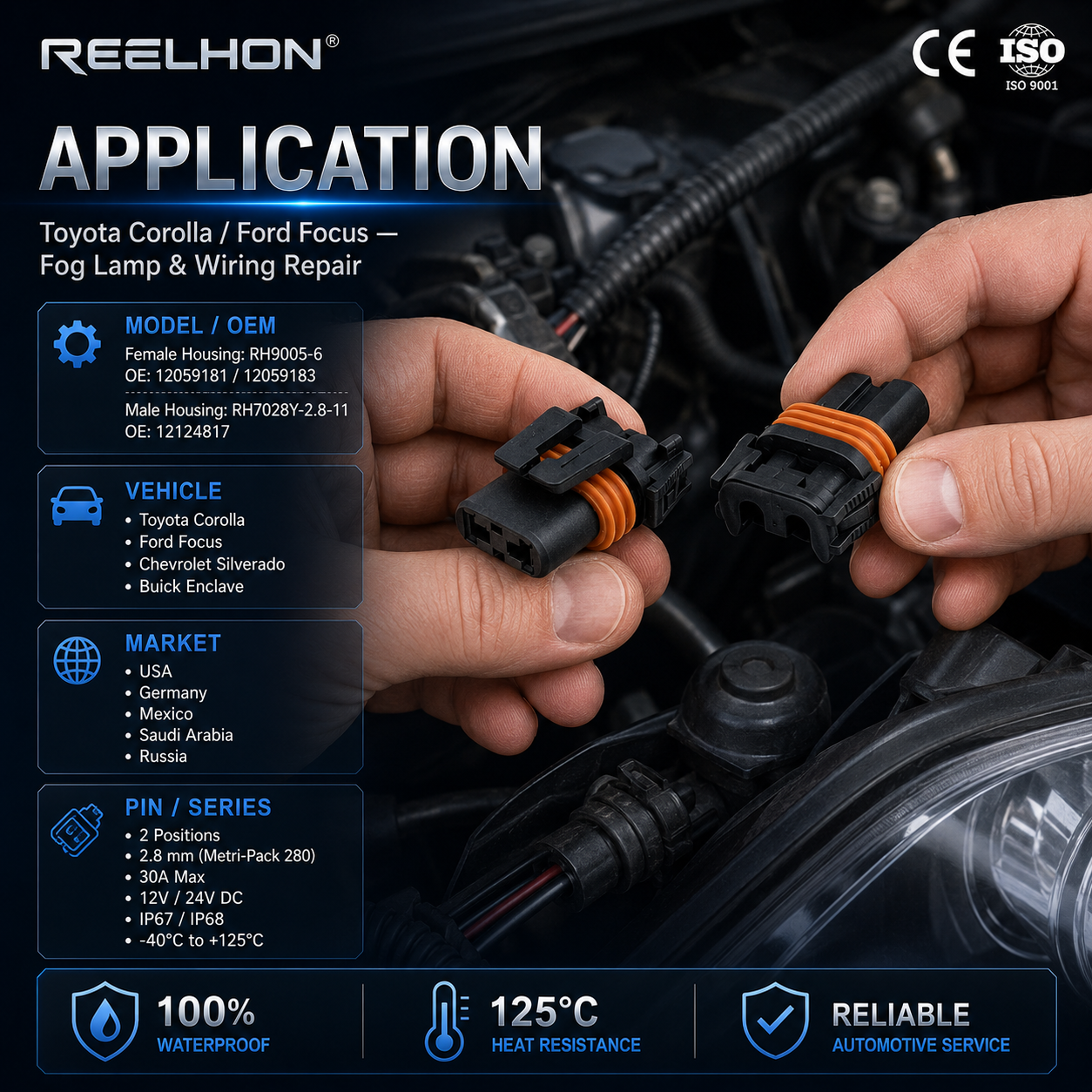

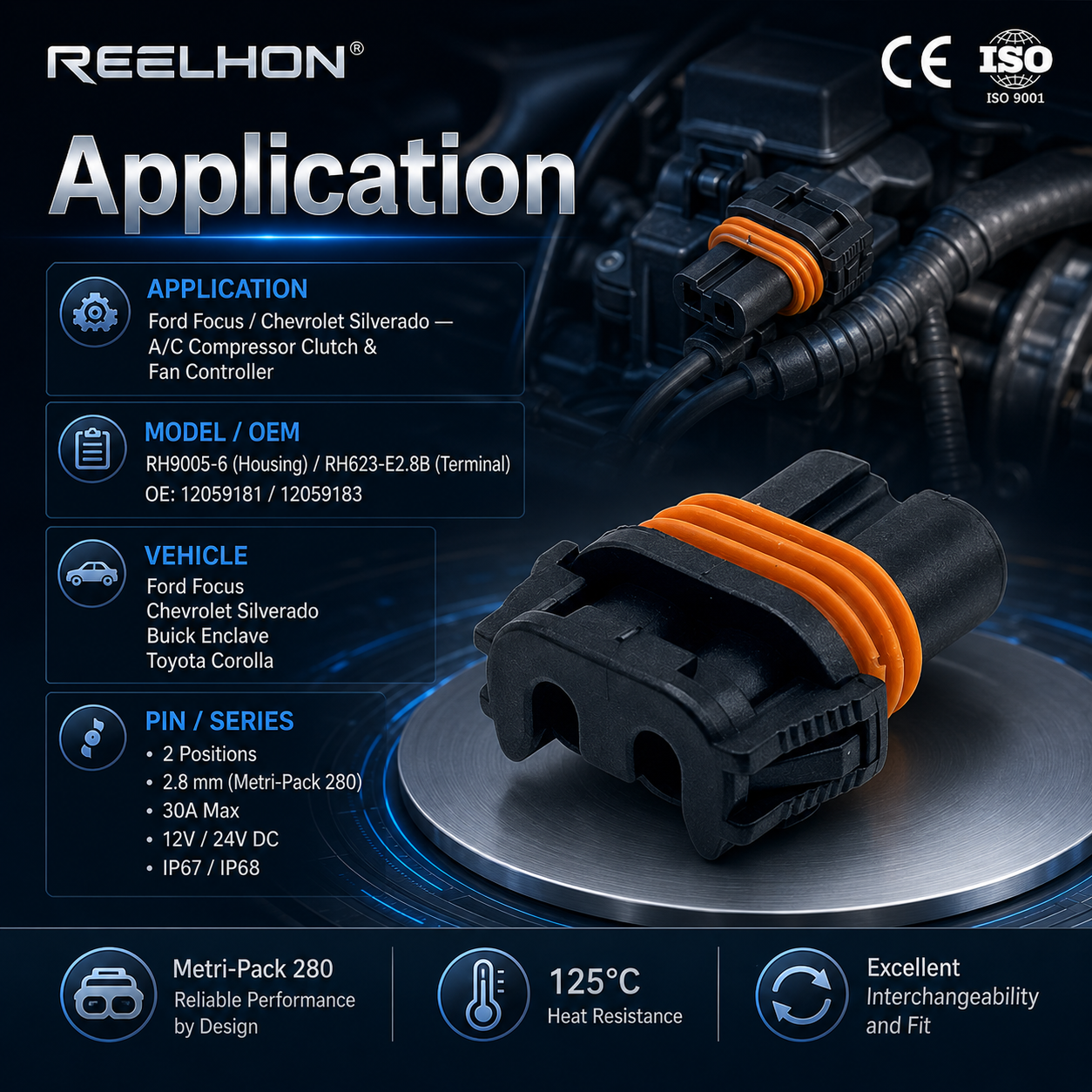

| Applicable Models (Cars/Machinery) | Widely applicable to Toyota, Chevrolet, Ford and other brands using 9005/9006 bulb specifications for high beam/low beam headlights and fog lights |
| Key Features | Classic Metri-Pack 280 interface with highest interchangeability; High-elasticity orange seal provides excellent weather resistance; Flame-retardant PA66/PBT withstands engine bay heat |

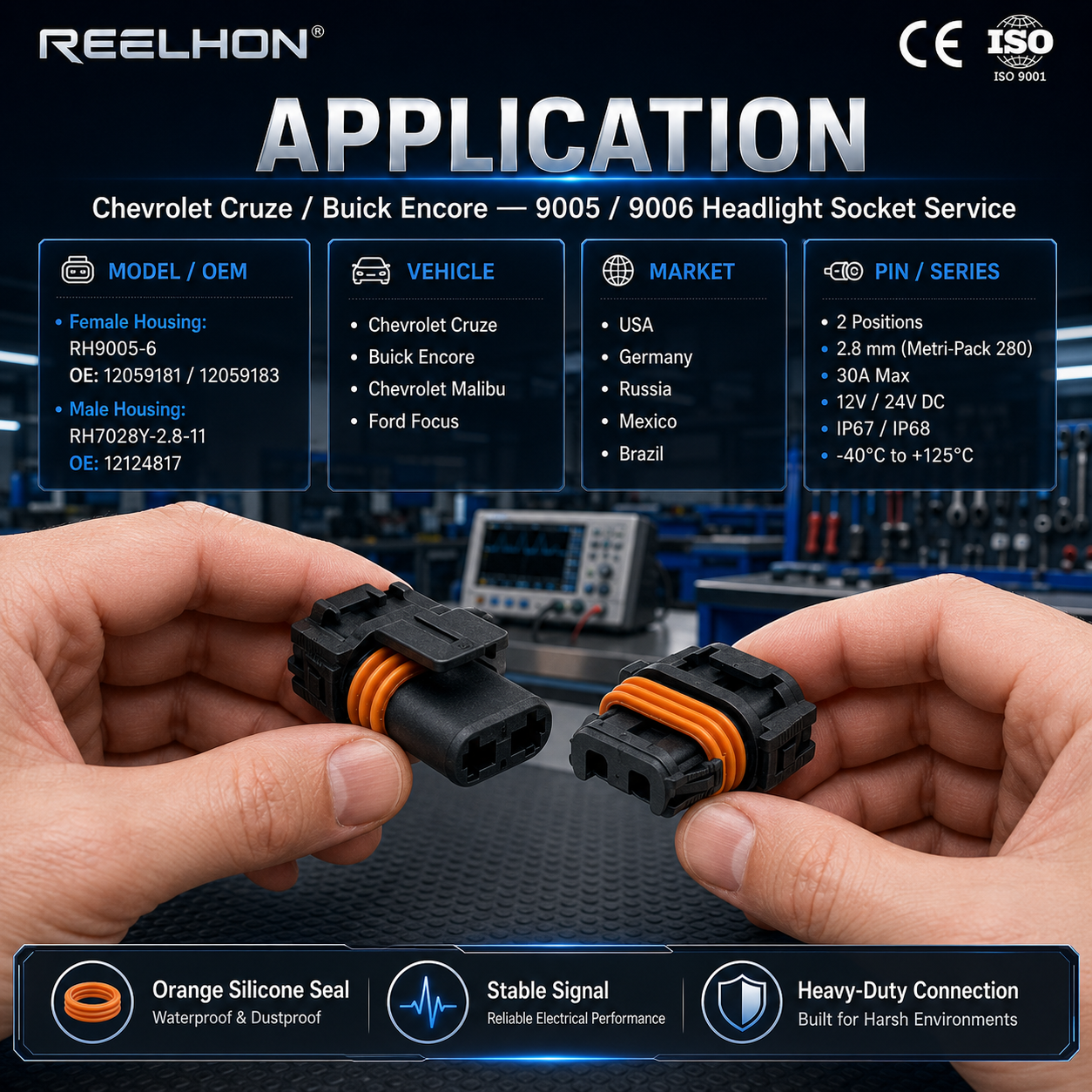

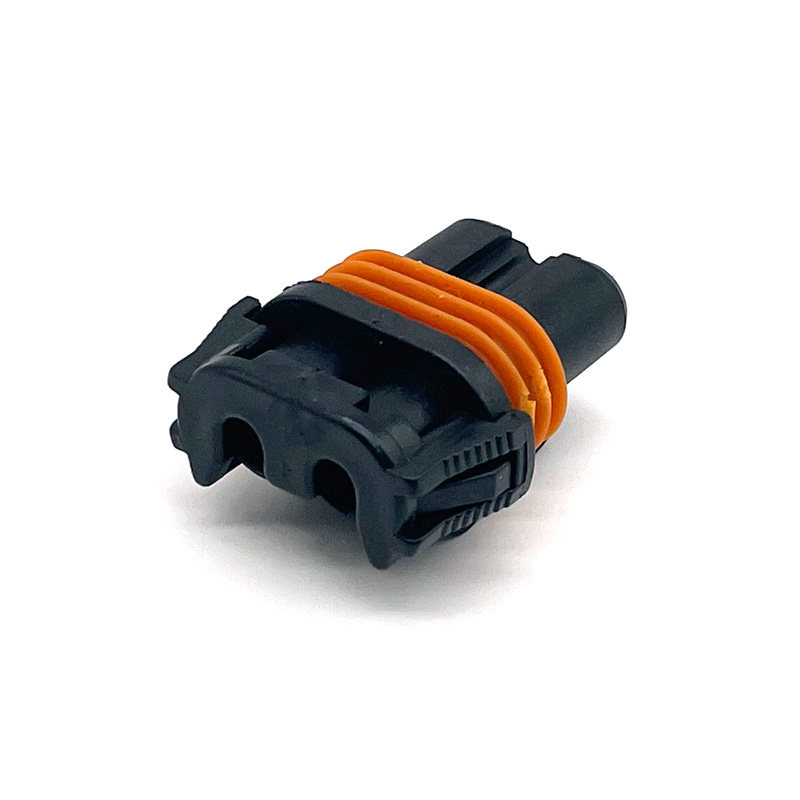

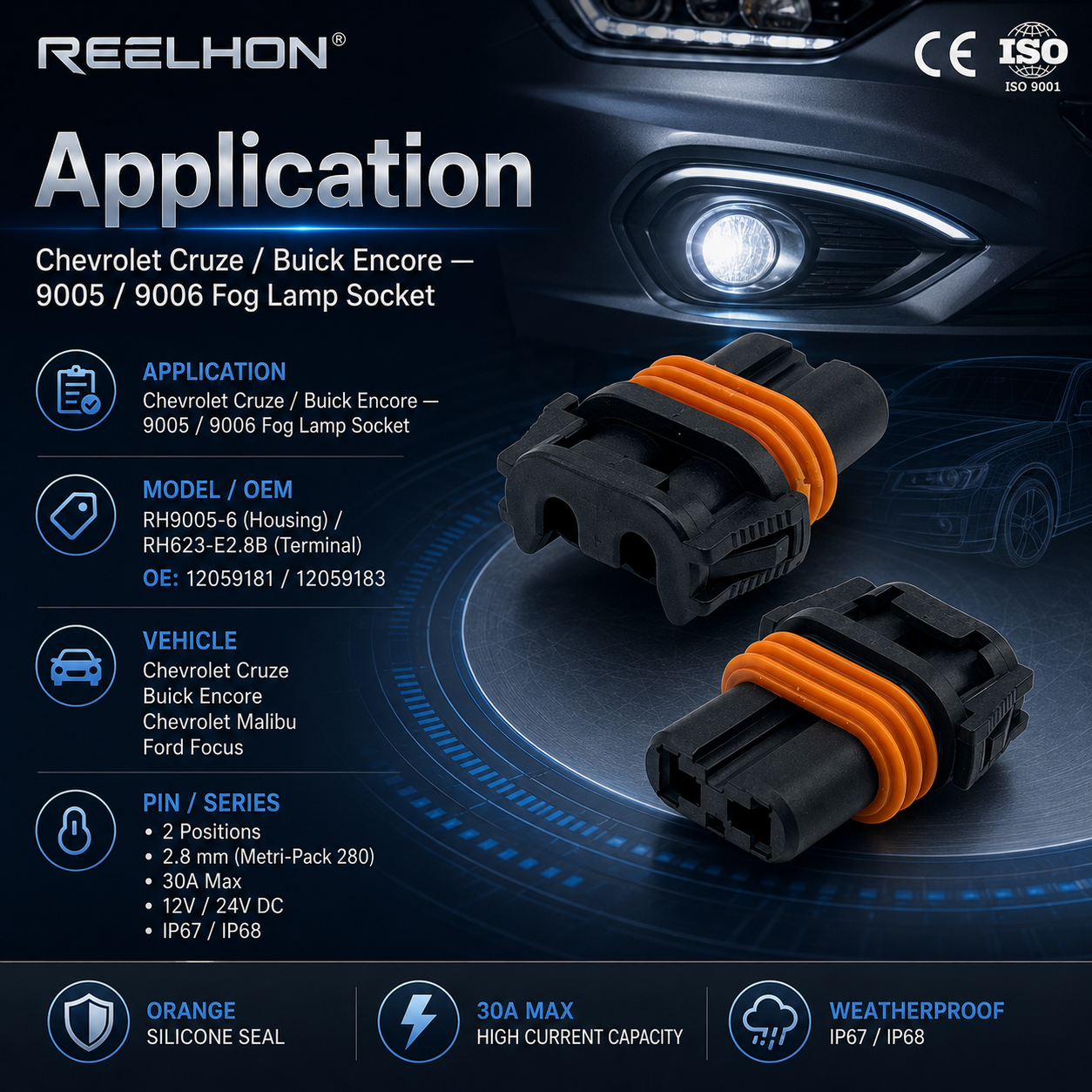

| Product Description | Universal 2-way sealed female bulb socket assembly, compatible with 12059181/12059183. Perfectly engineered for 9005/9006 headlight and fog light wiring, providing a watertight and vibration-proof electrical connection for aftermarket upgrades. |
