Pins: 24-pin

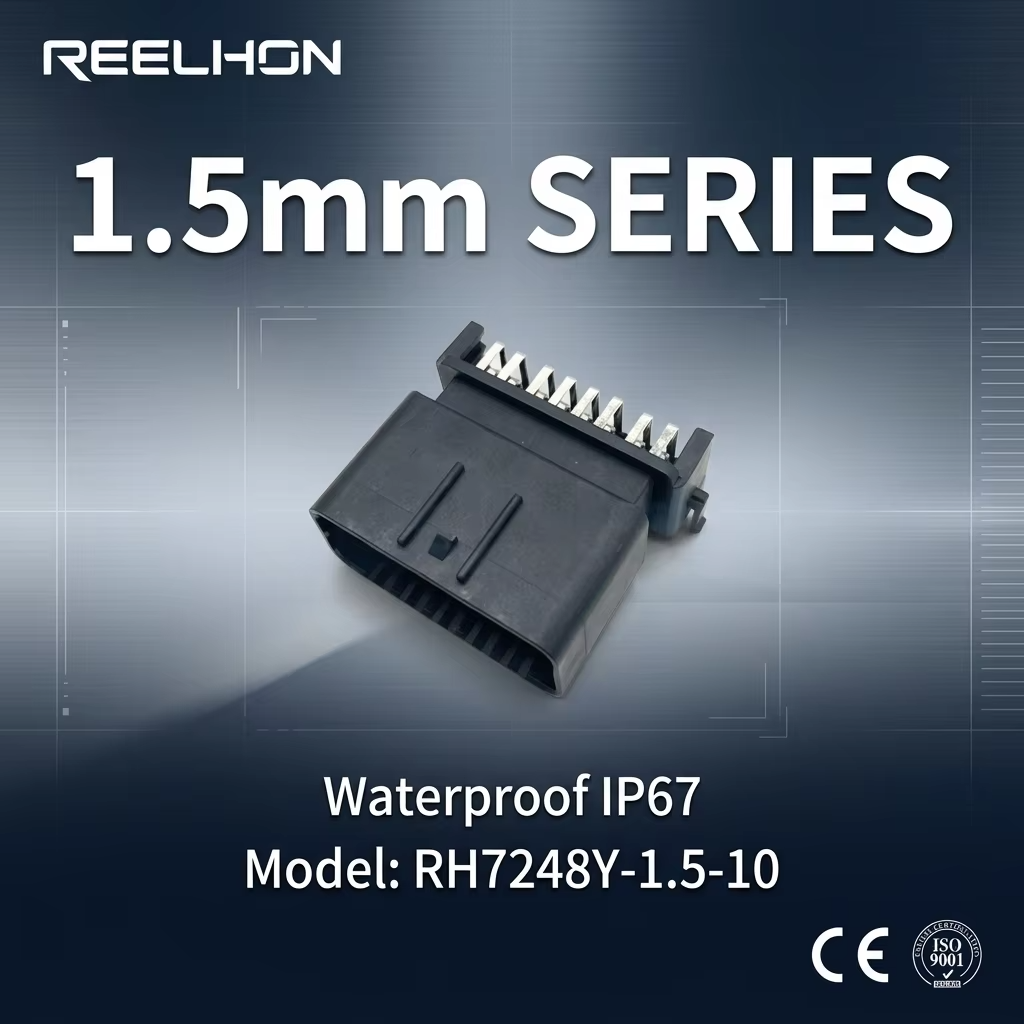

Terminal series: 1.5mm series (some versions are a mix of 1.5mm and 2.8mm)
Construction type: Double-row or multi-row sealed type (Sealed/Waterproof)
| Main Technical Features | |
| 1. High-Density Connection | Achieves 24-channel signal transmission in minimal space, serving as a core component for automotive ECUs. |
| 2. PSA Standard Design | Strictly complies with Peugeot-Citroën (PSA) electrical performance and mechanical strength standards. |
| 3. Multiple Locking Mechanism | Features TPA (Terminal Position Assurance) structure to prevent disconnection under severe vibration. |
| 4. Low Insertion Force Design | Ensures smooth handling during assembly even with high-density 24-pin configuration. |
| Target Market | European automotive aftermarket, Middle East/North Africa wiring harness refurbishment, Southeast Asia wiring harness assembly. |
| Applicable Models (Key) | Peugeot: 206, 207, 307, 408, etc.; Citroën: C2, C3, C4, C-Quatre, Elysée; Other models: Some Fiat, Renault, and Great Wall (early European system models). |

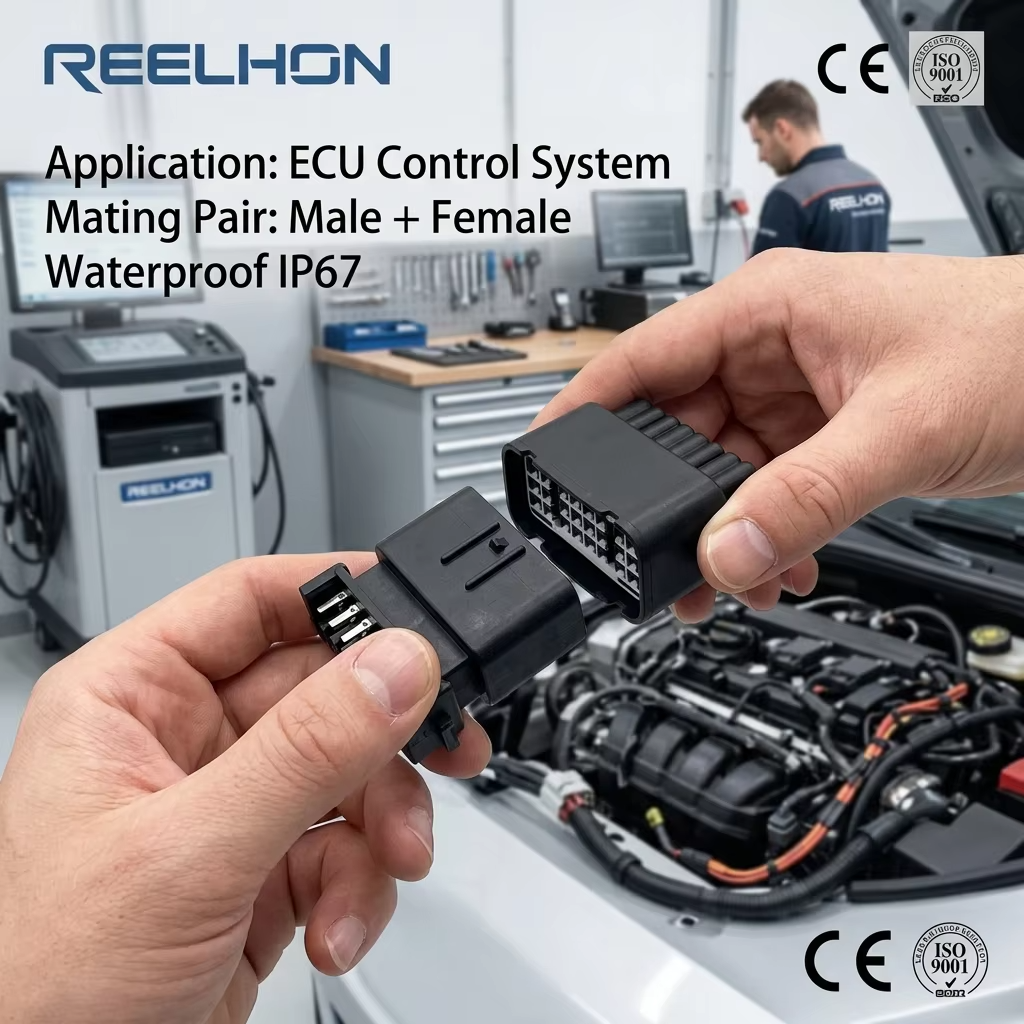

| Core Applications | Automotive ECU (Engine Control Unit), BSI (Body Control Module), ABS Controller, Automatic Climate Control System. |
| Product Selling Points Logic | |
| 1. OEM Quality Alternative | 100% compatible with FCI/Aptiv original parts, solving the need for discontinued or expensive OEM components. |
| 2. Complete Solution Delivery | Can supply matching 1.5mm tin/gold plated terminals and silicone waterproof seals. |
| 3. In-Stock Supply Capacity | Ensures long-term maintenance support for older French popular models with stable bulk order supply. |
| Professional Product Description | This SICMA series 24-way automotive sealed connector is a standard configuration for French vehicles and global small-to-medium ECU systems. Made of high-performance high-temperature resistant PA66 material with IP67 waterproof rating. Its compact 24-cavity layout accurately carries sensor signals and control logic, making it a benchmark product for wiring harness repair and high-quality harness manufacturing. |
