Positions: 24 Positions
Terminal Size: 0.64mm (Tab Width)
Maximum Current: 6A ~ 10A (depending on wire gauge and ambient temperature)
Rated Voltage: 12V / 24V DC
| Core Specifications | |
| Number of Positions | 24 Positions |
| Terminal Size | 0.64mm (Tab Width) |
| Maximum Current | 6A ~ 10A (depending on wire gauge and ambient temperature) |
| Rated Voltage | 12V / 24V DC |
| Ingress Protection | IP68 / IP69K (with silicone sealing ring and cavity plugs) |
| Material/Color | PBT+GF15% (Reinforced Polyester) / Black (Housing) + White (Inner Carrier) |
| Operating Temperature | -40°C ~ +125°C |
| Certifications | ISO9001, CE |
| Hot Market | Global automotive aftermarket, heavy machinery wiring harness processing, ECU tuning and upgrade |
| Target Audience | Wiring harness manufacturers, electronic system integrators, automotive electrical repair engineers |

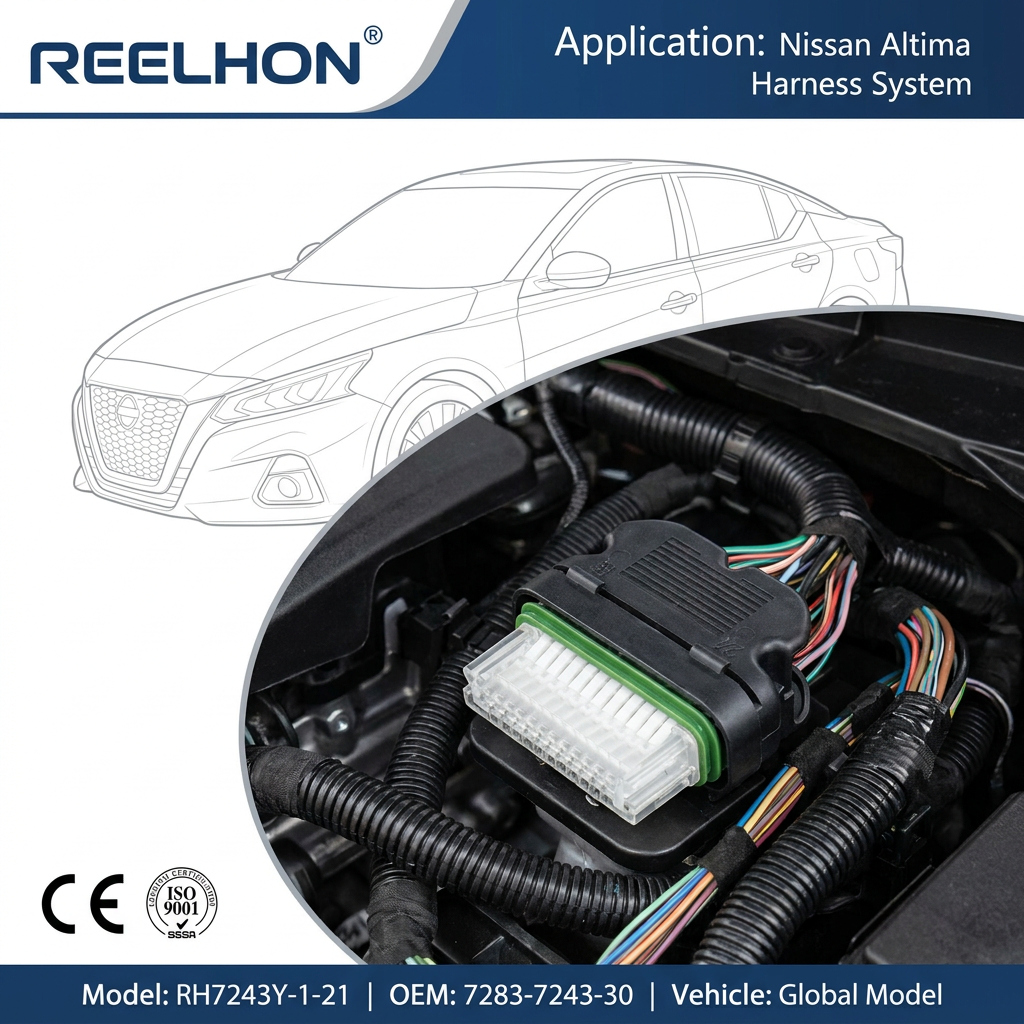

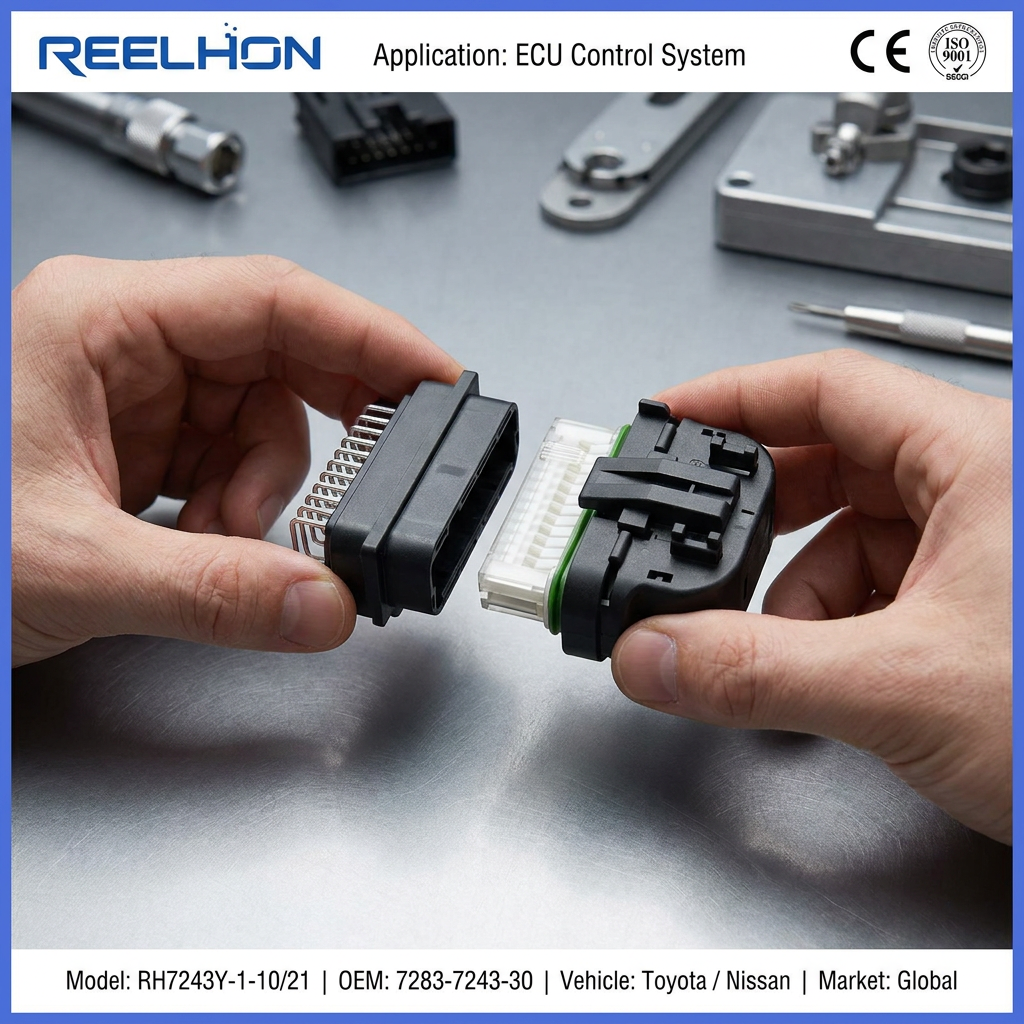

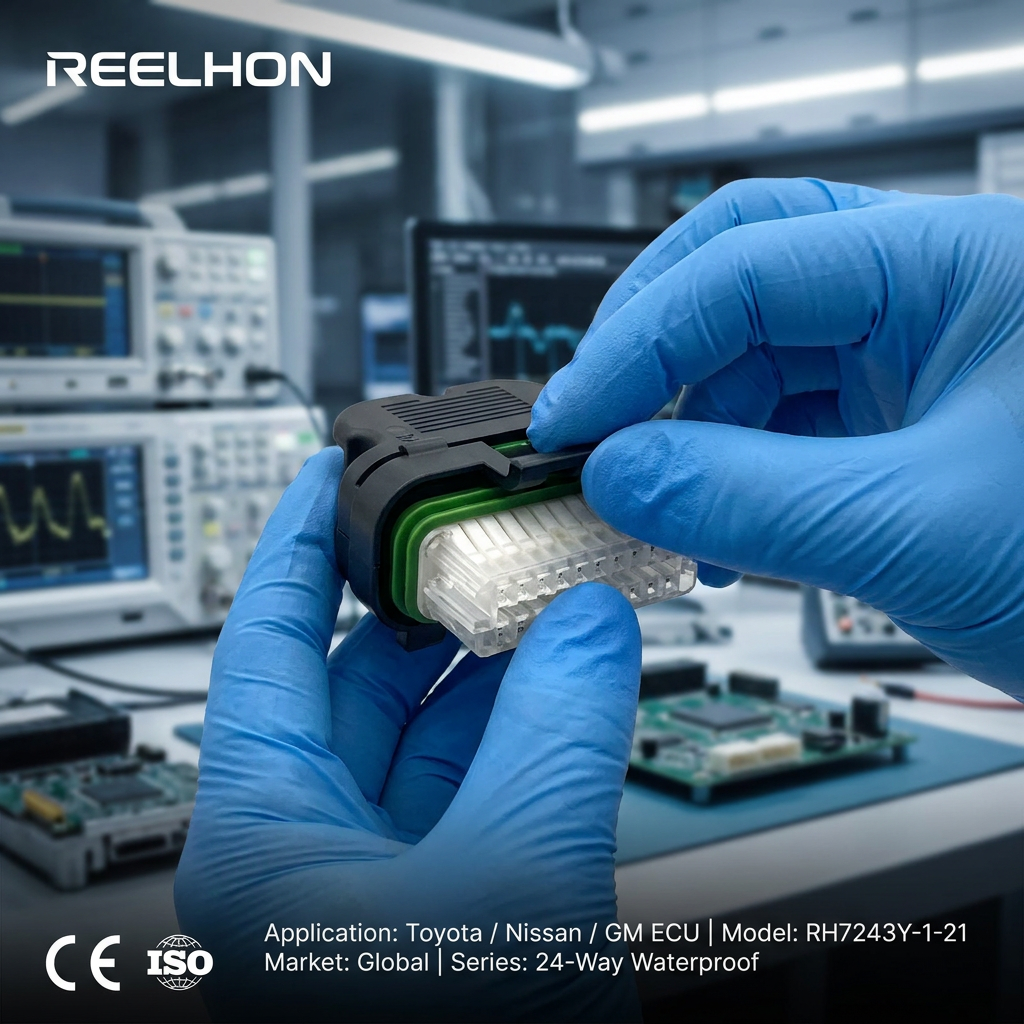

| Applicable Models (Cars/Machinery) | Universal for signal systems and ECU modules of Toyota, Nissan, Honda and other Japanese vehicle series, as well as GM models |
| Key Features | High-density 24-pin layout saves space; high-quality PBT offers temperature resistance and flame retardancy; multi-seal silicone design provides excellent dust and water protection |

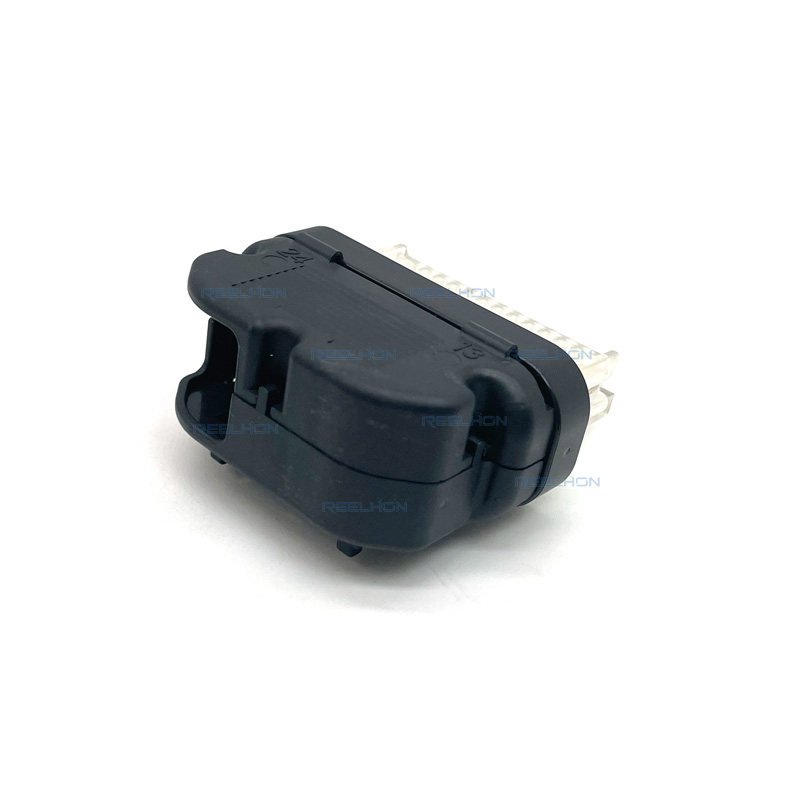

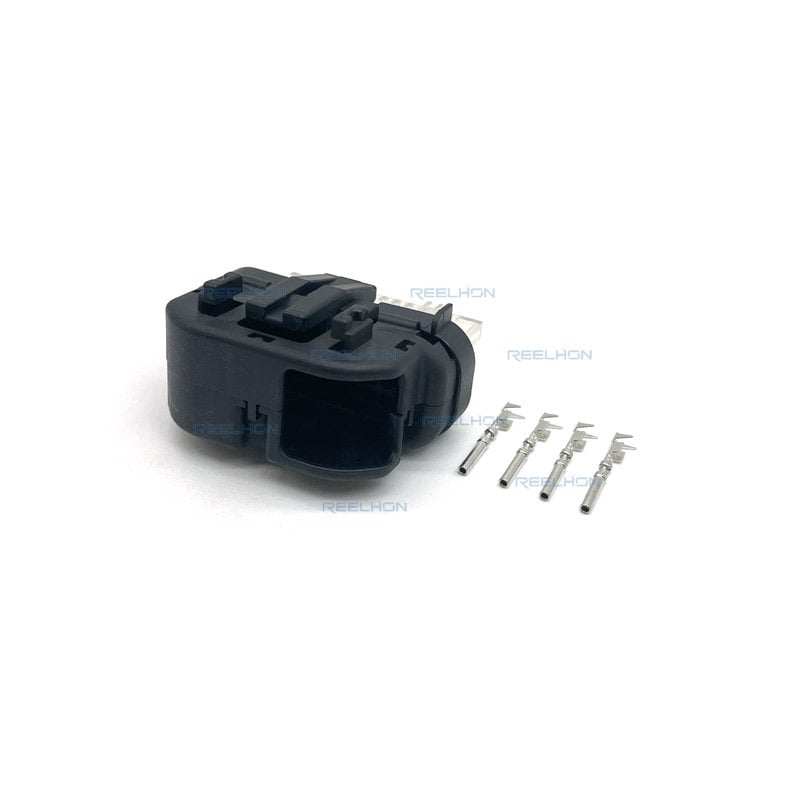

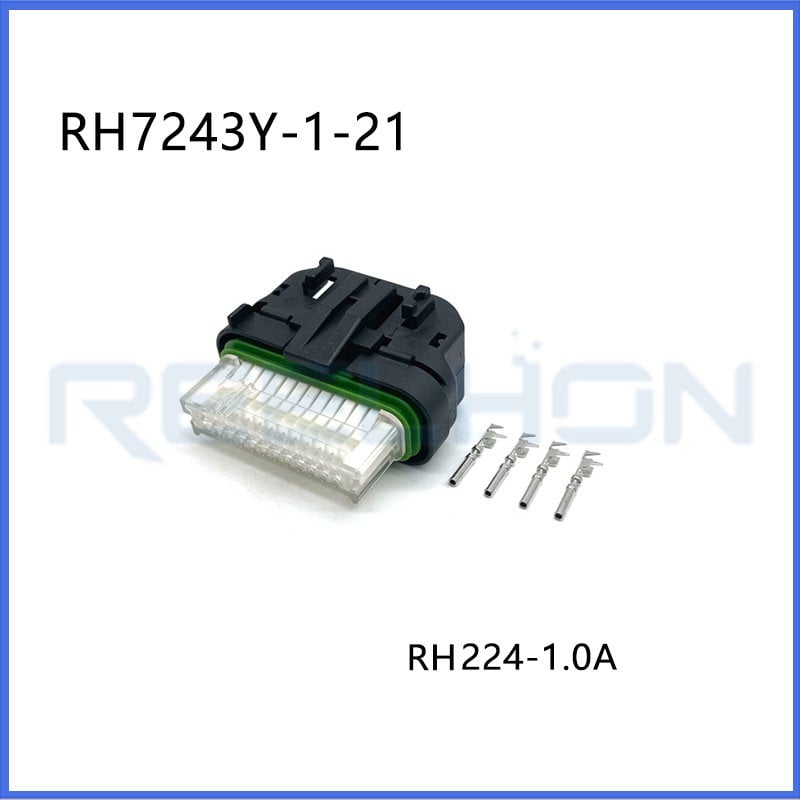

| Product Description | Professional 24-Pin Automotive Sealed Female Connector, designed for high-density signal transmission in harsh environments. Features a robust secondary locking mechanism to ensure secure terminal seating and reliable electrical performance. |
