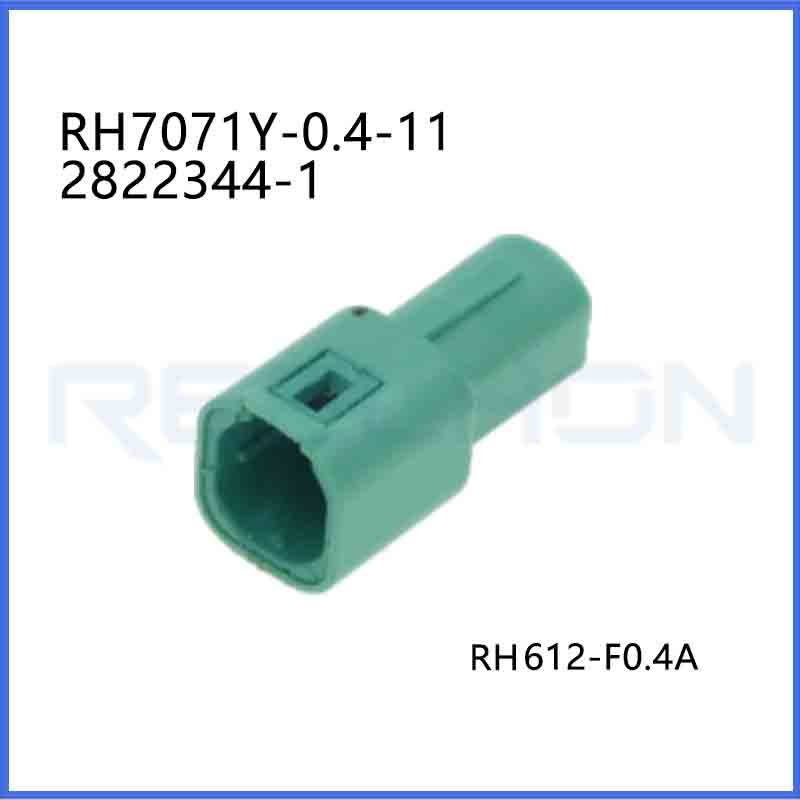

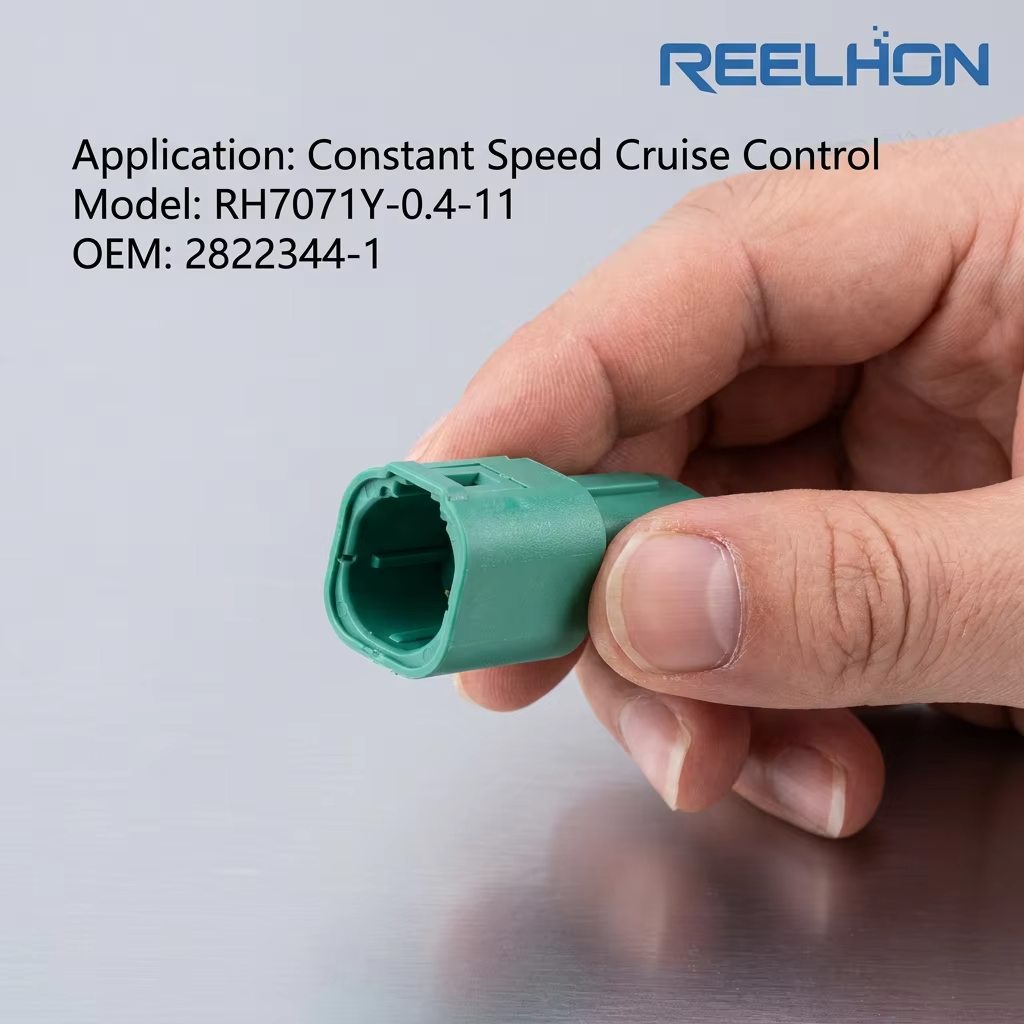

7071Y-0.4-11

Company Model: RH7071Y-0.4-11

OE Number: 2822344-1

Number of Positions: 7

Terminal Size: 0.6 mm (Applicable wire gauge 22-20 AWG)

Maximum Current: 5A

Rated Voltage: 12V / 24V DC

Ingress Protection: IP67 / IP68

Color: Green

Operating Temperature: -40°C ~ +120°C

Certifications: ISO9001, CE

Company Model	RH7071Y-0.4-11
OE Number	2822344-1
Core Specifications
Number of Positions	7
Terminal Size	0.6 mm (Applicable wire gauge 22-20 AWG)
Maximum Current	5A (Low-current signal transmission)
Rated Voltage	12V / 24V DC
Ingress Protection	IP67 / IP68 (with terminal waterproof seals and integrated end face sealing ring)
Material / Color	PBT / Green
Operating Temperature	-40°C ~ +120°C
Certifications	ISO9001, CE
Target Market	North America, Europe (automotive modification, Ford/Honda electrical repair and aftermarket parts markets)
Target Audience	Automotive wiring harness OEM manufacturers, cruise control retrofit service providers, OEM auto parts purchasers

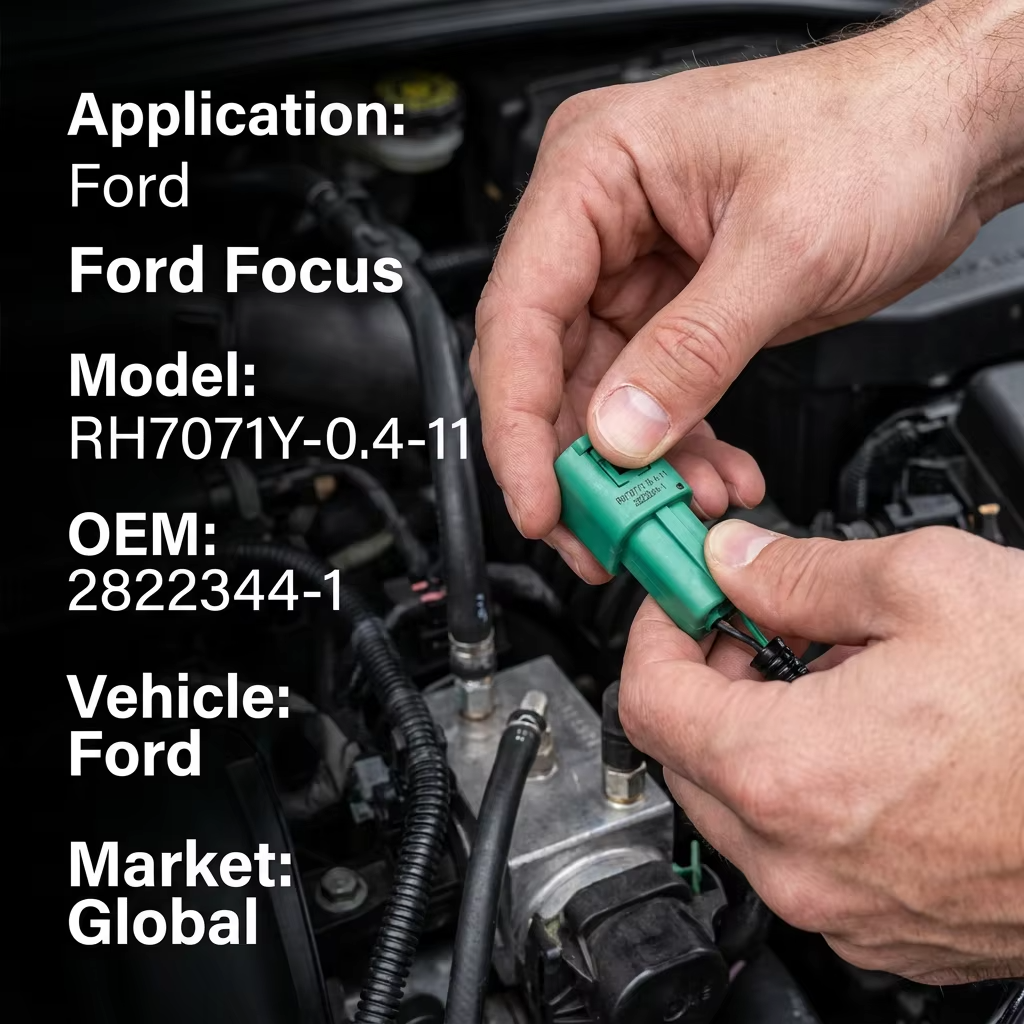

Applicable Models (Cars/Machinery)	Widely applicable to Ford (Focus/Mondeo), Honda cruise control systems, wiper motors, and various body sensors

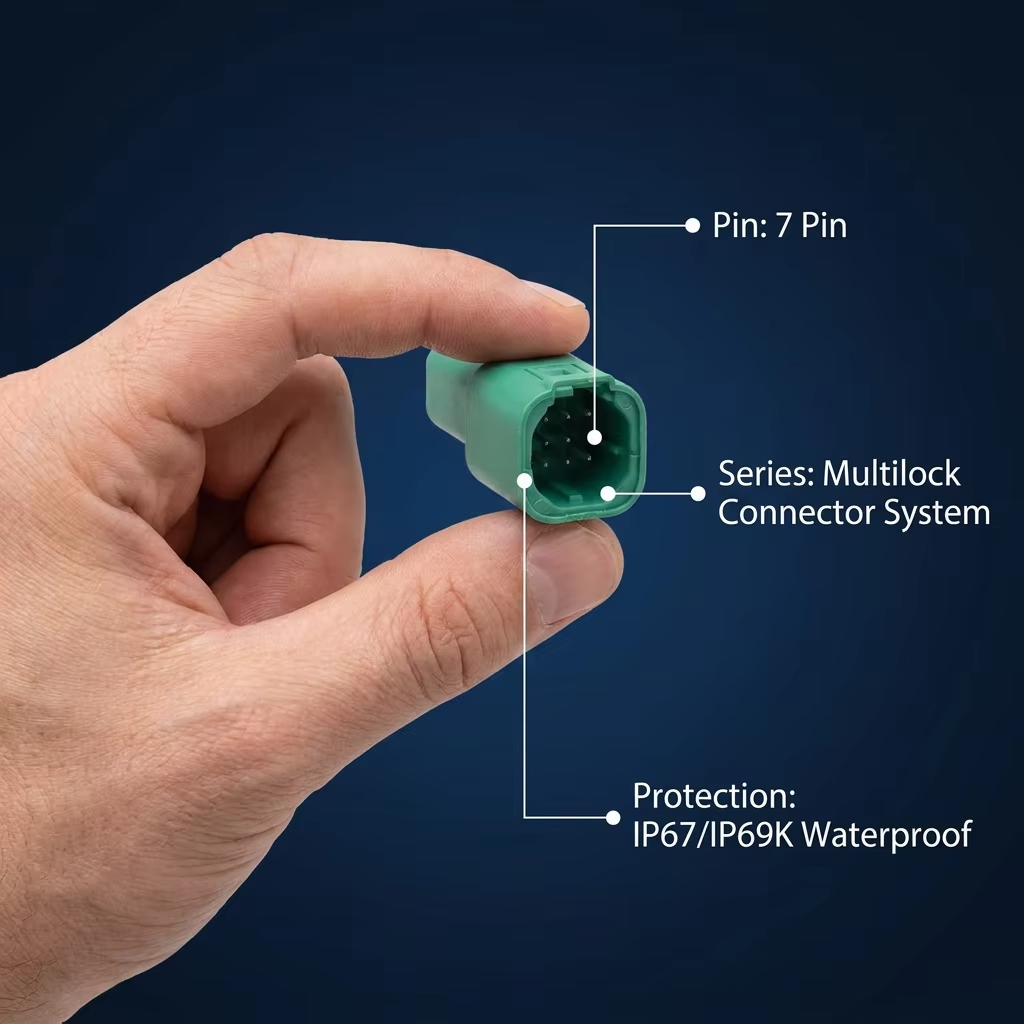

Key Features	7-pin compact matrix design; Unique green waterproof/dustproof housing with positioning keying feature; Excellent latching structure with superior vibration resistance
Product Description	Premium 7-Pin Mini MLC series waterproof male connector kit. Engineered for critical automotive signal circuits such as cruise control systems and intelligent sensors, ensuring stable performance in high-vibration and humid environments.
