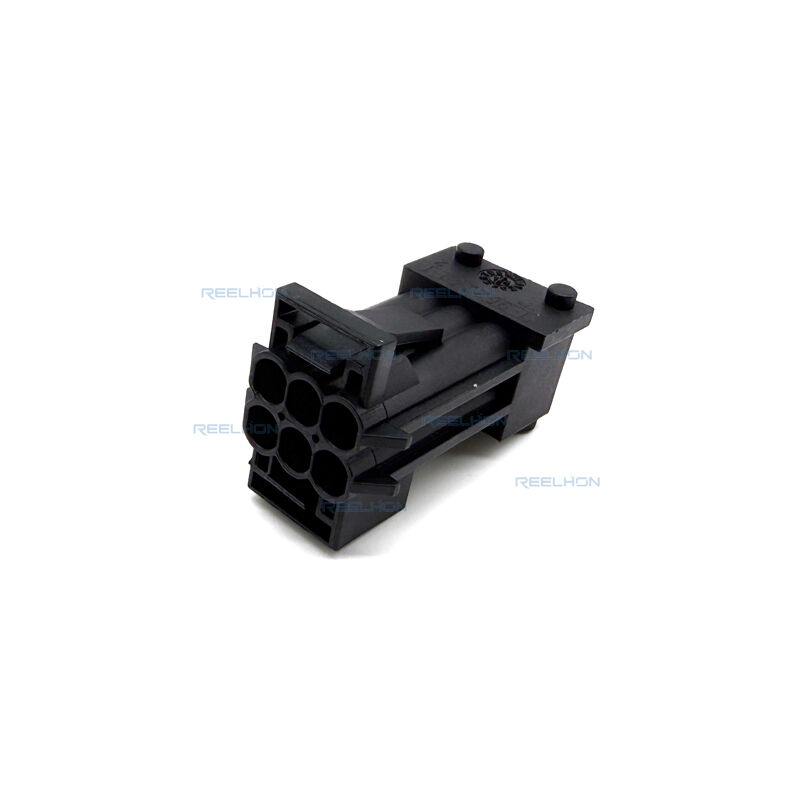

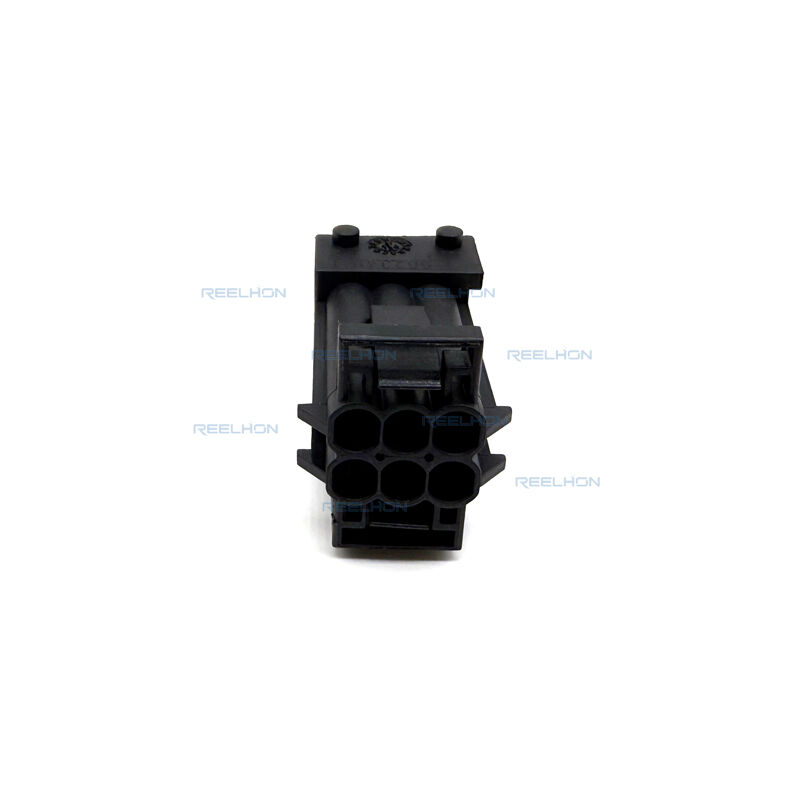

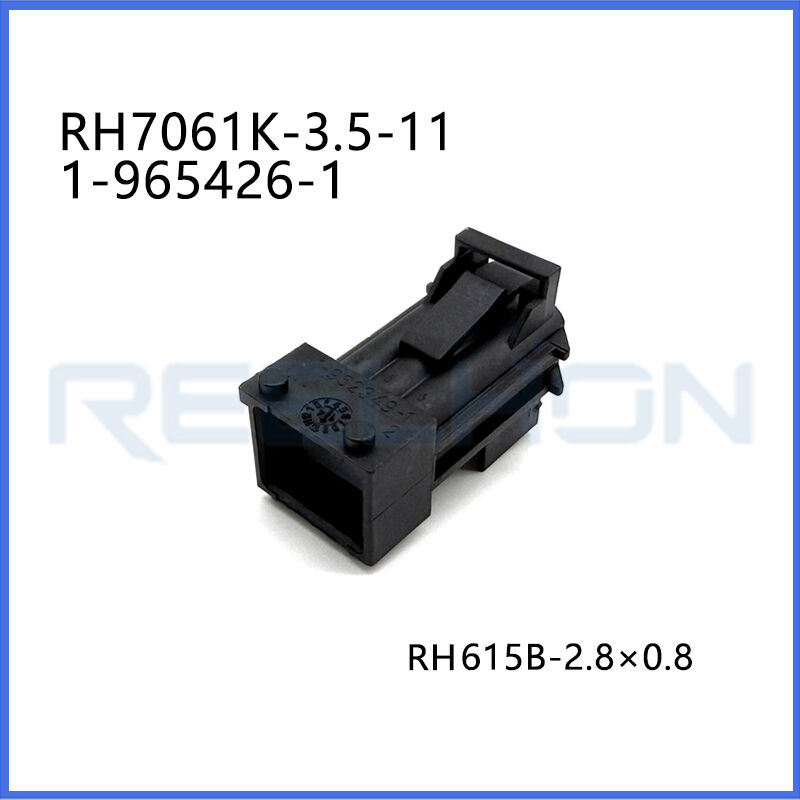

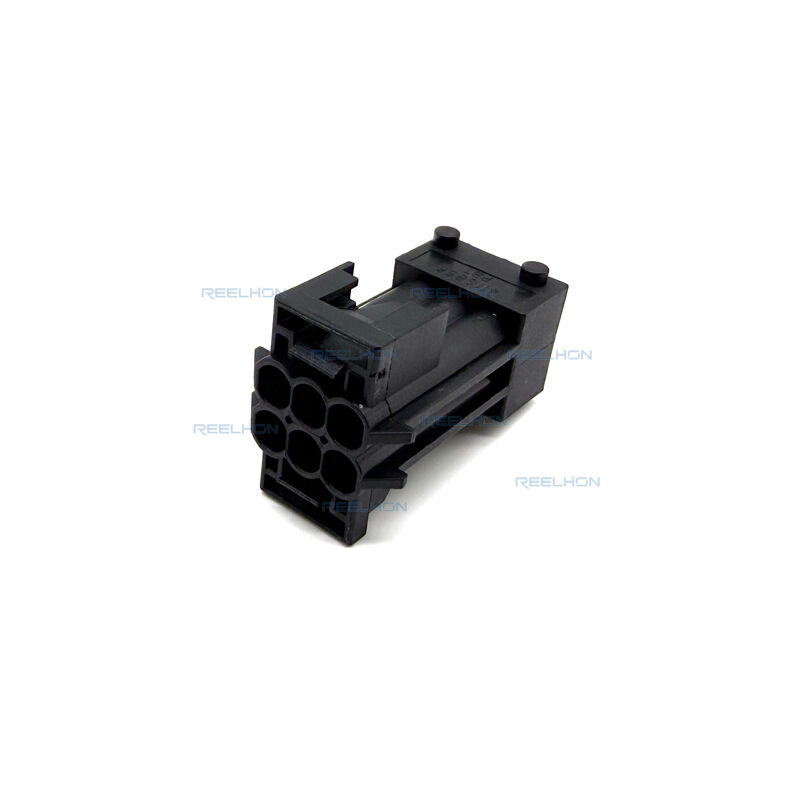

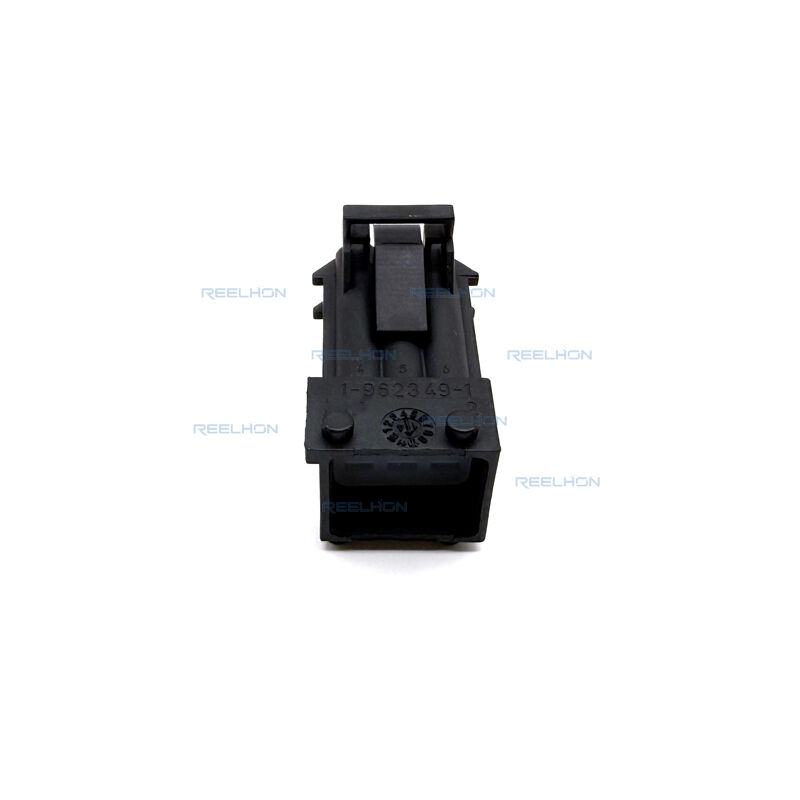

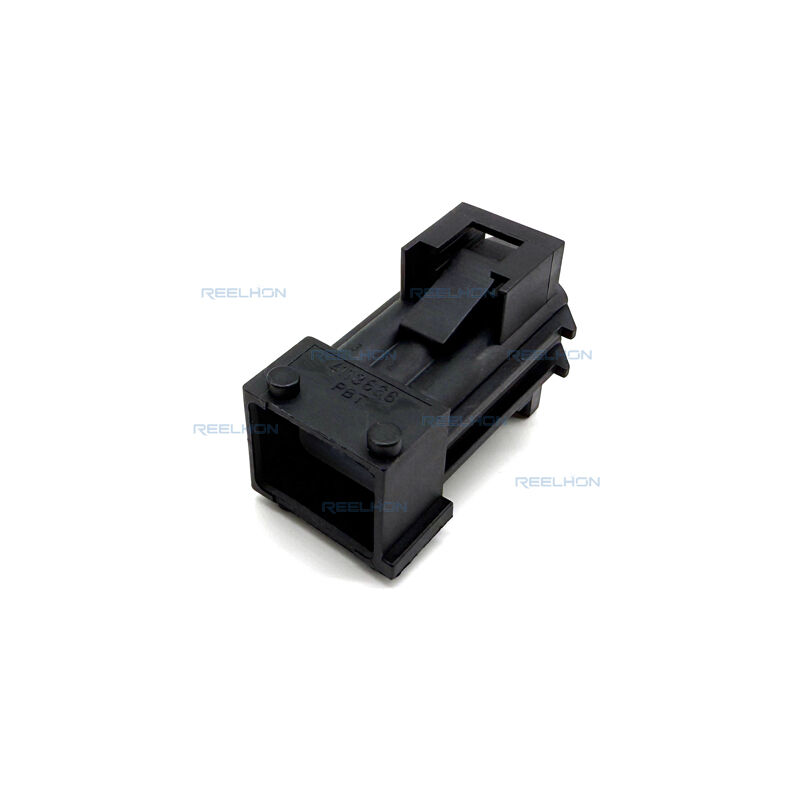

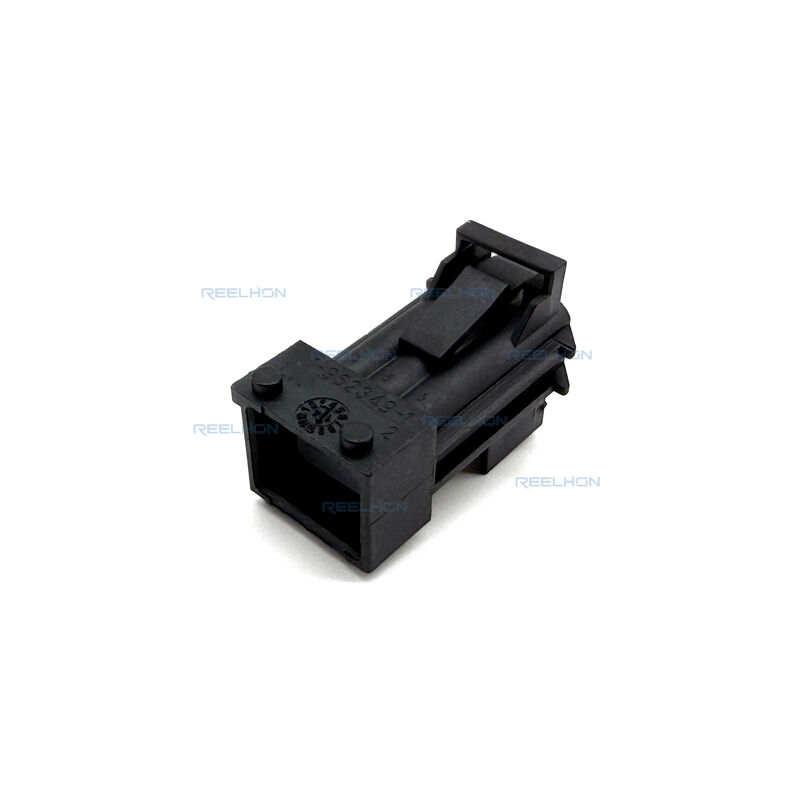

7061K-3.5-21/ 1-965426-1/12V / Automotive Housing for Female Terminals

The TE Internal Number 1-965426-1 is a high-quality automotive male terminal sheath, exclusively developed as part of the AMP Timer Connector System—a specialized product line under TE Connectivity, engineered to cater to the unique demands of automotive timer applications and power transmission systems. This male terminal sheath is precision-designed to deliver consistent, reliable performance in automotive electrical setups, where secure terminal housing and efficient wire-to-wire connectivity are critical for the smooth operation of timer-related components and other power-dependent systems. As an integral part of TE’s Wire & Cable product range, it combines durable construction with functional design to adapt to the dynamic and often harsh operating environments of modern vehicles.

Officially recorded in TE’s internal documentation as FLACHSTE-GEH2,8 6P, the 1-965426-1 is a dedicated male terminal sheath optimized for wire-to-wire connections, perfectly aligned with the AMP Timer Connector System’s core focus on compatibility, simplicity, and reliability for automotive timer applications. The AMP Timer Connector System itself is widely trusted in the automotive industry for its ability to support precise timing functions and stable power delivery, making it an essential component in vehicles where timer-controlled systems—such as ignition timing, HVAC cycles, and auxiliary power management—are integral to overall performance. This male terminal sheath serves as a protective and functional housing, securing male terminals and enabling seamless, low-resistance connections between wire harnesses in timer and power systems.

In terms of electrical specifications, the 1-965426-1 features a Nominal Voltage Architecture of 12V, the standard voltage for most automotive electrical systems. This voltage compatibility makes it highly versatile, suitable for integration into a wide range of passenger cars, light commercial vehicles, and utility vehicles, where 12V power systems are ubiquitous. Its design is specifically optimized for power applications, ensuring efficient current transmission with minimal voltage loss—a key requirement for timer systems and other power-dependent automotive components that rely on stable, consistent power supply to maintain accurate operation. This 12V configuration aligns perfectly with the AMP Timer Connector System’s focus on delivering reliable power connectivity for timer-related and auxiliary automotive applications.

The connector and housing type is a Male Terminal Sheath, featuring a 6-position (6-bit) design that provides ample capacity for multiple wire-to-wire connections while maintaining a compact, space-saving form factor. The centerline spacing of 5 mm (0.197 inches) is carefully engineered to balance space efficiency and practicality, allowing the sheath to fit into tight mounting areas within vehicle dashboards, engine compartments, or interior wiring harnesses. This spacing ensures sufficient room for wire routing and insulation, while also keeping terminals properly separated to prevent short circuits, signal interference, or accidental contact—issues that could disrupt timer functionality or damage sensitive electrical components.

Notably, the 1-965426-1 is marked as “Sealable: No,” which is a deliberate design choice tailored to its intended applications. Unlike connectors used in exposed under-chassis or engine bay locations, this male terminal sheath is optimized for use in protected, enclosed areas of the vehicle—such as inside the dashboard or within interior wiring compartments—where exposure to moisture, dust, or road debris is minimal. This non-sealable design allows for a more compact profile and simplified installation, while still maintaining the durability required for indoor automotive environments.

The operating temperature range of -40 °C to 80 °C (-40 °F to 176 °F) underscores the product’s resilience, enabling reliable performance in a wide range of environmental conditions—from freezing winter temperatures in cold climates to moderate heat in enclosed vehicle compartments. This temperature stability is supported by the sheath’s high-quality housing material: a durable, heat-resistant thermoplastic that offers excellent mechanical strength, resistance to automotive fluids, and UV stability. This material ensures the sheath retains its structural integrity and functional performance over long service life, even in the fluctuating temperatures typical of automotive interiors.

Constructed in a sleek black finish, the 1-965426-1 seamlessly integrates with the aesthetic of automotive electrical systems while providing an additional layer of protection against wear, minor scratches, and environmental fading. Internally, it is designed to accommodate 2.8 mm size male terminals, compatible with common automotive wire gauges used in power and timer applications. The sheath incorporates secure terminal retention features to prevent terminal back-out, even under vehicle vibration, and keyed mating design to ensure proper connection and avoid installation errors—critical for maintaining the reliability of timer systems.

As a wire-to-wire connector housing focused on power and timer applications, the 1-965426-1 is widely used in critical automotive systems, including timer controls, ignition systems, HVAC timers, power distribution modules, and auxiliary electrical components. It embodies TE Connectivity’s commitment to delivering high-reliability interconnect solutions for the automotive industry, leveraging the AMP Timer Connector System’s proven performance in precision and power applications. Its combination of compact design, temperature resilience, and reliable terminal housing makes it an essential component for modern vehicles, ensuring the accurate and efficient operation of timer-related systems and power connections.
