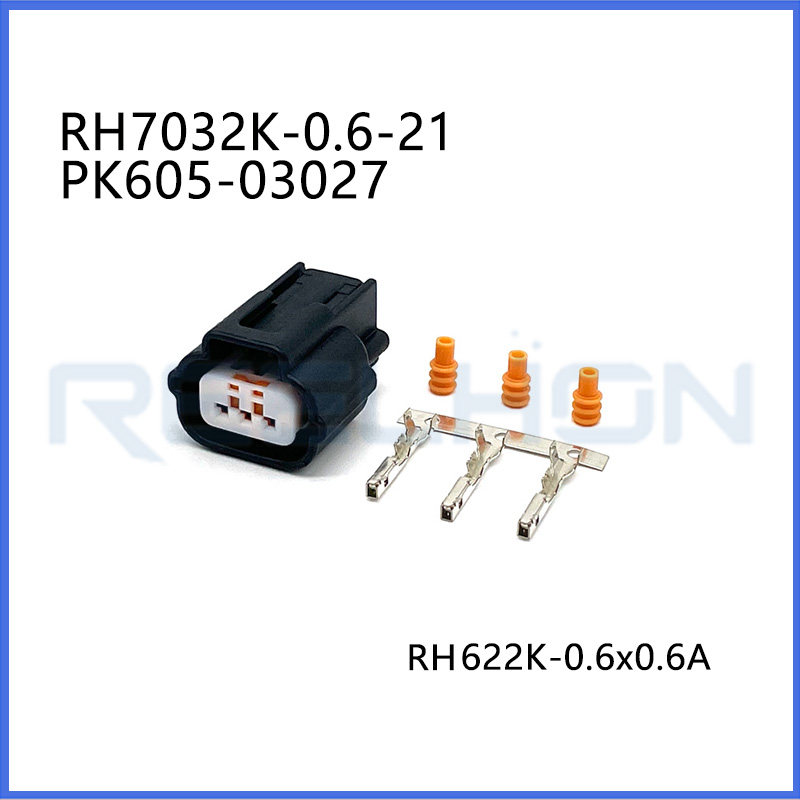

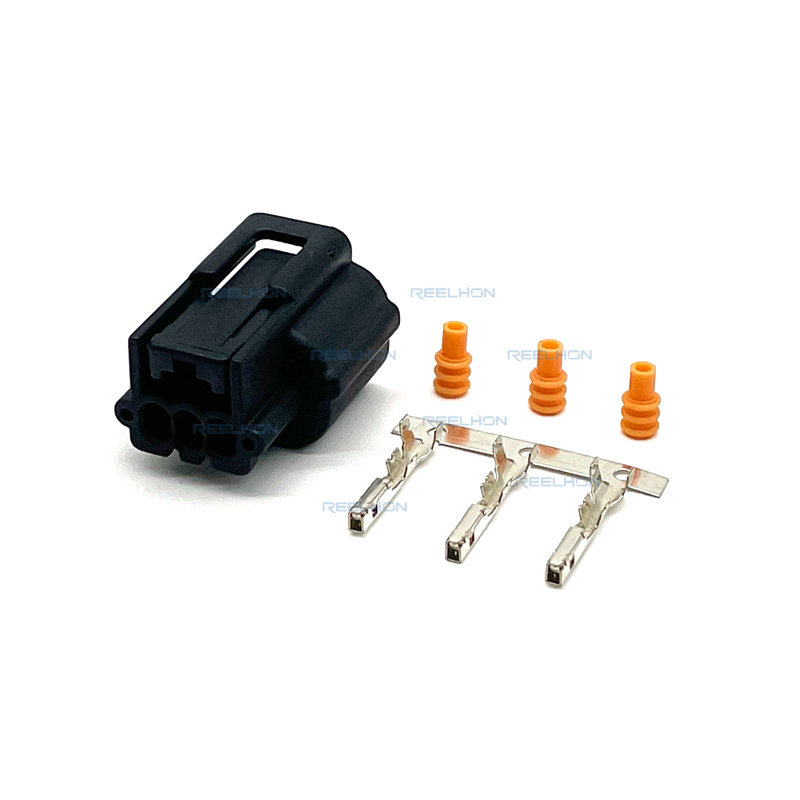

Part Number: RH7032K-0.6-21 (Housing) / RH622K-0.6x0.6A (Terminal)
OE Number: PK605-03027
Key Specifications:
Number of Positions: 3 Positions
Terminal Size: 0.64 mm (.025")
Maximum Current: 7A Max (Signal Grade)
Rated Voltage: 12V / 24V DC
Ingress Protection: IP67 / IP68
Material & Color: PBT + GF / Black, with white inner retainer and orange seals
Operating Temperature: -40°C to +125°C
Certificates: ISO9001, CE
| Part Number | RH7032K-0.6-21 (Housing) / RH622K-0.6x0.6A (Terminal) |
| OE Number | PK605-03027 |
| Key Specifications | |
| Number of Positions | 3 |
| Terminal Size | 0.64 mm (.025") |
| Maximum Current | 7A Max (Signal Grade) |
| Rated Voltage | 12V / 24V DC |
| Ingress Protection | IP67 / IP68 |
| Material & Color | PBT + GF / Black, with white inner retainer and orange seals |
| Operating Temperature | -40°C to +125°C |
| Certifications | ISO9001, CE |
| Target Market | Japan, USA, UAE, Thailand, Russia |
| Target Audience | Japanese vehicle sensor wiring harness manufacturers, advanced engine diagnostic repair shops, precision electronic component distributors |

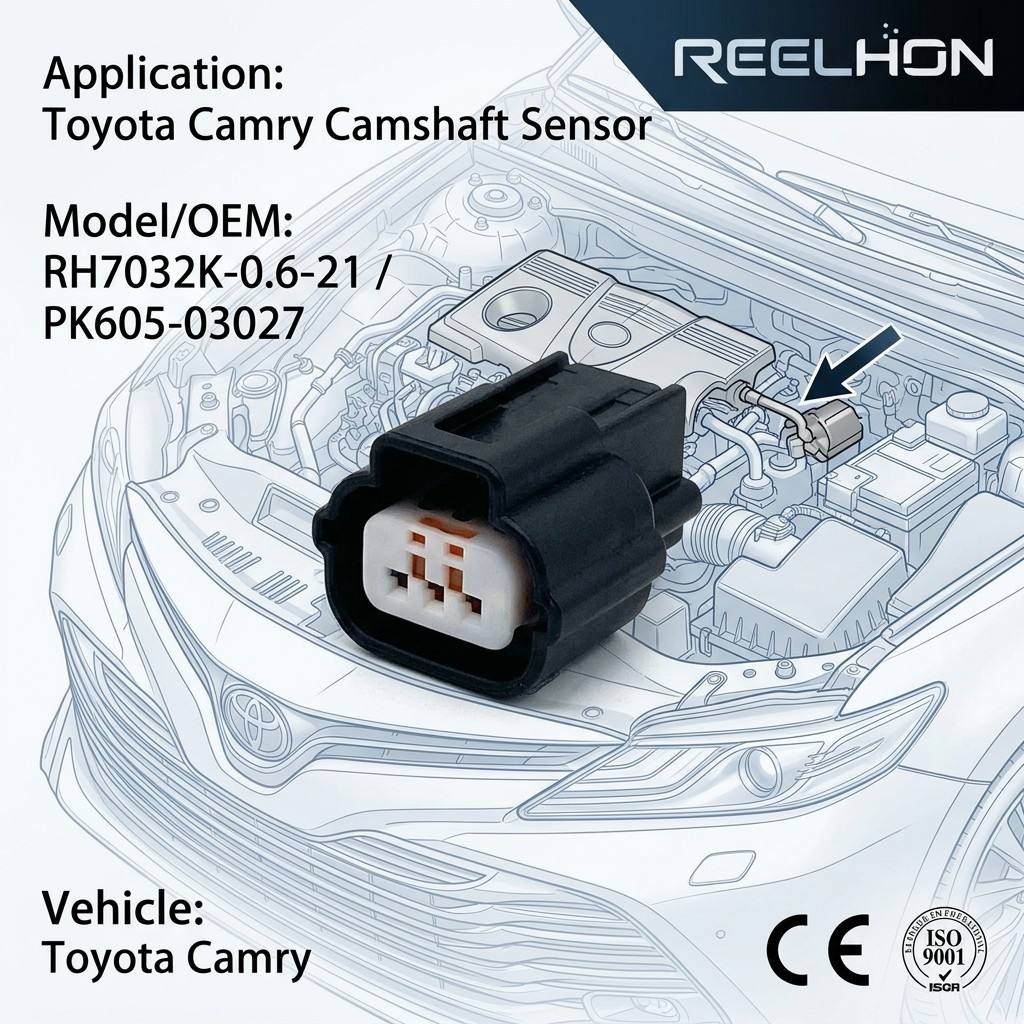

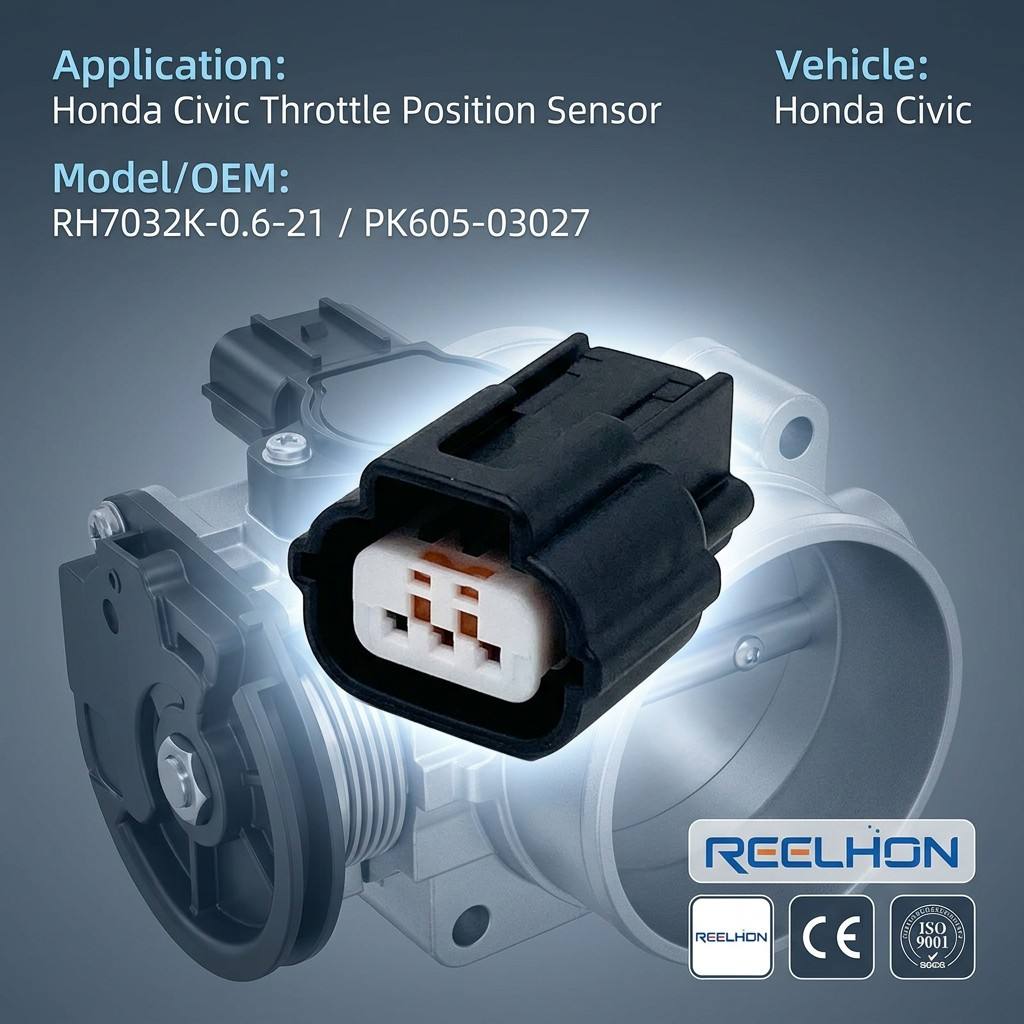

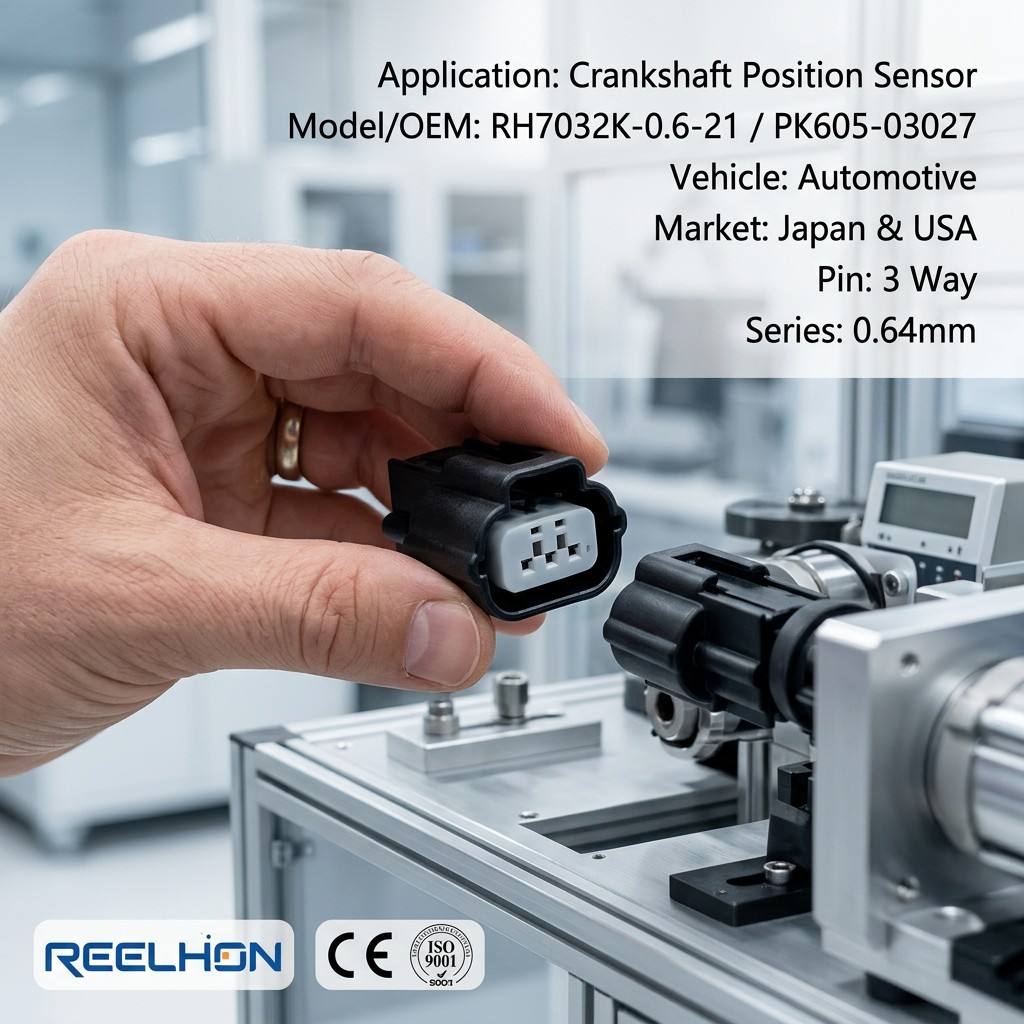

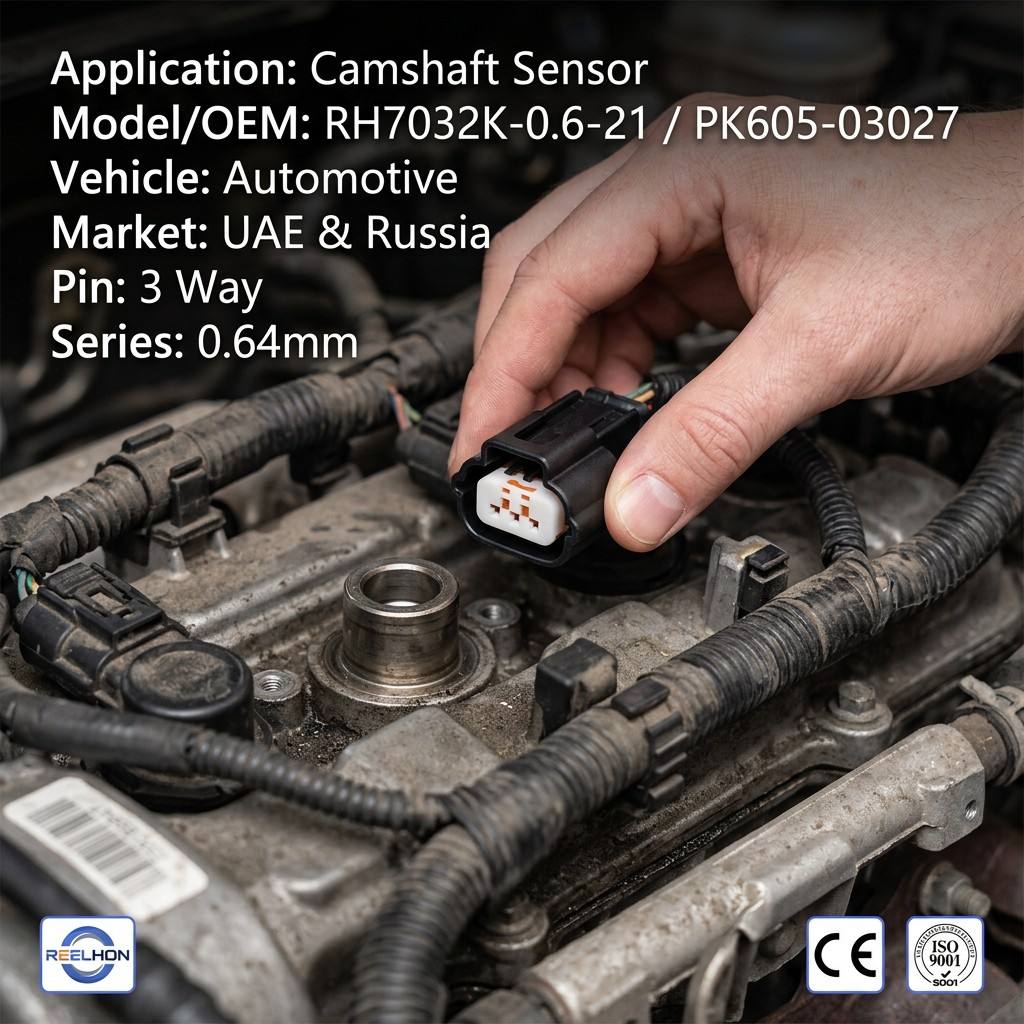

| Applicable Models (Cars/Machinery) | Widely used in Toyota, Honda, Mitsubishi, Nissan and other brands for camshaft/crankshaft position sensors and throttle position sensors |
| Key Features | Extremely compact 0.64mm series design; High-strength mechanical self-locking structure prevents disconnection; PBT flame-retardant housing offers excellent vibration resistance and high-temperature performance |
| Product Description | Professional 3-way high-density sealed female connector assembly, equivalent to Furukawa PK605-03027 and Sumitomo 6189-0777. Engineered for stable signal integrity in extreme engine environments, providing airtight and waterproof protection for high-precision sensors. |
