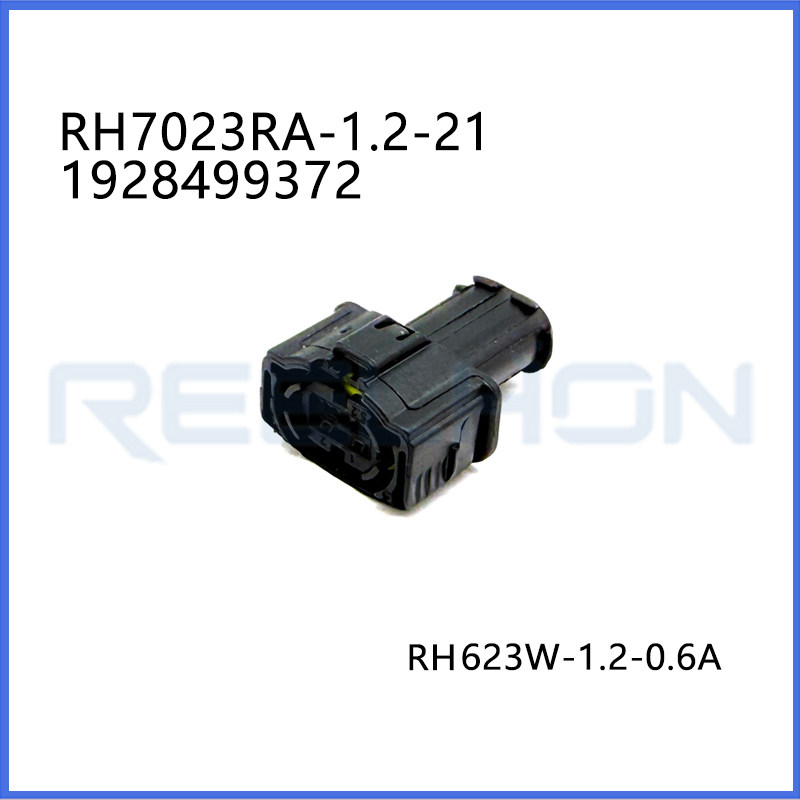

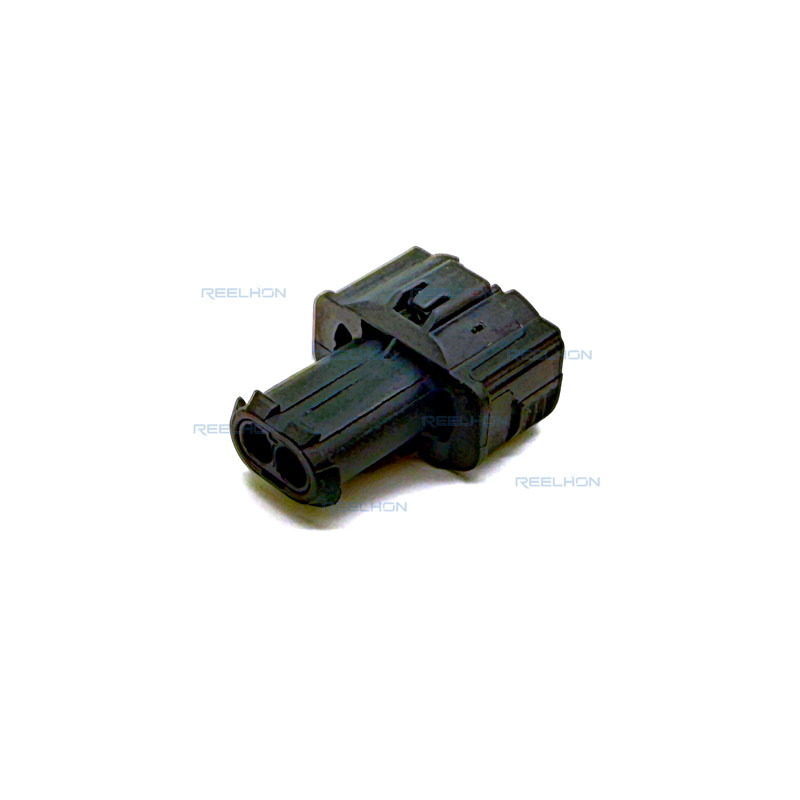

7023RA-1.2-21Female 2 Pin Auto Connector for Headlight Wiring Harness Repair

Company Model: RH7023RA-1.2-21

Industry Benchmark OE Reference Number: Bosch 1928499372 (1-928-499-372) / 1928403428

Core Specifications:

Number of Positions: 2 (2 Way / 2 Pin)

Terminal Size: 1.2 mm (Blade Width)

Maximum Current: Approx. 6A (depending on wire gauge)

Rated Voltage: 12V / 24V DC

Ingress Protection: IP67 / IP6K9K (Waterproof, dustproof, high-pressure spray resistant)

Material & Color: PA66 Glass-Fiber Reinforced (GF15) / Black

Operating Temperature: -40°C to +150°C

Certifications: ISO9001, CE

Company Model	RH7023RA-1.2-21
Industry Benchmark OE Reference Number	Bosch 1928499372 (1-928-499-372) / 1928403428
Core Specifications
Number of Positions	2 (2 Way / 2 Pin)
Terminal Size	1.2 mm (Blade Width)
Maximum Current	Approx. 6A (depending on wire gauge)
Rated Voltage	12V / 24V DC
Ingress Protection	IP67 / IP6K9K (Waterproof, dustproof, high-pressure spray resistant)
Material & Color	PA66 Glass-Fiber Reinforced (GF15) / Black
Operating Temperature	-40°C to +150°C
Certifications	ISO9001, CE
Target Market	Europe, North America, Southeast Asia (Thailand/Vietnam), Brazil
Target Audience	Automotive Wire Harness Manufacturers, Auto Parts Wholesalers, Sensor Factories (Crankshaft/Camshaft)
Applicable Models (Cars/Machinery)	Compatible with VW, Audi, BMW, Mercedes-Benz, and Heavy-duty Trucks/Machinery using Bosch systems
Key Features	Waterproof & Dustproof (IP6K9K), High-Temperature Resistance (up to 150°C), Compact Slimline Design, Secure Secondary Locking
Product Description	2-Way Female Waterproof Automotive Connector, Trapez Slim Line Mini Series, designed for critical sensor applications in engine compartments. Includes high-grade silicone seals for superior environmental protection.
