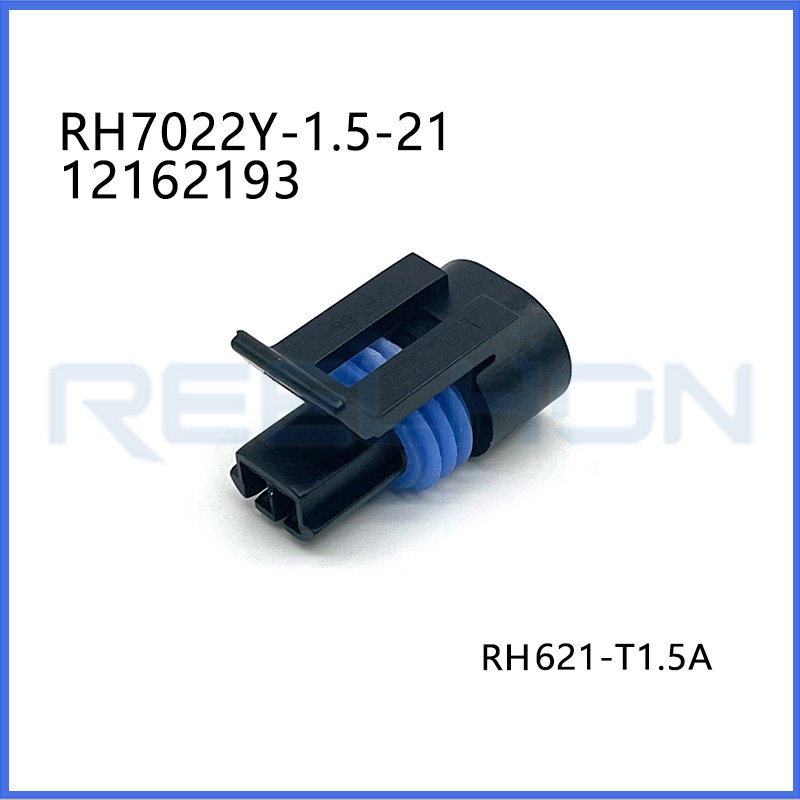

Part Number: RH7022Y-1.5-21
OE No.: 12162193
Number of Positions: 2 Pin
Terminal Size: 1.5 mm
Maximum Current: 14 A
Rated Voltage: 12 V DC
Housing Material: PBT GF30
Color: Black (Housing) / Blue (Seal)
Terminal Material: Brass (Tin-plated)
Operating Temperature: -40°C ~ +125°C (-40°F ~ +257°F)
| Part Number | RH7022Y-1.5-21 (Terminal: RH621-T1.5A) |
| Industry Cross-Reference (OE No.) | 12162193 (Aptiv / Delphi - Metri-Pack 150.2 Series) |
| Core Specifications | |
| Number of Positions | 2 |
| Terminal Size | 1.5 mm |
| Maximum Current | 14A |
| Rated Voltage | 12V DC |
| Housing Material | PBT GF30 |
| Color | Black (Housing) / Blue (Seal) |
| Terminal Material | Brass (Tin-plated) |
| Operating Temperature | -40°C ~ +125°C (-40°F ~ +257°F) |
| Certifications | ISO 9001, CE |
| Target Market | North America (USA, Canada), South America (Brazil), Europe, Southeast Asia |
| Target Audience | Automotive wiring harness manufacturers, auto parts repair suppliers, heavy machinery/agricultural equipment (e.g., John Deere) parts distributors |
| Applicable Models (Cars/Machinery) | Widely used in GM, Hyundai, Kia, and John Deere equipment for temperature sensors, pressure sensors, and coolant level sensors |
| Key Features | ① 2-Pin sealed design with blue silicone waterproof seal, IP67 rated; ② Metri-Pack 150.2 series, 1.5mm terminal size, 14A current capacity; ③ High-quality PBT GF30 flame-retardant housing, vibration-resistant, corrosion-resistant, suitable for high-temperature engine bay environments; ④ Direct replacement for OE 12162193, precision-molded, smooth insertion and withdrawal |

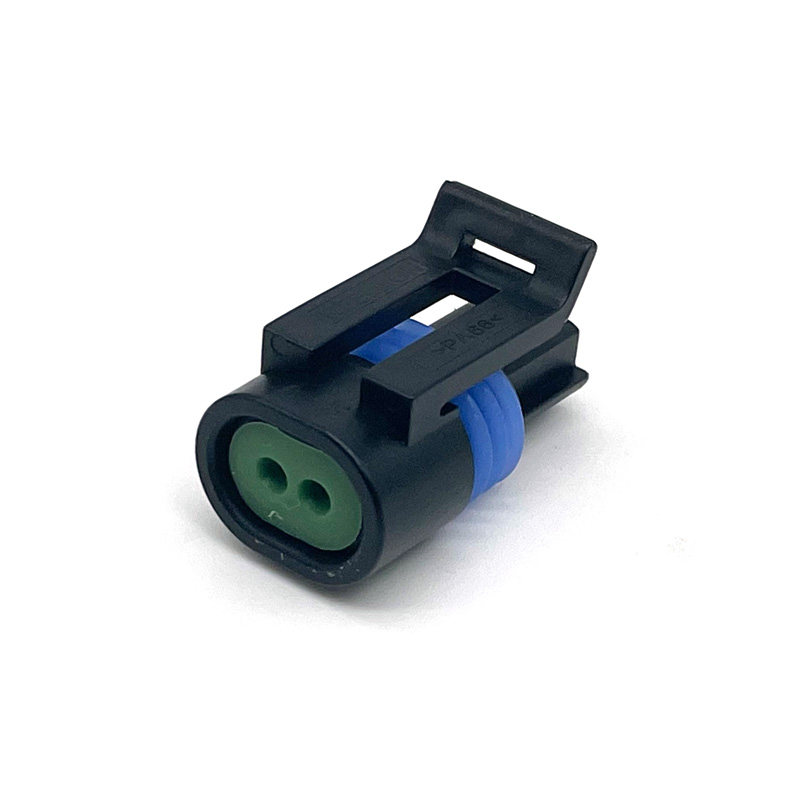

| Product Description | The RH7022Y-1.5-21 is a high-performance 2-way sealed female connector compatible with OE 12162193 (Aptiv Metri-Pack 150.2 series). Engineered for harsh automotive and heavy-duty environments, it features a 1.5mm terminal size and a 14A current capacity. The PBT GF30 housing and integrated blue silicone seal provide excellent IP67-rated protection against moisture and debris. Ideal for temperature and fluid sensors in vehicles from GM, Hyundai, and John Deere equipment. ISO 9001 and CE certified. |
