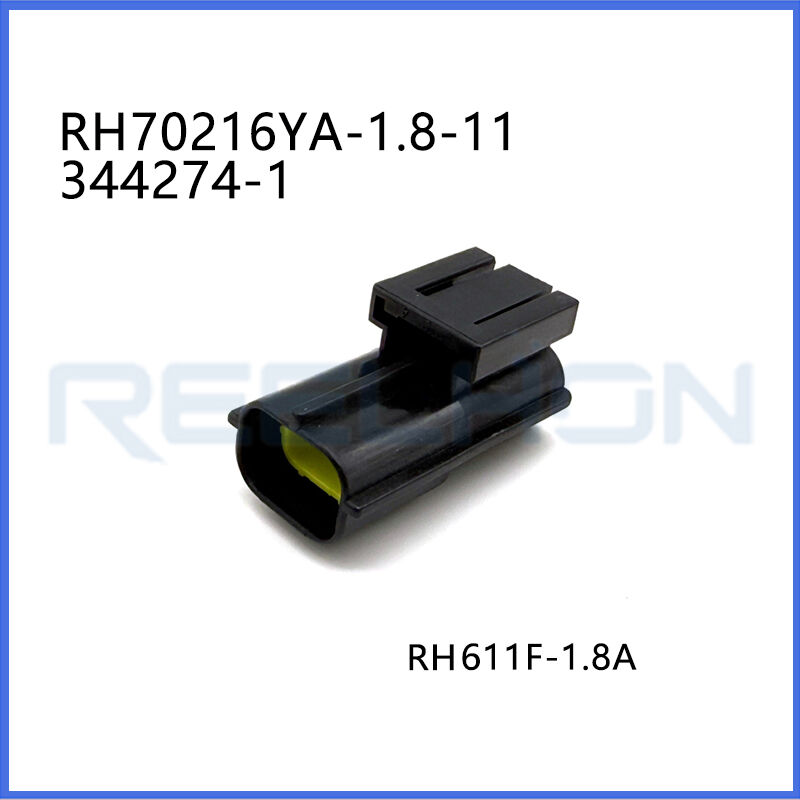

344274-1/70216YA-1.8-11 21 Pin Male Assembly Wiring Harness Automotive Connector Car Electrical Wire Socket

(1) Overview

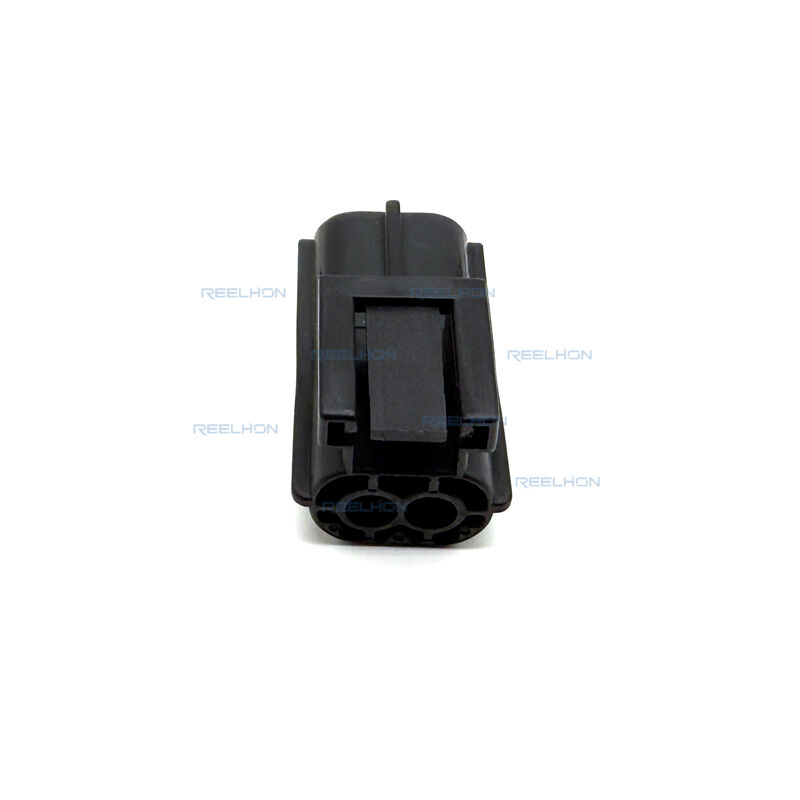

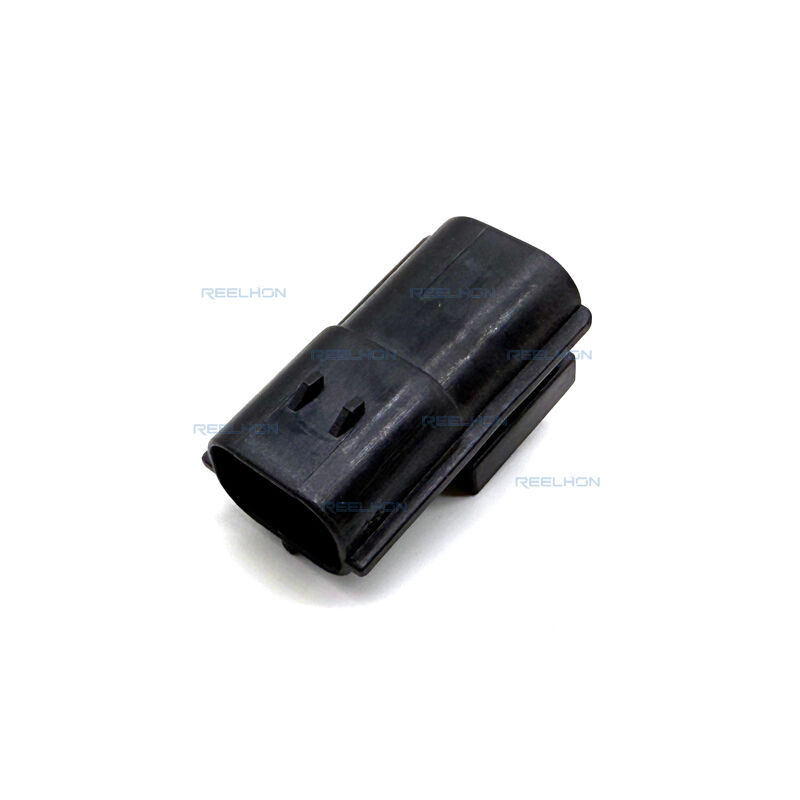

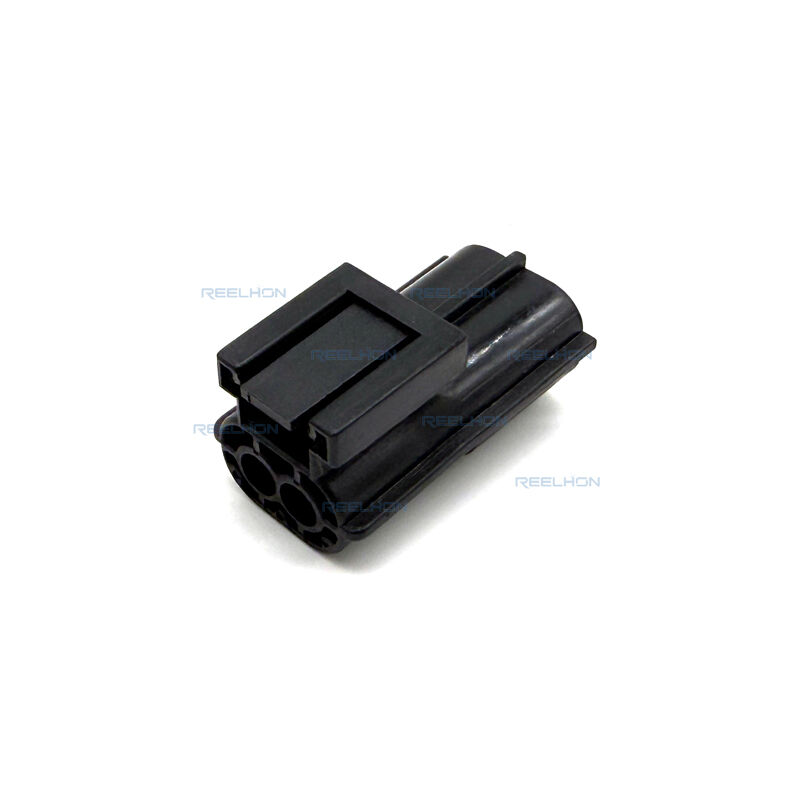

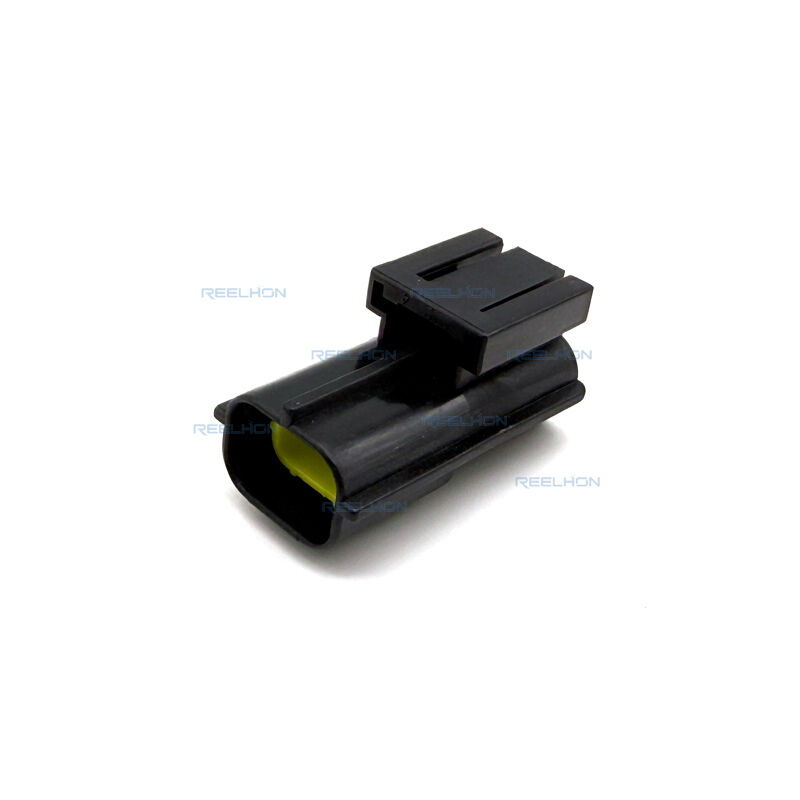

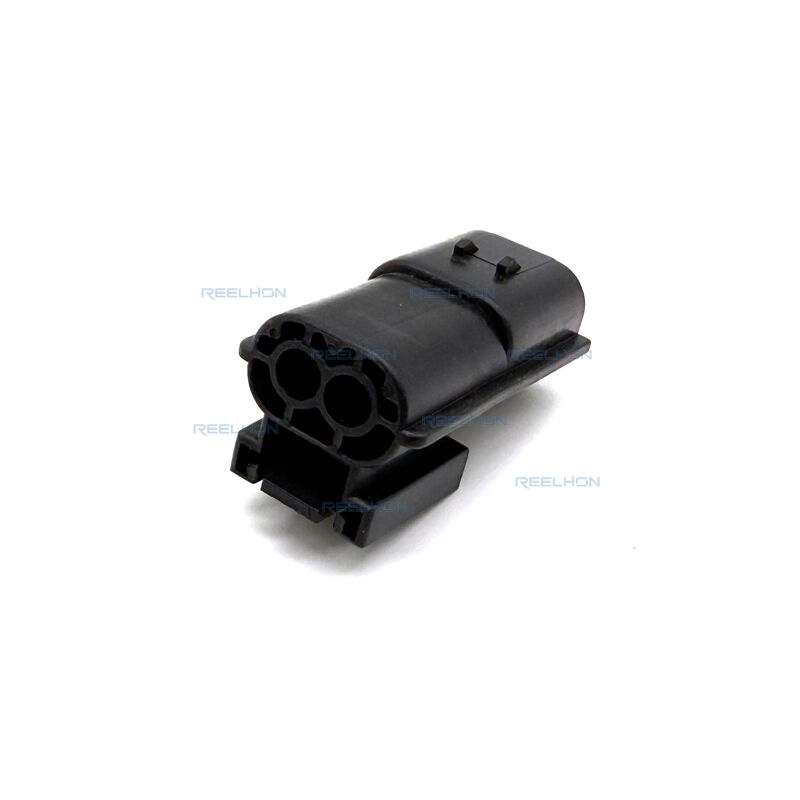

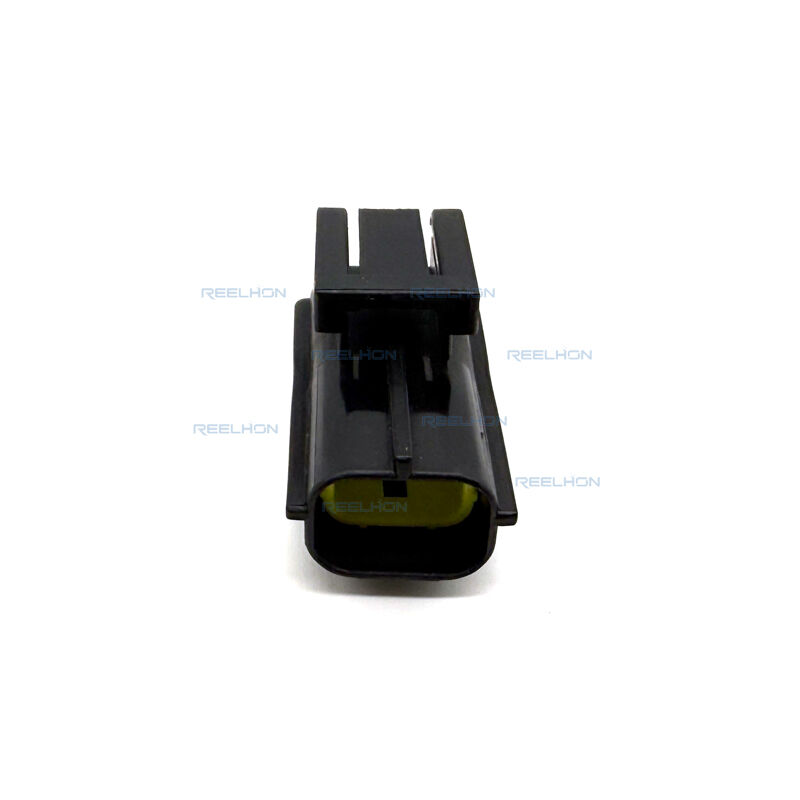

The 344274-1 is a 2-position housing for male terminals from the Econoseal series. It is designed for wire-to-wire applications with a black housing color. The connector features a single-row configuration with 2 positions on a 4.8 mm [.188 in] centerline pitch. The housing is unsealable and mounts via cable mount (free-hanging). It terminates to wire and cable.

(2) Key Features and Requirements

Product Type Features:
Mixed & Hybrid Connector: No
Connector & Housing Type: Housing for Male Terminals
Sealable: No
Connector & Contact Terminates To: Wire & Cable
Configuration Features:
Number of Positions: 2
Number of Rows: 1
Body Features:
Primary Product Color: Black
Mechanical Attachment:
Connector Mounting Type: Cable Mount (Free-Hanging)
Housing Features:
Centerline (Pitch): 4.8 mm [.188 in]
Other:
Connector Position Assurance Capable: No

(3) Environmental and Regulatory Compliance

Based on the product page information:
EU RoHS Directive 2011/65/EU: Compliant
EU ELV Directive 2000/53/EC: Compliant
China RoHS 2 (MIIT Order No. 32, 2016): No Restricted Materials Above Threshold
EU REACH Regulation (EC) No. 1907/2006: Current ECHA Candidate List: JUNE 2023 (235). Declared against JUNE 2023 (235). Does not contain REACH SVHC.
Halogen Content: Low Halogen – Br, Cl, F, I < 900 ppm per homogeneous material. Also BFR/CFR/PVC Free.
Solder Process Capability: Not applicable for solder process capability.

(4) Performance Requirements

No performance test data (e.g., insertion force, extraction force, temperature rating, insulation resistance) are provided in the available material.

(5) Applicable Wire Sizes

Not specified in the provided material.

(6) Mating and Accessories

The document indicates compatible parts under “Also in the Series | Econoseal” but does not list specific part numbers.

(7) Conclusion

The 344274-1 is a 2-position, black, unsealable housing for male terminals. It belongs to the Econoseal series and is intended for wire-to-wire cable mount applications. The centerline pitch is 4.8 mm [.188 in]. The product is RoHS, ELV, China RoHS, and REACH compliant with low halogen content. No data on operating temperature range, terminal size, housing material, or packaging quantity are provided in the supplied material.
