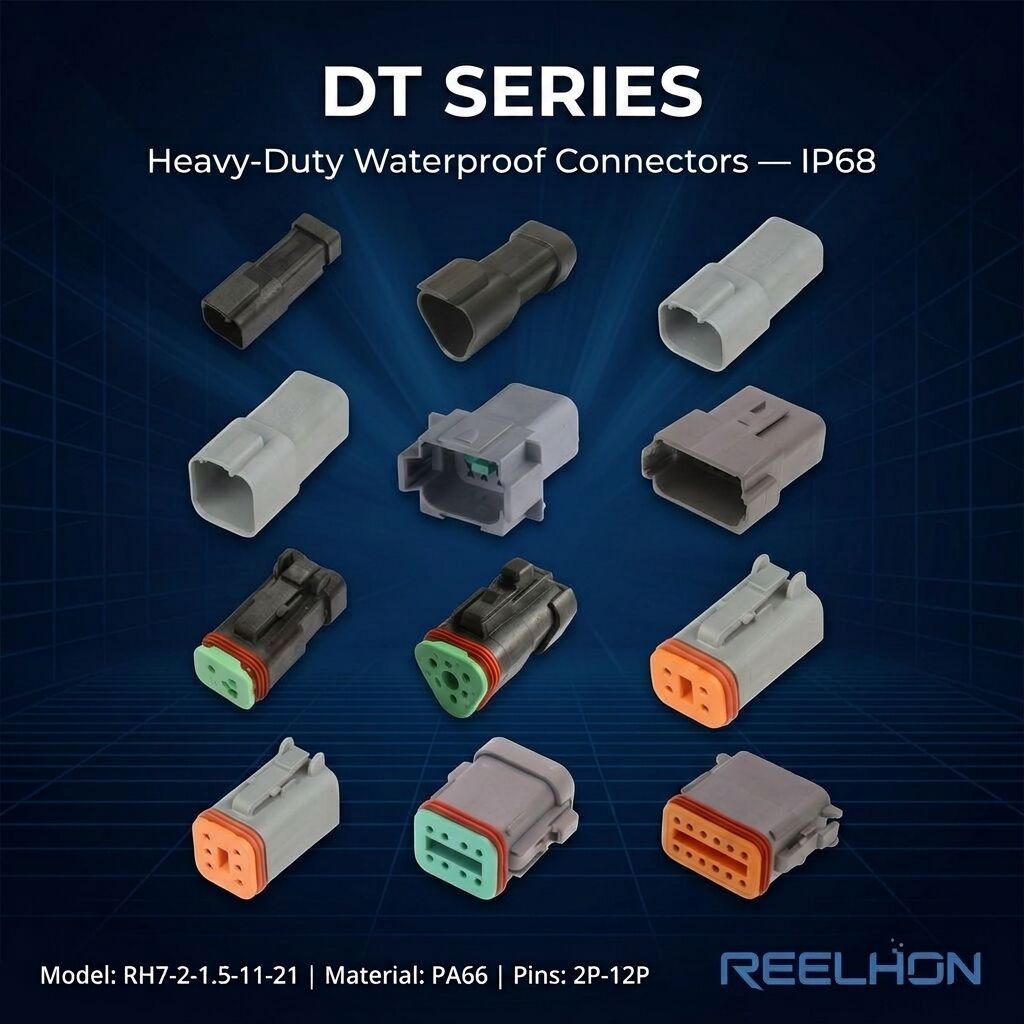

2 3 4 6 8 12 Pin Heavy-Duty Waterproof Electric DT04 DT06 Auto Connector

Model No.	RH7-2-1.5-11-21
OE No.	DT06-6S-E004
Brand Benchmark	Deutsch - DT Series
Core Specifications	Cavities: 6 Pin (Dual Row) Terminal Size: Size 16 (1.59mm) Max. Current: 13A Voltage: 250V
Protection Rating	IP68
Material / Color	Material: PA GF (Nylon with Glass Fiber) Color: Industrial Gray
Operating Temperature	-55°C to +125°C
Certificates	ISO9001, CE

Hot Market	USA, Australia, Germany. These regions possess highly mature markets in mining, large-scale modern agriculture, and long-haul heavy truck leasing, maintaining stable and consistent demand for the DT06-6S-E004 series.
Main Audience	Heavy equipment maintenance managers, specialized vehicle wiring harness engineers, and agricultural machinery distributors. They prioritize "zero downtime" and "convenience of on-site installation" as their core requirements.
Applicable Vehicles	1. Construction Machinery: Caterpillar, Komatsu. 2. Agricultural Equipment: John Deere, Case IH. 3. Heavy Trucks: Kenworth, Peterbilt.
Key Features	1. Highly Stable Current Carrying: The 13A current rating ensures power system signal transmission without attenuation. 2. Superior Sealing: The End Cap design not only protects the internal seals but also provides additional integrated strain relief for the cable. 3. Error-Proof Design: Features physical polarization mechanisms to ensure accurate blind mating even in dim or cramped engine compartments.
Professional Description	The Reelhon DT06-6S series is engineered for critical power and signal circuits. Featuring a rugged PA GF (Glass-Filled Polyamide) housing and a secure integrated locking mechanism, it withstands intense vibration and harsh chemical exposure. With IP68 rating, it represents the industry benchmark for heavy-duty reliability and long-term field performance.
